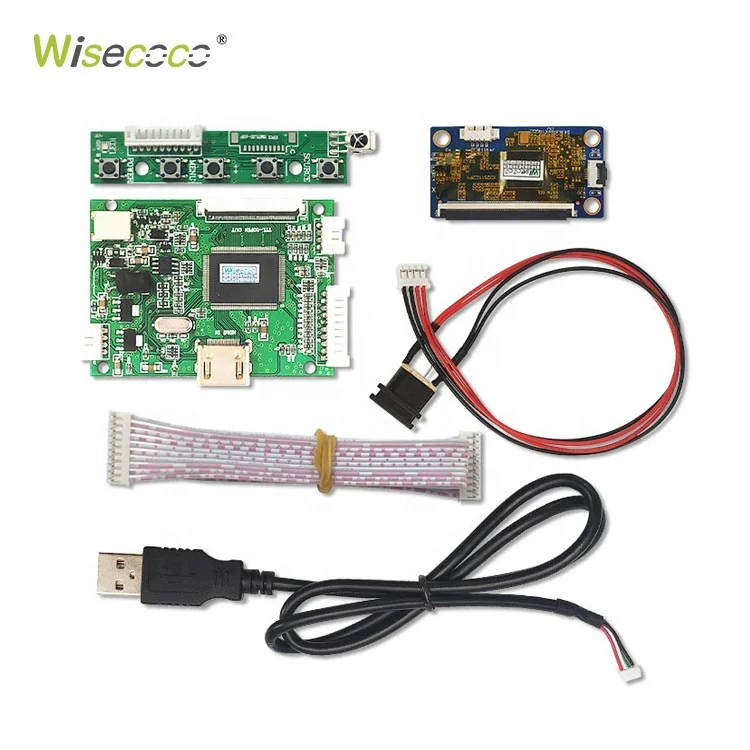

8 дюймов 800*600 пользовательская RGB светодиодная подсветка TFT промышленный сенсорный Fpc ЖК дисплей Панель экранов модуль контроллера платы драйвера
- Category: LCD Touch Screen >>>
- Supplier: Shenzhen Huai Zhi Technology Co. Limited
Share on (62231990406):
Product Overview
Description
Product Description

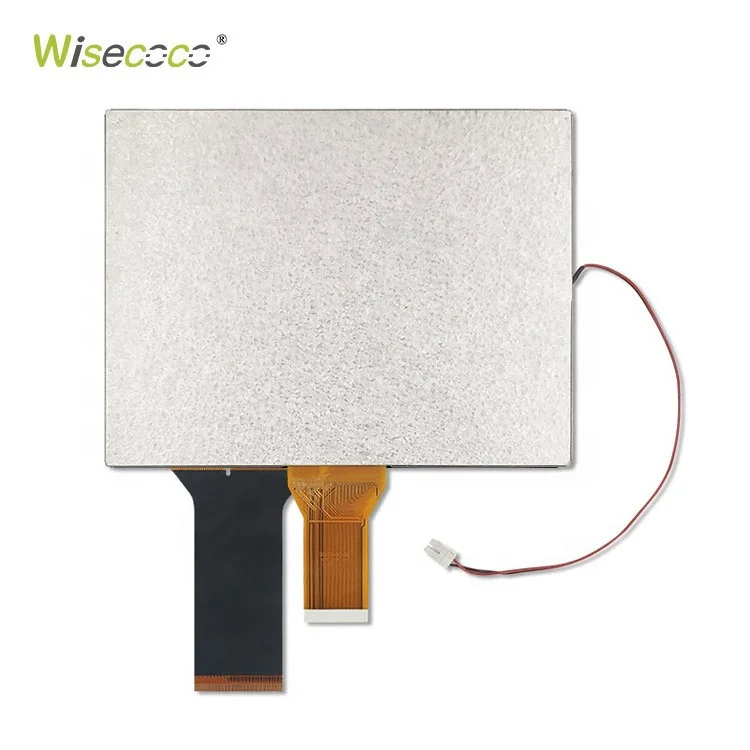

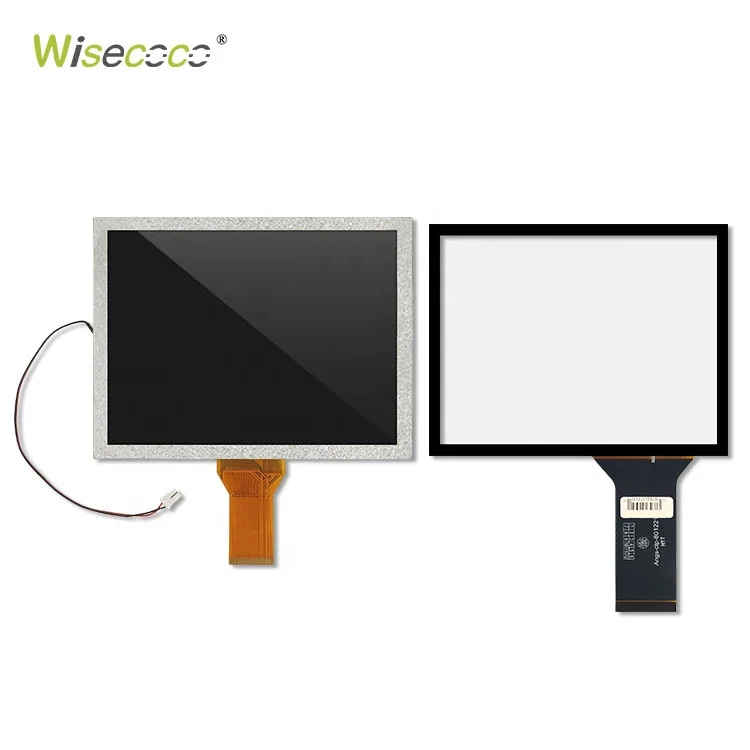

8 inch custom rgb led backlight tft industrial touch screen fpc lcd display panel screens module controller driver board 800x600
General Features | |||
Diagonal Size | 8 inch | Type | a-Si TFT-LCD, LCM |
Pixel Format | 800(RGB)*600 , SVGA | Configuration | RGB Vertical Stripe |

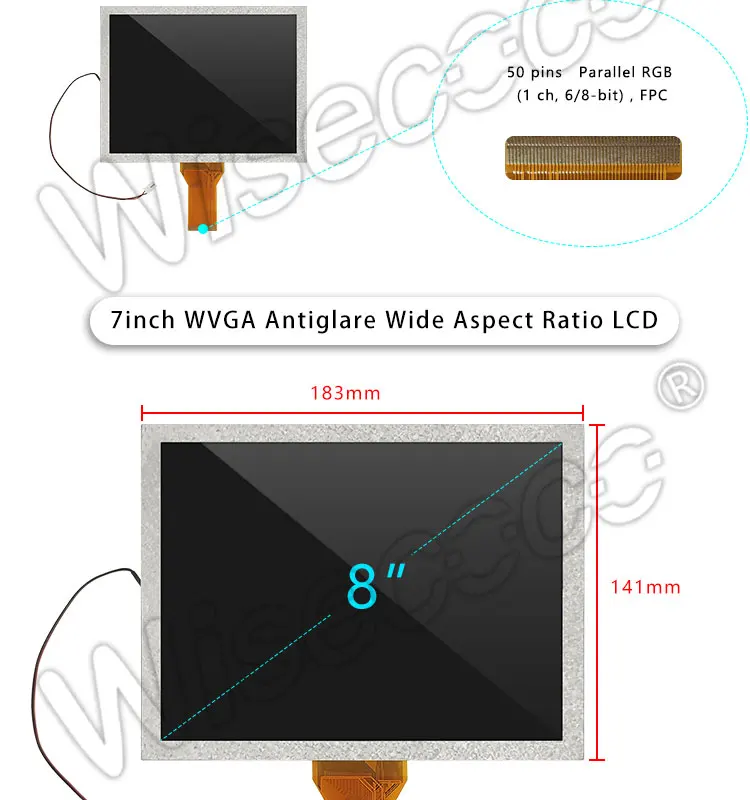

Active Area | 162(W)*121.5(H) mm | Outline Dim. | 183(W)*141(H) mm |

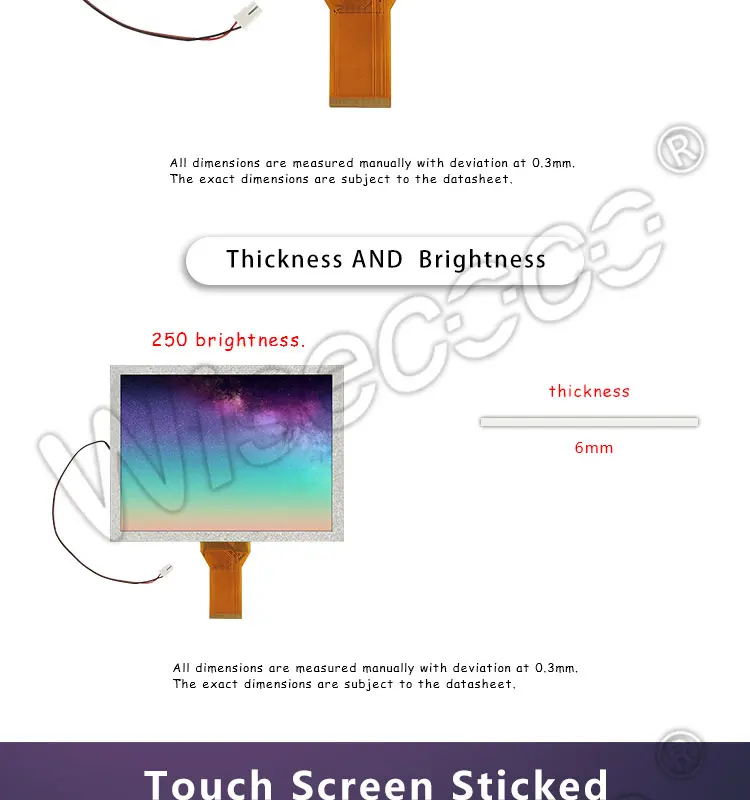

Luminance | 250 Cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (TM) |
View Direction | 6 o'clock | Response Time | 10/15 (Typ.)(Tr/Td) |
Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
Dispaly Color | 262K/16.2M | Lamp Type | 3S9P WLED , 20K hours , Without Driver |

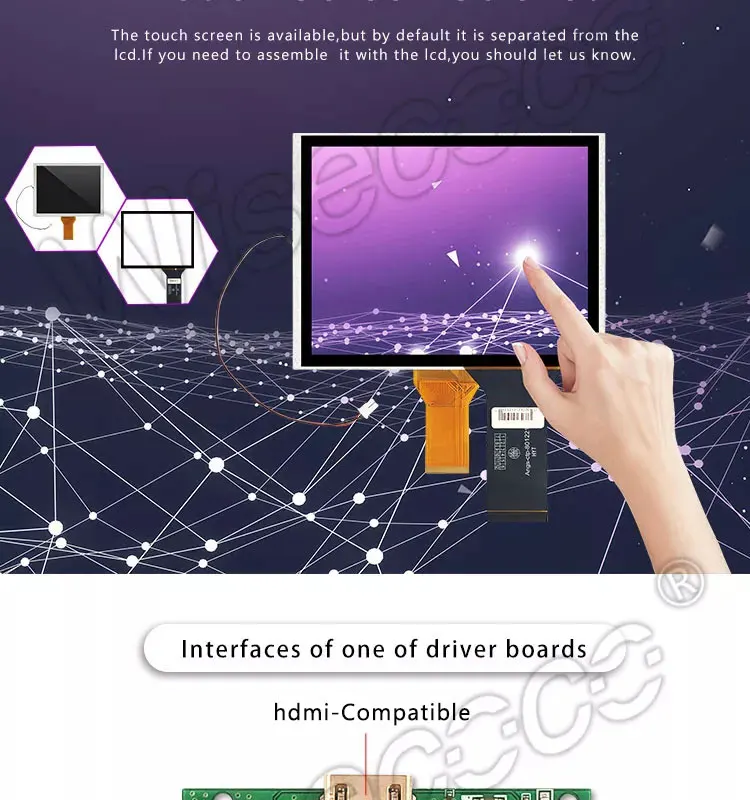

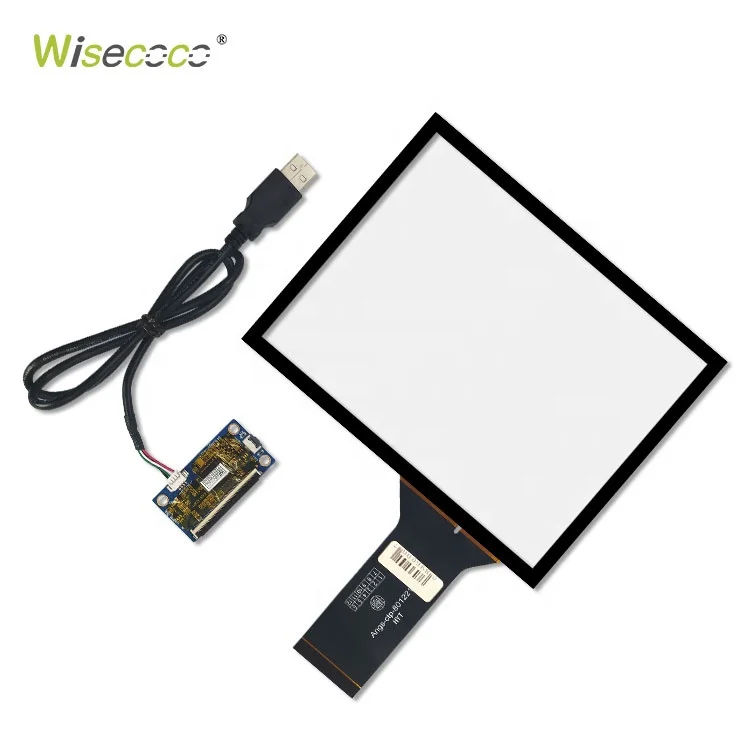

| Frame Rate | - | Touch Panel | Available |
Interface Type | Parallel RGB (1 ch, 6/8-bit) , 50 pins , FPC | ||
Power Supply | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | ||
Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
