coil winding machine for transformer12 spindle fully automated
- Category: Coil Winding Machine >>>
- Supplier: Dongguan,Huiyue,Automation,Equipment,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
coil winding machine for transformer12 spindle fully automated
1.This series of machine key components all imported from Japan, high reliability and durability, greatly increase the life of the machine
2.Design novel, simple structure, strong rigidity, simple operation, easy maintenance
3.Programmed by computer or touch screen, the freedom to choose, Chinese display easy to understand
4.Unique quick coupling fixture design, reducing the time change type
5.Guide the needle bar 0 °/90 °/135° optional to install, easy bobbin winding different angles
6.Use precision tension control with anti-tensioner, make the product line more neat row
7.Has optional automatic loading and unloading function, can greatly save time wound
8.With automatic clamp, break, rule out the waste line features
9.Increase the servo finger and feed unit can achieve precision winding small products
10.Password save feature, modify the program to prevent non-related personnel
The New- Transformer Coil Automatic Winding Machin
coil winding machine for transformer12 spindle fully automated
|

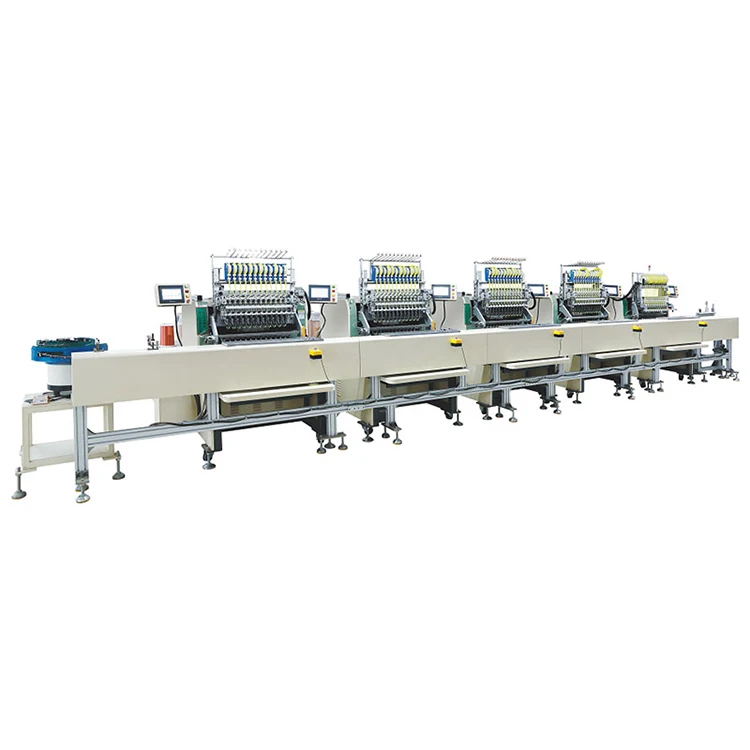

12-axis winding machine with vibration plate |
|
|
Spindle number |
12 |
|
Spindle speed |
12000 (rpm) |
|
Spindle pitch |
50/70 (mm) |
|
Spindle servo motor power |
3000 (W) |
|
Traverse motor power |
X:400, Y:400, Z:400 (W) |
|
Spindle diameter |
standard:10 special:12 (mm) |
|
Wire range |
0.02-0.4mm Add air pressure scissors and replace the motor Can be around 0.4mm or more |
|
Max.wire diameter |
45/65 (mm) |
|
Traverse moving range |
X:110, Y:150, Z:70 (mm) |
|
Traverse speed |
250 (mm/sec) |
|
Controller |
HYE-3 |
|
Power voltage |
220V,50/60 HZ (V) |
|
Power voltage |
3000W |
|
Air pressure |
0.45-0.55 (Mpa) |
|
Machine size |
1300(L)x1100(W)x1400(H) (mm) |
|
Machine weight |
640 KG |
coil winding machine for transformer12 spindle fully automated
Our Services
24 hour online technical support and 100% quality warranty for 12 months except consumable parts.
Our vision : created a century brand success for centuries
Our mission : to promote the progress and development of the most cost-effective automation technology
Our values : customer first, teamwork, loyalty, dedication, passion, dedication
Our business purpose : to satisfy customers, employees, businesses of both material and spiritual well-being
Our quality policy : quality is life, progress endless; service is fundamental, innovation to win
Our commitment : no excuses
Our two style : serious, fast
Our three thanksgiving : thanksgiving customers to create my performance,thanksgiving my career platform company, thanksgiving working with my colleagues
Packaging & Shipping
Wooden packing
Certifications
FAQ
16 - axis Transformer Coil Automatic Winding Machin FAQ:
Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
Q: Our required parameter is not standard,can made to order?
A: Our machines can made to order according to customer’s requirement.
Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc
Q: What is the payment term?
A: T/T , L/C.
Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
Q: What is the warranty period of the machine?
A: The warranty period is one year.Lifetime Maintenance
