Product Overview

Description

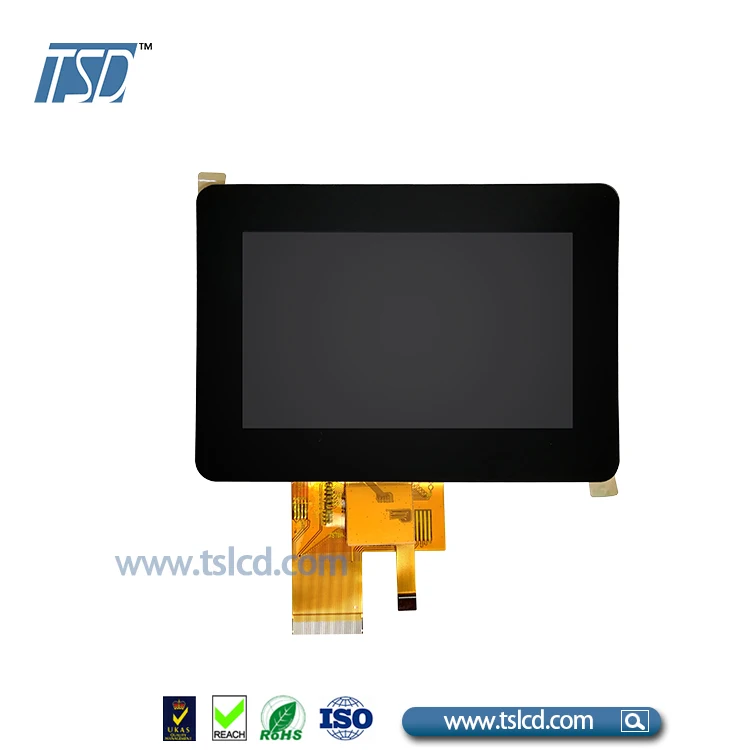

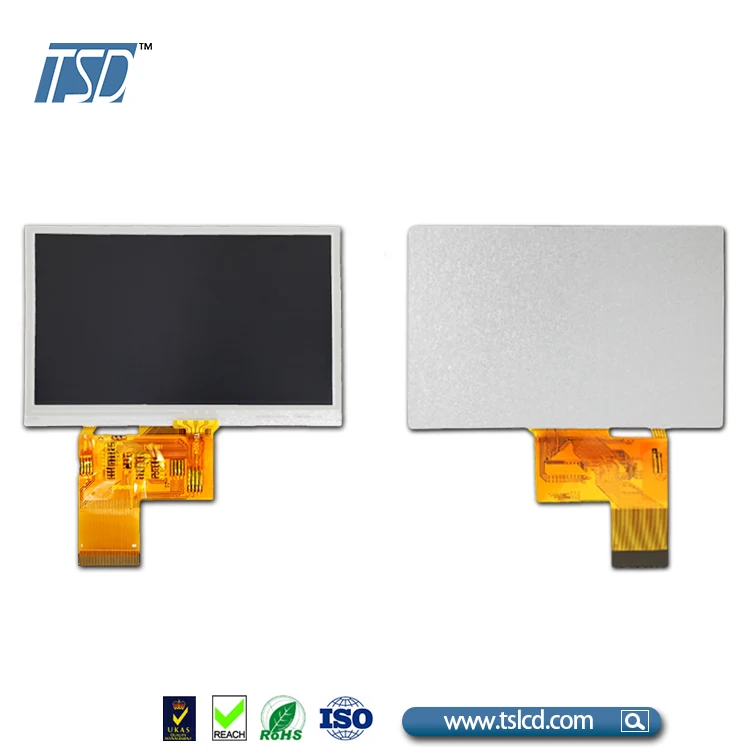

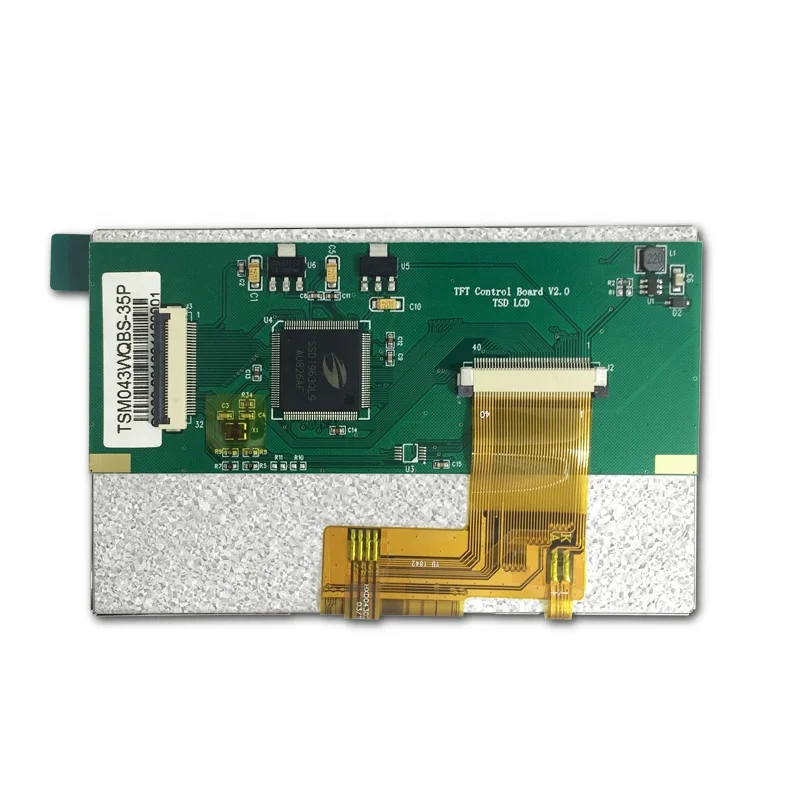

4.3inch TFT LCD Module 480x272 with Touch Panel Build in SSD1963







Display Mode	Transmissive, normally white
Display Type	4.3"(16:9 diagonal) inch configuration a-Si TFT
Display Format	Graphic 480RGB*272 Dot-matrix
input data	RGB interface 40pins
RTP Transmittance	96% Transmittance
Drive element	a-si TFT Active Matrix
Viewing angle	12H
high brightness	280nits
LCD Power Supply	3.3V for TFT circuit
Surface Treatment	Anti-Glare

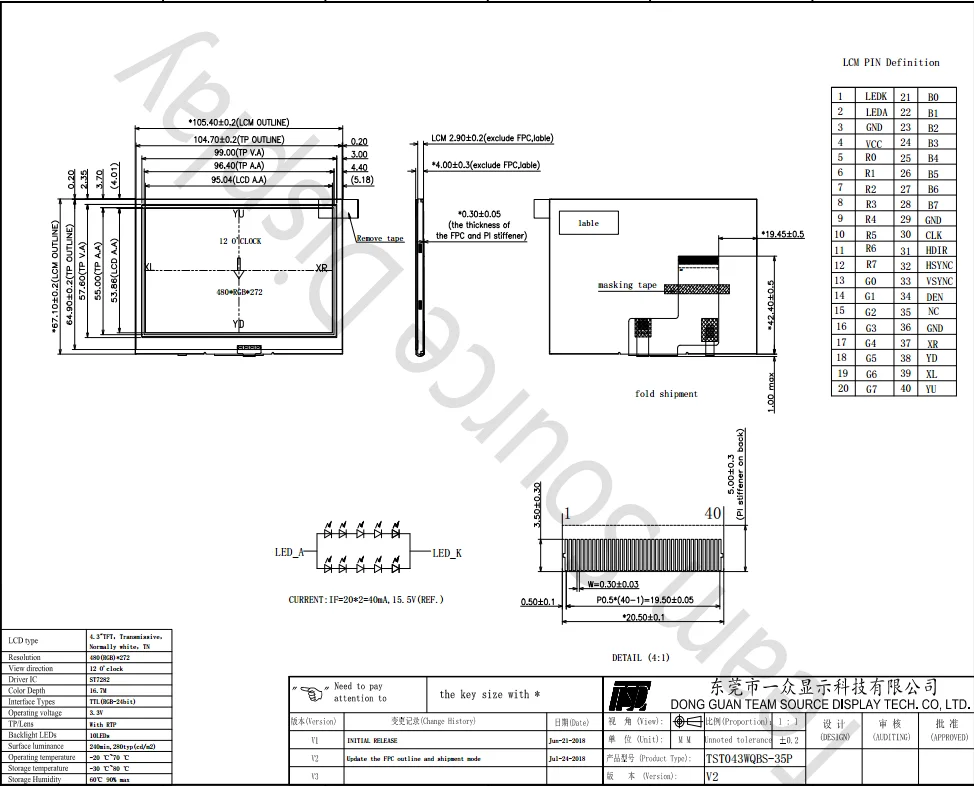

Dimension outline(mm)	105.4x67.1x4.0



















4.3 inch lcd screen with PCAP	cheapest 4.3 inch tft lcd module stock for sale





1.We are professional LCD module manufacture in China with precise and advanced equipments.

 2.High quality Control with CE,ROHS and so on approved.

 3.More than 10 years of industry experience and involved main markets all over the world

 4.Dedicated and professional sales team will offer you 24 hours online and immediate service

 5.OEM and ODM support,12 months warranty for all of our products

 6.Our mission is to help our customers achieve success, then fulfill our both dreams



Pre-sales service :

1.Our team design and make solutions based on different requirements from different customers.

 2.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.



After-sales services:

1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.

 2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

 3. We have professional engineer  customer to keep fastly reply.
