Product Overview

Description

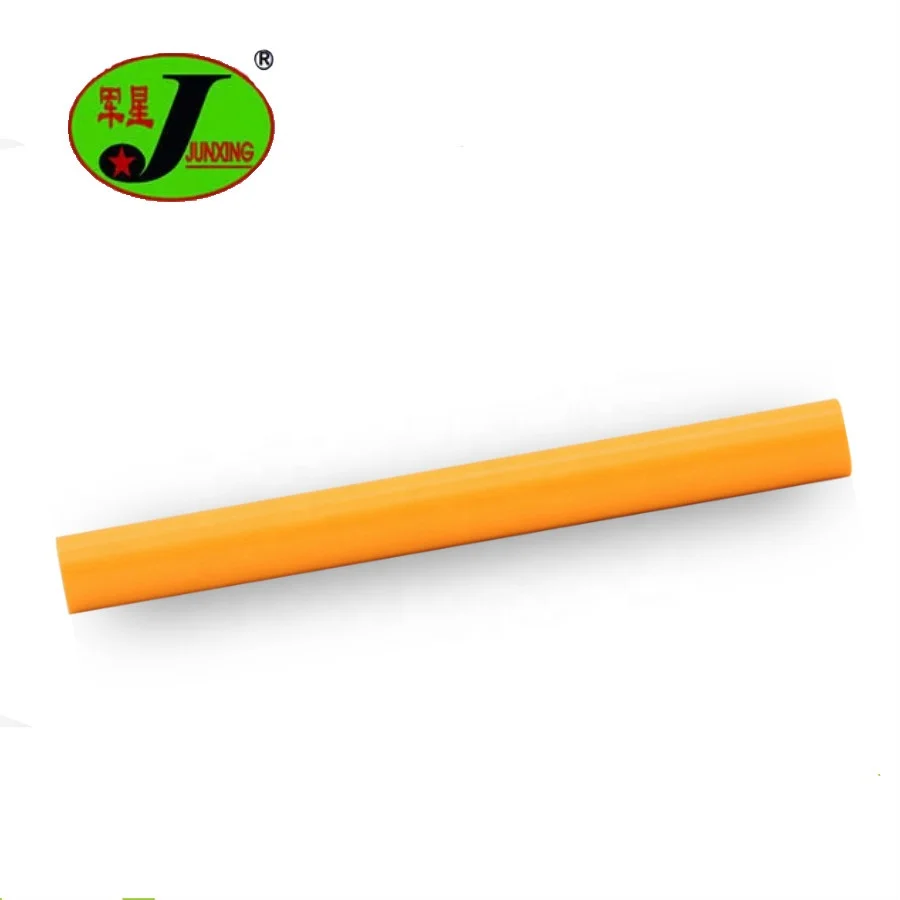

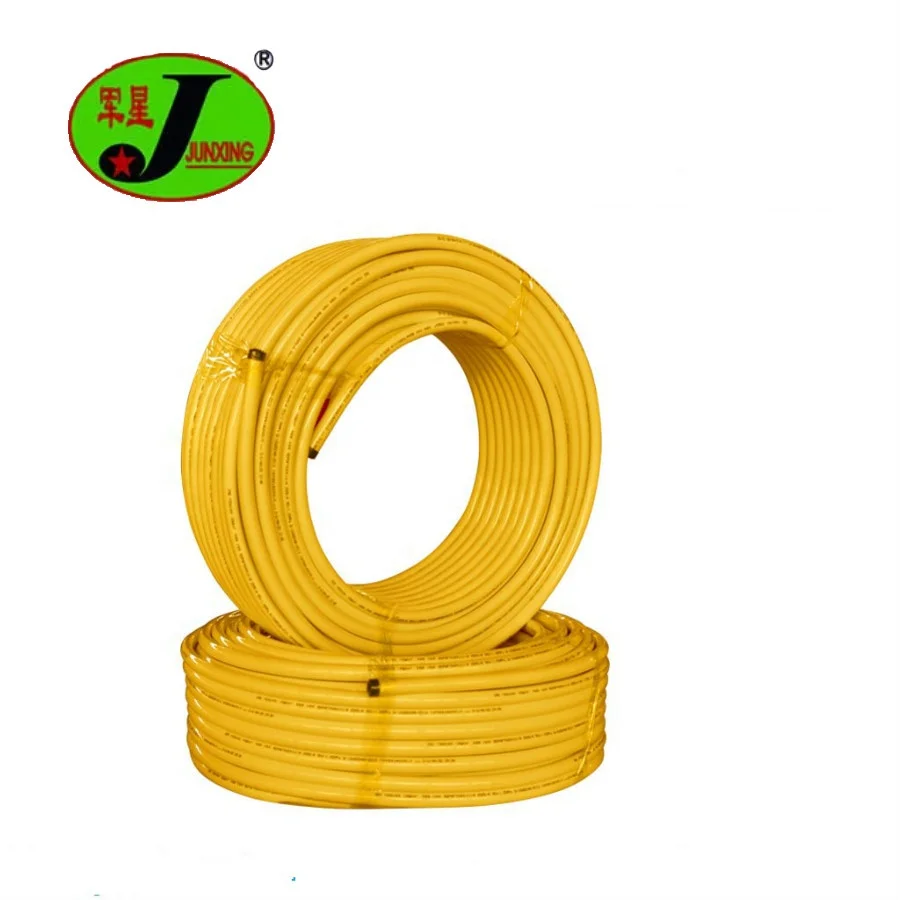

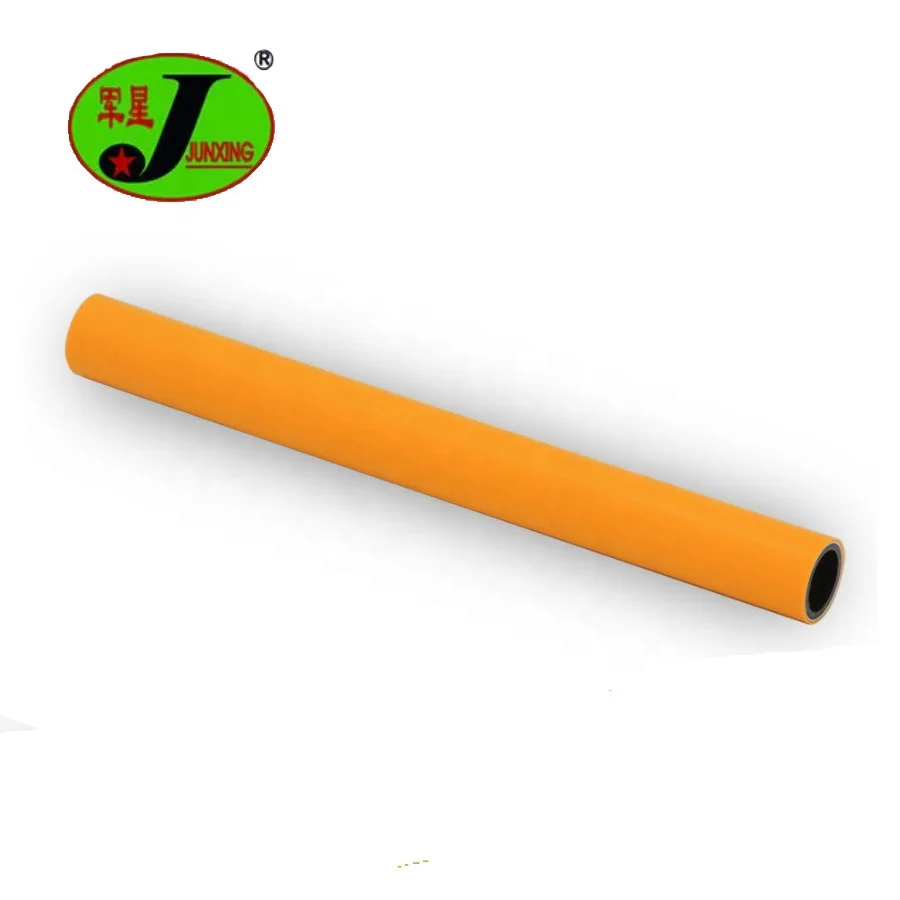

Junxing 16mm pex/al/pex pipe pex al pex multilayer pipe for gas

Hot water heat supply system.

Domestic boiler pipe for heat supply and water supply.

Bathing waters supply system(solor water heater,electric heater,etc)

Transportation for low pressure liquid of civil use(hot and cold water, drinking water,air condition, firefighting and fuel gas.)



PEX-AL-PEX pipe is a five-layer composite pipe that combines the advantages of a metal and plastic pipe.



Specification of PEX-AL-PEX pipe:   wavin pex multilayer flexible pipe pex-al-pex pipe

Product	Nominal Diameter     (mm)	Inner Diameter  (mm)	Thickness of aluminium layer   (mm)	Length
PE-AL-PE pipe;                 PEX-AL-PEX pipe;                         PERT-AL-PERT pipe;	16	12	0.25	100~300Meters/roll
	20	16	0.3
	25	20	0.35
	32	32	0.5



Physical Performance of PEX-AL-PEX pipe:

Item	Requirement
coefficient of thermal conductivity, W/m.k	0.45
coefficient of thermal expansion, M/m.k	2.5x10-5
benging radius	≥5D
working temperature	-40~+98
working pressure	≤1.25
radial force	2300~2650
bursting strength	4.0~6.0

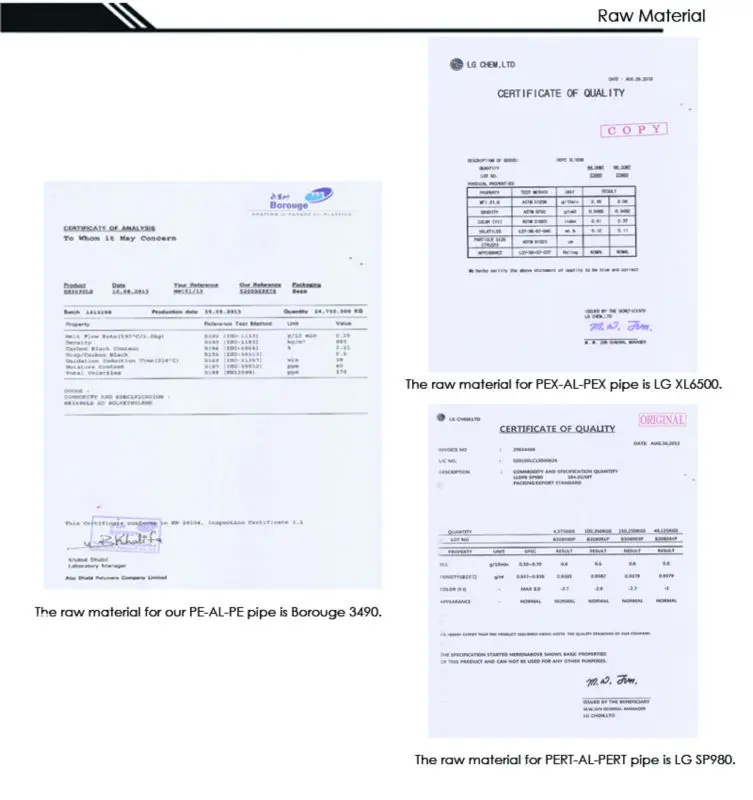

1. The raw material for our PEX-AL-PEX pipe is LG XL6500 from South Korea.

2. The raw material for our PERT-AL-PERT pipe is LG SP980 from South Korea.

3. The raw material for our PE-AL-PE pipe is Borouge 3490.
