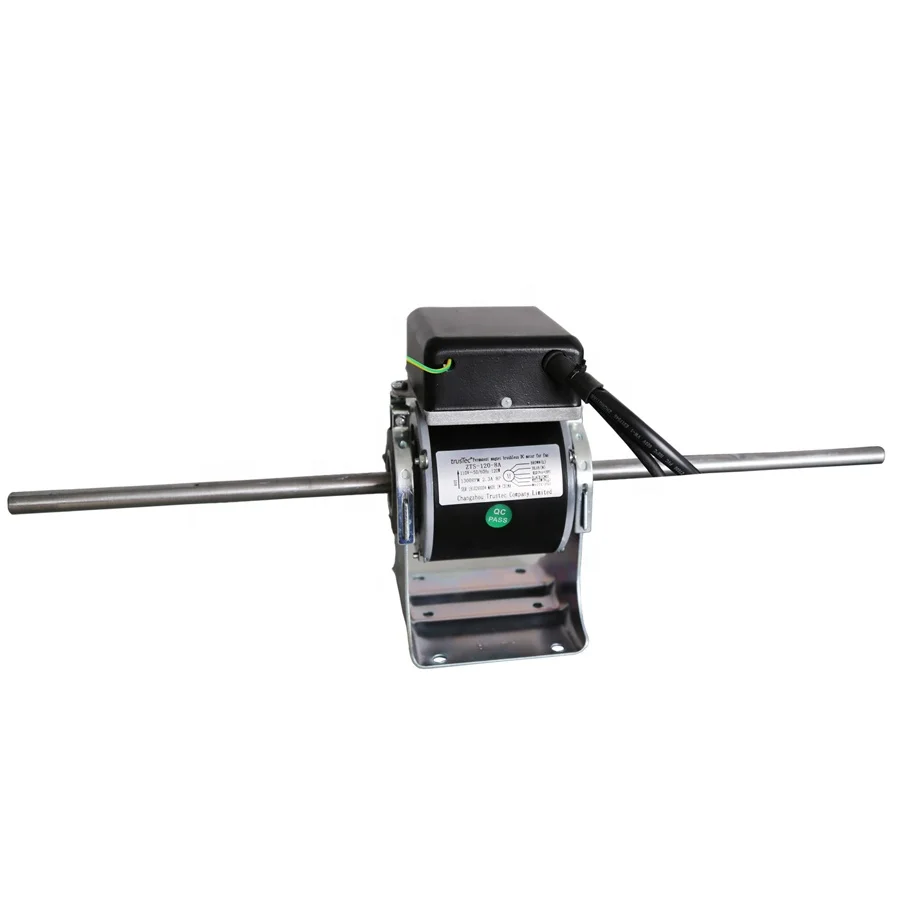

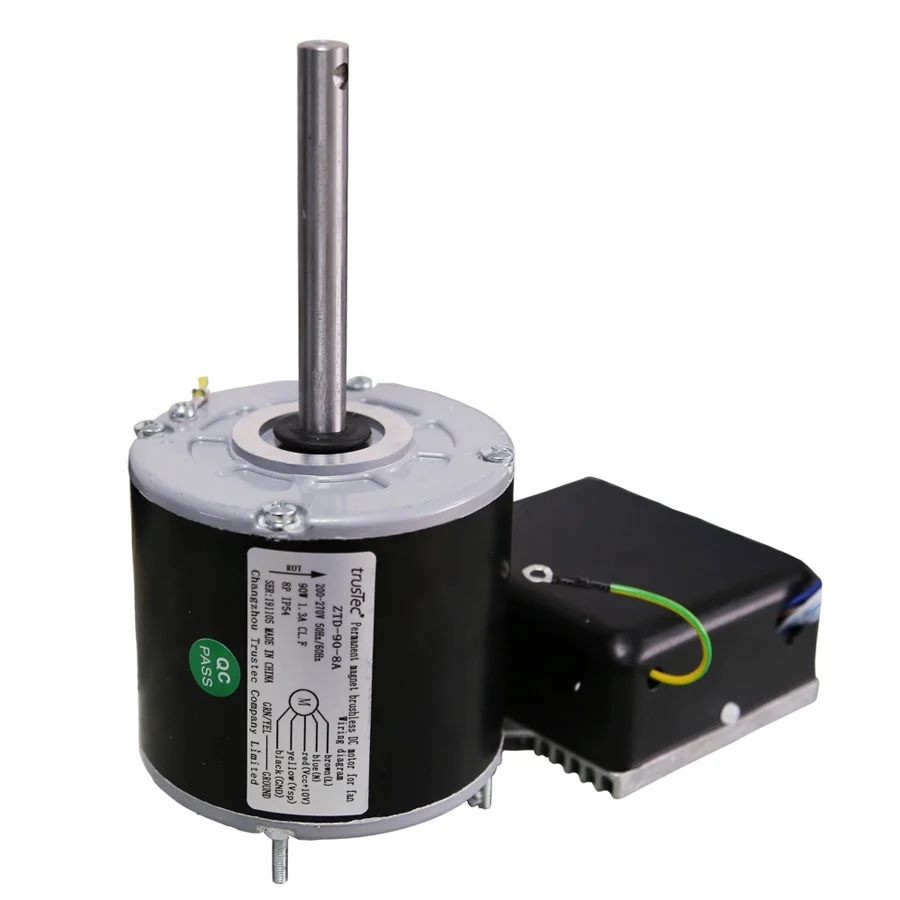

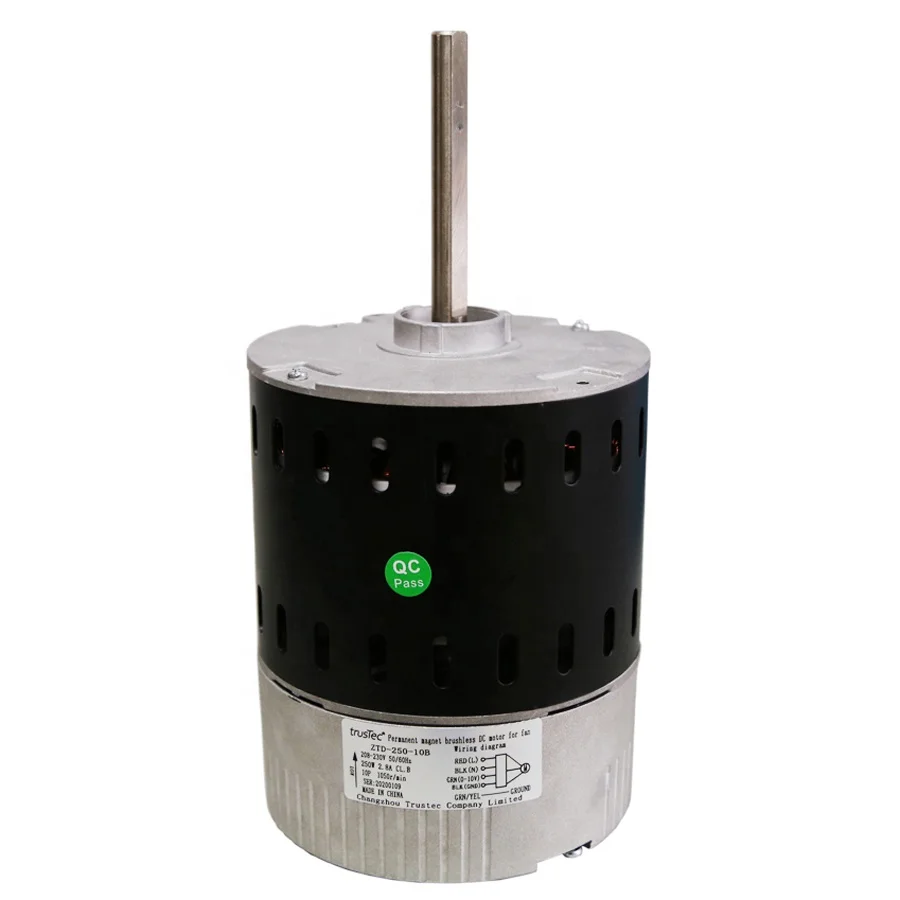

bldc electric 500 watt fan coil unit motor
bldc electric 500 watt fan coil unit motor
bldc electric 500 watt fan coil unit motor
bldc electric 500 watt fan coil unit motor
bldc electric 500 watt fan coil unit motor
bldc electric 500 watt fan coil unit motor
bldc electric 500 watt fan coil unit motor

bldc electric 500 watt fan coil unit motor

Share on (62232770568):


Price:$140.00

Quantity:


Product Overview

Description



Product Details




Product Application:

HVAC/R fields: air conditioners, centrifugal fans, duct air conditioning unit, treating plant, variable air volume system, etc.



Product Features:

1. Ttrustec EC motor can be AC 110V/220V 50Hz/60Hz or DC 24V/48V/310V input.
2. Ttrustec EC motor is up to 85% efficiency, power factor 0.5~0.6 .
3. Ttrustec EC motor can be 0-10VDC/PWM variable speed, multi speeds or single speed.
4. Ttrustec EC motor uses sensorless vector field-oriented control(FOC), lower material cost and smaller failure rate
because of no hall sensor, higher efficiency, lower noise, smoother performance curves.

5. Use low noise high quality ball bearing; Nickel plating for shaft, electrophoretic coating for enclosure; IP20~IP54, Insulation Class B/F available.



Technical parameters:



Model
Voltage
V
Input Power
W
Current
A
Output Power
W
Speed
RPM
ZTD/ZTS-10-8
24/48
14
0.60/0.30
10
300~3000
ZTD/ZTS-20-8
24/48
28
1.17/0.59
20
300~3000
ZTD/ZTS-30-8
24/48/310
42
1.74/0.87/0.13
30
300~3000
ZTD/ZTS-40-8
24/48/310
55
2.28/1.14/0.18
40
300~3000
ZTD/ZTS-50-8
24/48/310
67
2.78/1.41/0.22
50
300~3000
ZTD/ZTS-60-8
24/48/310
80
3.33/1.67/0.26
60
300~3000
ZTD/ZTS-80-8
48/310
107
2.22/0.34
80
300~3000
ZTD/ZTS-100-8
48/310
132
2.74/0.42
100
300~3000
ZTD/ZTS-150-10
48/310
195
4.06/0.63
150
300~3000
ZTD/ZTS-200-10
310
256
0.83
200
300~3000
ZTD/ZTS-300-10
310
378
1.22
300
300~3000
ZTD/ZTS-500-10
310
625
2.02
500
300~3000


Model
Voltage
V
Frequency
Hz
Input Power
W
Current
A
Output Power
W
Speed
RPM
ZTD/ZTS-10-8
110/220
50/60
13
0.22/0.11
10
300~3000
ZTD/ZTS-30-8
110/220
50/60
40
0.66/0.33
30
300~3000
ZTD/ZTS-60-8
110/220
50/60
75
1.24/0.62
60
300~3000
ZTD/ZTS-90-8
110/220
50/60
113
1.86/0.93
90
300~3000
ZTD/ZTS-120-8
110/220
50/60
150
2.48/1.24
120
300~3000
ZTD/ZTS-150-10
110/220
50/60
183
3.02/1.51
150
300~3000
ZTD/ZTS-200-10
110/220
50/60
244
4.03/2.02
200
300~3000
ZTD/ZTS-300-10
110/220
50/60
353
5.83/2.92
300
300~3000
ZTD/ZTS-500-10
110/220
50/60
588
9.72/4.86
500
300~3000
ZTD/ZTS-750-10
110/220
50/60
882
14.58/7.29
750
300~3000


Listed are representative motors, technical parameter and mounting dimension can be customized according to customer's requirement.



Our Products




AC Motor Model
Output Power
W
Input Voltage
V
Frequency
Hz
Speed
RPM
3.3''
5~250
110
220
380
50/60
600~3600
(1/2/3/Multi speed)
YDK/YSK95
6~40



YDK/YSK110
10~150



YDK/YSK120
30~300



YDK/YSK139
150~1100



YDK/YSK155
550~3000



EC Motor Model
Output Power
W
Input Voltage
V
Frequency
Hz
Speed
RPM
ZTD/ZTS94
10~120
DC 24/48/310
AC 110/220
50/60(AC)
300~3000
variable speed
ZTD/ZTS139
150~750





Product Application




Our Service


ODM

1. Depending on trusTec team's powerful designing and manufacturing ability, customers' special needs of the motors and fans, including performance parameters and mounting dimensions, will be perfectly fulfilled.
2. The beneficial ODM co-operative relation will be warmly established with trust and loyalty.

Quality Guarantee

1. All motors from trusTec are manufactured by strictly following the ISO9001 quality management system.
2. All motors enjoy at least 2 full years warranty since leaving the factory.
3. 100% replacement is guaranteed for any defect among the warranty period.



One-stop service.

1. Trustec company is not only a quality and competitive products manufacturing & sales enterprise, but also a reliable solution supplier for customers around the world.
2. From quick demand response, professional and high efficient following up, to helping optimize shipping & save cost, offering overseas technical support, trusTec will ensure customers the best matched motors and fans, as well as the best service.
3. Customers and partners will win the market without any worries behind, depending on trusTec team's after-sale service as a warm and powerful support.



Our Company




Changzhou Trustec Company is focus on the design and production of blower fan and motor over 10 years.
The monthly capacity can achieve to 100000pcs motors for HVAC&R line.
The brand name is trusTec, her lively meaning is to TRUST our Teams' Efficiency and Competence.
trusTec branded fan and motors have been exported to more than 60 countries and have been approved by the global markets.



FAQ


Q: Do you have the certificates?
A: All trusTec motors and fans have been approved by CE & ROHS, some have UL certification.


Q: How can you ensure the motor can drive the machine?
A: Our factory elaborately choose 100% pure copper wire and capacitor with appropriate volume, our professional manager is able to provide you accurate purchase guide.


Q: How can you control the noise?
A: Our producers carefully check the drawing and process the shaft and end cover; our inspectors check the dynamic balance repeatedly.


Q: How can you decrease the heat production?
A: Totally copper line lead to less heat production; IP55 class insulation paper avoid cutting-out; multiple inspections ensure no carelessness exist; professional application guidance.


Q: Do you attend exhibitions?
A: Every year we attend 4-5 HVAC&R fairs held in Asia, Europe, Mid east and America.
When you want to approve us, you can visit the exhibition nearby or directly visit us in China.
