MPR5000S:Industrial Universal Digital 16/32Multi Channel Color Paperless Temperature Chart Recorder with USB RS485
- Category: >>>
- Supplier: Xiamen Madincos Automation Co. Ltd.
Share on (62232910052):
Product Overview
Description
Product Show
MPR5000S
Application: Petroleum, Chemical, Pharmaceutical, Metallurgy, Paper, Electricity, Nuclear power, Food, Cement, Building, aviation, Medical University lab, Marine, Sewage treatment etc.
16/32Multi Channel Industrial Universal Digital Color Paperless Pressure and Temperature Chart Recorder withUSB+RS485 MPR5000S | ||||||
Accuracy | ±(0.2%FS +1) digital | |||||
Display | 7' Color LCD TFT | |||||
Size/Installation Size | 180x150x160mm/ 138x138mm | |||||
Power supply | 100-240VAC | |||||
Sampling & Memory Specification | ||||||
Sampling | 1 second per 8channels | |||||
Memory capacity can be set flexibly according to the memory interval time setting. | ||||||
Huge capacity for Long time data saving up to 10 years with power -off protection | ||||||
Memory Interval time | 1, 2.......3600seconds, can be set flexibly as required in recorder | |||||

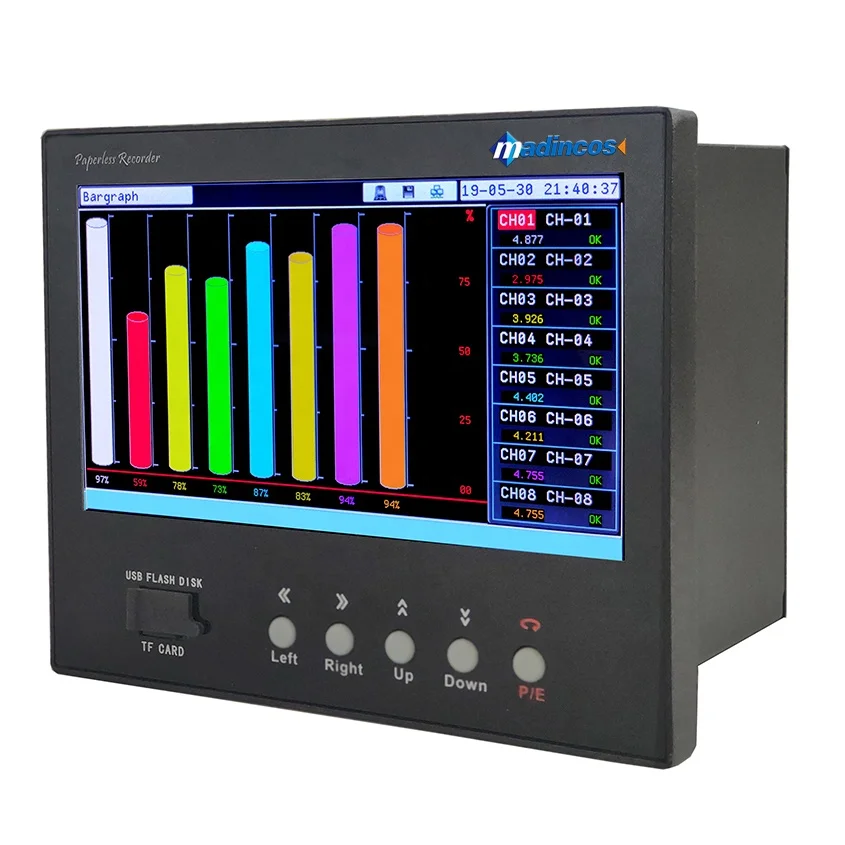

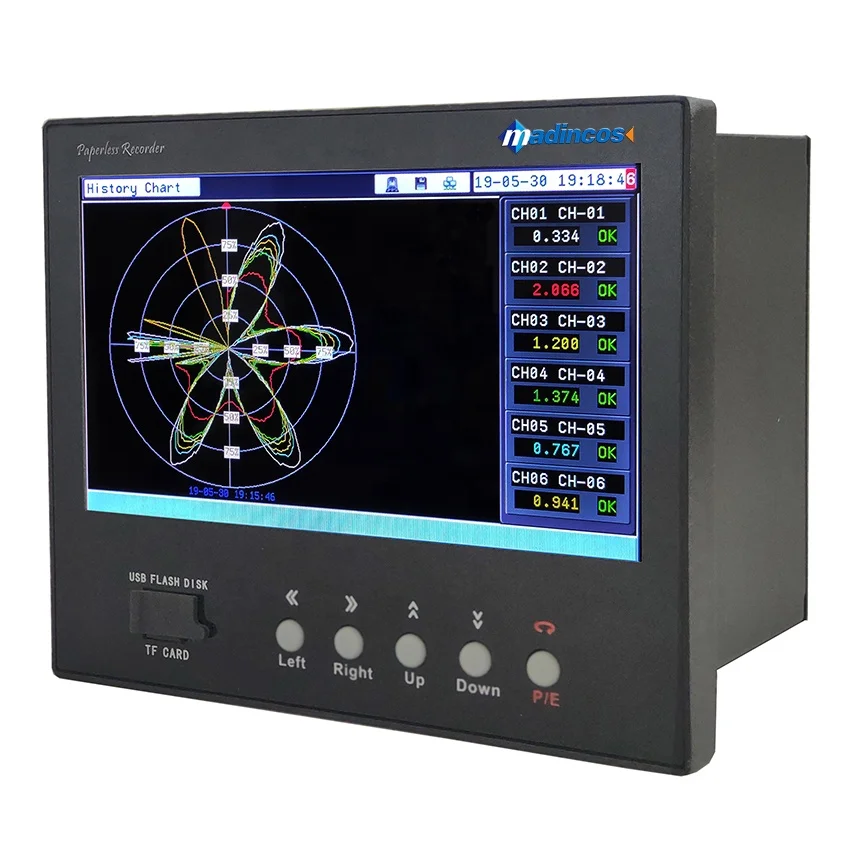

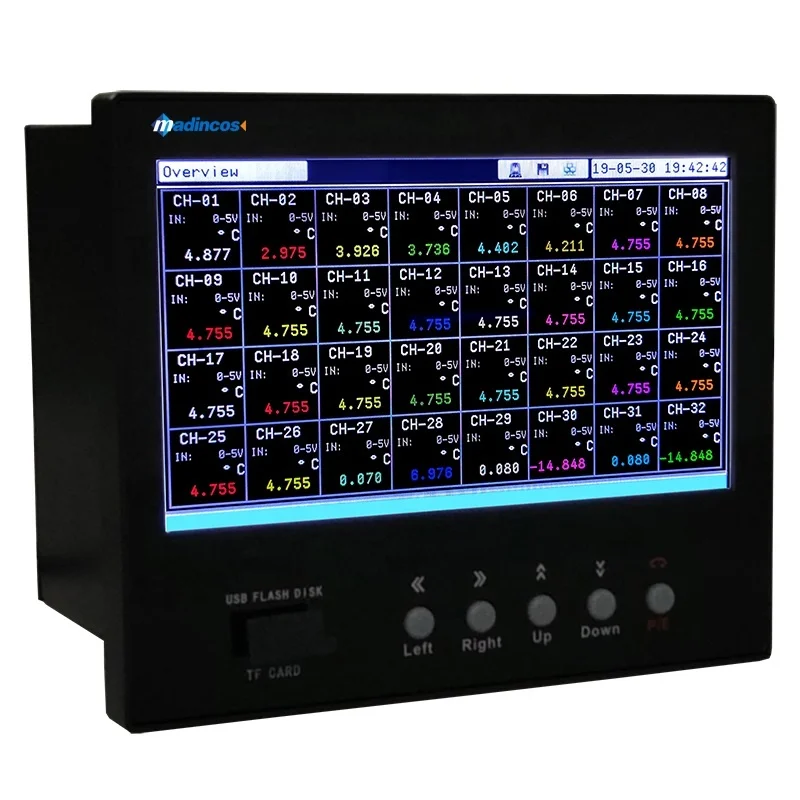

Screen Display | Various screen display in digital, trend, barograph, circular chat display | |||||
PC software | Powerful software function: to display memorized data in digital curve, Print Data and export the data to excel for further analysis. | |||||
Input & Output Specifiation | ||||||

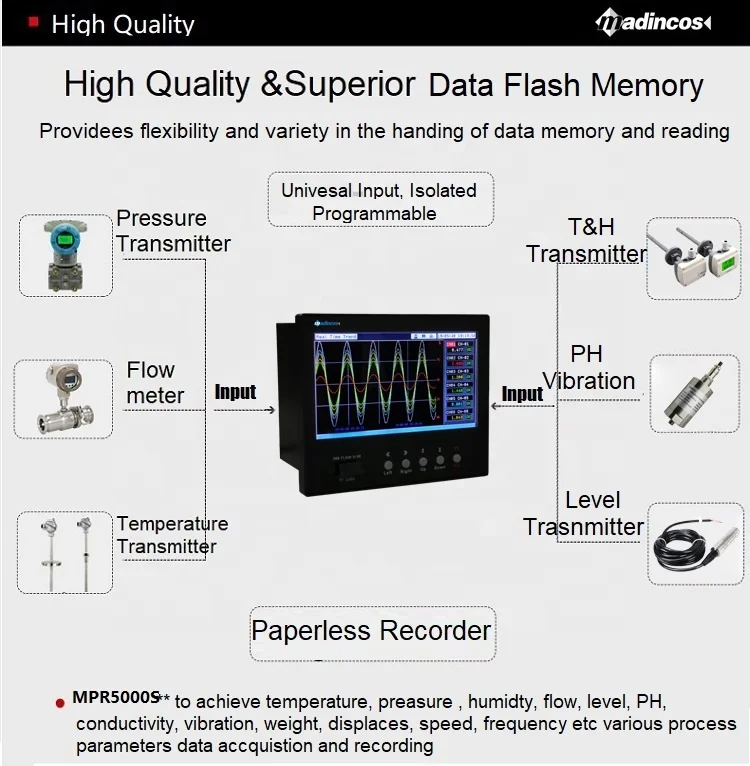

Univeral Input | Themocouple, RTD, Analog;: 4-20ma, 0-10ma, 0-5vdc,1-5vdc,0-10vdc,0-500mV,frequency input; programmable | |||||
Input Channels | 1,2,3,4,5,6,7,8......16.....24....32, optional | |||||
Channels Isolation | 400VAC photoelectrical isolation | |||||
Sample Rate | 1 seconds /8 channels | |||||
Relay output | 3A, NO, max 16 relay output, configurable for channels | |||||
RS485 communication | standard Modbus-rtu protocol, | |||||
Ethernet Communication | standard Etherent MODBUS-TCP/IP protocol | |||||
feed output | auxiliary 24VDC output for transmitter | |||||
Print | printing output for data in digital and curve | |||||
Flow totalizer | with temperature, pressure compensation for channels | |||||
Math | +, -, x, /, ,max, min, average; linear math | |||||
Detailed Images
USB Data Transferring, Plug and Play
*Huge Capacity 8G USB pen driver for data transfer automatically only for 1-2 munities when u need to transfer the data, Fast and Easy operation.
* Powerful PC software
To display and read the memoried data in digital and curve, print the chart data.; also export the data as Excel for further analysis.
Remote Real Time Reading and Monitoring
*Photoelectrical isolated RS485 communication output
*Standard MODBUS-RTU protocol, can be configurable flexibly with SCADA, DCS, PLC, HMI, OPC server for real time reading and monitoring in control room remotely
*Powerful PC software
real time monitoring and reading while memory data in PC automatically
Packing & Delivery
Packaging | ||
Size | 180(L) * 150 (W) * 160(D)mm | |
Weight | 2.5kg | |
Packaging &Delivery | Package: The normal package is paper box(Size: 250L*230W*230HMM). PC+Bubble box +paper box with prection further to garantee the delivery the goods to you great. Delivery: by DHL, TNT, UPS, FEDEX; by air, by sea | |
