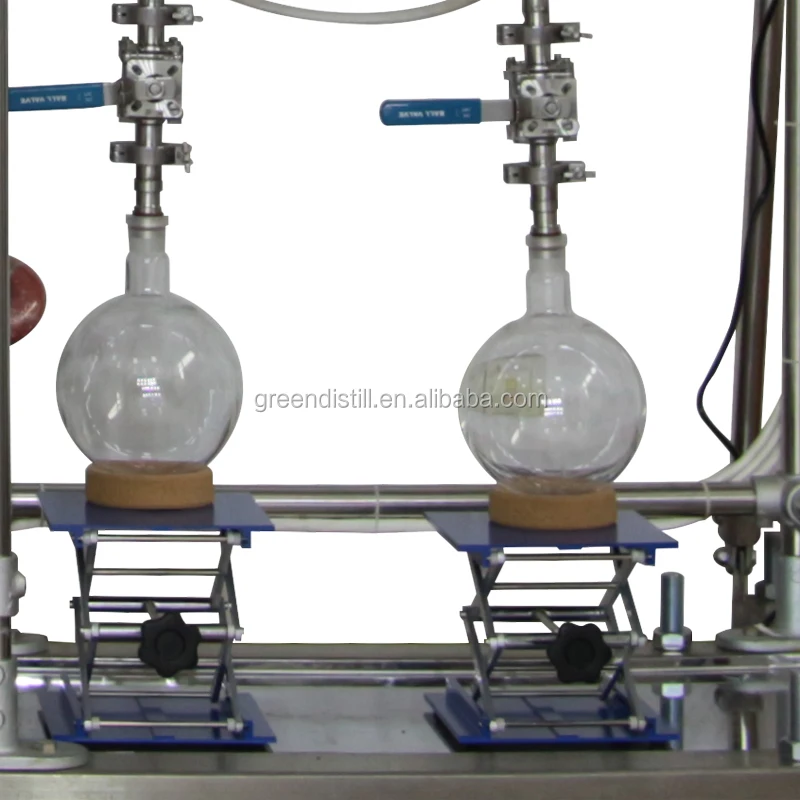

Shipping in 7 Days YMD 2S Stainless Steel Thin Film Evaporator For CBD Oil Extraction
- Category: >>>
- Supplier: Shanghai Yuanhuai Industrial Co. Ltd.
Share on (62232914943):
Product Overview
Description
For more feedback on videos and photos of our cases, welcome to make an inquiry.
Modular Design YMD-2S CBD Oil Continuous Feeding Fully Jacketed Thin Film Evaporator
Product Description
| Turnkey Solution for Stainless Steel Molecular Distillation | ||||||||
| Model | YMD-1S | YMD-2S | YMD-5S | YMD-10S | YMD-15S | YMD-20S | YMD-30S | YMD-50S |
Evaporation Area m2 | 0.1 | 0.2 | 0.5 | 1 | 1.5 | 2 | 3 | 5 |
Feeding Rate L/h | 2-10 | 4-20 | 10-50 | 20-100 | 30-150 | 40-200 | 60-300 | 100-500 |
Feeding Method | High-precision gear pump for continuous feeding | |||||||
Collection Method | High precision gear pump for continuous collection | |||||||
Equipment Height(mm) | 2350 | 2650 | 3300 | 4450 | 4500 | 5000 | 6200 | 7500 |
Max Speed(rpm) | 500 rpm | |||||||
Operation Temperature | Up to 300ºC | |||||||
Vacuum Level(mbar) | Low to 0.001 mbar | |||||||
| Feeding Mode | Gear pump for automatic and continuous feeding | |||||||
| Collection Mode | Gear pump for automatic and continuous collection | |||||||

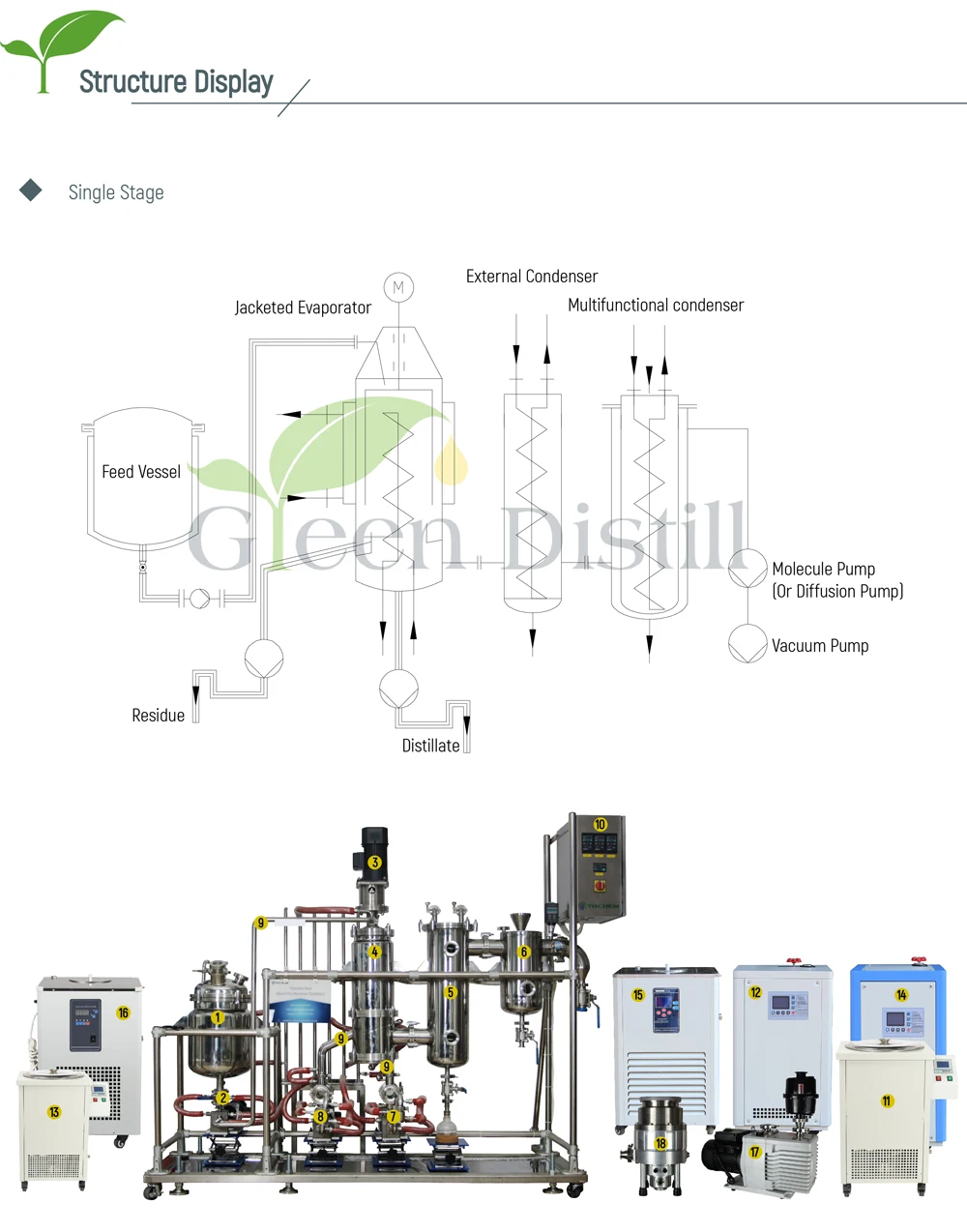

| Turnkey Solution for Stainless Steel Molecular Distillation | |
| 1 | Jacketed feeding vessel with sight glass |

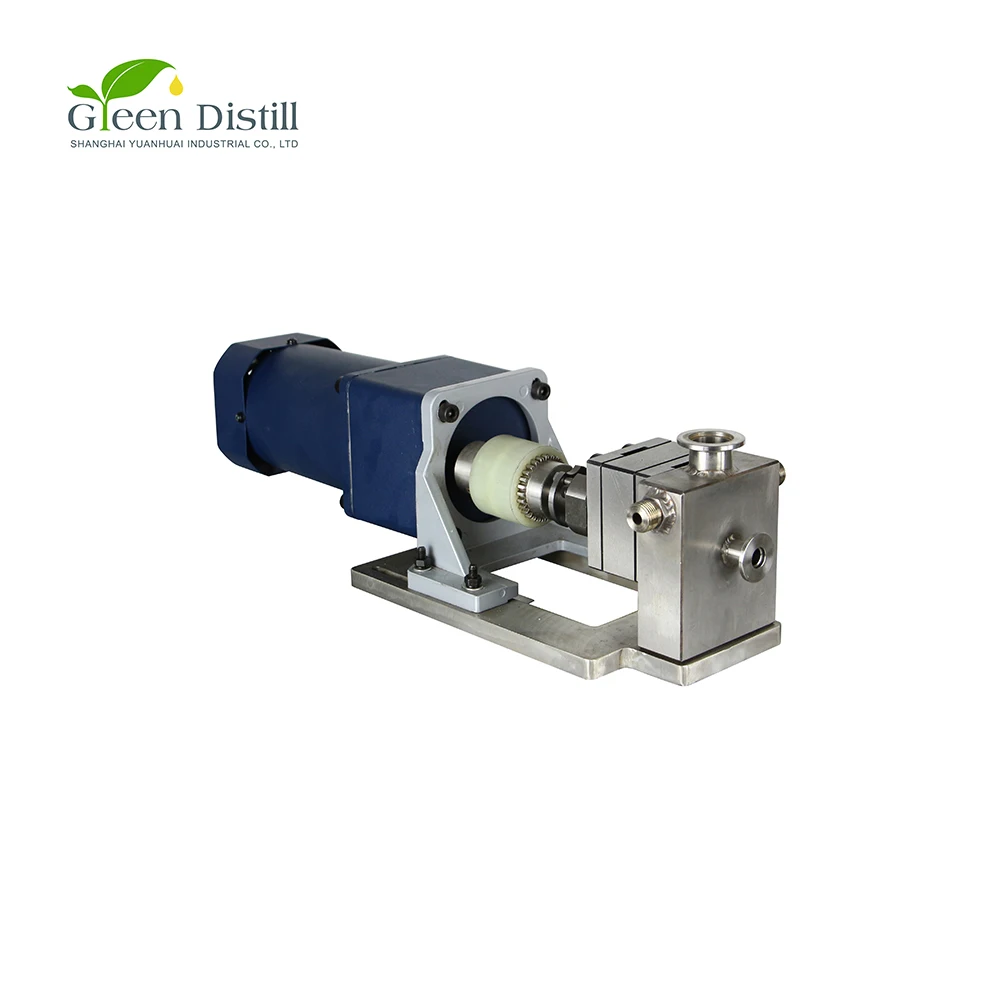

| 2 | Feed pump for automatic and continuous feeding |

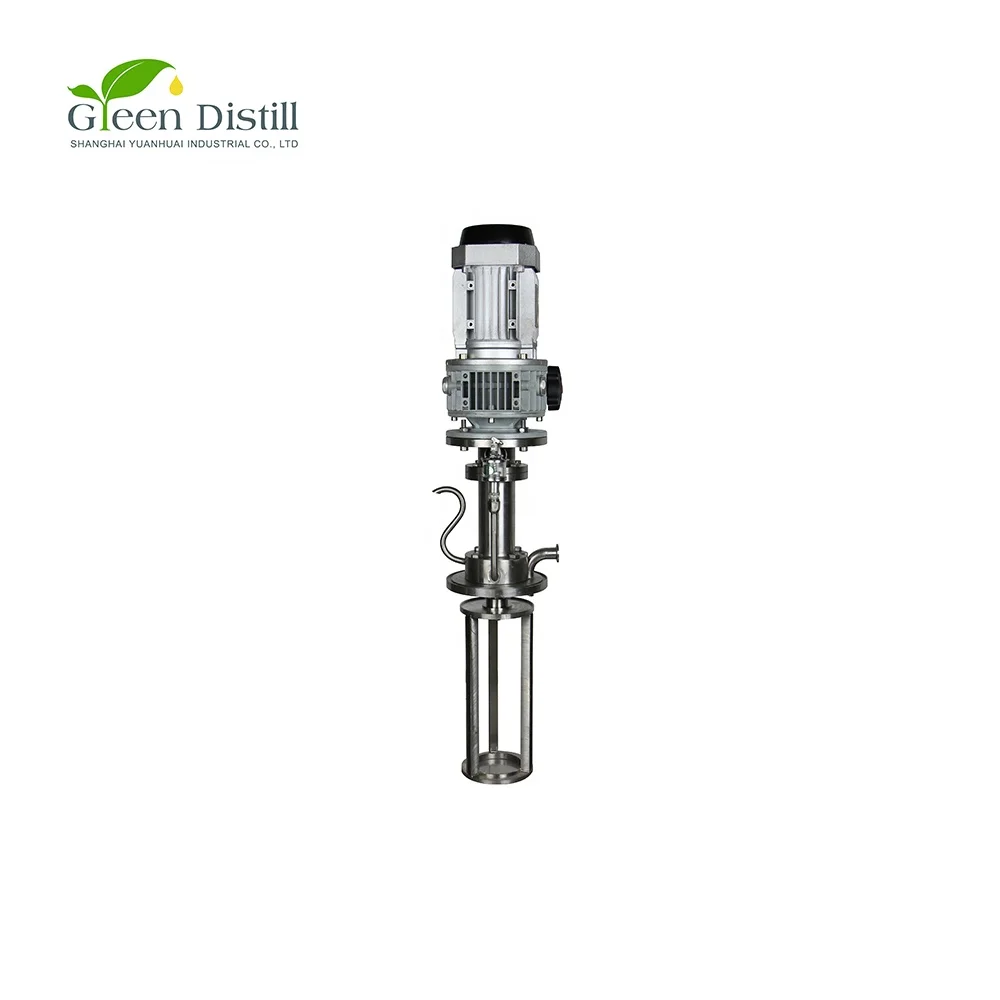

| 3 | Motor to drive rotation with mechanical sealing (Optional: Magnetic sealing) |
| 4 | Jacketed evaporator with internal condenser |

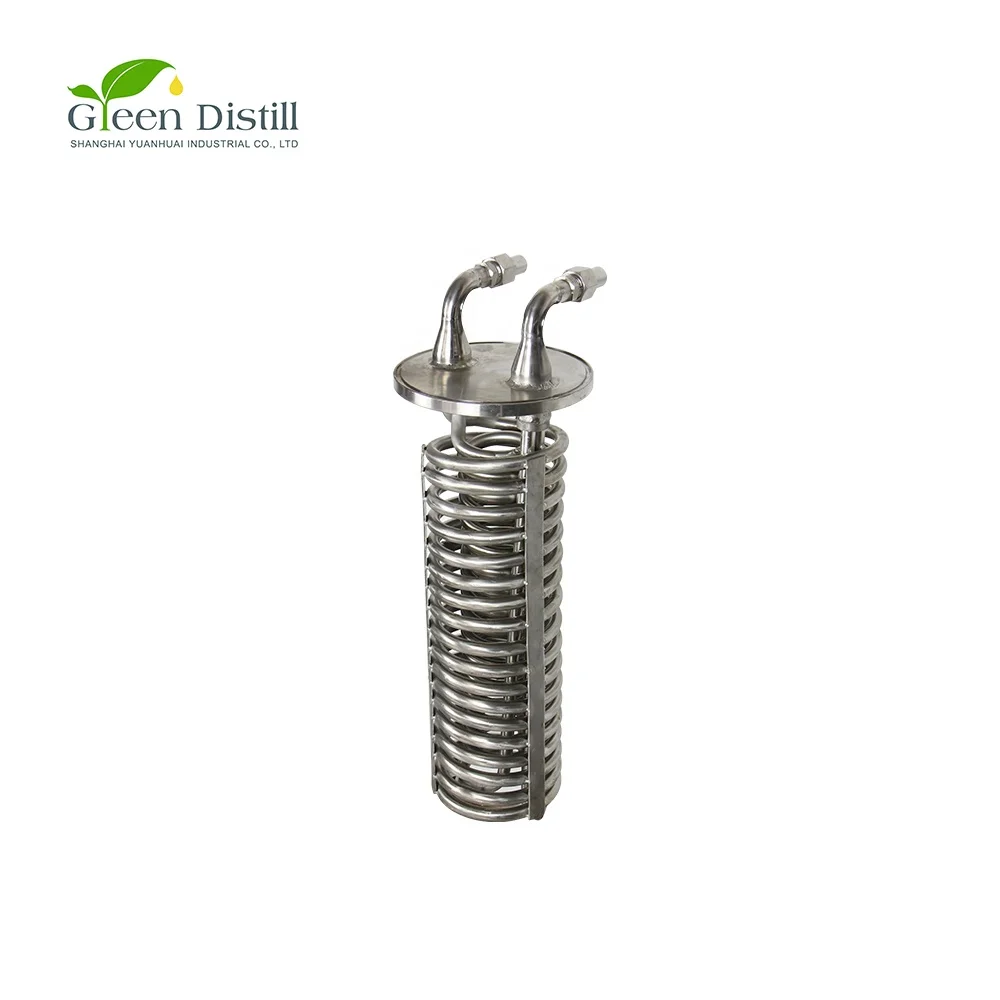

| 5 | Coils cold trap with sight glass |
| 6 | Dry ice cold trap with sight glas |
| 7 | Collection pump(Distillate)for automatic and continuous collection |
| 8 | Collection pump (Residue) for automatic and continuous collection |
| 9 | Full jacketed pipe (feeding and collection section) |
| 10 | Control cabinet |
| 11 | Heating circulator for feeding vessel and pipeline |
| 12 | Heating circulator for jacketed evaporator |
| 13 | Heating circulator for residue collection section |
| 14 | Heating & cooling Circulator for internal condenser and distillate collection section |
| 15 | Cooling circulator for coils cold trap |
| 16 | Cooling circulator for dual-use cold trap |
| 17 | Rotary vane vacuum pump |
| 18 | Molecular pump (Optional: Diffusion Pump) |
