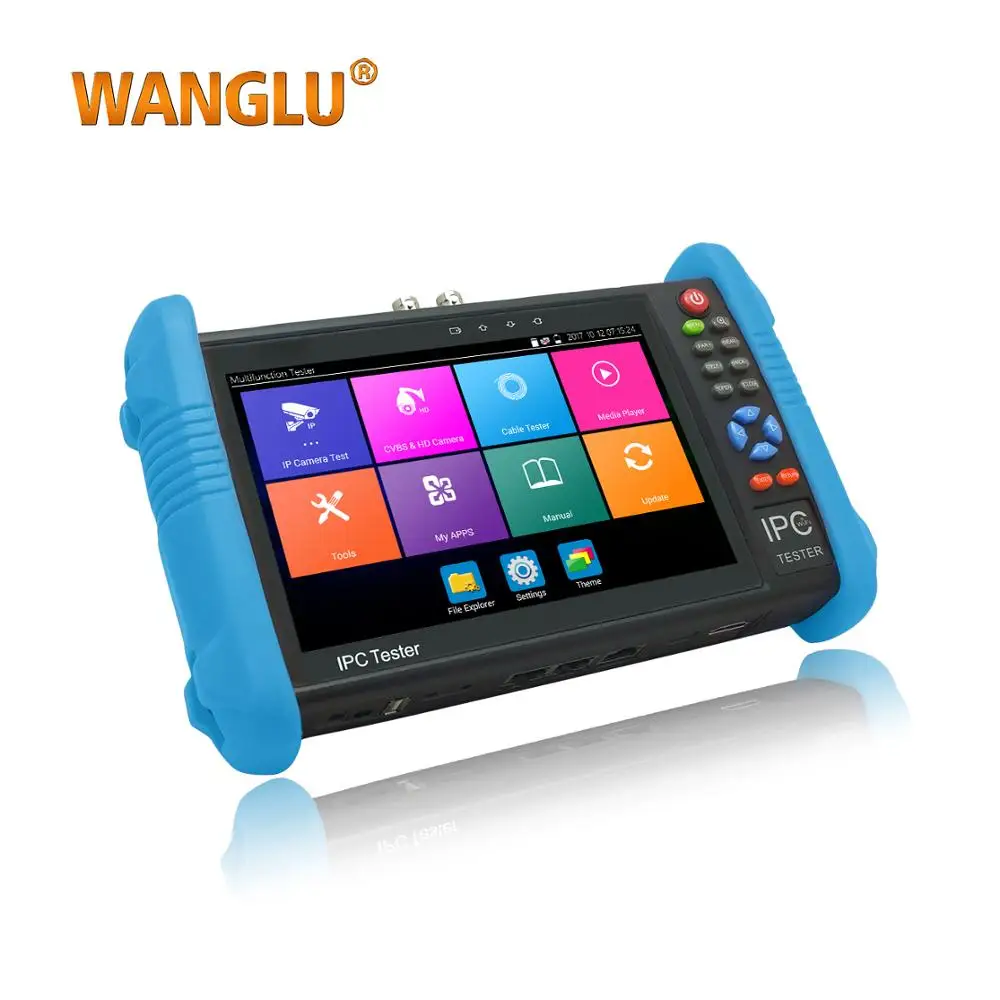

7 inch IPS touch screen cctv tester monitor AHD CVI TVI CVBS PoE HD input 8MP IP Camera Tester pro

LCD

Item series

                                  IPC-9800ADH Plus

Display

New 7 inch retina touch screen, 1280*800 resolution

  Video Mode

     CVBS

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

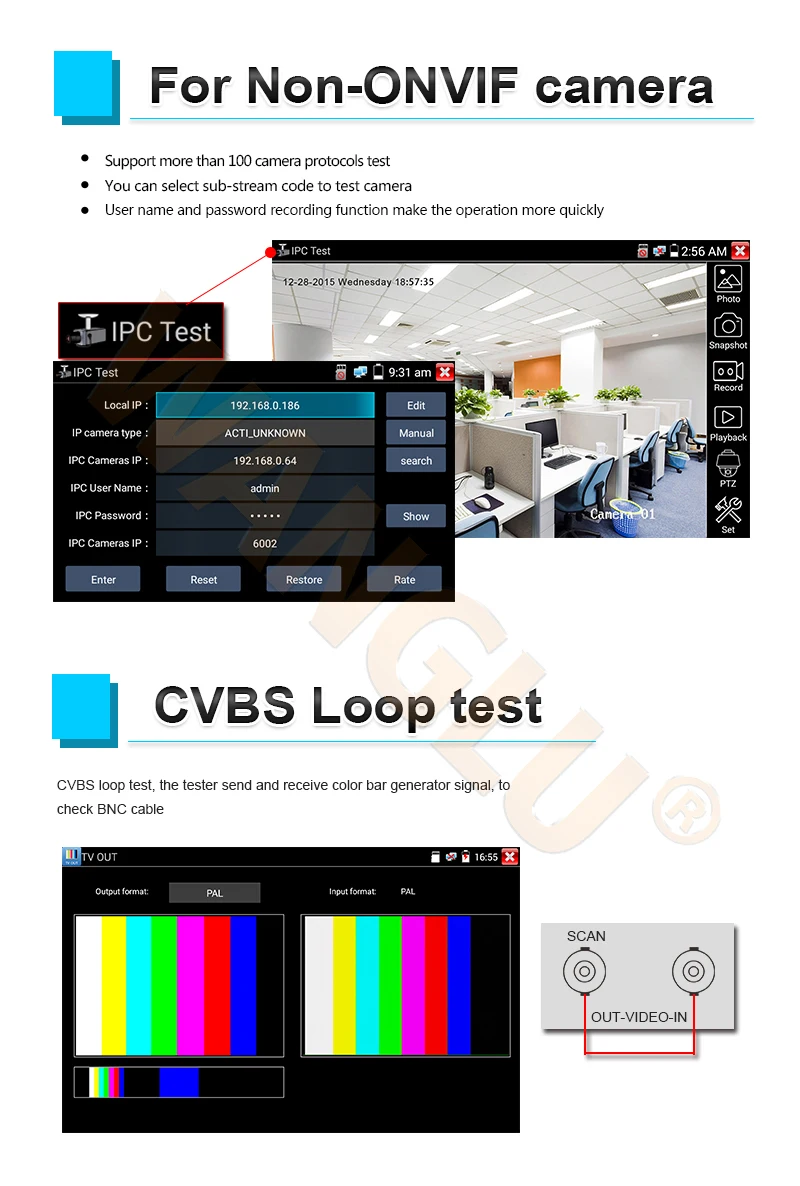

CVBS loop test

the tester send and receive color bar generator signal , check BNC cable

IP camera test

4k/H.265/H.264

IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK

Rapid Video

Auto view the video, create testing report

IP& CVBS test

IP& CVBS test at the same time ,converter test from analog to digital with dual test window

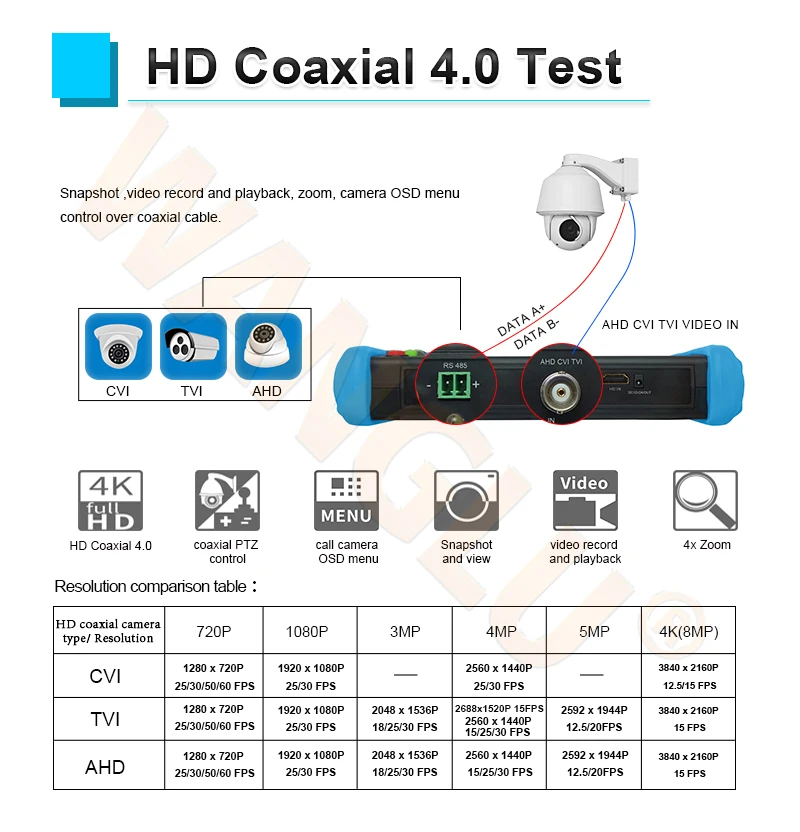

Coaxial HD test

8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu

8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu

8MP AHD test, 3840 x 2160P 15F, UTC control & call OSD menu

HD input

1 channel HD input, support 1080P

HD output

1 channel HD output, support 1080P

Zoom Image

4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back

Analog Video out

Color bar generator

Output one channel PAL/NTSC color bar video signal for testing monitor or video cable

Power output

PoE power output

48V PoE power output, max power 25.5W

DC24V power

DC24V /2A power output

DC12V power

DC12V /3A power output

 Cable test

UTP cable test

Test UTP cable connection status and display on the screen. Read the number on the screen

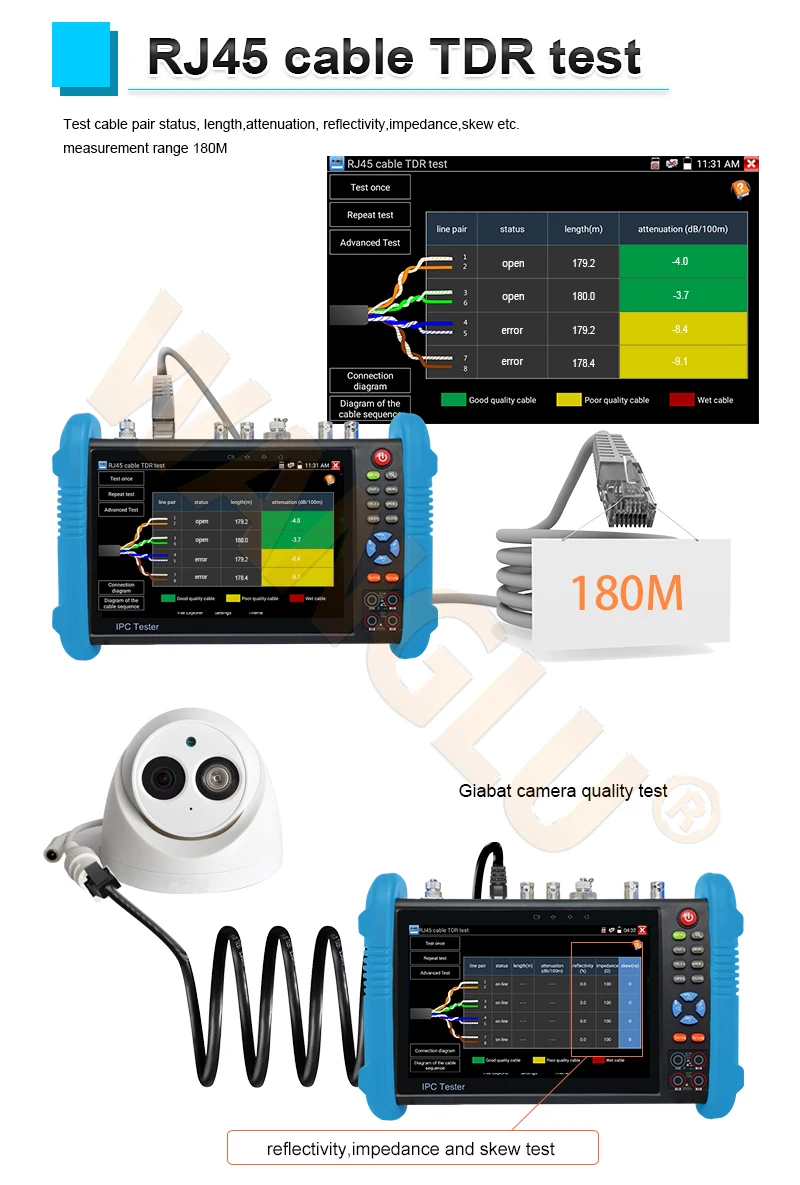

RJ45 cable TDR test

Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M

TesterPlay

screen projection: tester, mobile phone and PC display at the same time (For android version mobile phone)

Network test

Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi

Built in WIFI, speeds150M,display wireless camera image

Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

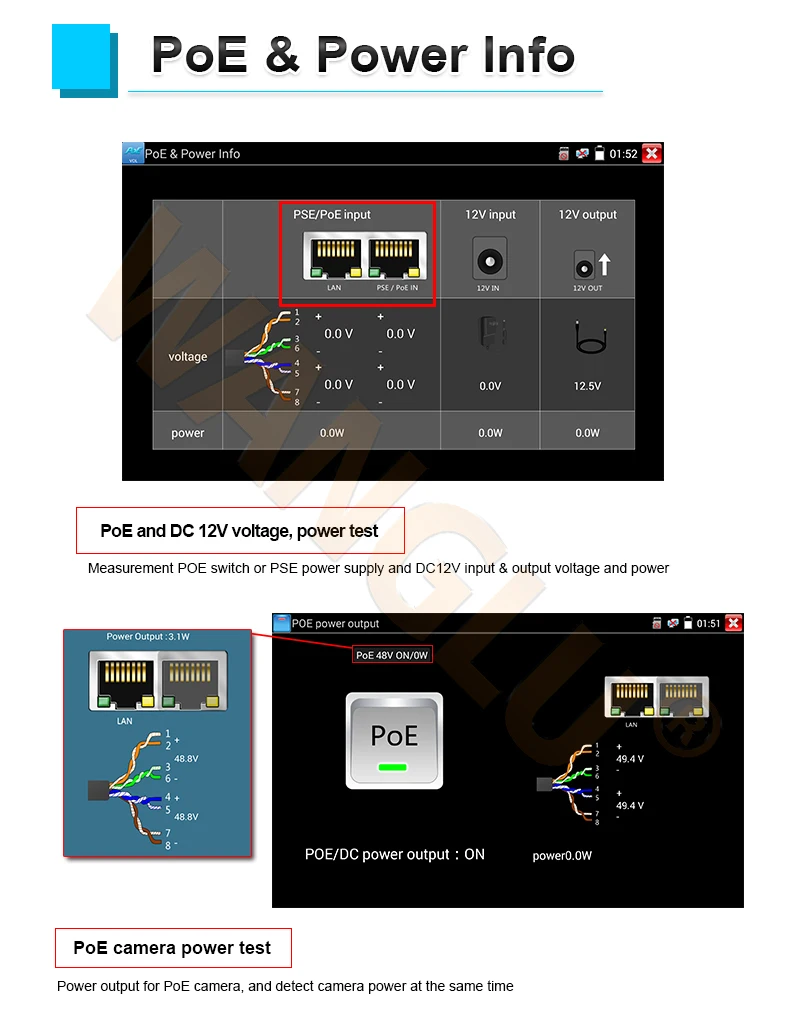

PoE test

Measurement POE switch or PSE power supply voltage and cable connection status

Drop-down menu

You can select PoE power switch, IP setting, CVBS, LAN info, HD IN functions etc in any interface

External power supply

DC 12V 2A

Battery

Built-in 7.6V Lithium polymer battery, 7500mAh

Rechargeable

After fast charging 3.5 hours, normal working time 16 hours

Operation setting

OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

Auto off

1-30 (mins)

Working Temperature

-10℃---+50℃

Working Humidity

30%-90%

Dimension/Weight

240mm x 154mm x 46mm / 620g
