catv optical receiver ftth catv optical receiver pakistan




Product Description

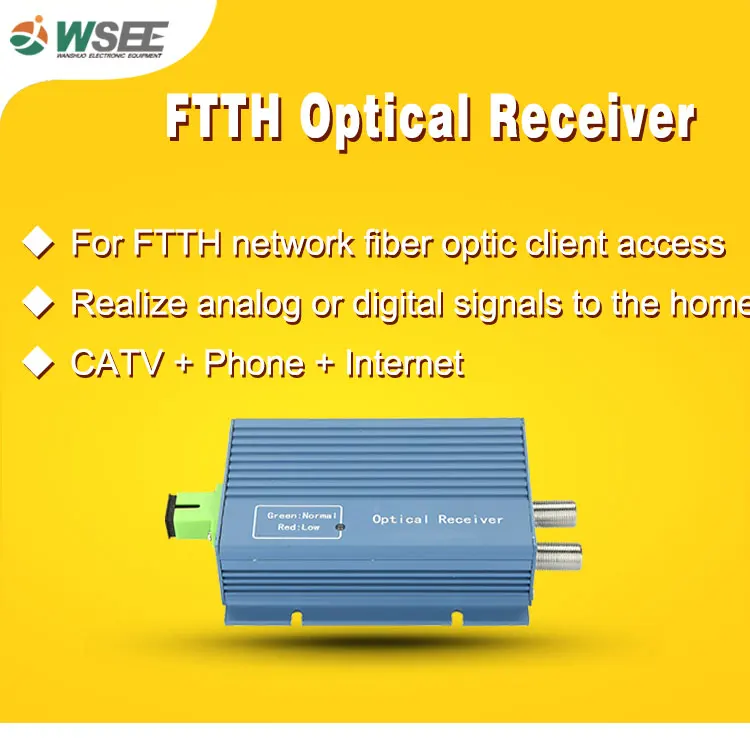

OR20 style FTTH optical receiver is home-based optical receiver catering to the ultimate goal of development of optical access and suitable for FTTH (fiber to the home) optical fiber network users access to the end. Analog or digital signal to home can be used together with the ONU or EOC achieving triple play.

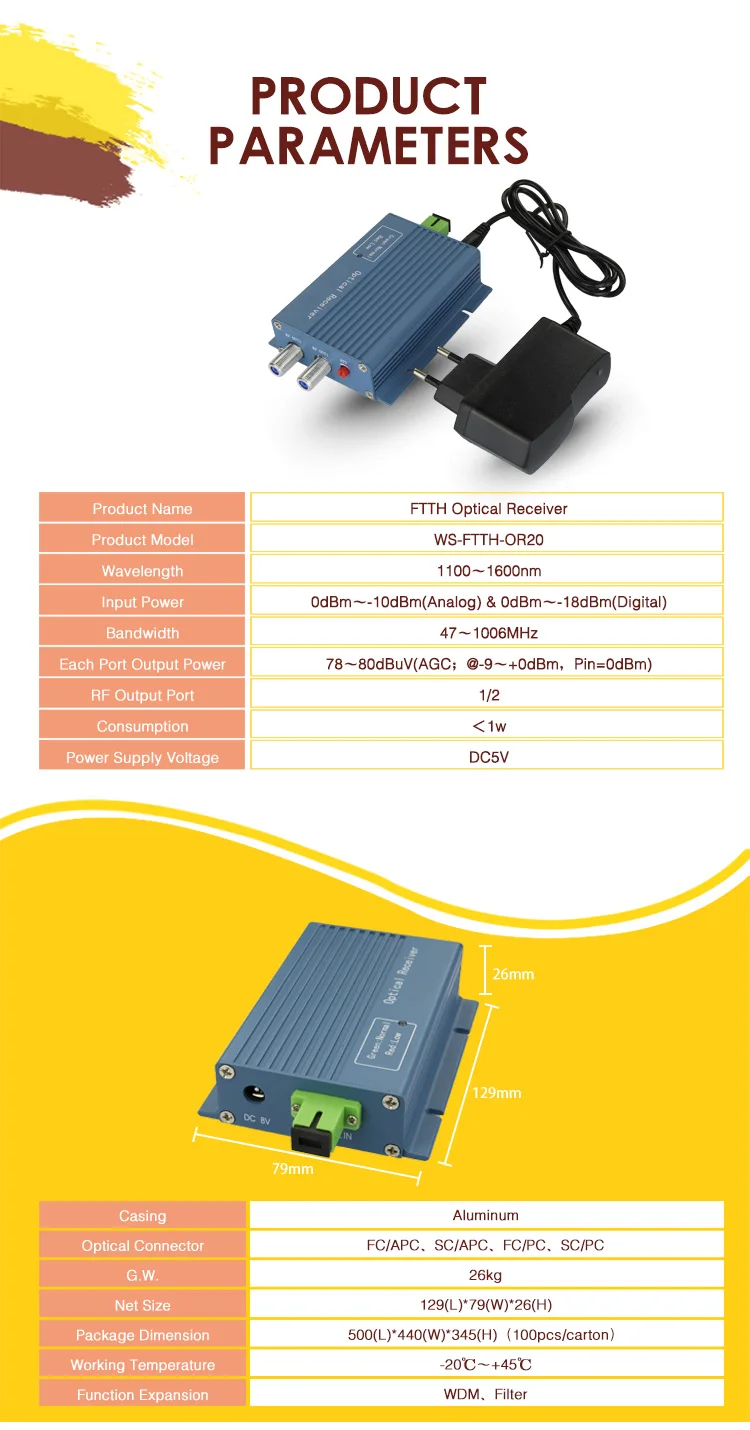

Technical Parameter


Parameter

OR20A

Wavelength

1100~1600nm&1550nm&1490/1310/1550nm

Optical input power

0dBm~-9dBm(analog)  0dBm~-18dBm(digital)

AGC control range

-6dBm~-15dBm&0dBm~-9dBm

Return loss

>45dB

Optical connector

FC/APC&SC/APC   FC/PC&SC/PC

Bandwidth

40~862&1006MHz

Flatness

±0.75dB@40~862MHz&1006MHz

Rf output loss

≥16dB@40~550MHz ≥ 14dB@550~860&1006MHz

Gain range

0~18dB

Output level

>80dBuV(-7dBmtest)

Output port

1&2

Output impedance

75Ω

CNR(note1)

≥51dB

CTB(note1)

≥65dB

CSO(note1)

≥62dB

Motherboard voltage

AC90~145V&AC165V~265V

Adaptor voltage

8V

Inner feed voltage

8V

Working temperature

-25℃~+55℃ or customize

Consumption

2W

Product dimension

125*80*25mm

Carton weight

2.45KG  (10pcs)

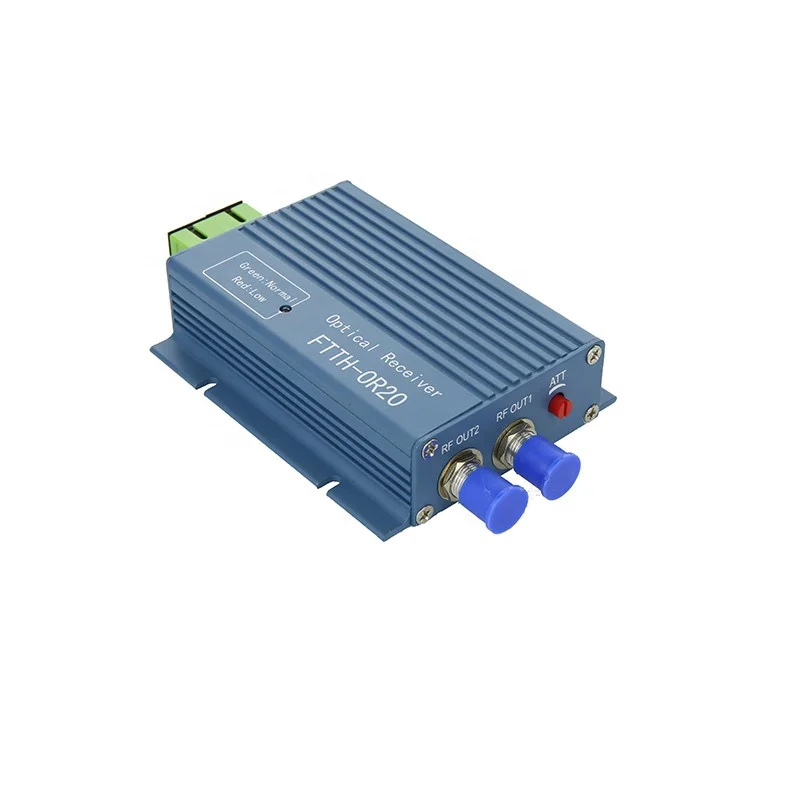

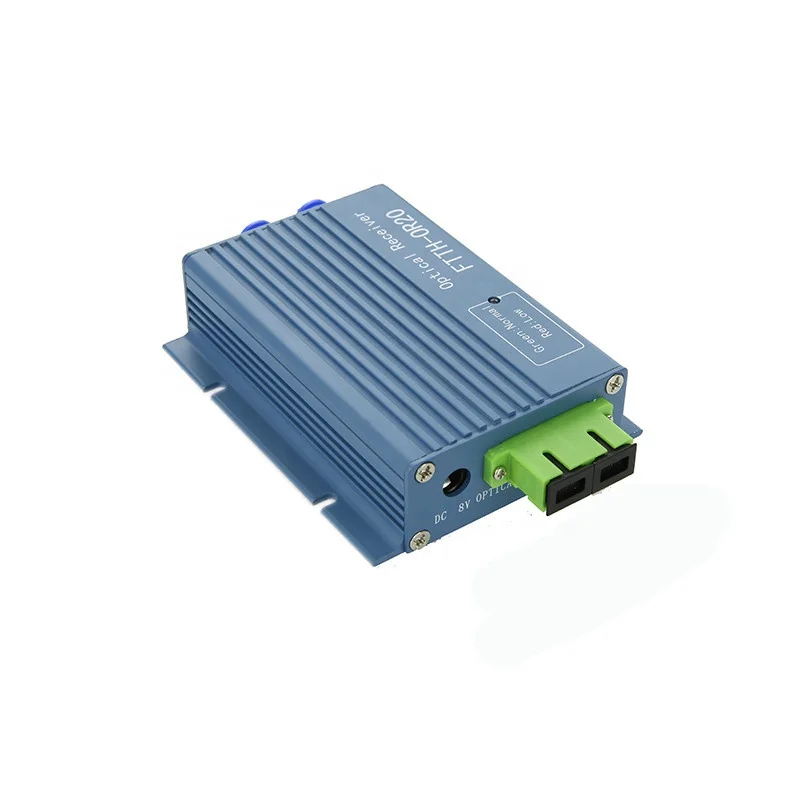

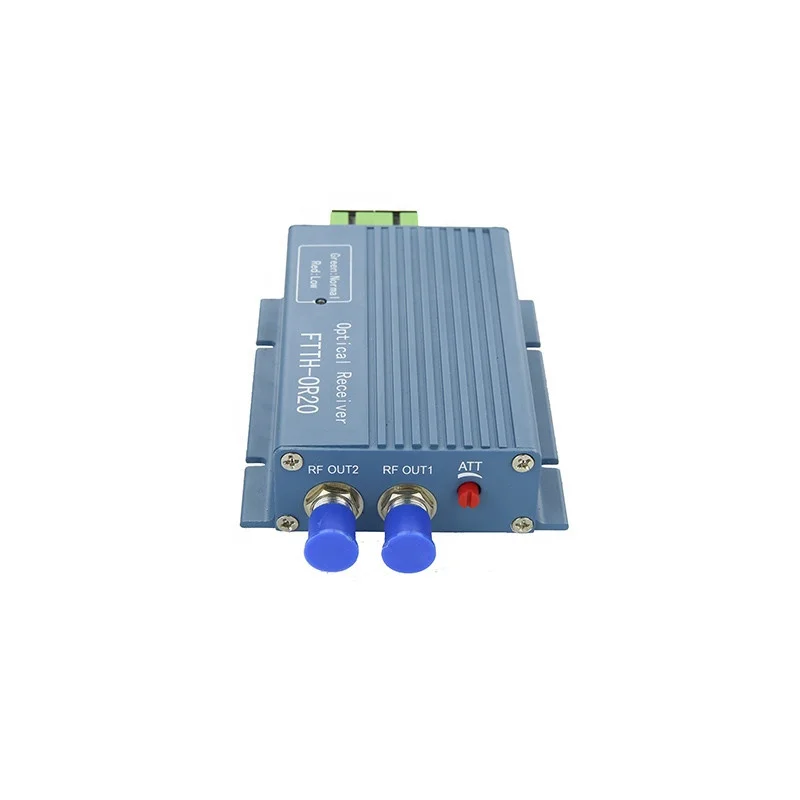

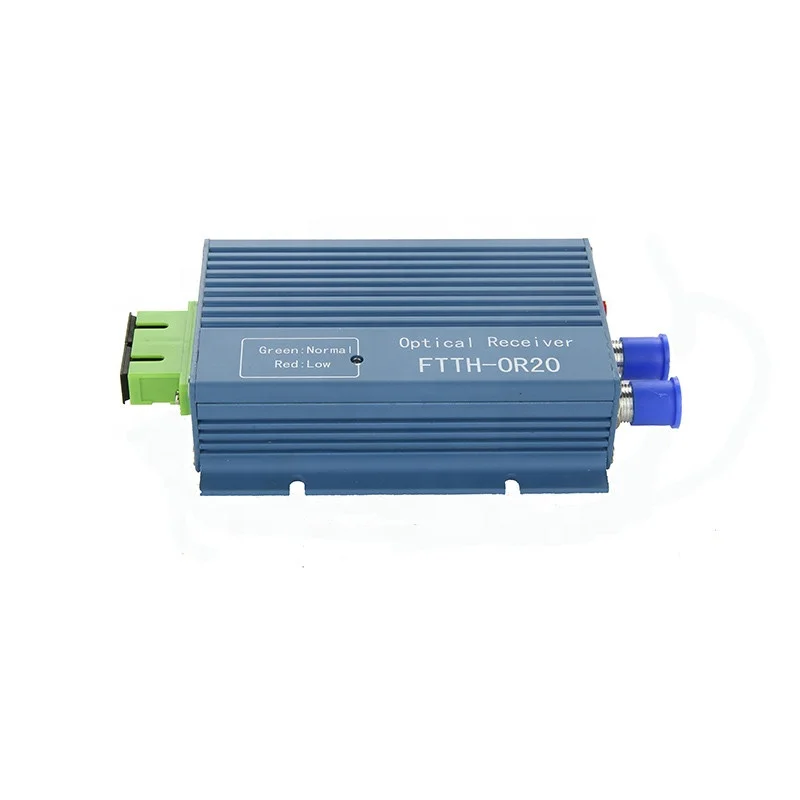

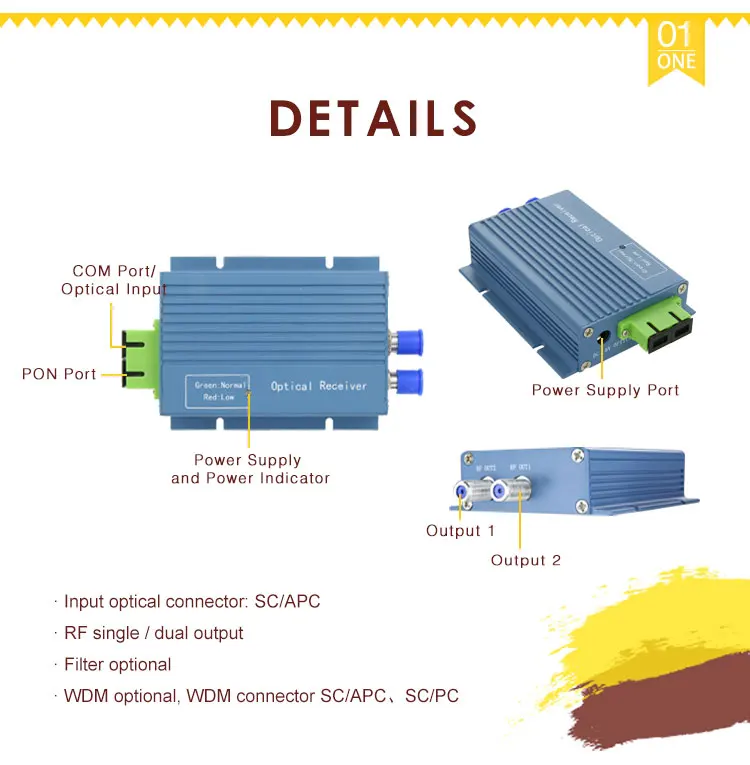

Detailed Image

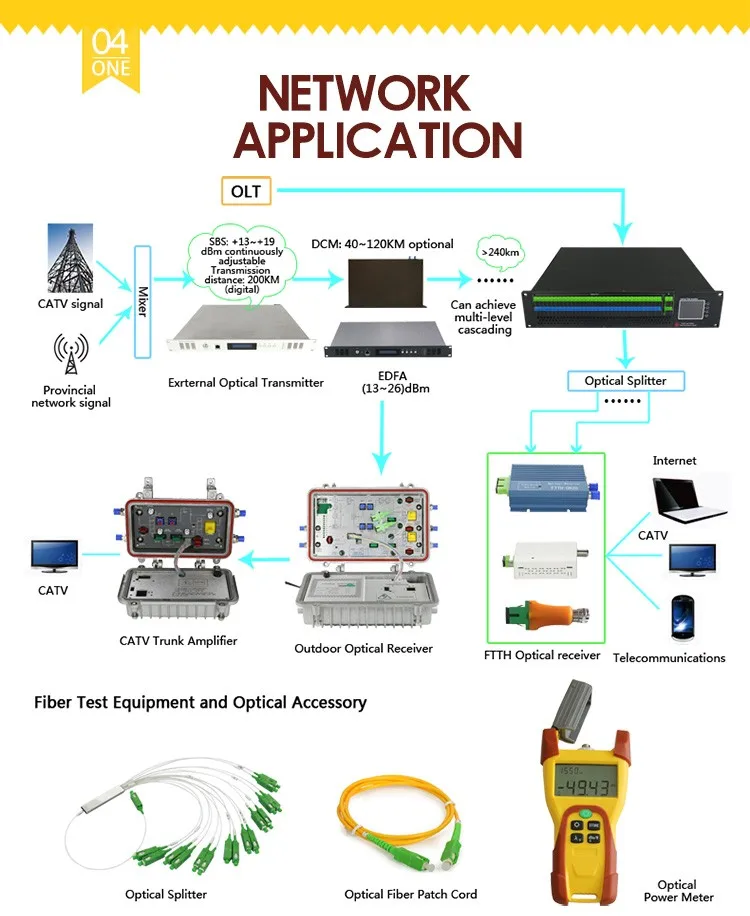

Applications

 1U_06

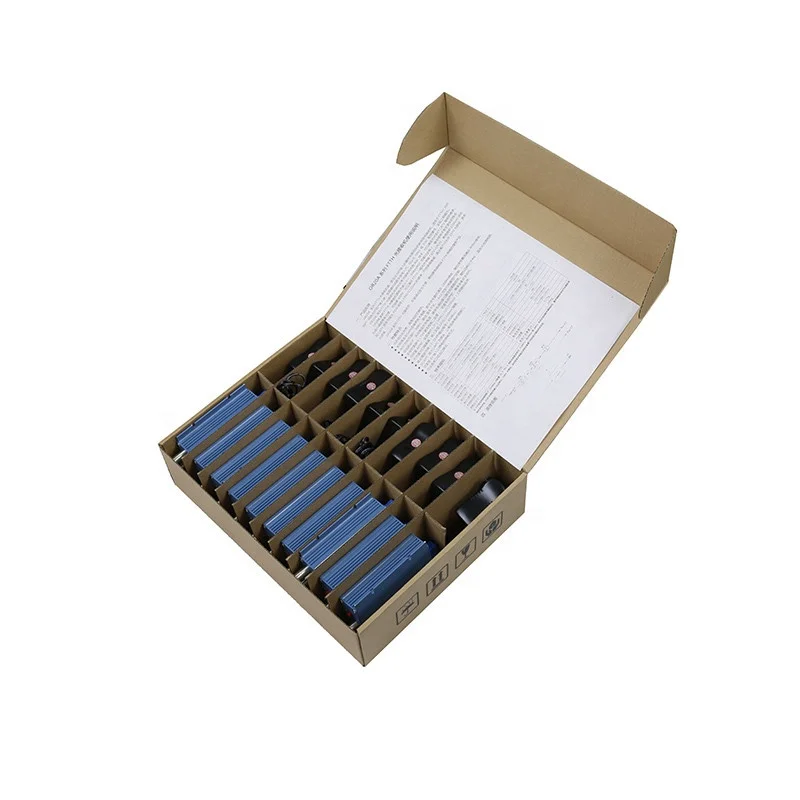

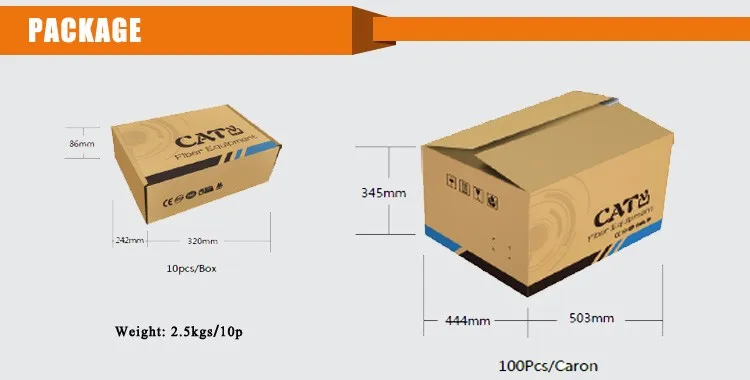

Packaging & Shipping





6 1U_08



Company Information

 Shandong Wanshuo Optoelectronic Equipment Co., Ltd has been manufacturing CATV Optical equipment since 2008. We are located in Zibo City, Shandong Province, with convenient transportation access. Our company has become one of the biggest enterprises in the field of CATV equipment in China. We have been mainly engaged in designing, researching, manufacturing and marketing CATV HFC and FTTX network equipment, including EDFA, 1550nm/1310nm optical transmitters, optical receivers, FTTH optical node, CATV amplifiers, hybrid modules, power supplies and passive devices
We have over 70 employees, an annual sales figure that exceeds USD3,300,000 and are currently exporting 60% of our production worldwide.
After years of development, we have strong overall operational capabilities, rich experiences in international trade, and have made good relationship with many countries like USA, India, Vietnam, Spain, Romania, Ukraine and Russia, Peru, Colombia, African countries, etc
Shandong Wanshuo Optoelectronic Equipment Co., Ltd always adheres to the "excellence, quality first" principle of the quality, taking the leading in passing I S O 9 0 0 1, CE certifications.

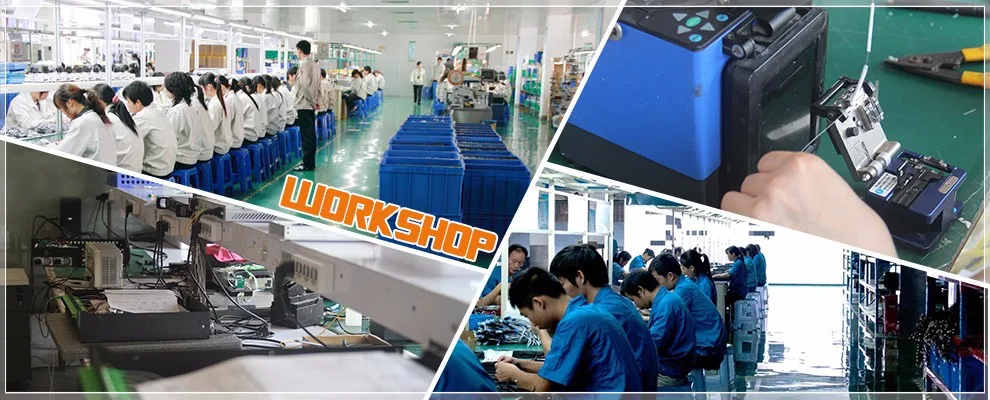

-1

10

Our Services

 This device warranty is 12 months. If the problem is caused by the user's wrong operation or natural force majure, we will only be responsible for the maintenance and charge the appropriate material cost.
When the device has problem, please contact us immediately. On-site maintenance of faulty device should be operated by professional technician to avoid causing more damage to the equipment.
Note: For users who disassemble and repair equipment wihtout our authorization, our company will not offer free warranty. Reasonable maintenance and materials costs will be collected.
