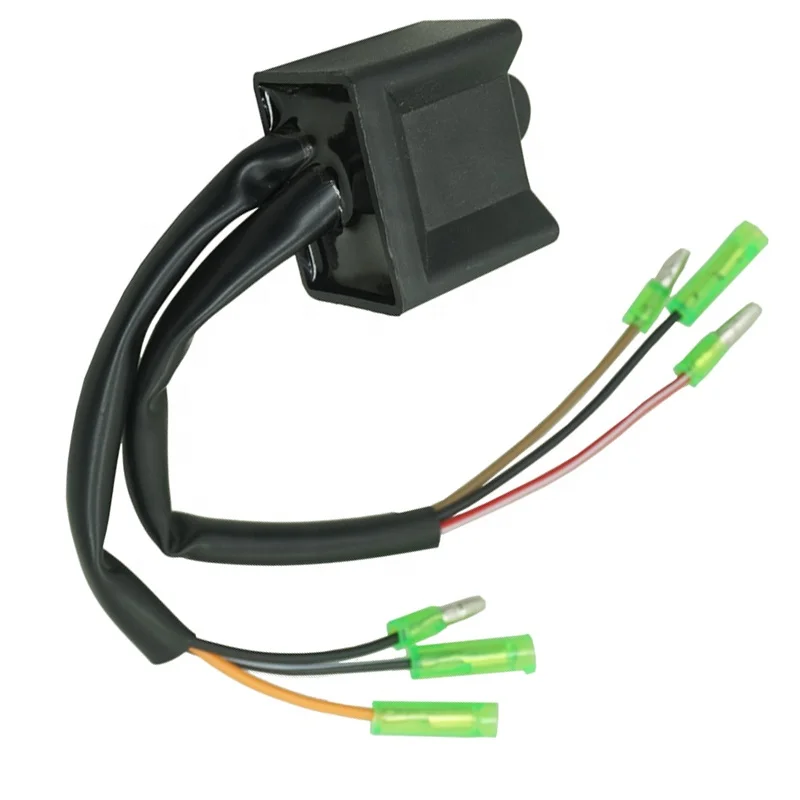

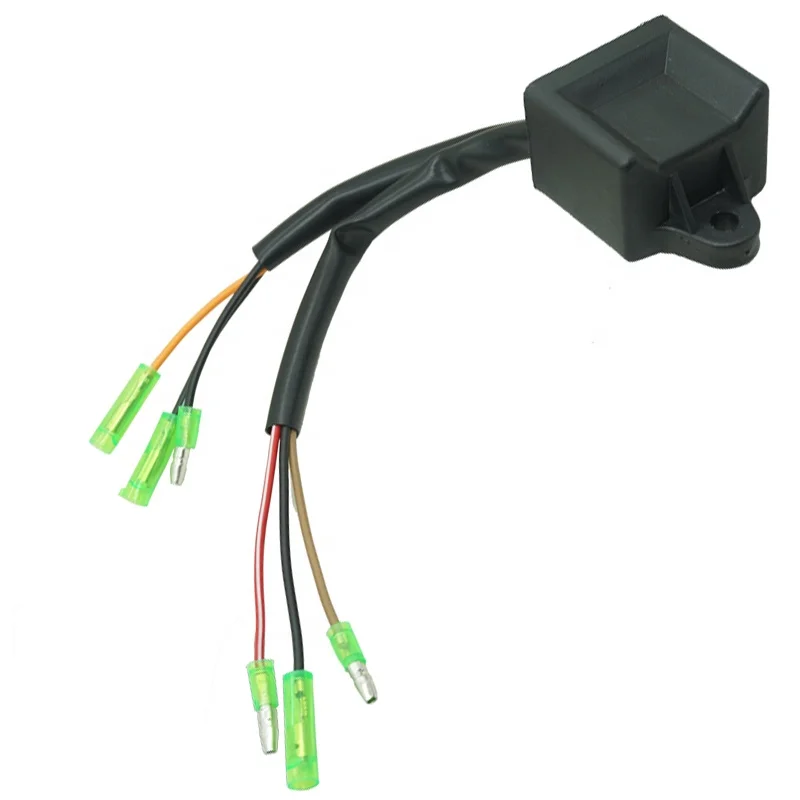

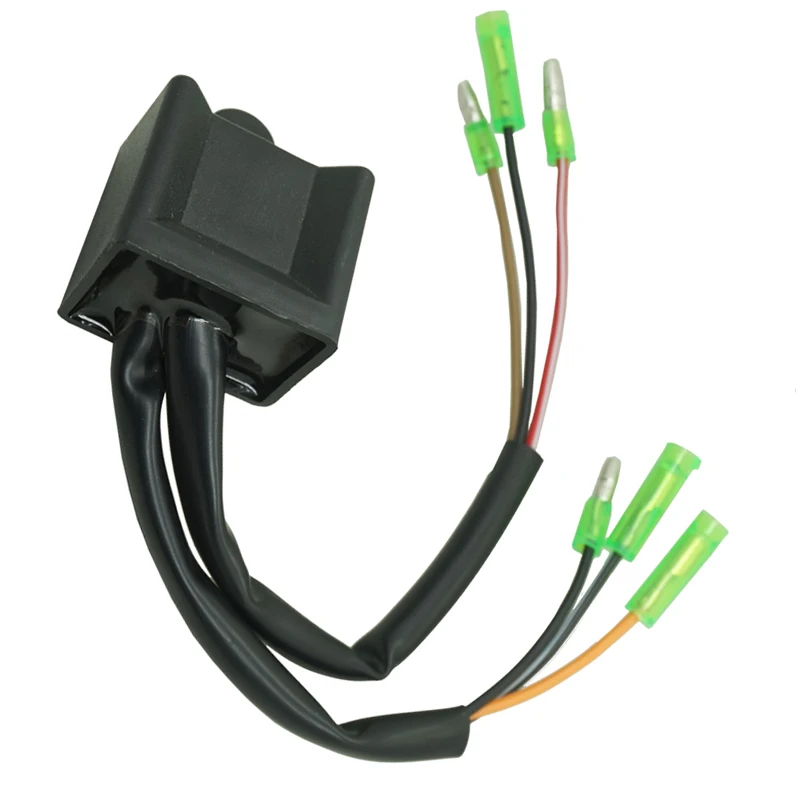

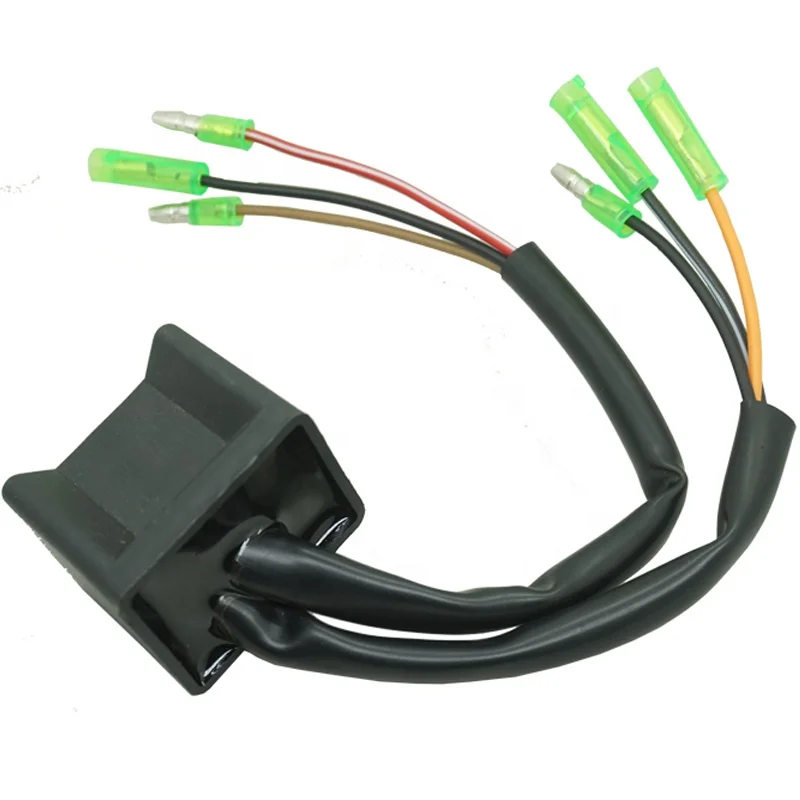

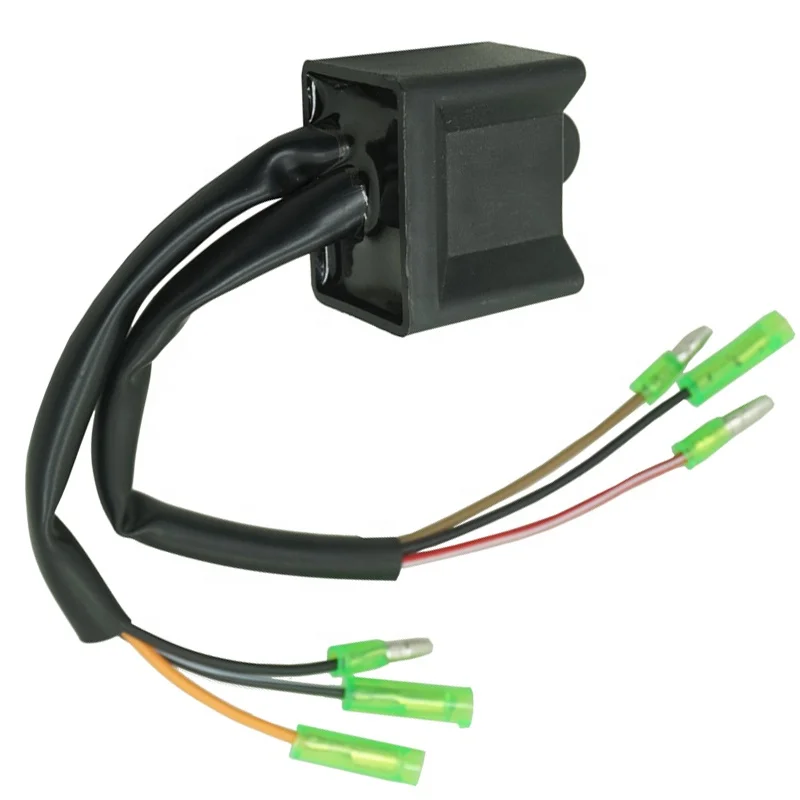

RTS 3J0 85540 20 00 6wire AC cdi 175CC AXIS90 3VR 3J0 DT175 DT 175 cdi unit for YAMAHA

RTS 3J0-85540-20-00 6wire AC cdi 175CC AXIS90 3VR 3J0 DT175 DT 175 cdi unit for YAMAHA

Motorcycle ignition kit modified racing CDI for YAMAHA DT175 AXIS90 3VR 3J0 DT175 2T 3J0-85540-20-00 5LINE AC with wire

Technical requirements
1, The ignition characteristics:
--AC power supply, capacitor discharge ignition;CDI UNIT;
--Ignition energy into the corner, low-speed, high-speed ignition performance;
--Operating temperature range: -30°C to+65°C;
--Using SMT Surface Mount Technology, anti-jamming capability, environmental adaptability, high reliability;
2,Product performance:
--Minimum continuous ignition speed: ≤350r/min (three-pin 6mm intermittent trigger gap was 0.7mm);
--Continuous ignition speed range: ≤350r/min ~ 11000r/min (three-pin intermittent 6mm, trigger gap was 0.7mm);
--Ignition advance angle: 27°±2°;
--Turn off the SW end of the ground, ignition should turn off;
3, appearance requirements:
--Patch device and igniter shell at the bottom of the vertical tilt;
--Package surface should be smooth, free of cracks and other foreign matter;
--Encapsulation material and the shell is bonding well, without gaps, and should fully cover the components;
--Package surface height should not exceed the shell height, and the surface is smooth and no bubbles;
--Shell, patch the surface should be encapsulated material, and other attachments;
4,Igniter insulation resistance shall be not less than 1MΩ (measured with 500V megger);
5, In line with the motorcycle JB/T8123.1 ~ 8123.2-1999 standards;
