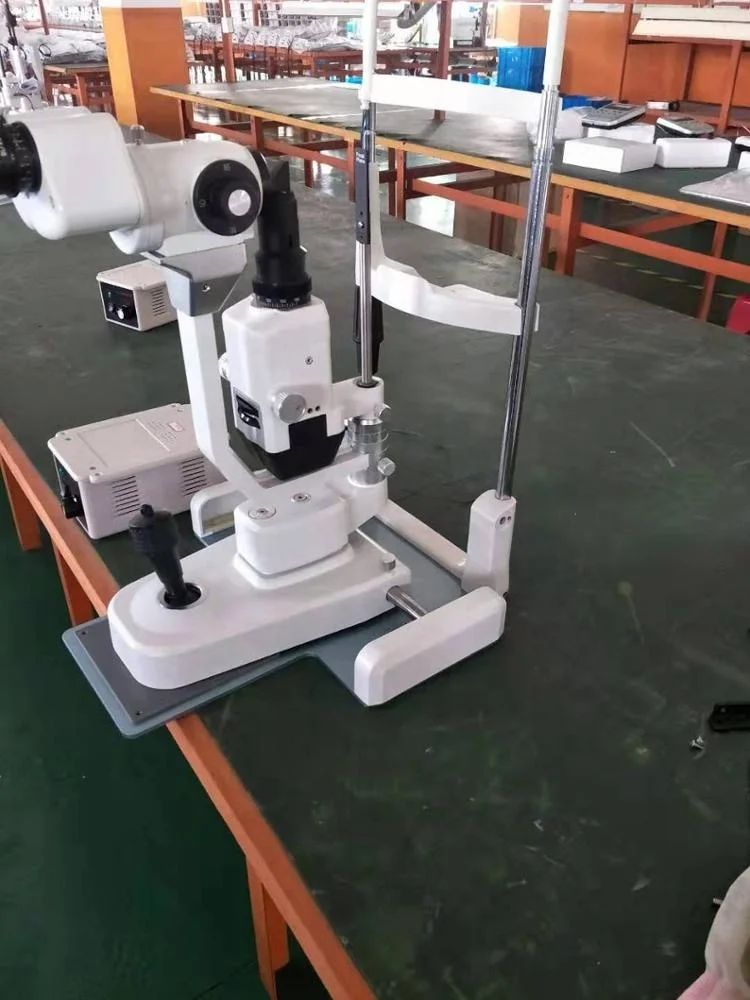

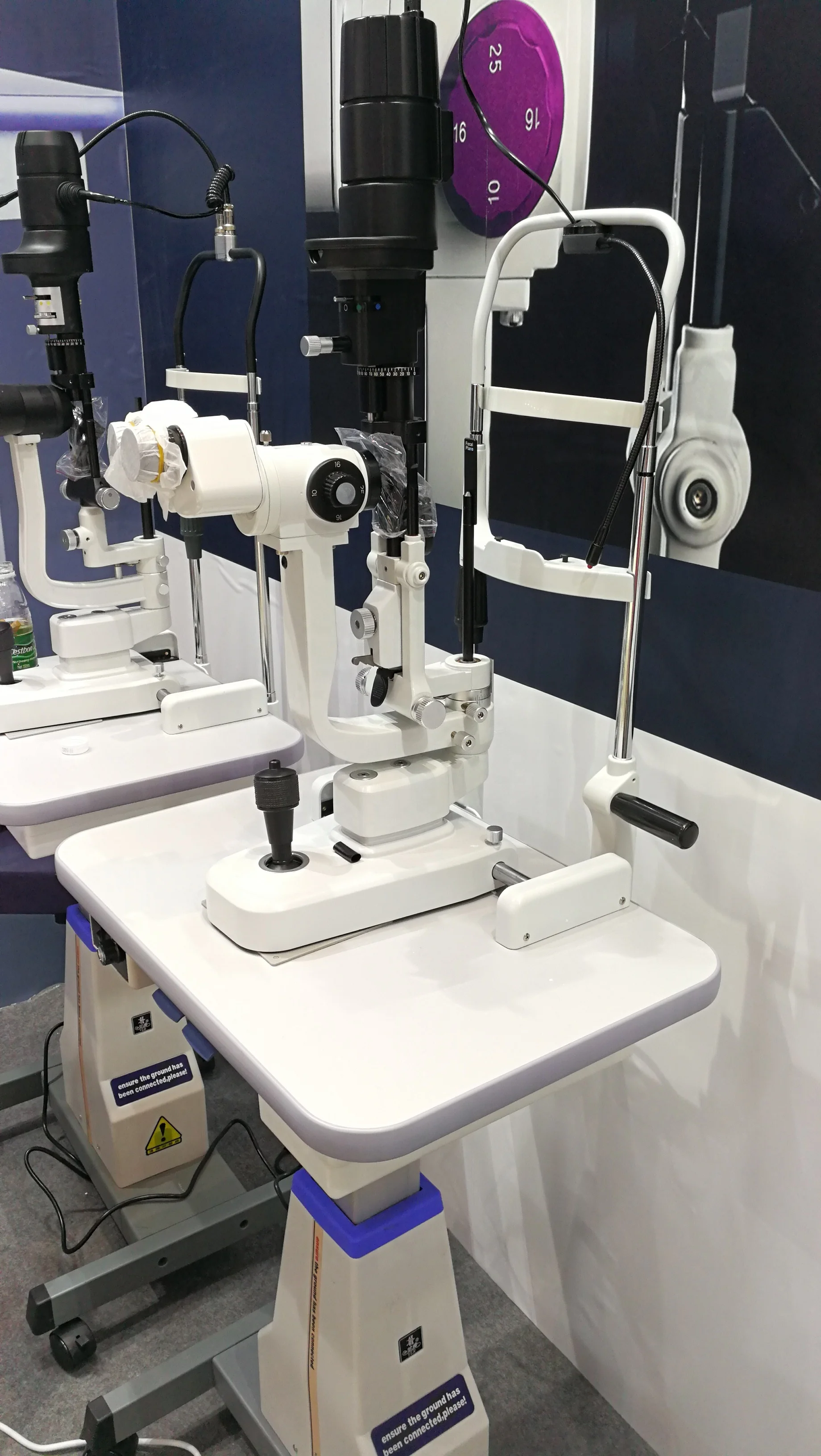

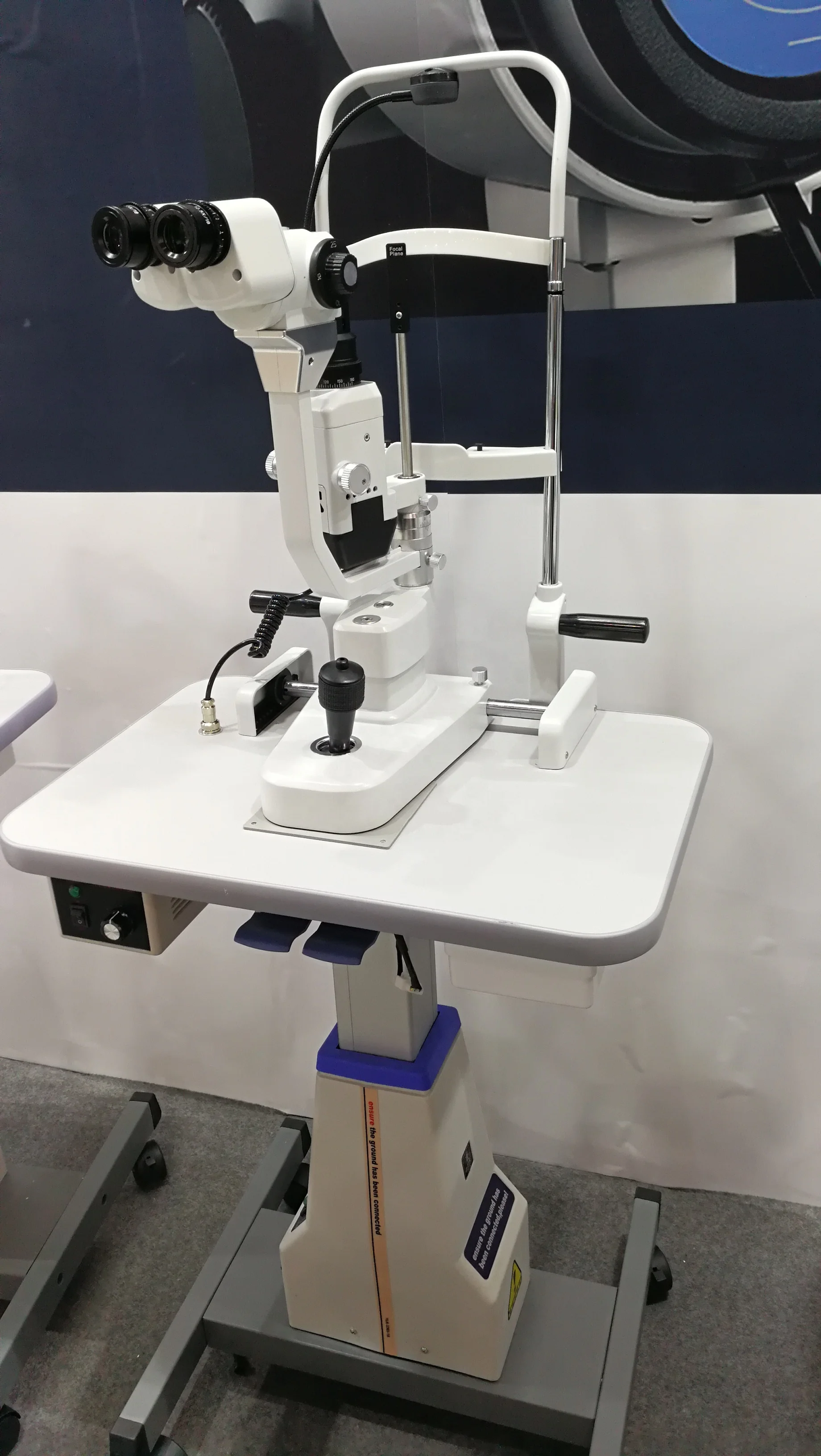

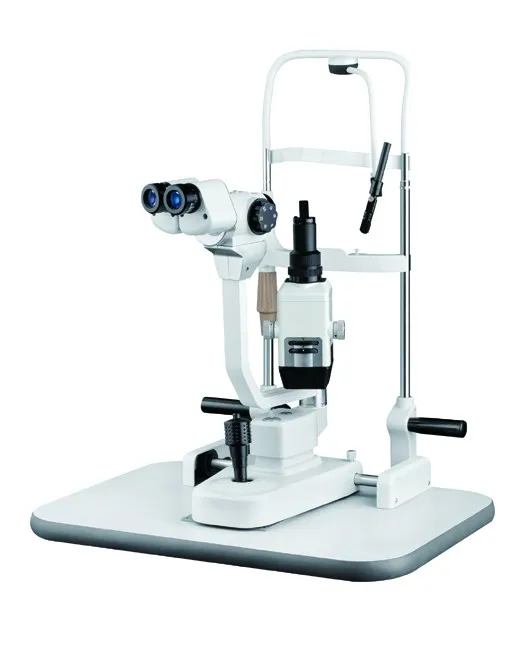

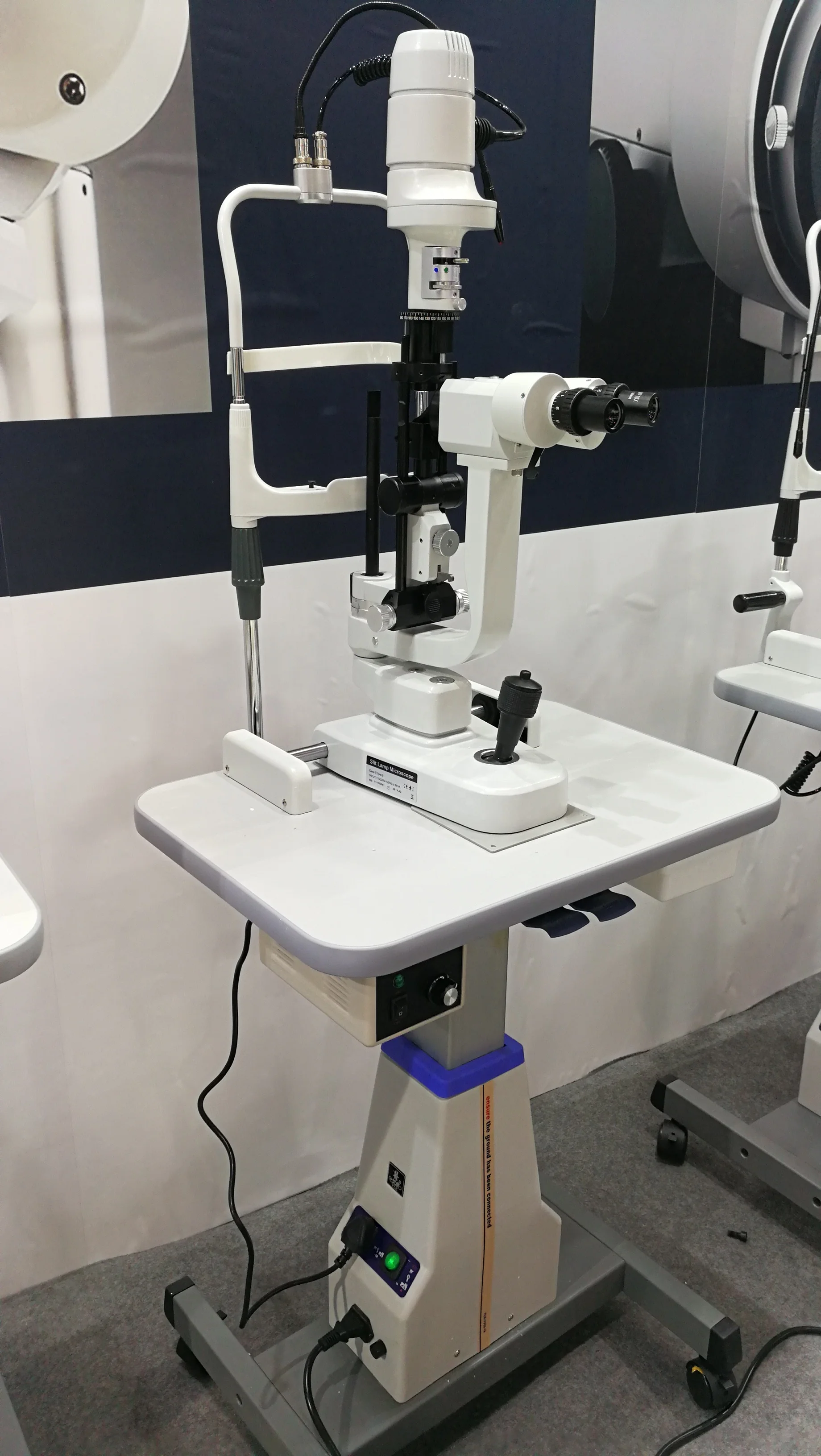

LED slit lamp BL 6A

Property of   slit lamp

Microscope Type

Galilean stereoscopic microscope

Magnification selection

5 steps by drum rotation

Eyepiece

12.5x

Magnification Ratio

(Field of view )

6×(φ33mm),10×(φ22.5),16×(φ14mm),

25×(φ8.8mm),40×(φ5.5mm)/6AT(10x , 16x , 25x )

PD adjustment

52mm ~ 80mm

Diopter Adjustment

+5D ~ -5D

Base

Left and ritht move

110mm

Dolly move

90mm

Up and down move

30mm

Chin rest

Up and down move

80mm

Fixation lamp

red LED

Property of illumination

Slit width

0 ~ 14mm continuous (at 14mm,slit becomes a circle)

Slit height

1 ~ 14mm continuous

Slit angle

Light spot diameter

0 ~ 1800 continuous

14mm ,10mm, 5mm , 3mm ,2mm ,1mm ,0.2mm  ,1mm1-14mm  continuous

Filter

Heat absorption ,Grey ,Red-Free ,Cobalt Blue

Illumination bulb

12V 50W halogen lamp

Power

Input voltage

frequency

Power consuption

220V

50H

68VA

Weight and size

G.W

N.W

18kg

16kg

Main dimension

550mm(L)× 430mm(W)× 780mm(H)
