Double roller crusher 2PG 500x450 mining machine

Product Overview

Description

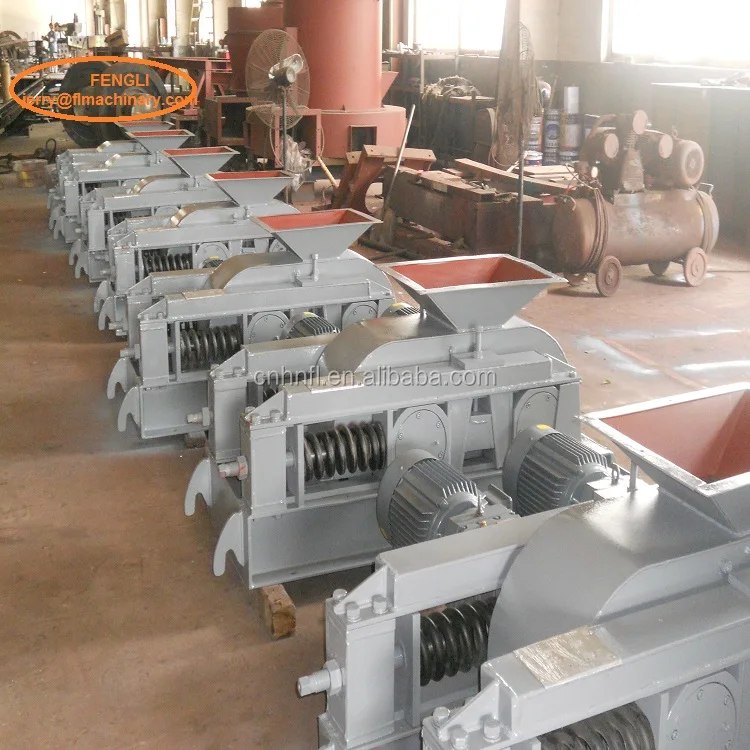

Double roller  Crusher

1. Operating principle

Double Roller Crusher is composed of a fixed extruded roller and a movable one, which rotate opposite and synchronous. The material get into the crusher from the above of two rollers and are took into by extruded rollers.



The desired products are discharged by 50-200Mpa effect.The force to material increases gradually when the material are bit by rollers. The max pressure can be 250Mpa. The discharged material, in addition to containing a certain proportion powder, and rest material interior have the large amount of crack, which save the grinding energy in the next crushing process.





2.   Manufactured goods granularity: 1-8mm, 1-20mm, 2-20mm, 3-20mm.
