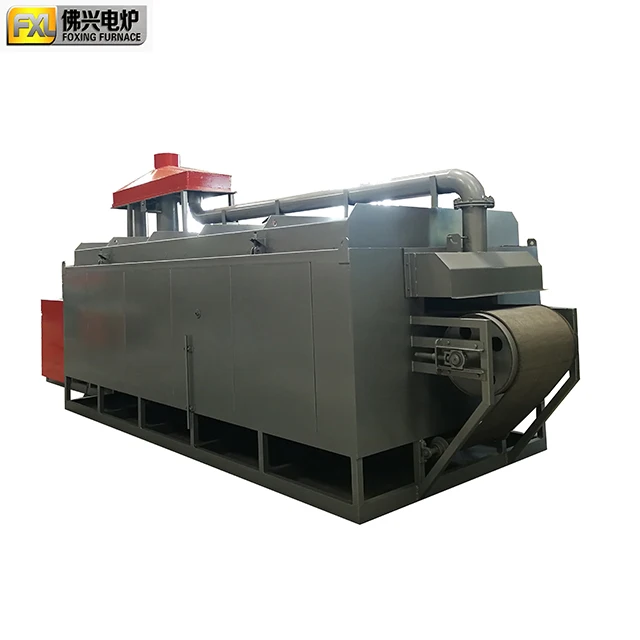

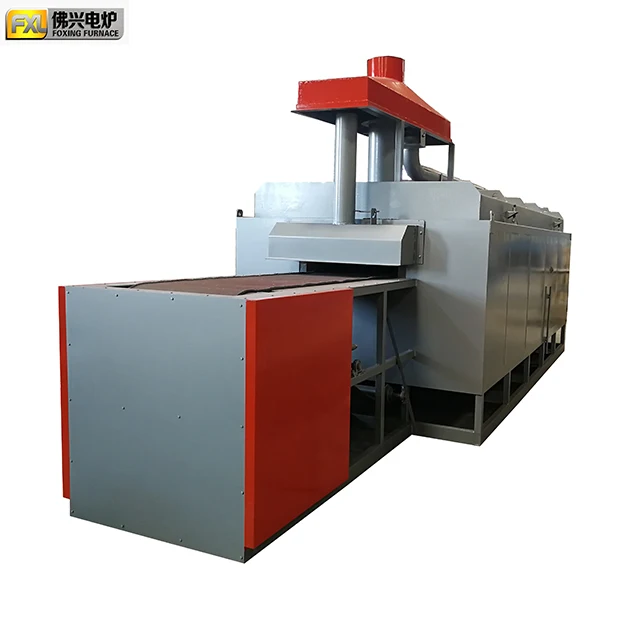

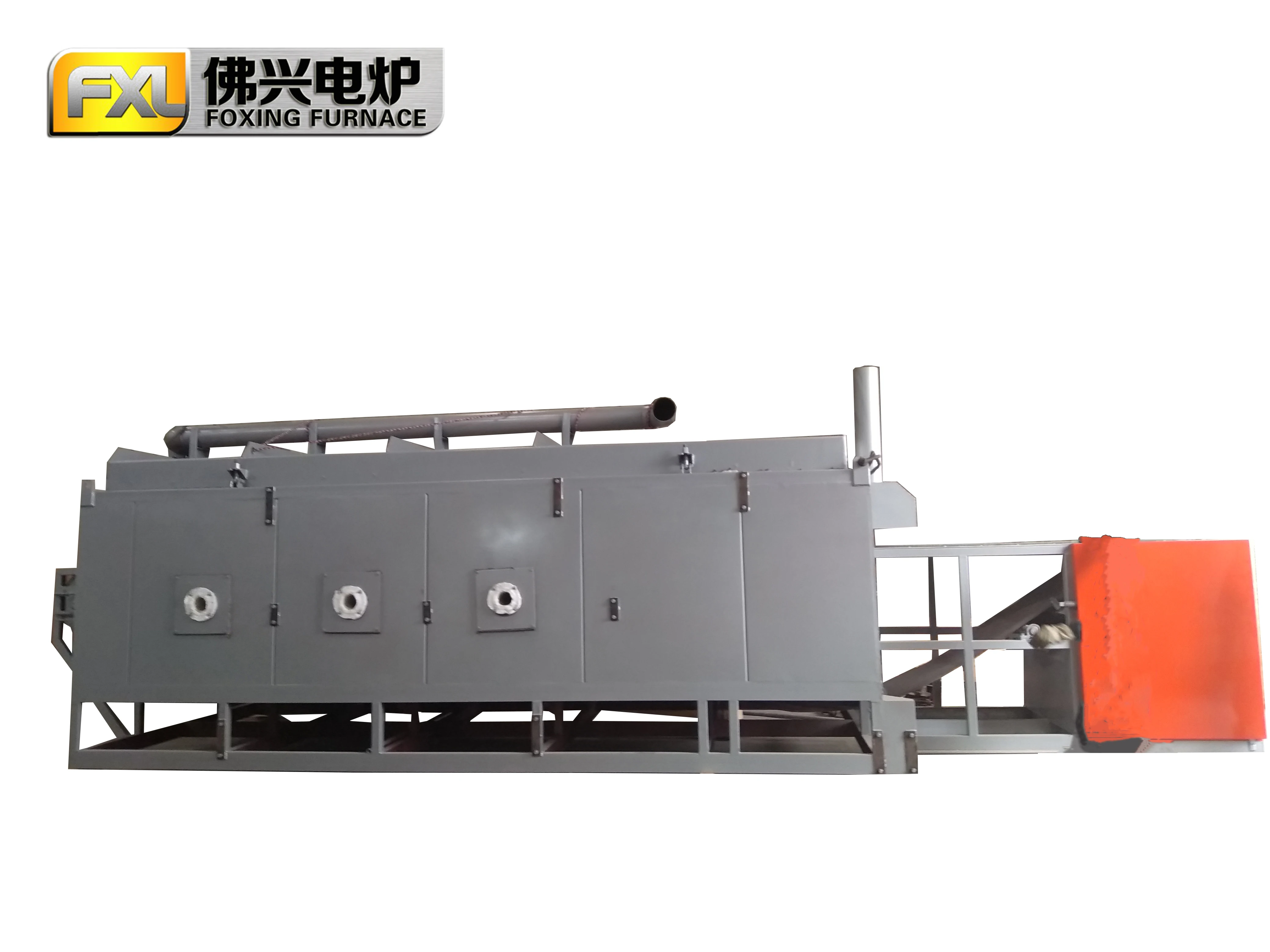

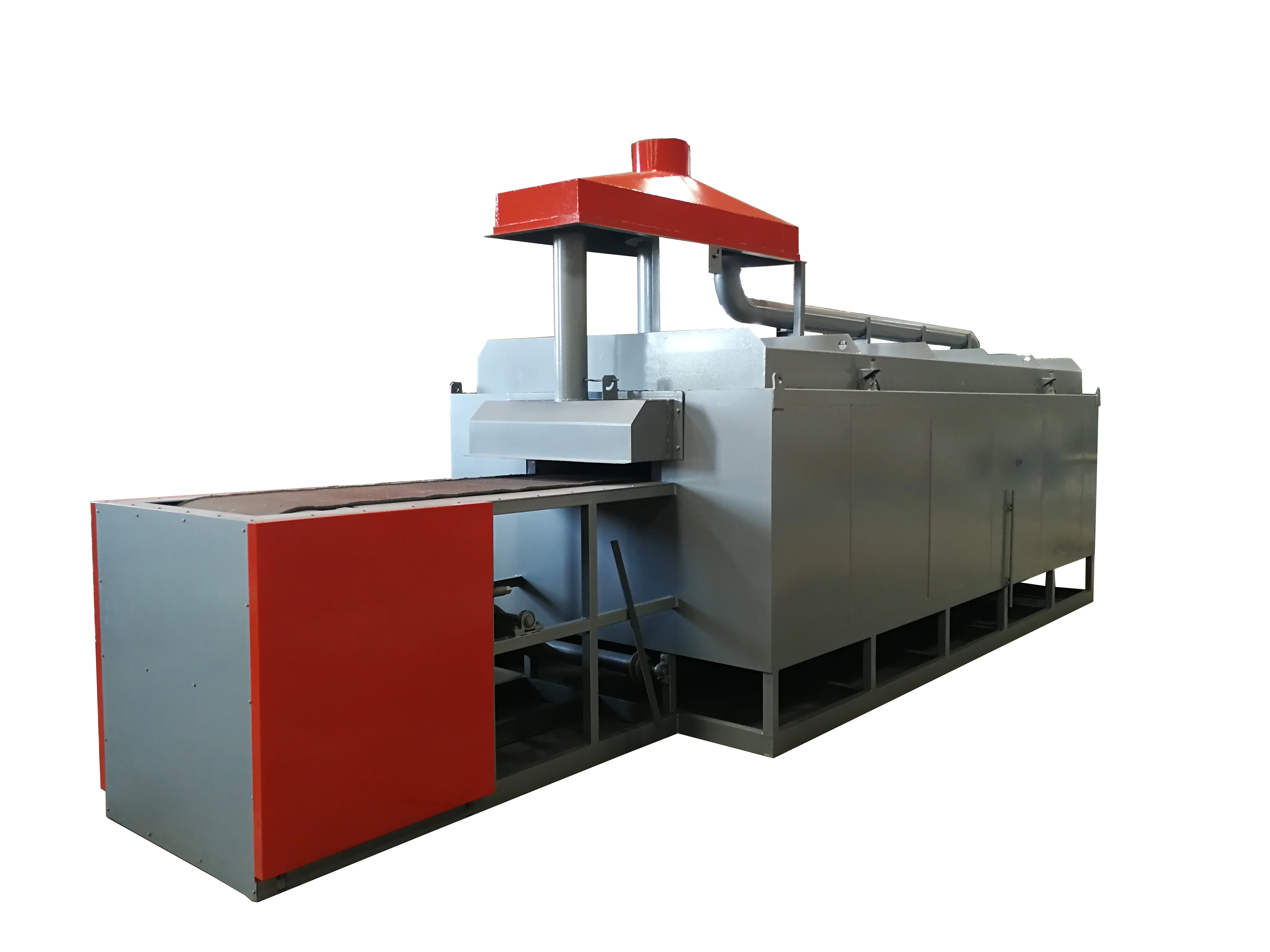

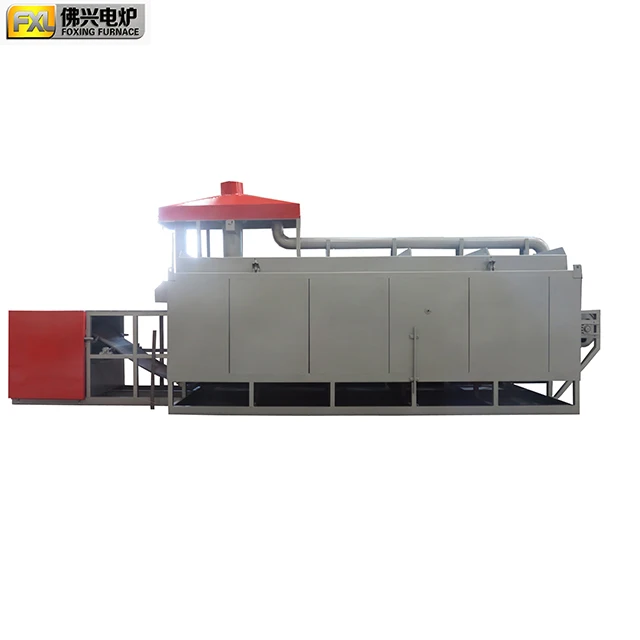

2021 new design continuous roller type preheat furnace for forging

Product Overview

Description

Forge heating furnace

1.Application

Oil fired roller transport heating furnace is a continuous working furnace, suitable for high temperature heating .



2.Technical parameter

A.The effective working size:6500(L)x700(W)X100(H)mm

    Overall size:~16000x2000x2000mm

B.Rated voltage:380V/3phase

C.Frequency:50HZ

D.Reted temperature:1200℃

E.Heating type:electric

F.Heating element connection:Y

G.Heating zone:3 zone

H.Temperature control: Oil Valves controlled by digital display instrument
