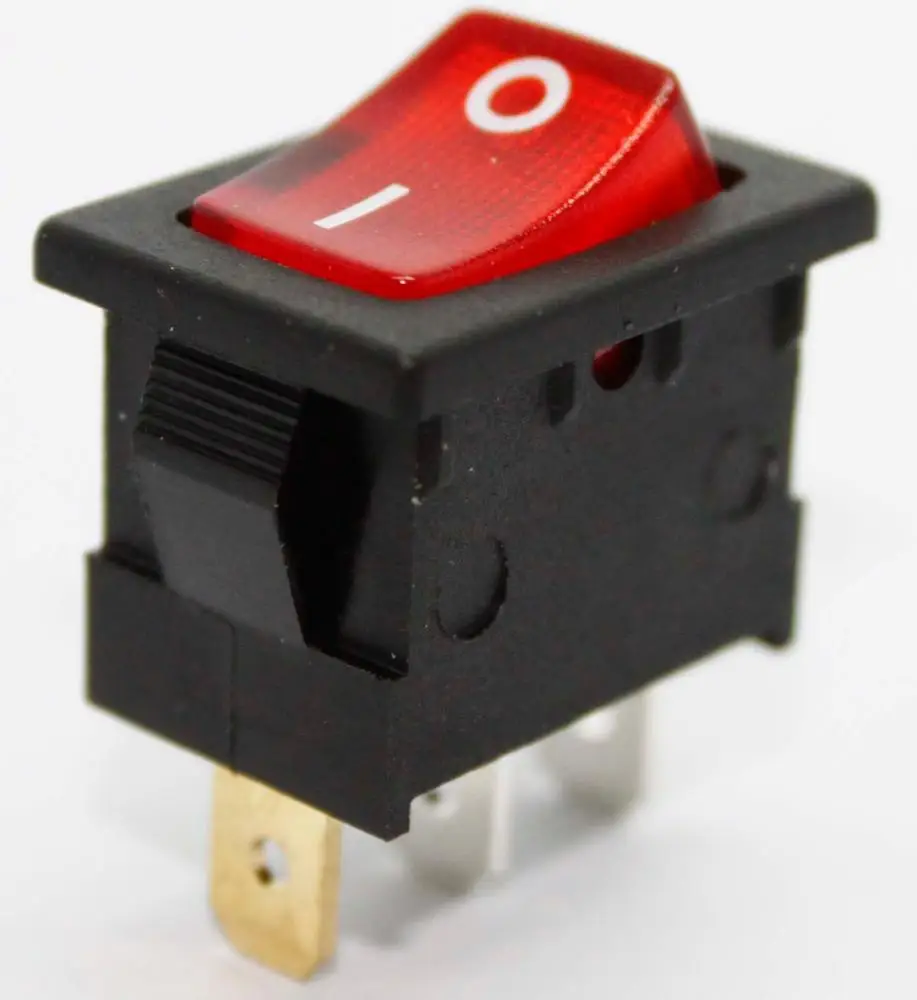

  • 15*21 RL3 111/N G 2 RE/BK P4 RS ON OFF W/LAMP 3P SPST With red lamp rocker switch
15*21 RL3 111/N G 2 RE/BK P4 RS ON OFF W/LAMP 3P SPST With red lamp rocker switch
15*21 RL3-111/N-G-2-RE/BK-P4-RS ON OFF W/LAMP 3P SPST With red lamp rocker switch
15*21 RL3-111/N-G-2-RE/BK-P4-RS ON OFF W/LAMP 3P SPST With red lamp rocker switch
15*21 RL3-111/N-G-2-RE/BK-P4-RS ON OFF W/LAMP 3P SPST With red lamp rocker switch
15*21 RL3-111/N-G-2-RE/BK-P4-RS ON OFF W/LAMP 3P SPST With red lamp rocker switch
15*21 RL3-111/N-G-2-RE/BK-P4-RS ON OFF W/LAMP 3P SPST With red lamp rocker switch
15*21 RL3-111/N-G-2-RE/BK-P4-RS ON OFF W/LAMP 3P SPST With red lamp rocker switch

15*21 RL3 111/N G 2 RE/BK P4 RS ON OFF W/LAMP 3P SPST With red lamp rocker switch

Share on (62233409149):


Price:$0.16 - $0.18

Quantity:


Product Overview

Description

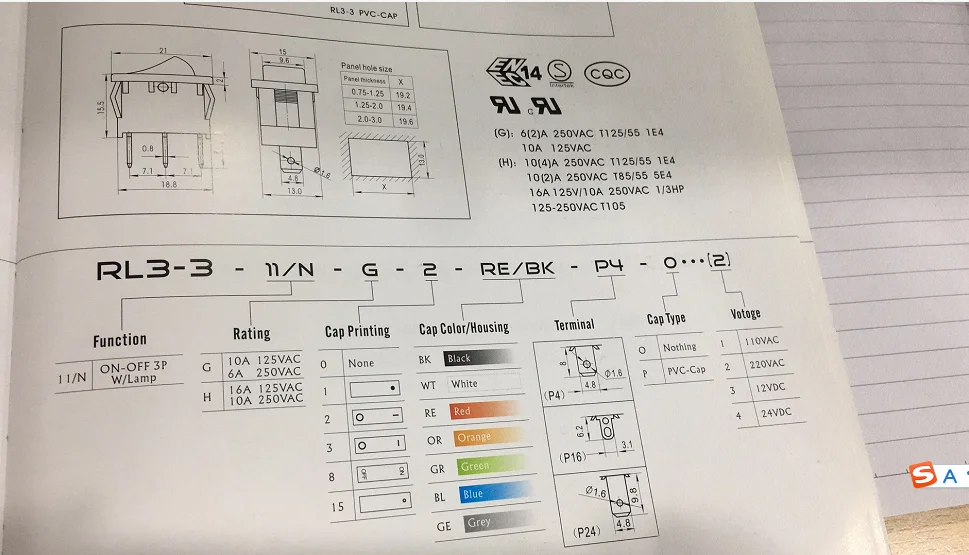

SPECIFICATION:


1.CONTACT  RESISTANCE: 50mΩMAX


2.INSULATION RESISTANCE:100MΩ MIN


3.DIELECTRIC STRENGTH:NO DAMAGE TO PARTS ARCING,OR BREAKDOWN ETC.


4.PRACTICAL TEMPERATURE RANGE:AT-16℃~+125℃


5.SOLDERABILITY TEST:THE TOP OF THE TERMINALS SHALL BE DIPPED 2mmINTHE SOLDER BATH OF 230+10℃ FOR 3+0.5 SECONDS.


6.RESISTANCE TO SOLDERING HEAT TEST:SOLDER BATH METHOD:SOLDER TEMPERATURE260+5℃,IMMERSION TIME5+0.5SEC,IMMERSION DEPTH UP TO THE SURFACE OF THE BOARD,DIMENSIONS OF COMPONENT HOLES IN THE PRINTED WIRING BOARD SHALL BEING ACCORDANCE WITH THOSE SPECIFIED IN THIS SPECIFICATION.
