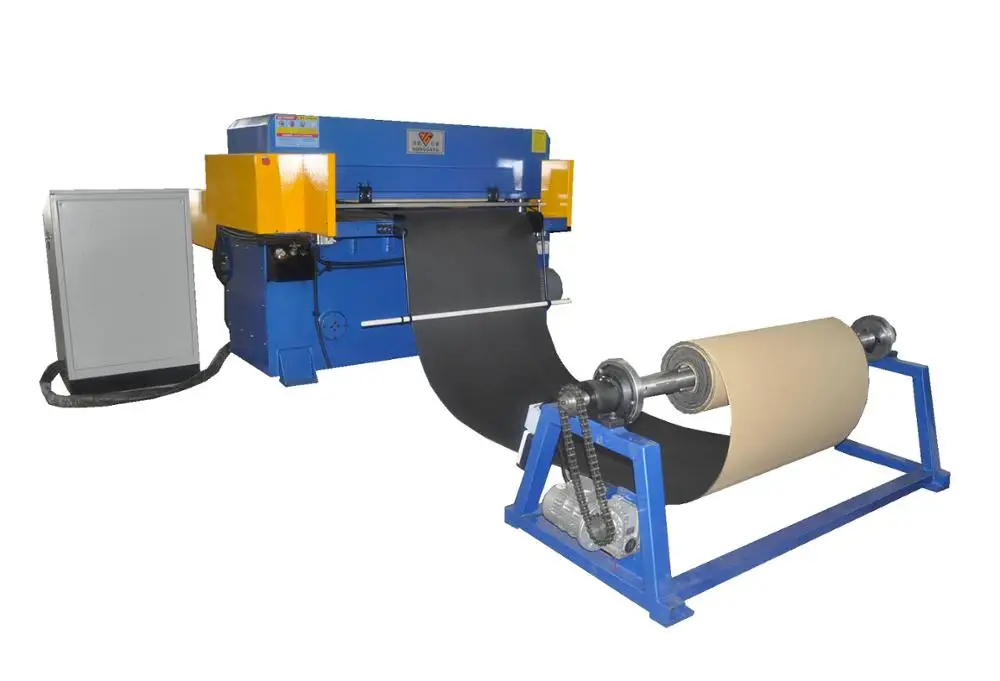

100ton automatic feeding car leather roll cutting machine is a equitment die cut roller materials with superior productivity and labor saving. It is converted from usual cutting machine by using the
rotary or roller which enhance the auto feeding system and cutting speed. In HG, the roller can meet your request or just design for you.
1.Automatic roller-in-feeding,moveable clamp out-feeding,allows all cutting process without any labor.
2.Roller device with auto rolling function to roll materials easily;rollers easy to change.
3.Controlled by PLC(Programmable Logic Controller),with touching screen,to adjust working pressure,stroke,feeding speed easier,faster and more precise.
4.Auto-balance structure of double-cylinder,four-column and self-balance connecting rod,makes sure equal pressure in any working area.
Models for choose:
|Cutting force||60 tons||80 tons||100 tons||120 tons||150 tons|
|Area of Work Table||810mm*1400mm||810mm*1400mm||810mm*1400mm||810mm*1400mm||810mm*1400mm|
|Main Motor Power||5.5KW||7.5KW||7.5KW||11KW||11KW|
The automatic feeding car leather roll cutting machine usd for die cutting soundproof products,car seat covers,multi-layer fabrics etc.rolls materials.
The hydraulic roll die cutting machine is suitable to die cut all non-metal soft /half-soft materials, especially use for die cutting disposable blister or foam packaging,paper products,cardboard,EPE foam packaging,automotive/plane interiors etc.large materials sheets.
1. We are a factory, and the price is favorable.
1)What's warranty of hydraulic roller cutting machine?
12 months Warranty
Life-long maintenance service for press cutting machine
2)What's your after-sales service?
Engineer available to serve machines over seas;
Email and calling service in working hour; 24 hours door to door in domestic.
3)Can we test the our material by your machine free?
Yes, please contact us to send your matrial.
4)How to confirm how much ton pressure is fine?
Always 1m knife line need about 5 ton pressure.
please send your drawing or product photo, we can help you confirm.
5)Can you make dies & PP boards?
Yes, just send your drawing or material.
PP board will come with machine to you.
6)Are you a factory or trading company?
We are a factory and manufacturer
Don't know how many ton you need?
Please contact us!
Don't know how the machine working?
Please contact us to see the video!
