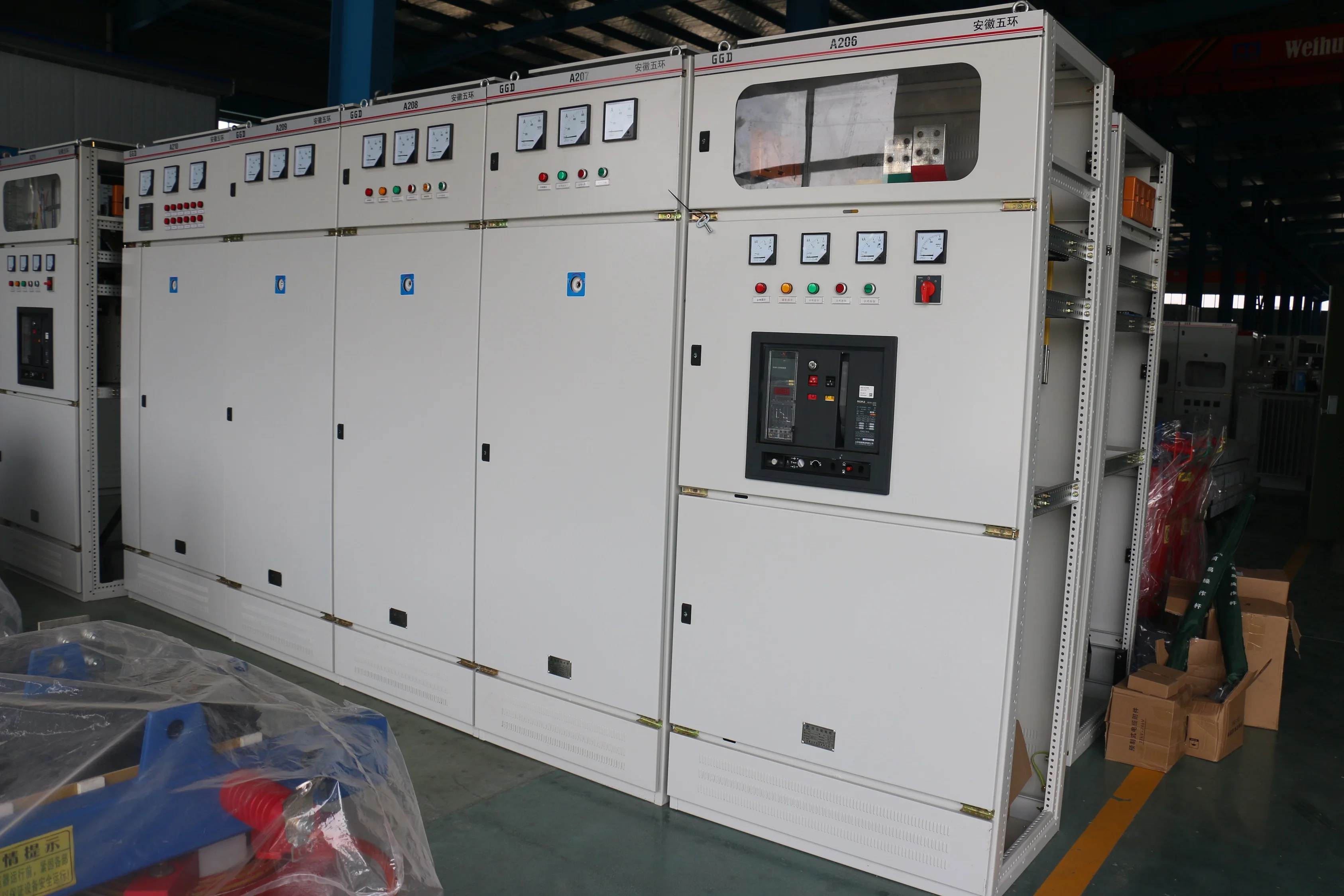

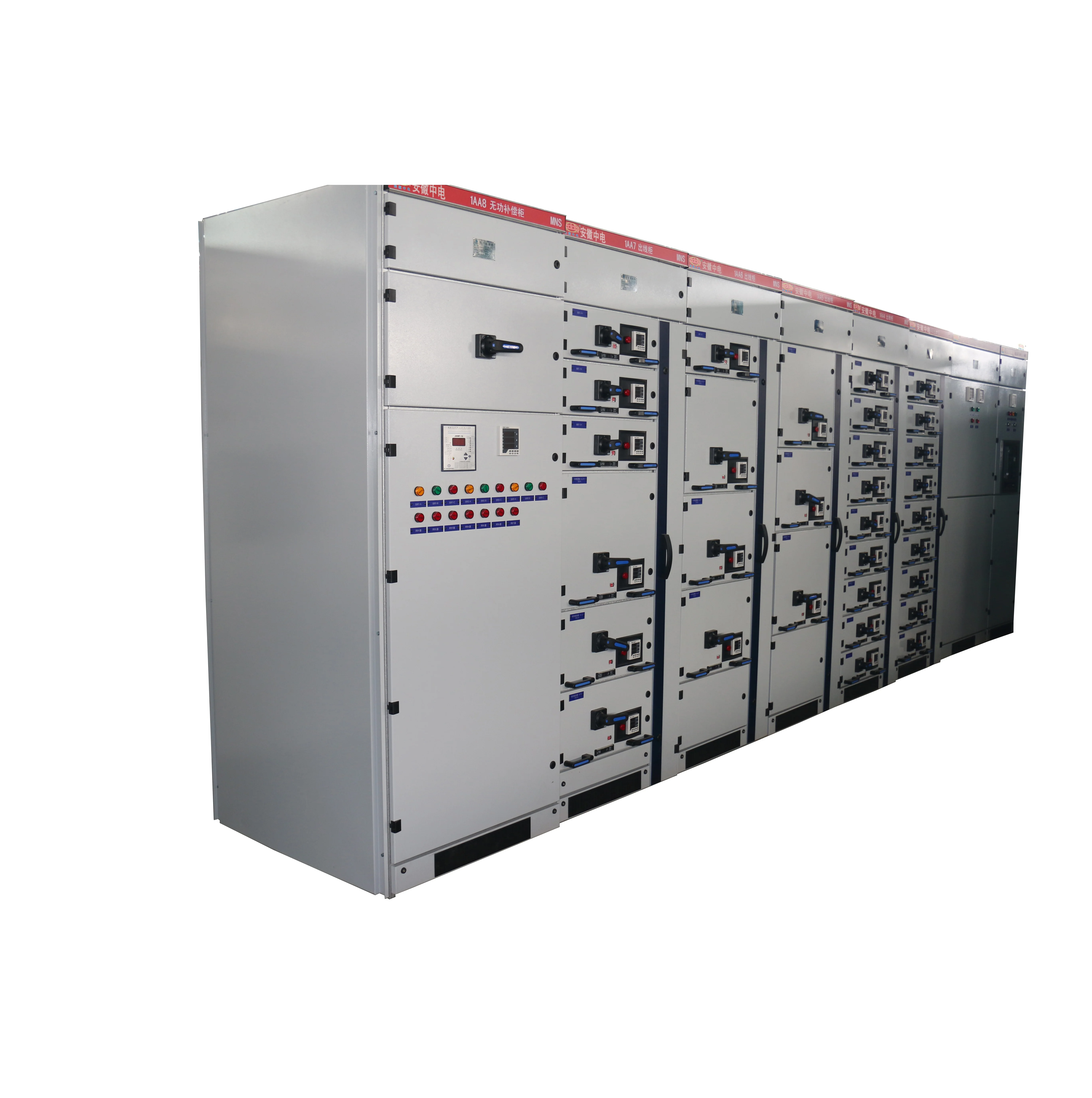

GCK Low Voltage Electrical Motor Control Centre MCC Switchgear Panel

GCK low-voltage withdrawable switchgear is composed of two parts: power center cabinet (PC) and motor control
center cabinet (MCC). It is suitable for AC 50Hz-60Hz, rated working voltage 690V and below, for all power generation
or distribution and power use occasion.
GCK low-voltage withdrawable switchgear is widely used in power plants, substations, power distribution centers ,
factory and mining enterprises and high-rise buildings.

1. Internal structure galvanized, external pickling phosphating.
2. The cabinet is made of profiled steel and positioned by a 3-dimensional gusset plate.
3. The mounting holes of the bar frame and parts change according to the modulus E=25mm.

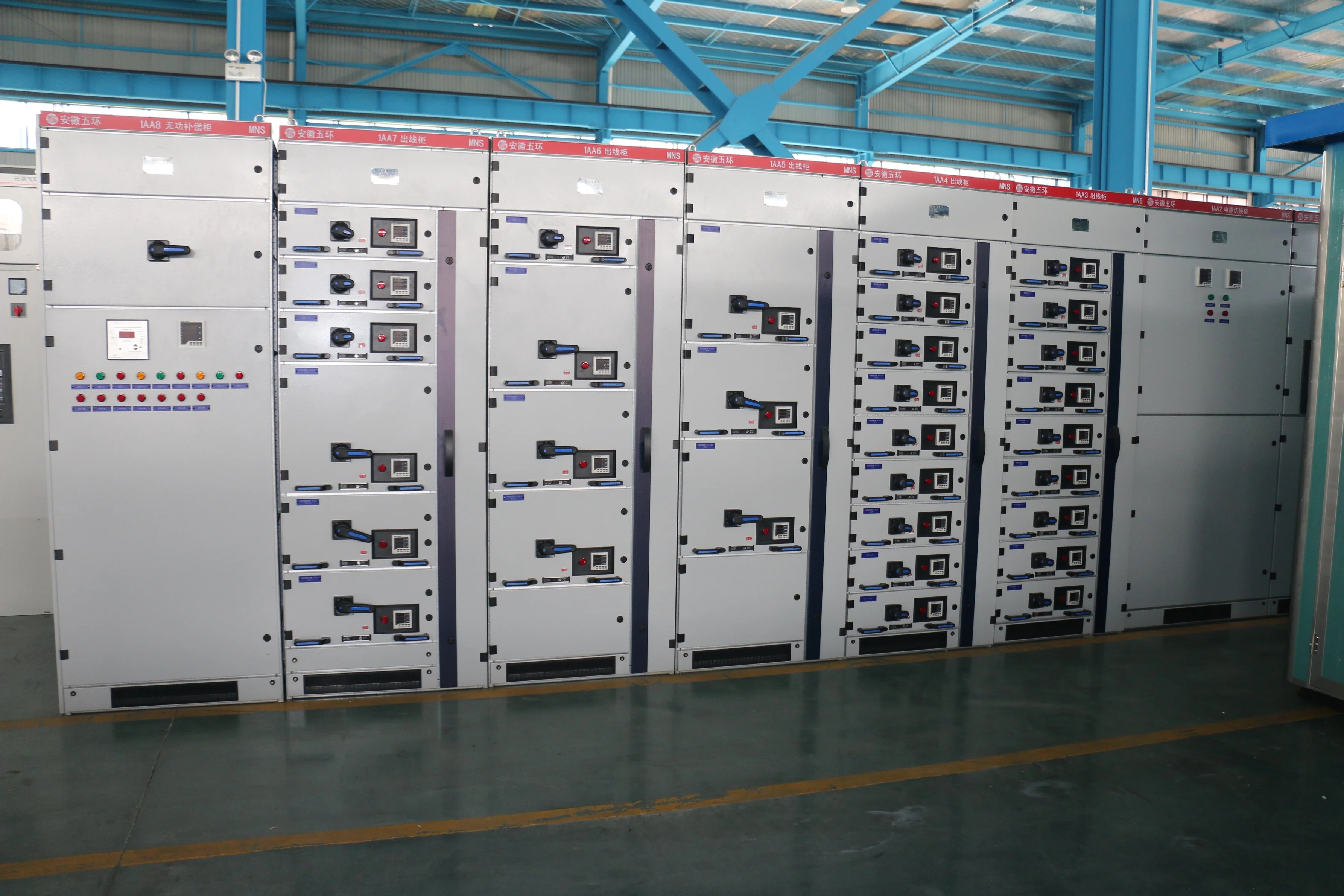

4. The motor control center (MCC) switchgear has two types: wall-mounted and not wall-mounted. The top is the

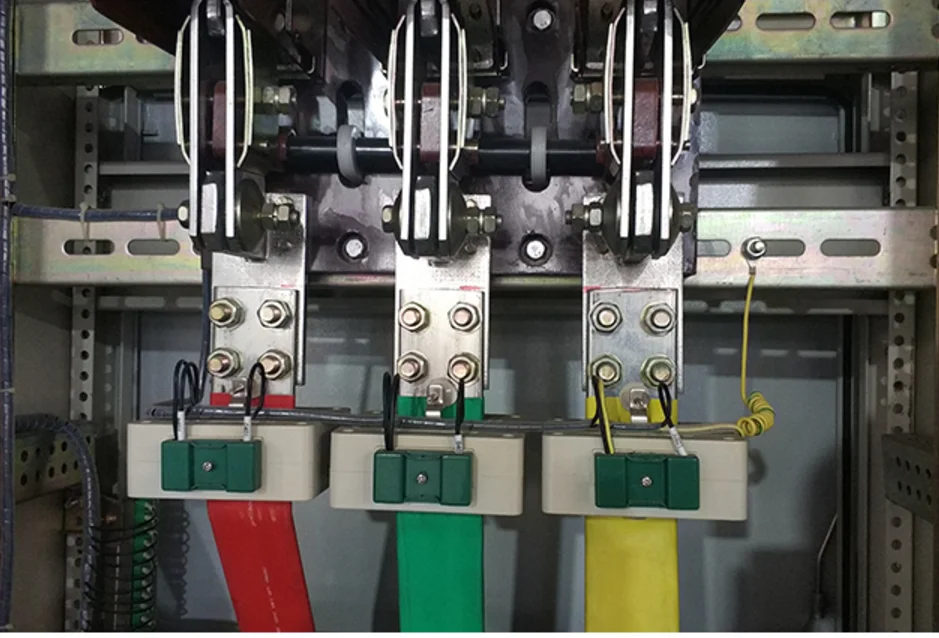

horizontal busbar area, and the horizontal area is the drawer functional unit area.
5. The structure of the power center (PC) feeder cabinet is similar to that of the incoming line cabinet. When the

feeding current is 630A~1600A, a cabinet of 1000*1000*2200 (width*deep*height) can be installed with two circuits,

which are installed up and down.
6. The drawer function unit and the door are mechanically interlocked by the operating mechanism of the main switch. The functional unit compartments are separated by metal loose, the drawers are interchangeable and have a working

position, a test position and a separation position.

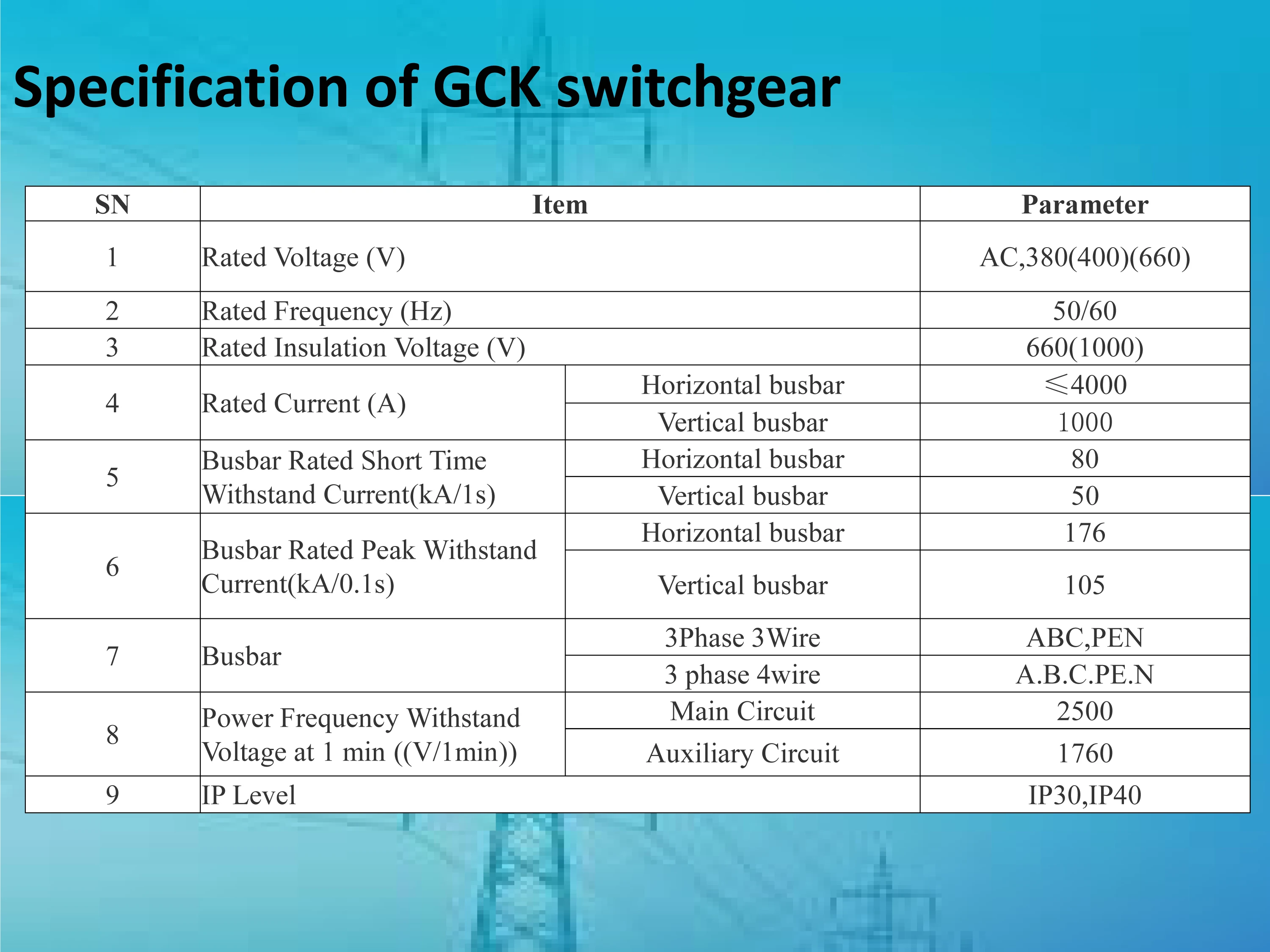

GCK withdrawable switchgear is a low-voltage complete power distribution device ,suitable to AC 50-60Hz, rated

working voltage of 660V or below, rated current of 4000A and below, power distribution, motor centralized control,

power factor correction.

GCK withdrawable switchgear is used as a substation, feed or motor for low-voltage distribution systems of 3P-3W or

3P-4W.

GCK withdrawable switchgear has increased its capacity and mechanical strength on the basis of maintaining higher

electrical performance, and has characteristics of  advanced structure, perfect appearance, high protection level, safety and reliability, and easy maintenance.
