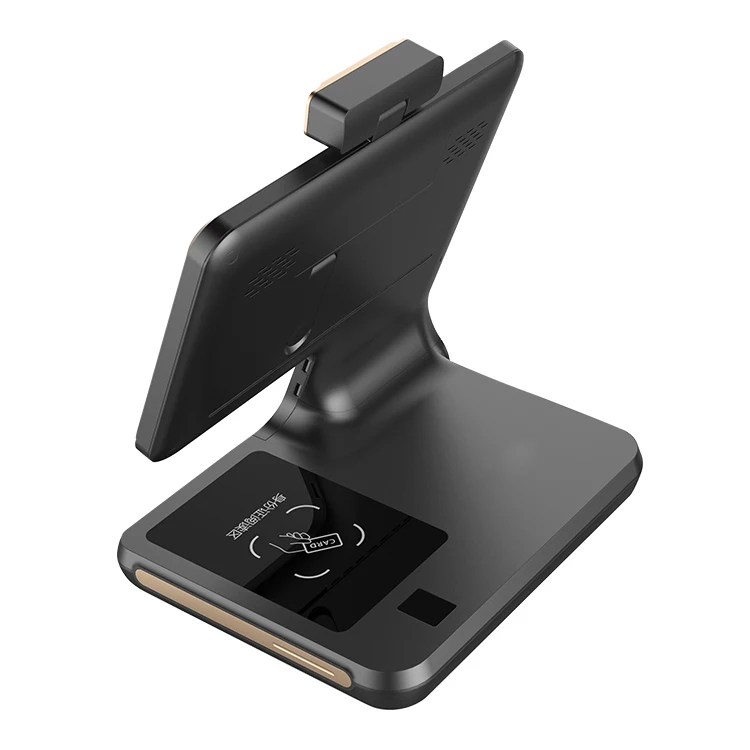

11.6inch single touch screen black color 3D face recognition Android 6.0 visitor pass management system
- Category: >>>
- Supplier: Shenzhen Haodexin Electronic Technology Co. Limited
Share on (62233692289):
Product Overview
Description
11.6inch single touch screen black color 3D face recognition Android 6.0 visitor pass management system
Product Description
1. Application
- Catering: hotel, restaurant, fast-food restaurant, coffee shop, bakery and cake shop;
- Retailer: Business Street, boutique, department store, cosmetics shop and high-class barbershop;
- Recreation: sauna, spa, night club, theme park, casino and point of sales for lottery ticket;
- Commercial: information management terminals for parking lot, inn, aviation, subway, station and wharf.

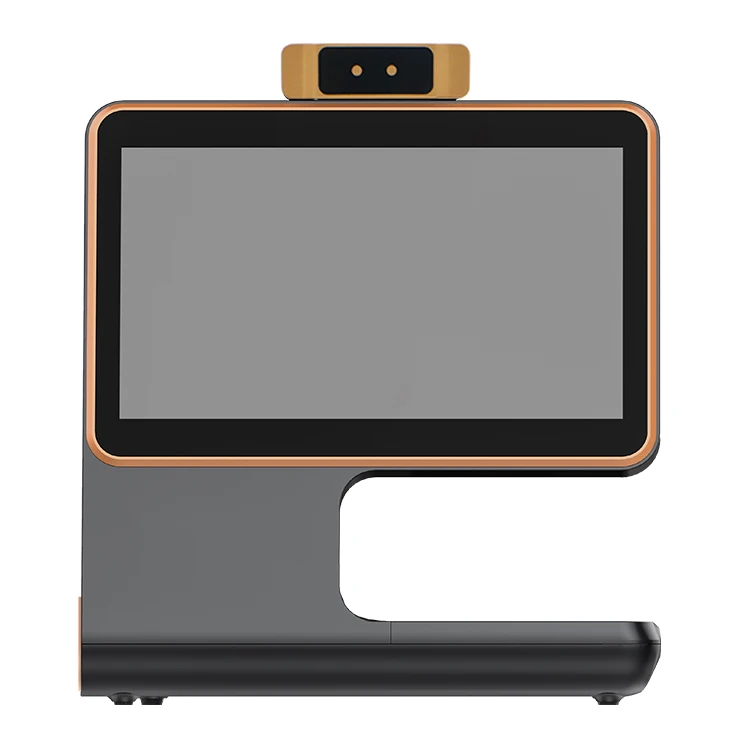

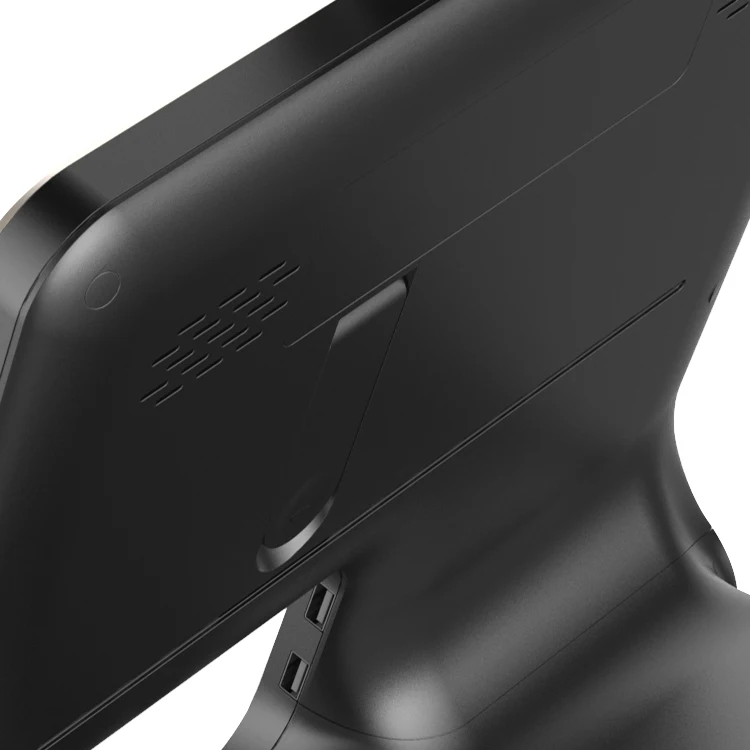

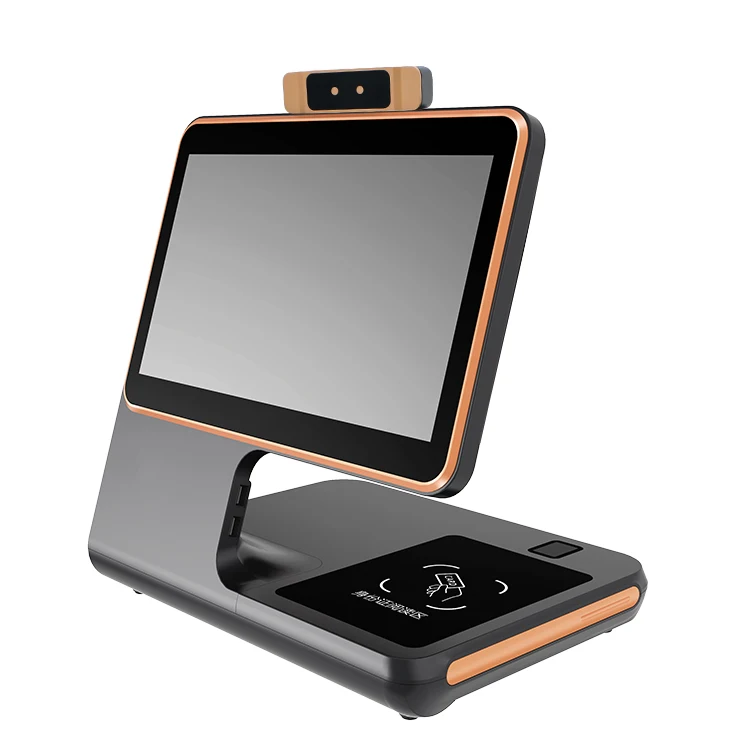

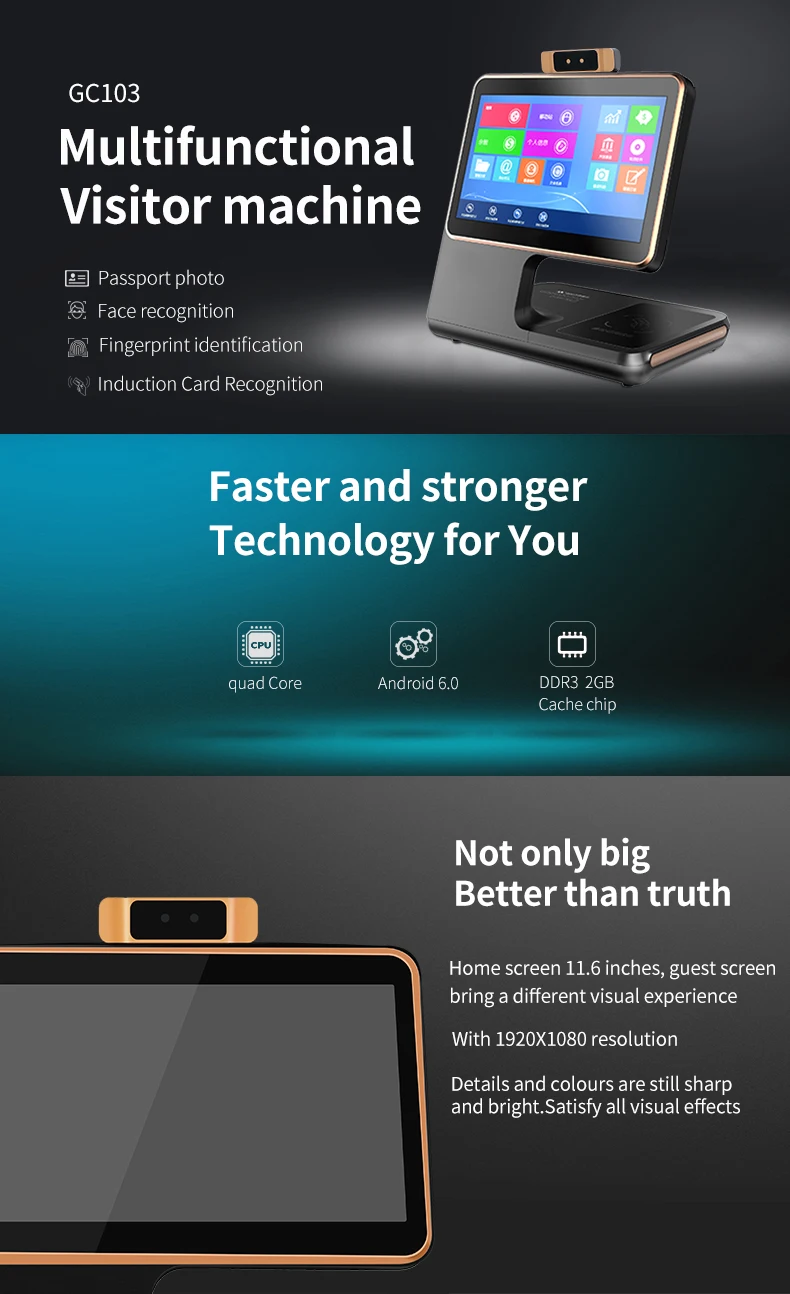

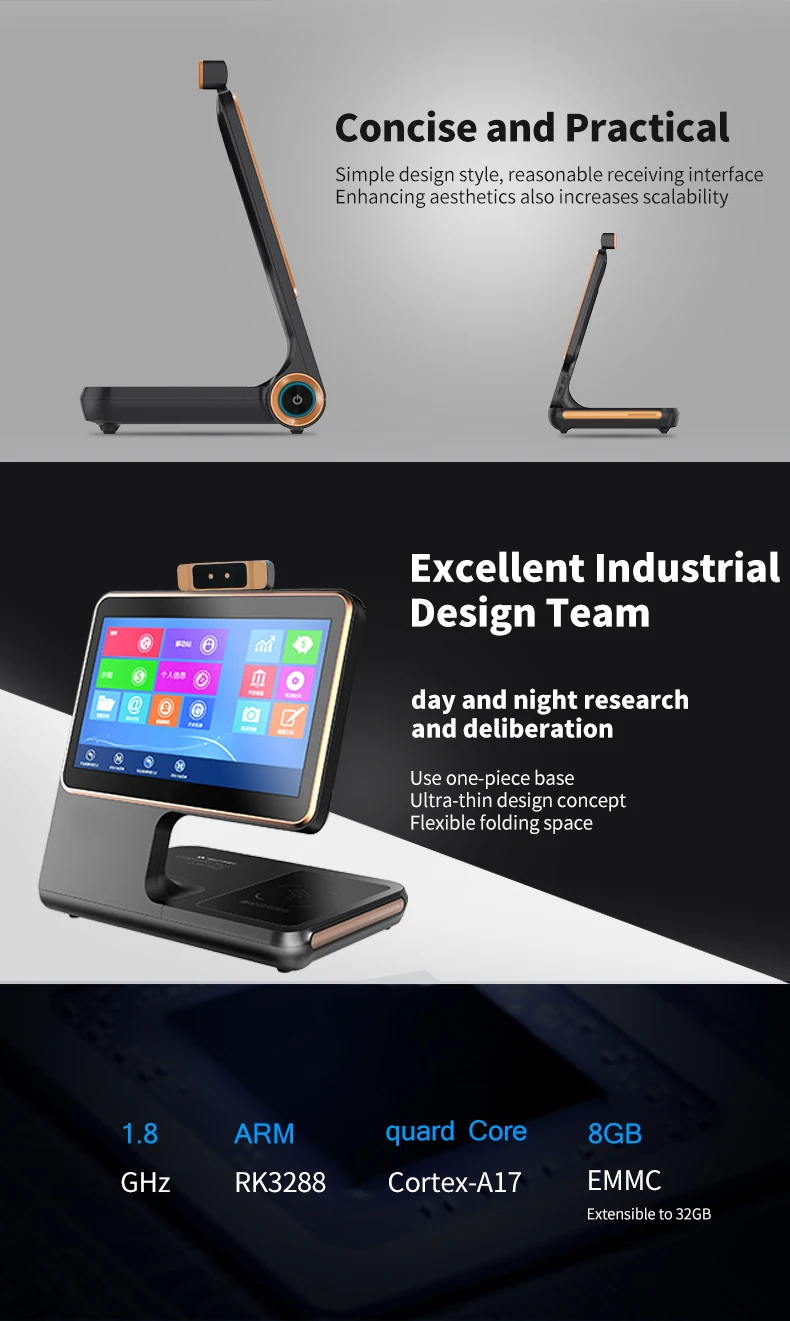

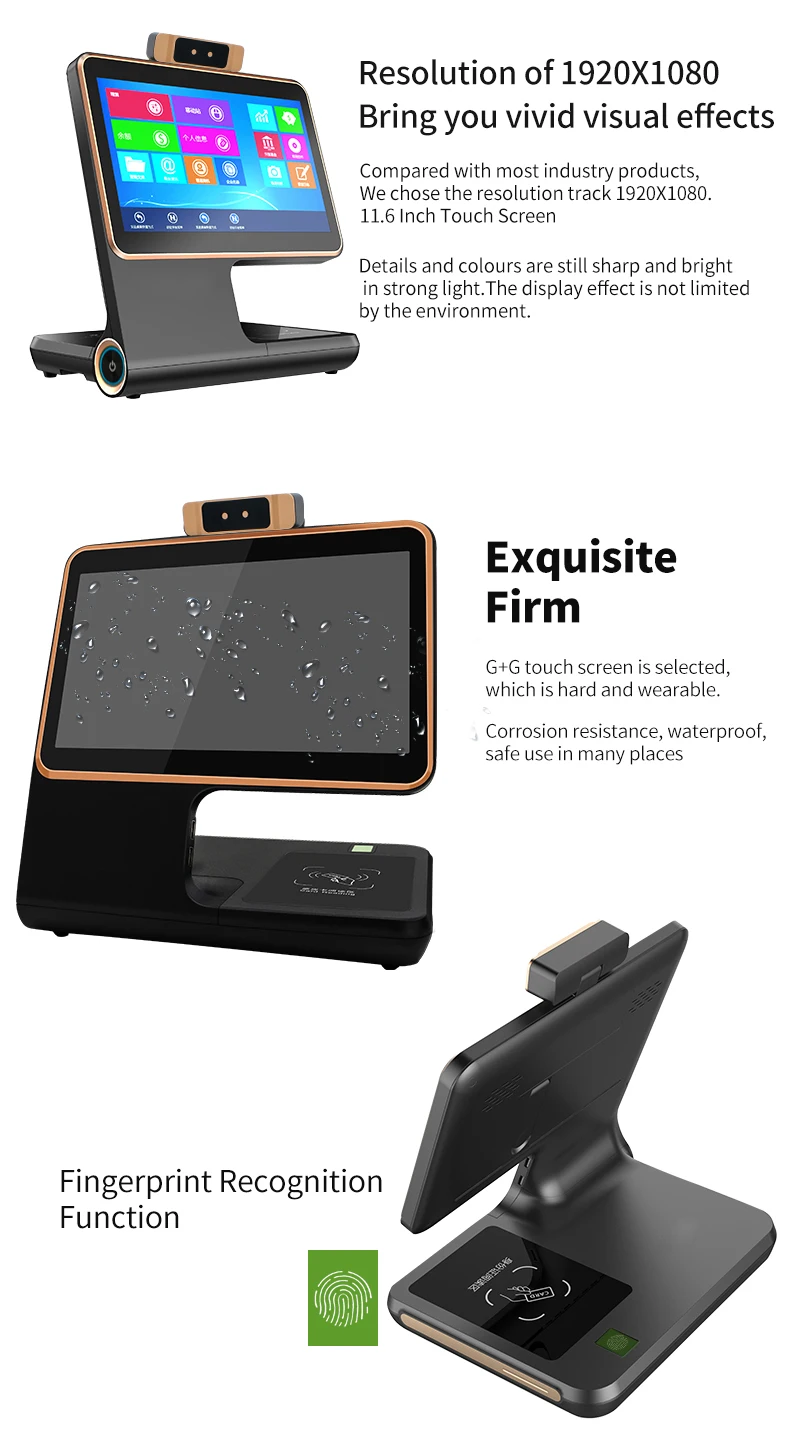

2.Detail shows

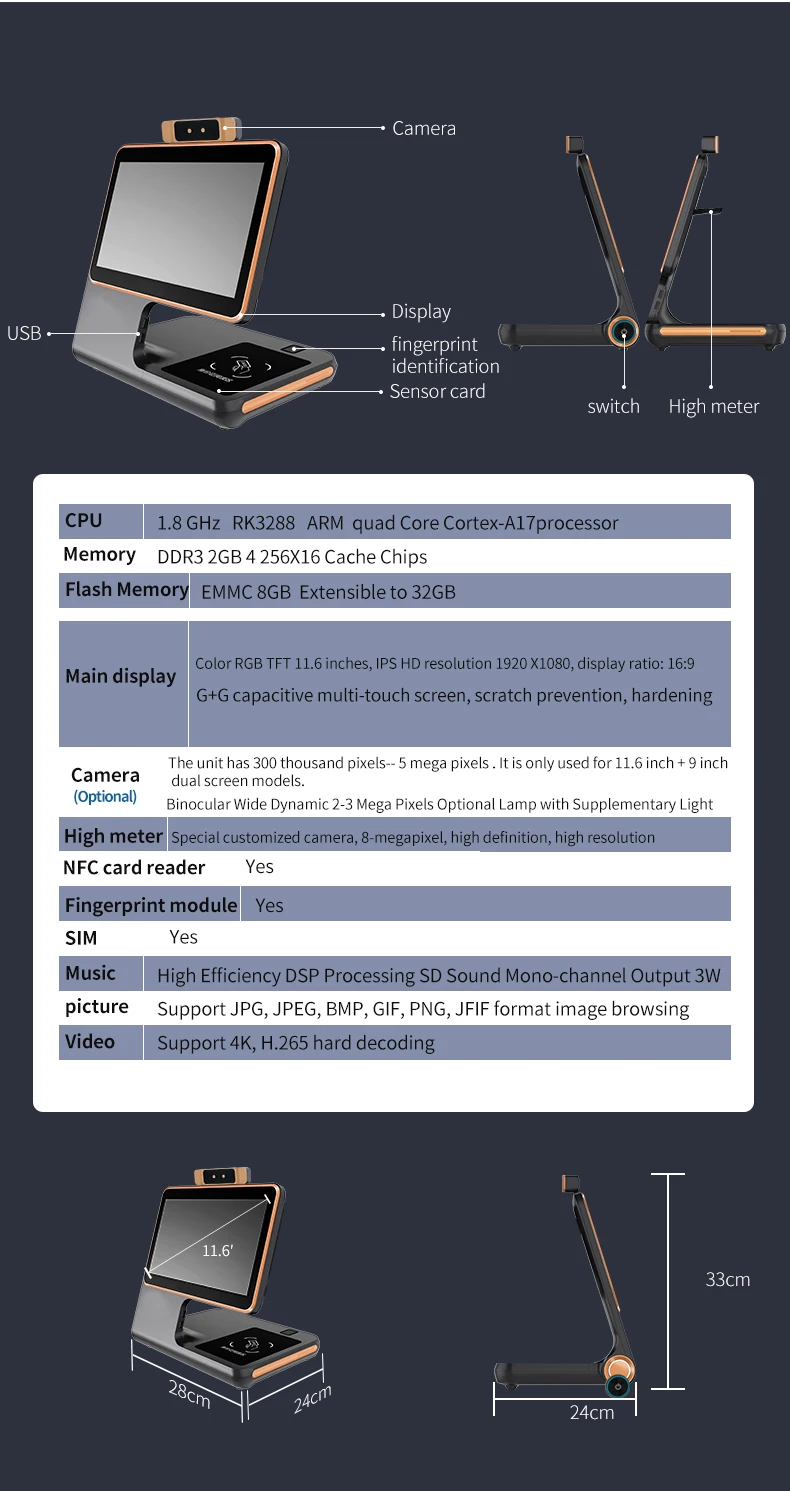

3. Specification
| Item No. | GC103 (Android, RK3288) visitor tracking system device |
| Feature/Advantage | dual screen 2 touch 11.6 inch+9inch high POS terminal with face recognition camera, support fingerprint biometric recognition POS |
| Casing/Material | ABS, PCBA, color: grey |
| Platform | OS installed, free SDK, POS apps not included |
| Operation System | Android 6.0 or higher (windows also available) |
| 2D code decoding | with built-in 2D code decoding software, based on Android 6.0 |
| CPU | RK3288 ARM Cortex-A17,quad core,1.8GHz |
| Memory | DDR3 2GB (256*16 high speed cache chip, 4 pcs) |
| Nandflash: EMMC 8GB,24bit ECC, 16GB, 32GB optional | |
| Operation display | G+G capacitive multi point touch,scratch-proof, harden |
| 11.6" RGB TFT,1920*1080 pixel, Aspect ratio:16:9 | |
| Customer display | (Optional)G+G capacitive multi point touch,scratch-proof, harden |
| 9" RGB TFT,1280*720 pixel, Aspect ratio:16:9 | |
| Camera(Optional) | 0.3Mega~5mega camera(only for 11.6" &9" model ) |
| Binocular WDR camera with light filling, 2MP-3MP optional | |
| High speed scanner | (Optional)specialized camera, 8 mega pixel, high speed document scanner, quick transfter the image into editable word document via OCR software |
| NFC card reader(optional) | 13.56MHZ contactless, meet standard of philips Mifare 1K/4K, ISO/IEC14443A/B, ISO/IEC15693, Mifare DESfire, Sony Felica |
| ID Card recognition | Optional module, can read ID card, China standard |
| Fingerprinting | Optical fingerprint module(Optional), authenticated by ministry of public security |
| Commucation module | SIM card, meet almost all the telecom operator standard |
| (Optional) 4G TDD-LTE, 4G FDD-LTE, 3G TD-SCDMA, 3G WCDMA, 3G CDMA EVDO, 2G CDMA, 2G GSM | |
| Wifi module: IEEE802.11b/g/n compatible with wapi(optional) | |
| Bluetooth:support 2.0+EDR, 3.0, 4.0 | |
| Ethernet(RJ45), support TCP/IP HTTP protocols | |
| Ibeacon: wechat shake(Optional) | |
| Antenna | Built-in high gain antenna |
| Multi-media function | High effient DSP processing, music,support mp3, wma and etc, support lyric display line by line or full display |
| Video, support 4k,H.265, HDMI 2.0,video enhancemene | |
| Picture, jpeg, jpg, bmp, gif, jfif, support upto 8000*8000 pixel | |
| External interface (may vary for different product batch,OEM available) | USB x 4 (2 side, 2 on plate), mini USB OTG x 1 |
| TF card slot(support upto 32GB) x 1 | |
| Rs232 serial port, standard DB9 x 1 | |
| Ethernet RJ45 port x 1, support TCP/IP HTTP protocol | |
| RJ11 x 2, connect password keypad and cash drawer | |
| Earphone port x 1 | |
| Microphone port x 1 | |
| DC power socket(12V, 4A) x 1 | |
| DC switch x 1 | |
| Accessories | DC power adaptor,input 100-240V, output, 12V, 3A |
| Working temperature | -10℃~50℃ |
| Storage temperature | -40℃~80℃ |
| Humidty | 95% without sticky |
| ESD protection | 12kv |
| Packing info | Item size: 280*240*330mm Box size: 375*405*305 Gross weight: kg Qty/carton: 1 pcs/ctn Shipping weight: 10kgs |
Packaging & Shipping
1. Packing Information
- Standard industrial packaging (White box+paper holder+cartoon+specification+warranty card)
- Packing Dimension: 350X 290 X 380MM
- Net weight for product :3.8KG
- Gross weight for package :4.5 KG
2.Shipping
- For sample order we usually choose to delivery by DHL /UPS /TNT/FEDEX /EMS ............,Usually takes 3-7 working days .
- For Large orders we usually choose to by sea or BY air or other method Transportation
Our Services
1.Pre-sale service
Will do our best to help customer to choose the suitable POS afer make sure the customer's detail requirements. The technical specifications will be sent for checking. All the inquiry and email will be responsed within 8 hours
2.In-sale service
Will provide the updated information of the shipment and payment.Will always let the customer to know the dated production information
3.After-sale service
Will provide one year warranty for all of our POS terminal.Will provide solution if found any broken devices after customer receive the goods. Will provide powerful technical for customers' secondary development. Will always provide repairing service
4.ODM service
ODM is available in our factory. Will design the new products after make sure the detail requirements of customers.
Product Overviews

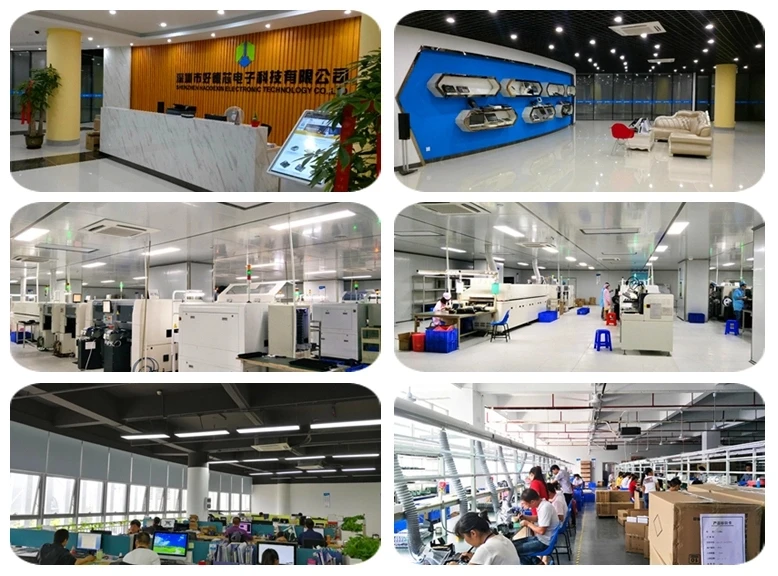

Company Information
- founded in 2008,more than 10 years experience
- more than 500 big companies,such as china telecom,mobile,unicom
- more than 6 product lines
- more than 30 QC
- more than 20 engineers
- Our nature is a technical company

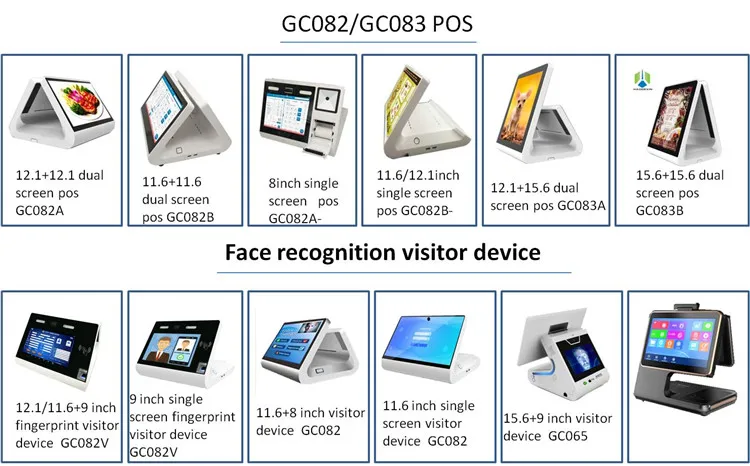

desktop pos relevat
FAQ
1. Do you have this product in stock
Re:We have the basic model in stock. We can send the goods within 7 days after payment received.
2. Do you offer POS related product
Re:We are also offering barcde scanner, thermal receipt printer, cash draw, scanner, kitchen printer.
3. Can I have sample ? is it free ?
Re:We do sample order, but cost on buyer side.
4. What payment term do you do ?
Re:T/T, Western Union
5. What is your MOQ
Re:For basci model, we do not have MOQ.
