High quality EPS Foam Compactor Machine Waste Expanded Polystyrene Recycling machine
- Category: Other Plastic Recycling Machines >>>
- Supplier: Hangzhou Minglong Technology Co. Ltd. [Zhejiang China]Hangzhou
Share on (62233706447):
Product Overview
Description
The Specification of EPS Compactor Machine | ||||||
Type | Throughput | Block Density | Block Size | Feeding Width | Power | |||||||||||||
lbs/h | kg/h | lbs/ft3 | kg/m3 | inch | mm | inch | mm | kw | ||||||||||
RY-CS130-600 | 30~40 | 13~20 | 11~44 | 250~700 | 5.1 | 130 | 23.6 | 600 | 4.5 | |||||||||
RY-CS200-800 | 90~120 | 40~60 | 250~700 | 7.9 | 200 | 31.5 | 800 | 7.7 | ||||||||||
RY-CS250-900 | 160~240 | 70~120 | 250~700 | 9.8 | 250 | 35.4 | 900 | 10.5 | ||||||||||
RY-CS300-1000 | 180~270 | 80~135 | 250~700 | 11.8 | 300 | 39.4 | 1000 | 15 | ||||||||||
RY-CS400-1200 | 340~440 | 155~220 | 250~700 | 15.7 | 400 | 47.2 | 1200 | 24 | ||||||||||
Block density is depended on material type and source density. Electrical voltage: according to the customers' local request. | ||||||||||||||||||
All the specifications can be customized. | ||||||

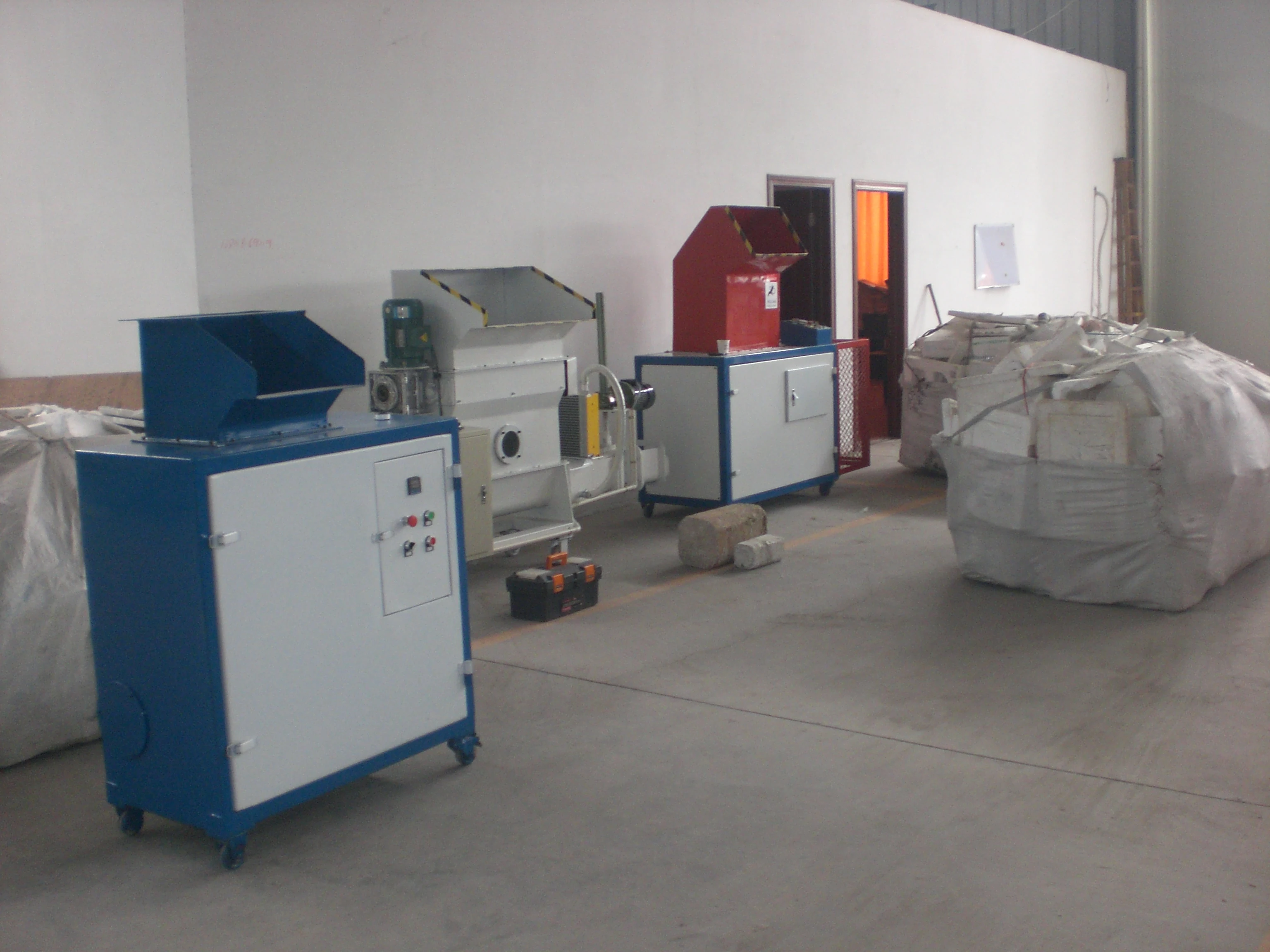

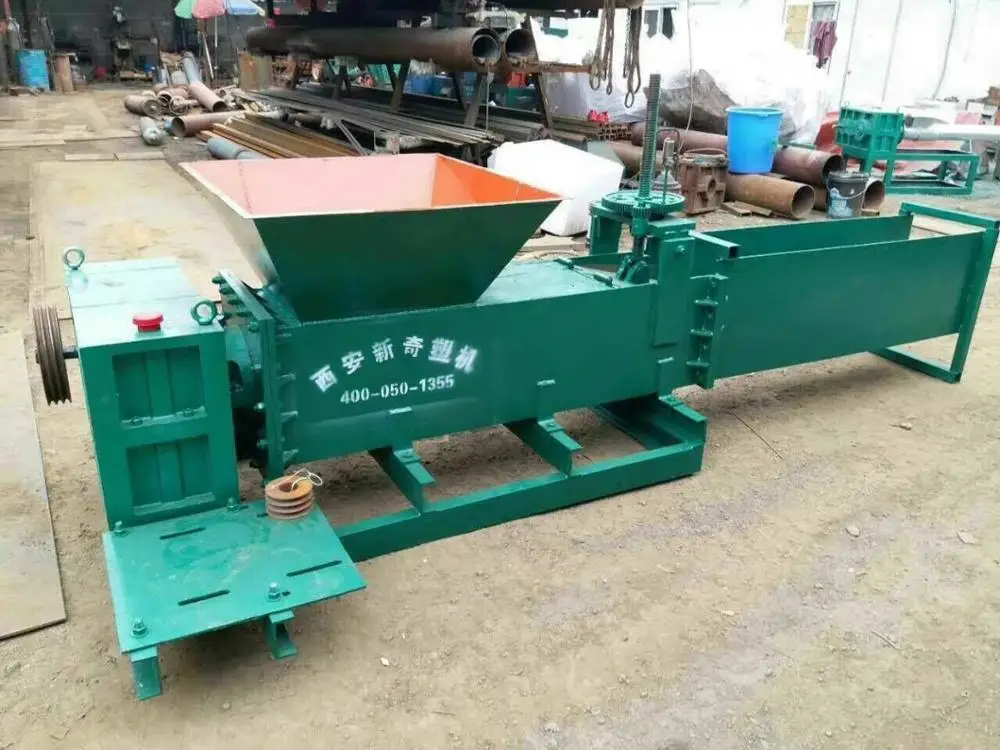

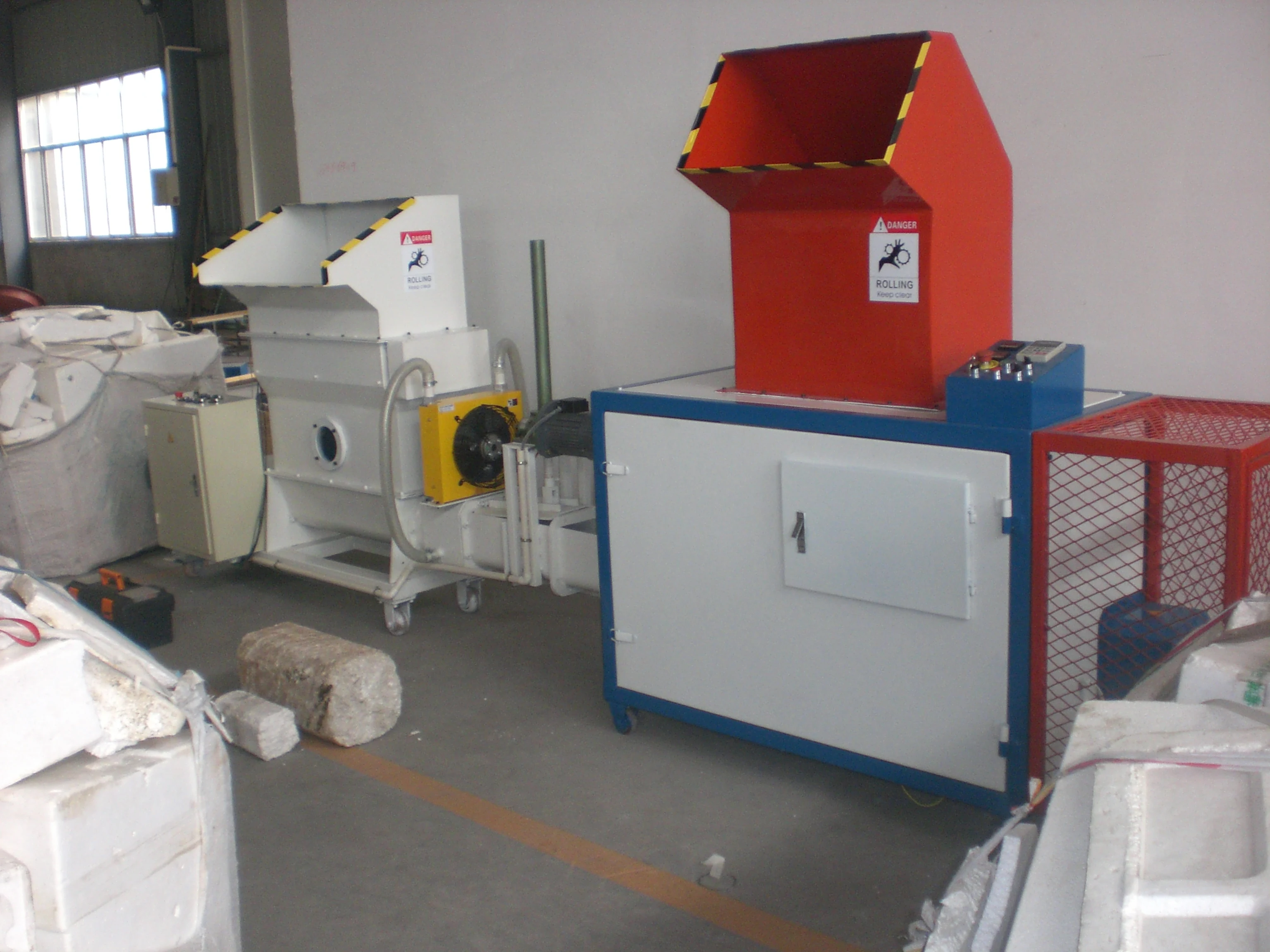

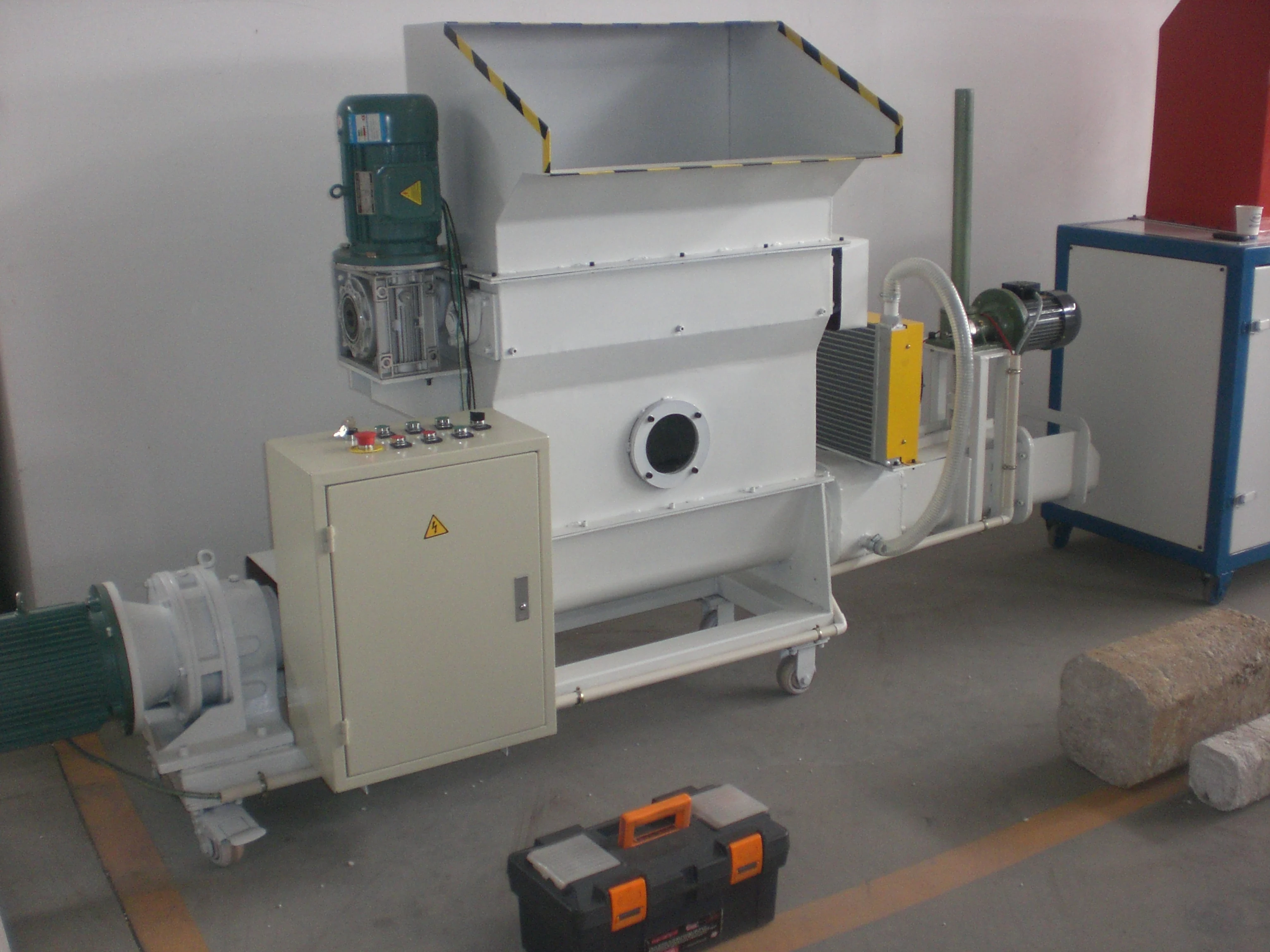

Detailed Images
The Application of EPS Compactor Machine | ||||||
The Description of EPS Compactor Machine
1. Compaction System suitable for EPS EPP EPE XPS.
2. Application: COMPACTOR is used to compact the plastic waste like EPS EPP EPE XPS. The good reduction in volume can be achieved in this manner to save transport and disposal cost.

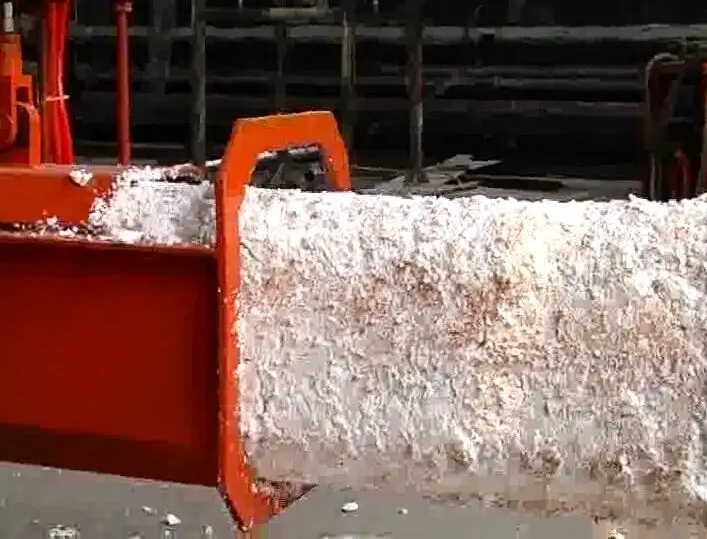

Compressed block can be reused as high quality granulates by recycling companies and other related manufacturers.
3. Processing Method: The operator throws plastic waste into hopper of the machine, and then the pre-breaker with two rotating knife shafts will crush it into 10~50mm pieces, which are forced by a screw into the pressure channel
4. Technical Characteristics:
Perfect drive design ensures the long life for this machine.
The motor for pre-breaker and screw compactor: Gear reducer and Cyclonidal pinwheel reducer can be optional.
The compressed drive: Hydraulic, Pneumatic and Electrical motor can be optional.
