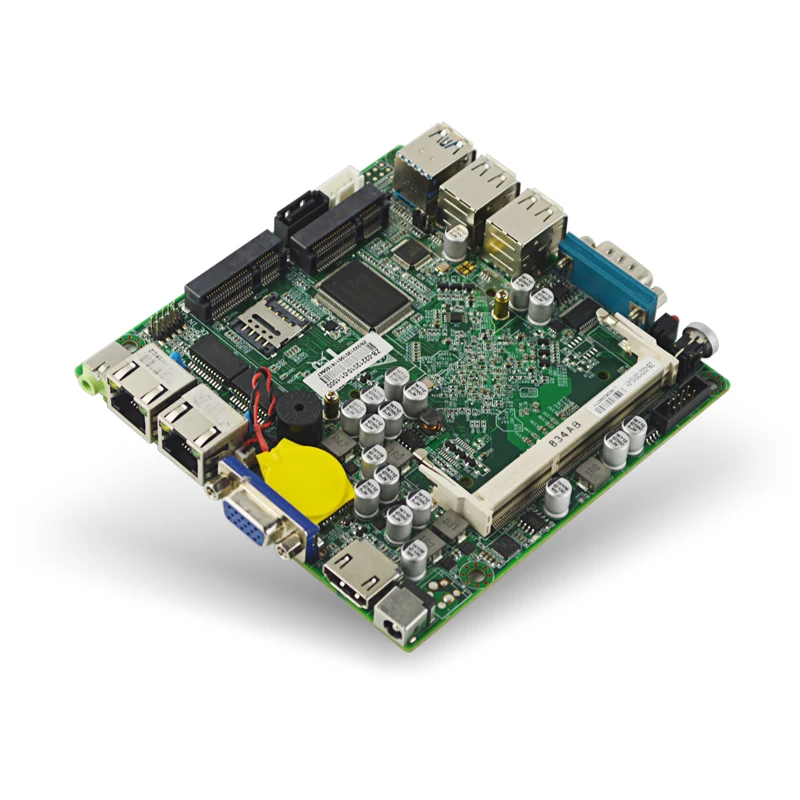

Product Overview

Description

Two configurations can be chioce.
EP-2120-01
Intel J1900 Processors; 1xVGA,1xHDMI; 1xSO_DIMM; 2xRealtek RTL8111F LAN;

1xMINI PCIE， 1xMsata; 1xUSB3.0, 5xUSB2.0; AUDIOx1, 2xCOM RS232
EP-2120-02
Intel J1800 Processors; 1x VGA,1xHDMI; 1×SO_DIMM; 2×Realtek RTL8111F LAN;

1×MINI PCIE, 1xMsata;1xUSB3.0, 5xUSB2.0; AUDIOx1, 2xCOM RS232.
Model NO.
EP-2120
CPU
Intel J19000 Onboard Processors
Chipset
Intel BayTrail | TDP: 10W
Memory
1*SO_DIMM sockets
Support DDR3L 1066/1333MHz (up to 8GB) | Not support ECC
BIOS
AMI BIOS
Super I/O
Winbond W83627DHG-P
SIO lead to COM1and COM2

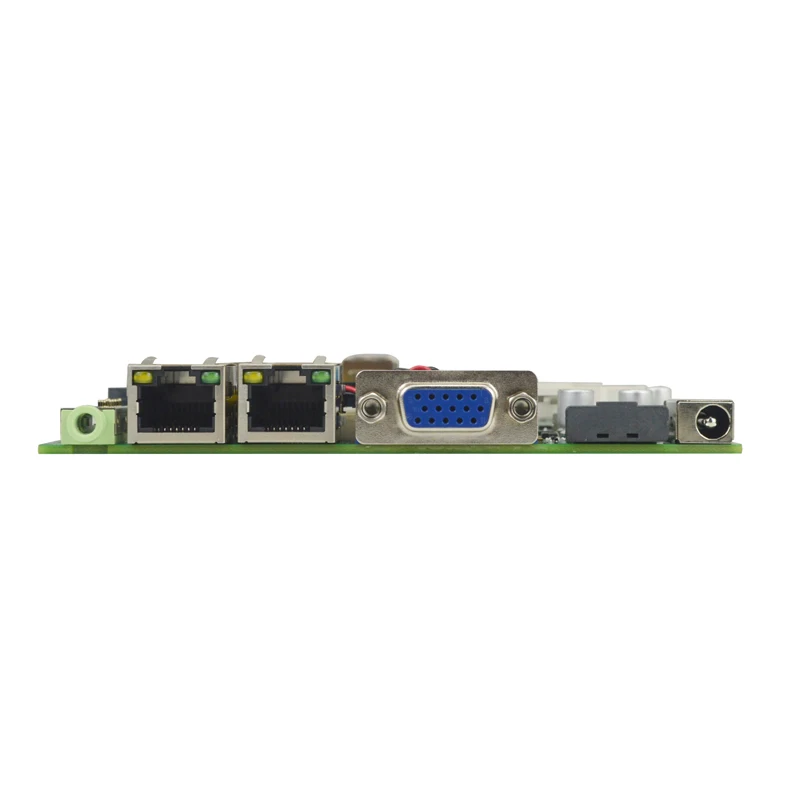

Ethernet
2*RJ45 | Realtek RTL8111F
support 10/100/1000Mbps and WOL function.
Graphic control
Intel HD Graphics
Display interface
VGA:1*DB15 | Maximum resolution:2560x1600@60HZ
HDMI:1*DP | Maximum resolution: 1920×1200@60HZ
support VGA+HDMI Independent 2 displays
SATA interface
1*standard 7pin SATA, support SATA2.0 and SATA1.0 1*white 4 pin power socket

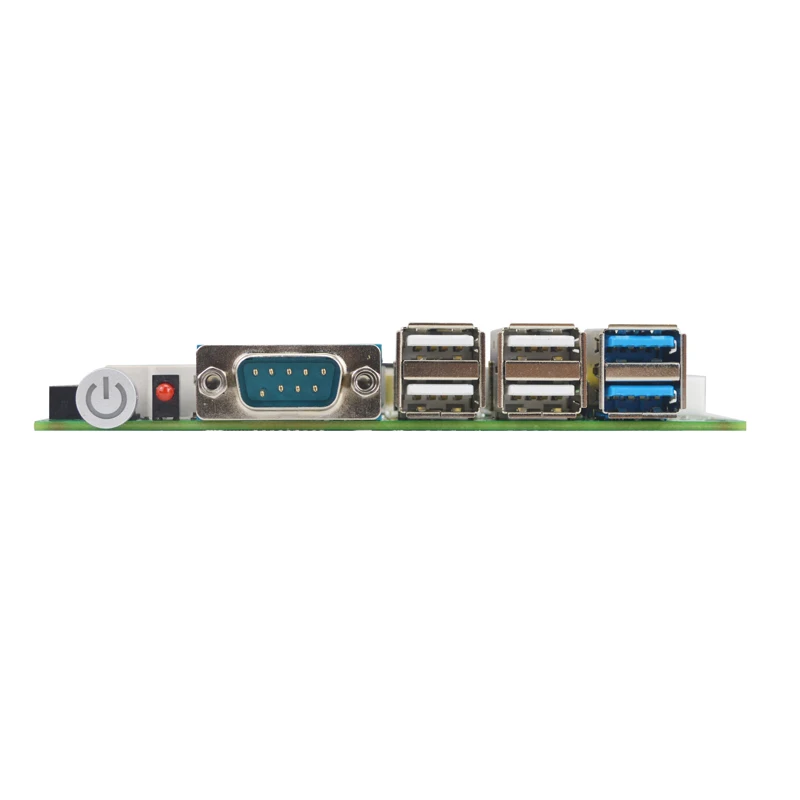

USB interface
2*USB3.0 | 4*USB2.0 1*4 pin 2.54mm can transfer to USB 2.0(According to customer's requirement)
Serial port
1*DB9 (COM1) 1*2x5Pin 2.0mm contact pin (COM2), can be transfer to standard DB9
COM1,COM2 support RS232
Audio
Realtek ALC662 audio control chip, support dual track and stereo.
1*Line_out | Green
1*2x5Pin 2.0mm contact pin| support Mic_in、Line_out
GPIO
2x5pin, by SIO lead to. Support 8-bit programmable digital I/O pin
Expansion slots
2*Mini PCIE (MINI_PCIE_SSD supports MSATA )
(MINI_PCIE_3G supports WIFI/3G/4G)
1*built-in SIM card slot
Watchdog
255-level timer causes a reset when overflowed
Power socket
DC_JACK/2Pin/4Pin/12V
Working environment
Temperature: 0～60℃； Humidness: 5%～95% Relative humidity with non-condensation
Storage temperature: -40～80℃
Size
120mm*120mm
