Utmost high accuracy 4 20mA 0 5V LVDT linear displacement transducer sensor
- Category: >>>
- Supplier: Shanghai Utmost Electronics Co. Ltd.
Share on (62233894132):
Product Overview
Description

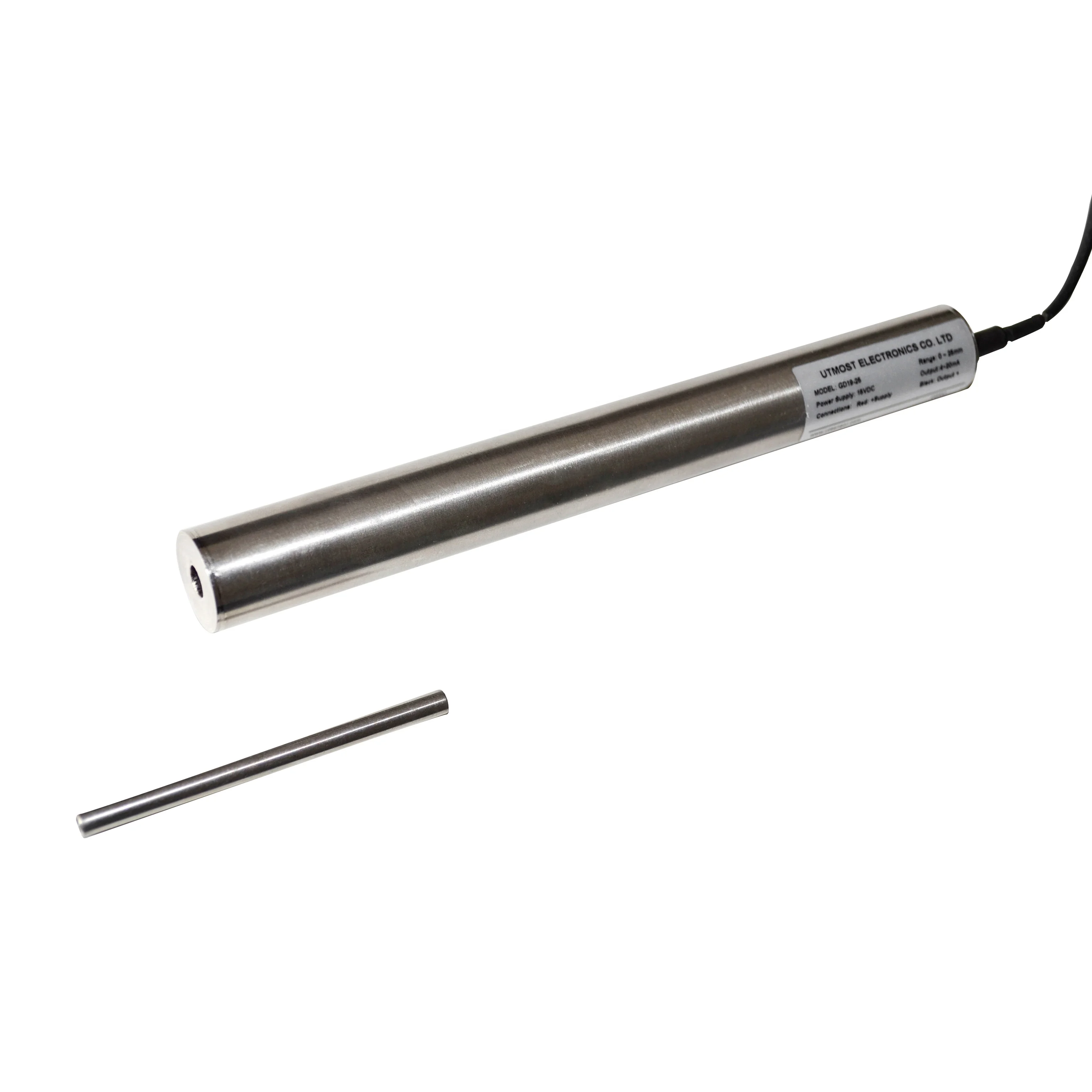

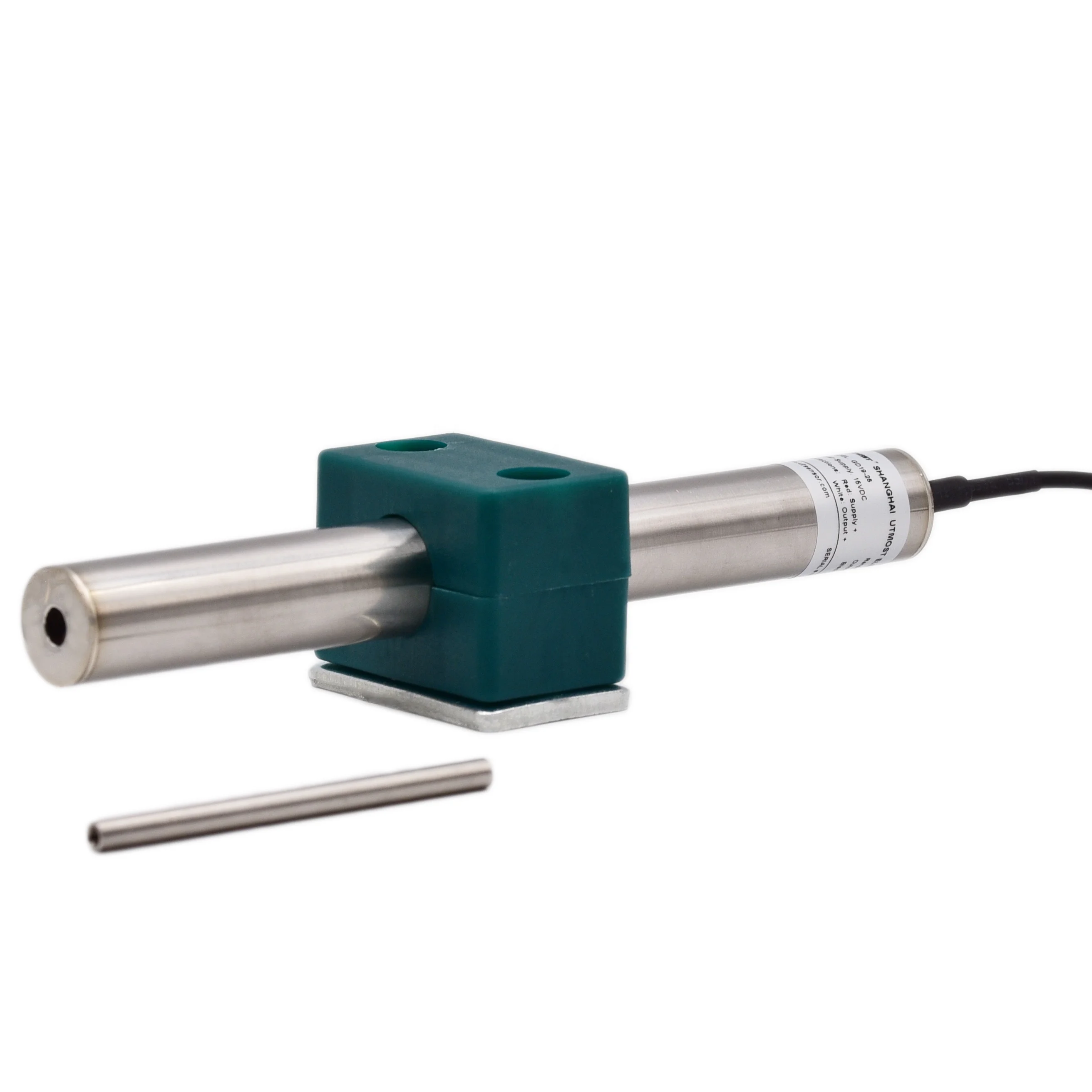

Utmost high accuracy 4-20mA 0-5V LVDT linear displacement transducer sensor
Product Description
LVDT (Linear Variable Differential Transformer) is an abbreviation for linear variable differential transformer. As show in below picture, It consists of a primary coil, two secondary coils, and a core. The electromagnetic coupling between the primary coil and the secondary coil causes a linear relationship between the amount of change in the position of the core and the output voltage of the secondary coils. This principle is widely used to measure various physical quantities that are previously converted into linear displacements, such as tensile, expansion, diameter, taper, thickness, eccentricity, differential pressure, liquid level, force, weight, etc., with feature of no sliding contact, low power consumption, high resolution, long service life, and can be used under harsh conditions such as high temperature, high humidity and dust.
The GD19 series adopts the advanced production technology of similar foreign products, and the amplification signal circuit is built in the traditional LVDT. This integrated pre-calibration product makes the installation and use easier and convenient, and the output DC standard signal is more suitable to general digital display, PLC, computer data acquisition system interface.
Range | From 0~1mm to 0~300mm optional |
Output | 4-20mA/0-5V/0-10V/±5V/0.5-4.5V DC |
Non-Lineartiy | ±0.5%FRO |
Electrical connection | Direct cable or other connector |
Material | 304SS |
Power supply | 10~30V or 5V DC |
Stability | ±0.25%FRO/year |
Operating temperature | -20℃ to 85℃ |
Features
Structure&wiring diagram
Application
Packing & Delivery
Certificates
Our advantages
FAQ
Q Are you manufacturer?
A Yes Yes, we are a manufacturer since 2007, committed to producing high accuracy, long-term stability, cost-efficient pressure/LVDT/Magnetostrictive position/Temperature sensor/transmitter.
Q Can you accept OEM & ODM service?
A Yes, we are professional to provide OEM & ODM service.
Q Does your product have warranty ?
A All our product have one year warranty, pls don't worry.
Q How about your quality control system?
A Our factory have ISO 9001-2015 certificate, and our QC inspect all products 100% before shipment.
