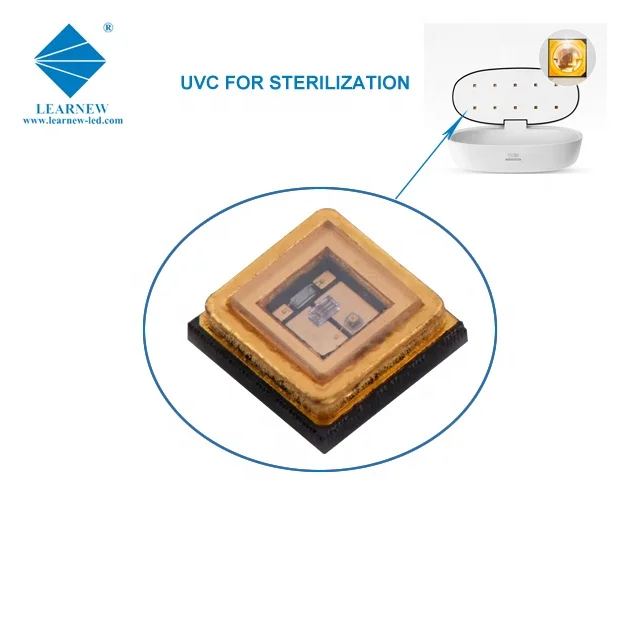

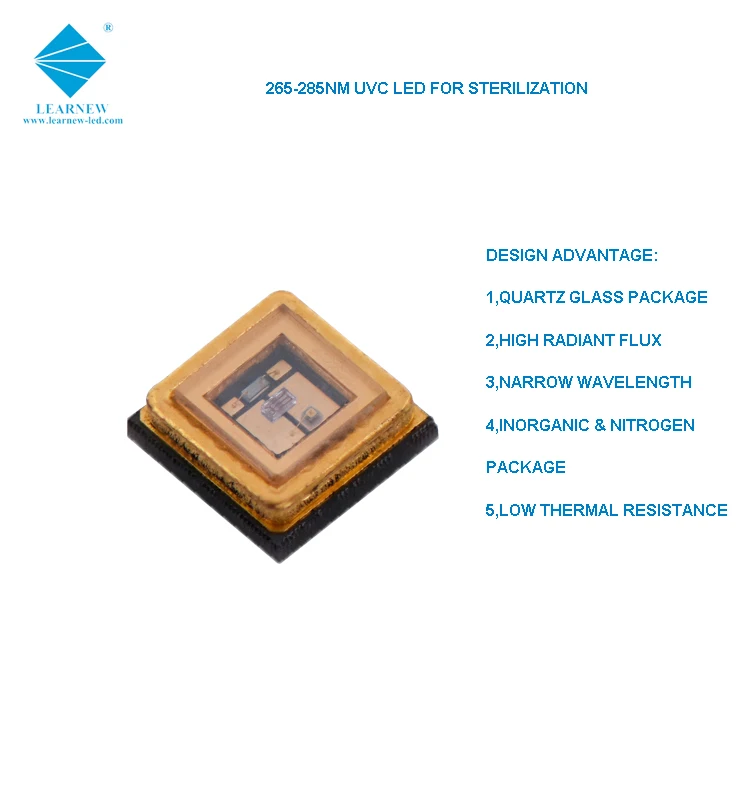

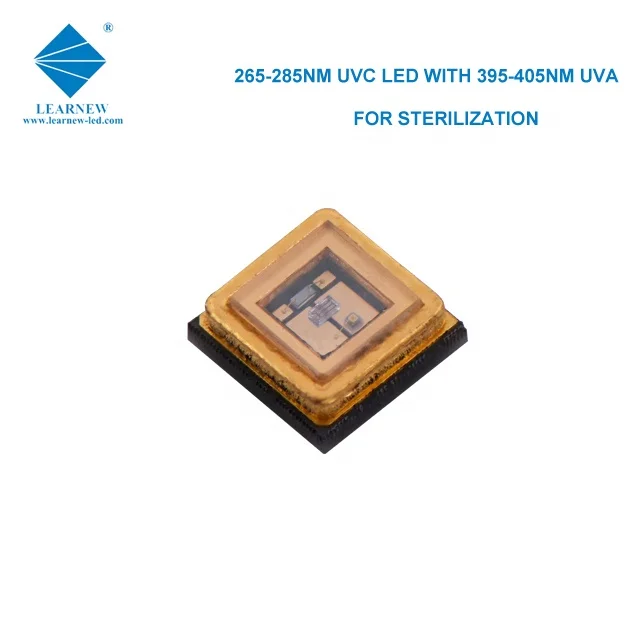

1w 0.5w 265 285nm 395 405nm 3535 uvc led high voltage led chip for water and air disinfection

Share on (62234004595):


Price:

Quantity:


Product Overview

Description


1w 265-285nm 395-405nm 3535 uvc led high voltage led chip for water and air disinfection






Product Description


























































PRODUCT NAME:



1w 0.5w 265-285nm 395-405nm 3535 uvc led high voltage led chip



POWER DISSIPATION:



0.5-1W



Dominant Wavelength:


265-285nm(395-405nm)
 Optical Power4-18mW
 LENSQUARTZ GLASS LENS

INPUT CURRENT:



50-100mA (max=150mA)



INPUT VOLTAGE:



5-7V



COB SIZE:



3.5*3.5MM


JUNCTION TEMPERATURE60-80C

VIEW ANGLE:



120DEG


CHIPS PKG MODEL:VERTICAL (LG or HPO)

SUBSTATE LOAD:



ALN Coppering



MANUFACTURER:



LEARNEW OPTO



265nm uvc led.png


3535 UVC-10.jpg


3535 UVC-T1.jpg


3535 UVC-T2.jpg

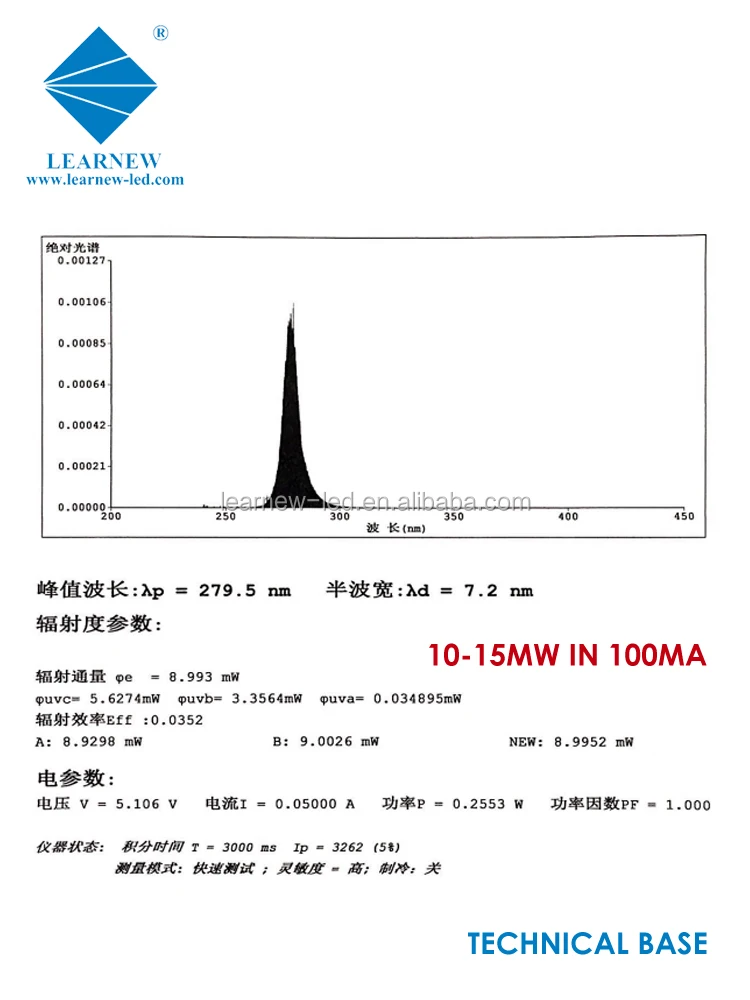

uvc led germicidal.jpg


3535 uvc led.png


germicidal uvc led.png


uvc led germicidal.png


uvc led smd.png


3535 UVC-11.jpg


1W 3535UVC WITH 420NM 750


Several questions about UVC LED disinfection and UVC wavelength


What is the "sterilizing range" of UV?
According to the International Ultraviolet Association, "the ultraviolet spectrum (the 'sterilization' region) that is important for water and air disinfection is the range absorbed by DNA (RNA in some viruses). This sterilization range is about 200-300nm." However, maby be because the peak wavelength of low-pressure mercury lamp (only determined by the physical characteristics of the lamp) is 253.7nm, the wavelength of 254nm uvc led is misunderstood as the best wavelength for air and water disinfection. However, we found that the wavelength of 265nm uvc led, 275nm uvc led and 280nm uvc led were the best after many tests.Specifically the wavelength of the 265nm uvc led, because that's the peak of the DNA absorption curve.


How is the bactericidal effect determined?
In general, UVC LED power intensity, wavelength and irradiation duration are used to determine the bactericidal effect.In water, for example, there may be a variety of bacteria with different optimal absorption wavelengths.For any given bactericidal ultraviolet wavelength, the power and time of exposure need to be calculated to achieve the desired level of disinfection.


led uvc.png


What is the difference between a UVC LED and a mercury lamp?
On the one hand, historically, mercury lamps have been the only option for disinfection and sterilization.With the development of UV LED technology, new options have emerged, as leds are smaller, more powerful, non-toxic, have longer life spans, are more energy efficient, and allow more switching time.This makes the solution smaller, battery-powered, more portable, and capable of instant all-optical output.
On the other hand, low-pressure mercury lamps emit monochromatic light of almost 253.7 nm.Low-pressure mercury lamps (fluorescent lamps) and high-pressure mercury lamps are also used for disinfection and sterilization.These lamps have a wide spectral distribution, including the wavelength used for sterilization.UVC leds can be focused in a narrow range of specific wavelengths, allowing the solution to be tailored to specific application requirements.


Which products do uvc leds generally apply to?

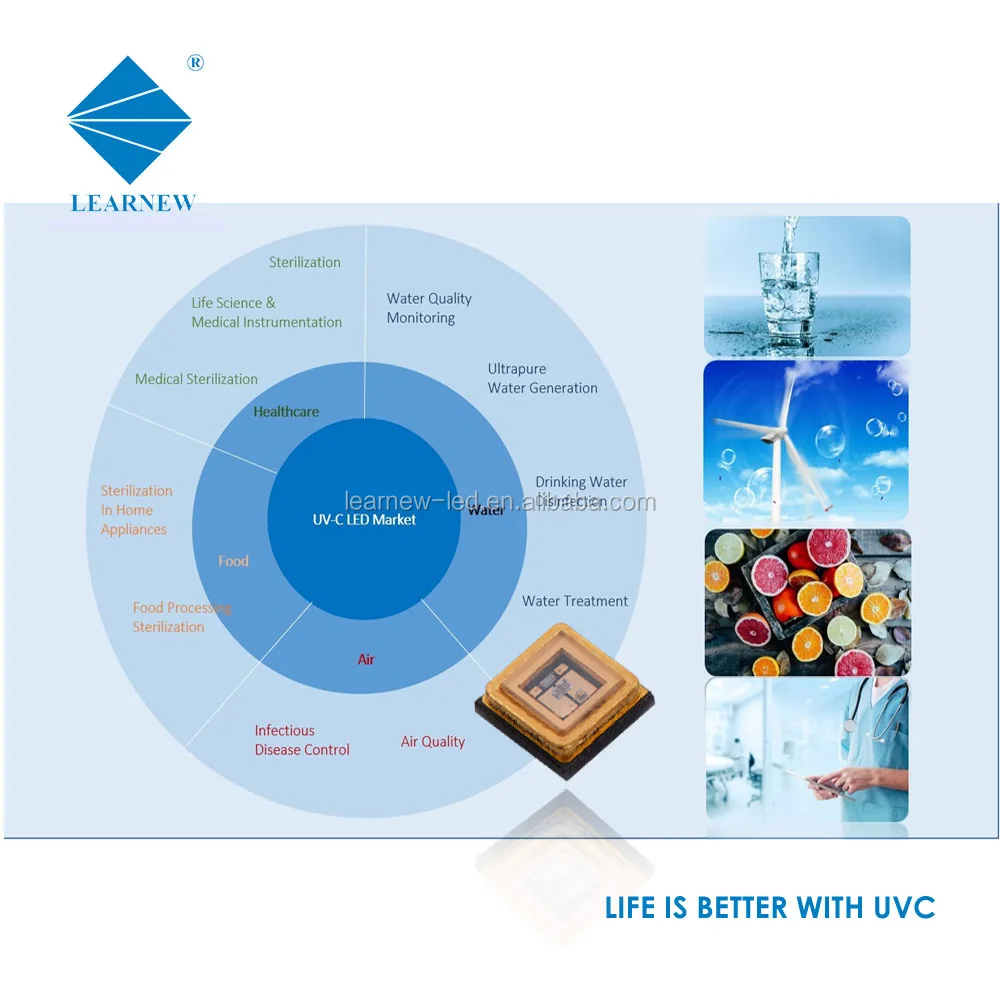

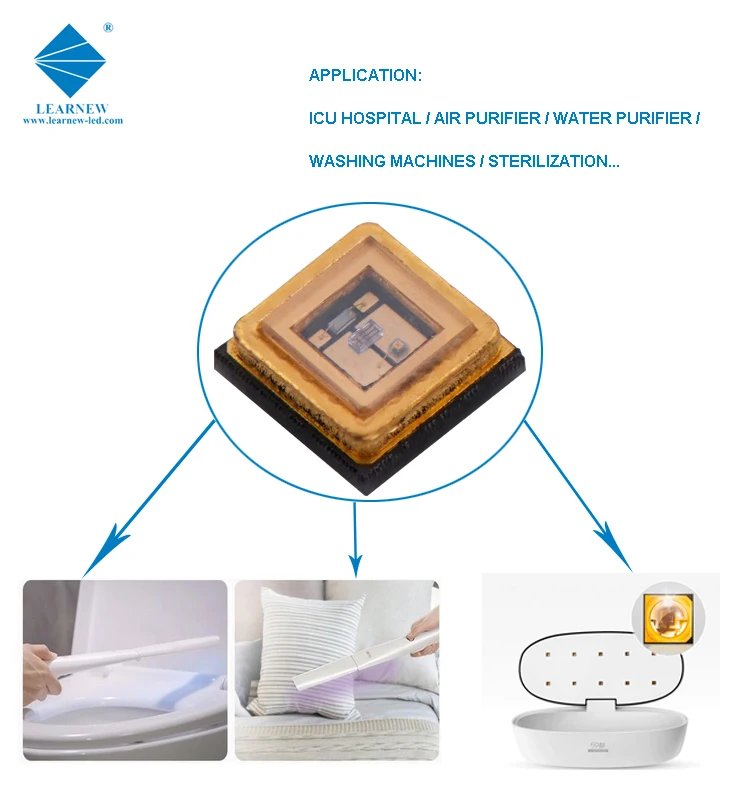

Normally, our 265nm-285nm uvc led will be used for ICU hospital, air purifier, water purifier, washing machines, uvc box, uv light sterilizer disinfection......














Company Information











Packaging & Shipping


uvc led chip.png







FAQ








Q1. Can I have a sample order for led cob?




A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.








Q2. What about the lead time?




A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than








Q3. Do you have any MOQ limit for led cob order?




A: Low MOQ, 1pc for sample checking is available








Q4. How do you ship the goods and how long does it take to arrive?




A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.








Q5. How to proceed an order for led cob?




A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.








Q6. Is it OK to print my logo on led cob product?




A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.








Q7: Do you offer guarantee for the products?




A: Yes, we offer 2-5 years warranty to our products.








Q8: How to deal with the faulty?




A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
