MK102 8 High temp crepe paper tape for Capacitance or resistance

Share on (62234642929):


Price:RUB 84.78

Quantity:


Product Overview

Description

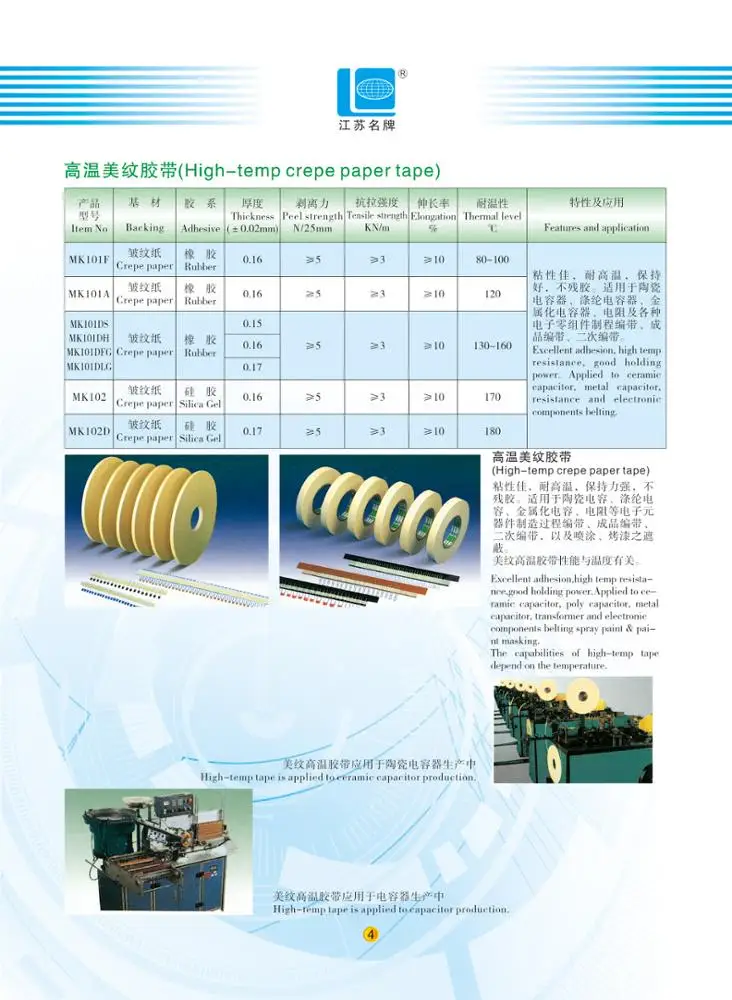

High-temp crepe paper

Item No

Backing

Adhesive

Thickness
(±0.02mm)

Peel strength
N/25mm

Tensile Strength
 KN/m

Elongation

%

Thermal

 level
 ℃

MK101F


Crepe paper


Rubber

0.16

≥5

≥3

10

80-100

MK101A


Crepe paper


Rubber

0.16

≥5

≥3

10

120

MK101D


Crepe paper


Rubber

0.15

≥5

≥3

10

130-160

0.16

0.17

MK102


Crepe paper


Rubber

0.17

≥5

≥3

10

180

Features and application

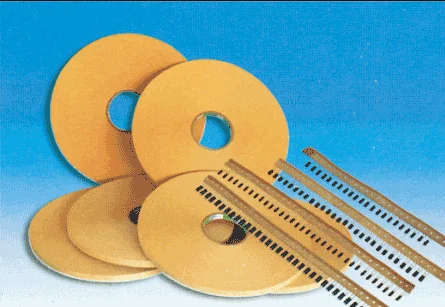

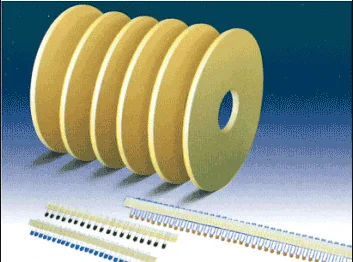

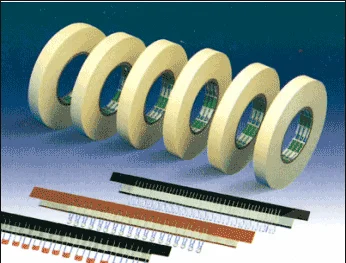

Excellent adhesion, high temp resistance, good holding power. Applied to ceramic capacitor, metal capacitor, resistance and electroniccomponents belting.





Our factory is a professional manufacturer. Our main products covers a wide range, such as Cover tape (including Easy-sticking Tape & Heat-sealing Tape), Crepe Paper tape series (including High Temperature Crepe Paper Tape, Hot Melting Crepe Paper Tape & Semi-adhesive liner tape), and Carrier Tape, Etc.

1. Cover Tape & Carrier Tapes have main application in the SMD package of Electronic Linker, Chip Capacitor, Resistance.

2. Crepe Paper Tapes have good stickiness, high temperature resistant, high retentivity and no adhesive residue, and have main application in the processing procedure and braiding package of Ceramic condenser, Dacron terylene condenser, Metalized capacitor, Aluminum electrolytic capacitor, BJT, and also have application in Shield automotive paint.

As green products, our products have stable performance, mature technology which is up to imported tape standard, and conforms to the standard of the authorized inspection agent and EU RoHS Standard.

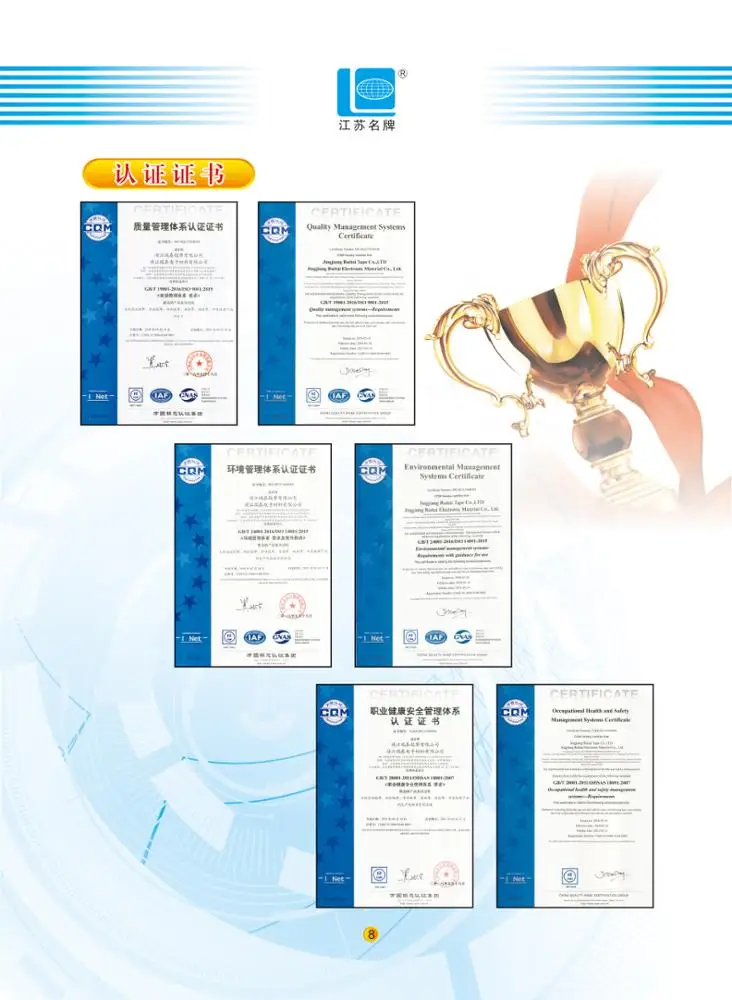

With advanced & mature Glue making recipe, and advanced smart coating machines, smart control cutting machines, we have been always practicing ISO9001 Quality System & ISO14001 Environment System.

Being your professional manufacturer, we will comprehensively support your needs to achieve your satisfaction.
