Laboratory Furniture Biological Biosafety Safety Cabinet with CE Certified Class II A2

Share on (62234707668):


Price:

Quantity:


Product Overview

Description



Product Description


Product Name:


Laboratory Furniture Biological Safety Cabinet with CE Certified Class II A2





Model:













BSC-1100IIA2-X



BSC-1300IIA2-X



BSC-1500IIA2-X



BSC-1800IIA2-X



BSC-2000IIA2-X









1. Class I Biosafety Cabinet does not protect the product from contamination because un-purified room air constantly enters into work area.


2. As a partical containment unit, the Class I Biosafety Cabinet is suitable for work involving low to moderate risk agents (Biosafety Levels 1, 2 and 3) where there is a need for containment, but not for product protection.


3. Unlike conventional fume hood, the HEPA filter in the Class I Biosafety Cabinet protects the environment by filtering air before it is exhausted.


4. With the negative pressure, personnel protection is made possible by constant movement of air into the work area.








Product Features


ADVANTAGES:


1. Motorized front window.


2. Large LCD display, all information displayed.


3. Automatic air speeds adjustable with filter block.


4. With memory function in case of power-failure.


5. Side & back wall is made of single piece stainless steel


6. Single piece SS removable work tray.


7. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; blower and front window.


8. Front 100 slanted to offer operator comfort while working for long time, reduce glare and maximize reach in to work area.


9. Armrest is above the intake of grill to enable farther reach inside the cabinet without hampering safe airflows inside the cabinet working area.


10. All the positive pressure contaminated plenums within the cabinet are surrounded by a negative air pressure plenum thus ensuring that any leakage from a contaminated plenum will be drawn into the cabinet and not released to the environment. Also the plenum to be under negative pressure to the room.


11. Differential pressure sensor  for monitoring of condition of HEPA filters





































































































































































Model



BSC-1100IIA2-X



BSC-1300IIA2-X



BSC-1500IIA2-X



BSC-1800IIA2-X



BSC-2000IIA2-X



Internal Size


(W*D*H)



940* 600*660 mm



1150*600*660 mm



1350*600*660


mm



1700*600*660


mm



1800*600*660


mm



External Size


(W*D*H)



1100*750*2250mm



1300*750*2250mm



1500*750*2250


mm



1873*775*2290mm



1950*800*2170


mm



Tested Opening



Safety Height = 200 mm(8'')



Max Opening



420mm(17’’)



420mm(17’’)



500mm(20’’)



550mm(22’’)



400mm(16’’)



Inflow Velocity



0.53±0.025 m/s



Downflow Velocity



0.33±0.025 m/s



HEPA Filter



Two, 99.999% efficient at 0.3 um. Filter life indicator.



Front Window



Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV.



Noise



EN12469 ≤ 58 dB / NSF49 ≤ 61 dB



UV Lamp



30W*1



30W* 1



40W* 1



40W*1



40W* 1



UV timer, UV life indicator, emission of 253.7 nanometers


for most efficient decontamination.



Illuminating Lamp



LED Lamp



12W*2



12W*2



16W*2



16W*2



16W*2



Illumination



≥1000Lux



Consumption



760W



800W



900W



900W



1500W



Waterproof Sockets



Two, total load of two sockets: 500W



Display

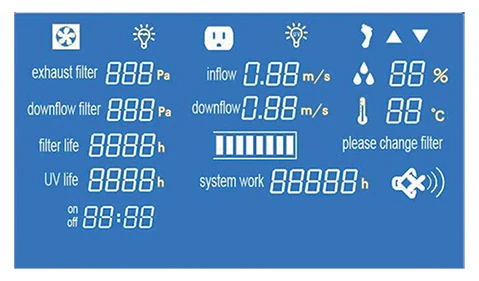

LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.



Control System



Microprocessor



Airflow System

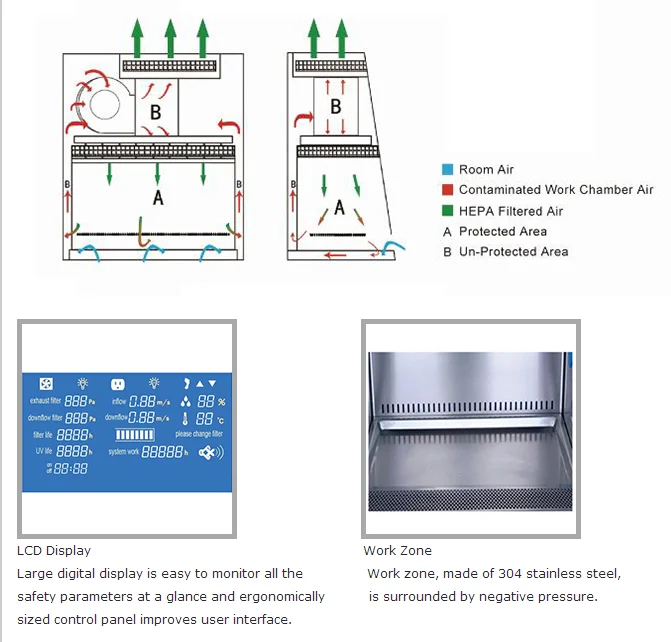

70% air recirculation, 30% air exhaust



Visual and audio alarm



Filter replacement, front window at unsafe height, abnormal airflow velocity.



Material






Work Zone: 304 stainless steel



Main Body: Cold-rolled steel with anti-bacteria powder coating.



Work Surface Height



750mm

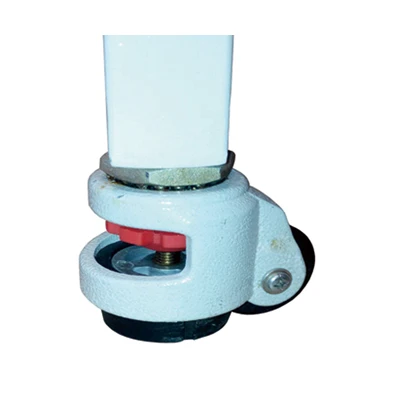

Caster



Footmaster caster



Power Supply



AC220V±10%, 50/60Hz; 110V±10%, 60Hz



Standard Accessory

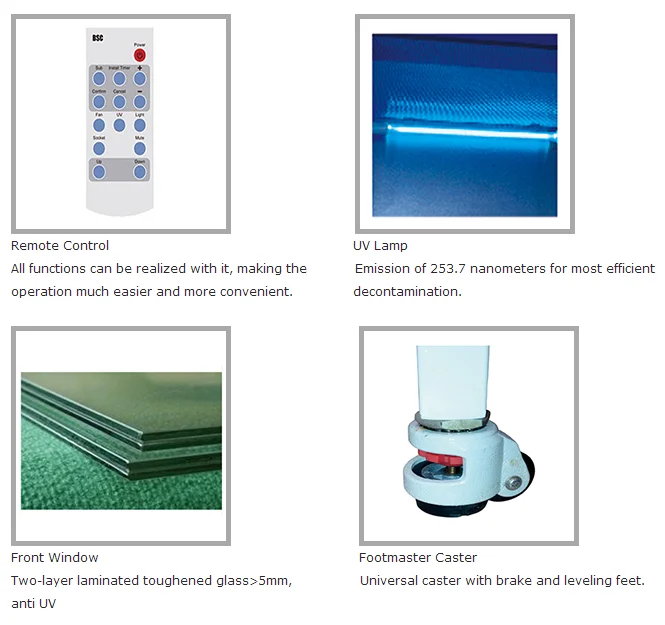

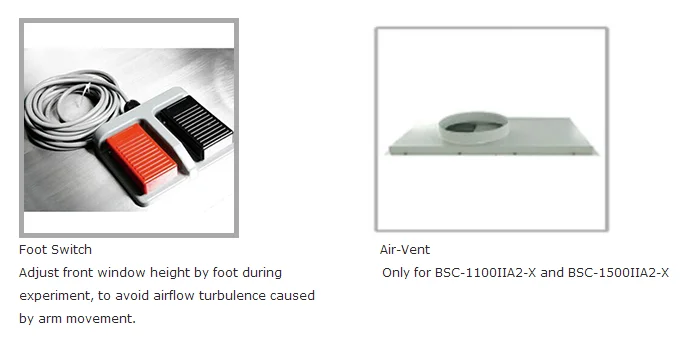

LED lamp, UV lamp*2, Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2



Optional Accessory



Water and gas tap, Electric height adjustable base stand.



Gross Weight



243kg



280kg



316kg



395kg



420kg



Package Size


(W*D*H)



1220× 1000× 1840 mm



1460*1050*1800 mm



1630*1000*1820 mm



2000*950*1820 mm



2090*1050*1860 mm

















Standard Accessory:


LED lamp                   1pc


UV lamp                     2pcs


Base stand                 1pc


Remote control           1pc

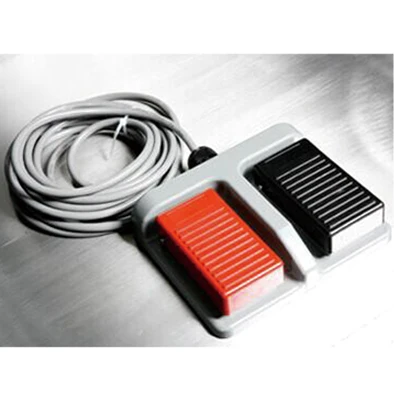

Foot switch                 1pc


Drain valve                 1pc


Waterproof sockets     2pcs





Optional Accessory:


Water and gas tap


Electric height adjustable base stand





Packaging & Shipping



Payment:


1.We accept T/T, Western union or irrecoverable L/C at sight.
2. If buyer have any question, please feel free to contact us first, we will help you slove the problem.





Shipping:


1. We can provide various modes of freight transportation.
2. Please let us know which mode of freight transportation you need before your ordering.





Company Information



Found in 2008, Sinosource Lab Supplies Ltd. has been committed to serves as a professional company that provides widely ranged best-in-class products of Laboratory Apparatus,Instruments,Equipment Consumables and Educational products.



Positioned as a committed trading partner, Sinosource seeks to sustain the evolving collaboration and diversified business domains with our customers worldwide and target the best Integrated Laboratory System supplier.



Building up over 7 years, we now have the global strength in trading of import and export scientific and medical instruments and have invested in establishing connected sales and logistics at every stage around the world to provide the best possible solutions to support our valued customers in over 60 countries.






2018, Our company was invited to Worlddidac Asia 2018, a leading Asian event for educational resources co-organised by Worlddidac Association and Didacta Association.





FAQ




How to order:
1.Tell us the models, Quantities you want to order.
2.We will make PI for you.
3.Checking the PI, and if you feel the price is reasonable, we will deliver the goods ASAP when we received your payment. And the shipping cost is depending on weight.



Price and Trade terms:
1.Payment: T/T
2.Delivery Time: Sample 4day Products5-15days
3.OEM service: OEM Service With Professional R&D and Design Team
4.Shipping: DHL, FedEx,Sea, Truck, Air





After-sale service:
1:choose the cheapest and safest shipping company
2: Track the order until you get the goods
