1.Application:
Suitable for grinding dry materials into powder (10-120 mesh), mainly used for grain, spices, chemical materials, Chinese herbal,medicine.Such as rice, corn, wheat, grain seeds, beans, coffee beans,nuts,chili, pepper, salt, sugar, medicines, etc.
2.Characteristics:

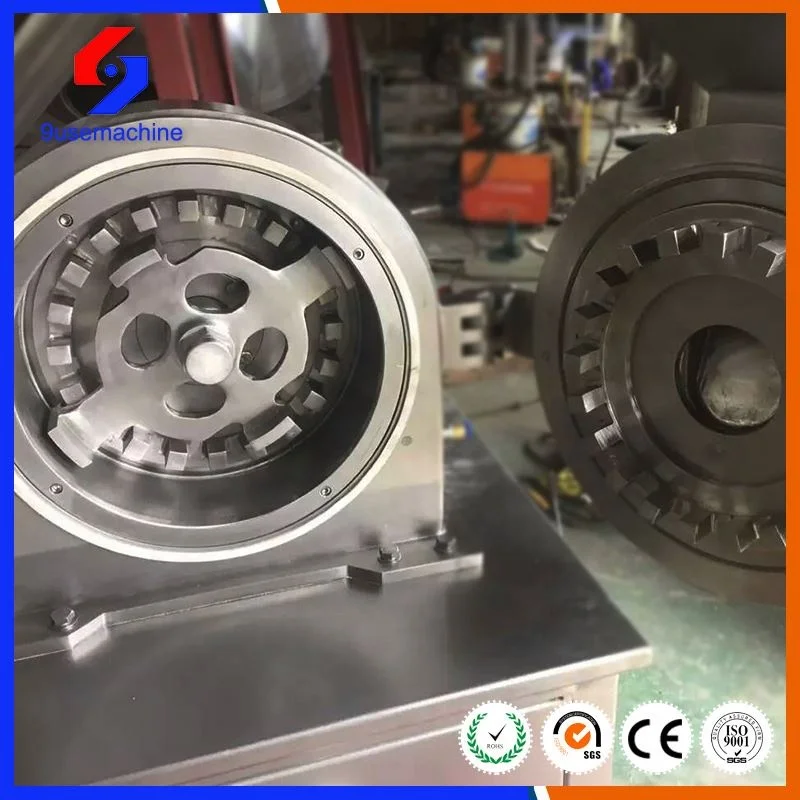

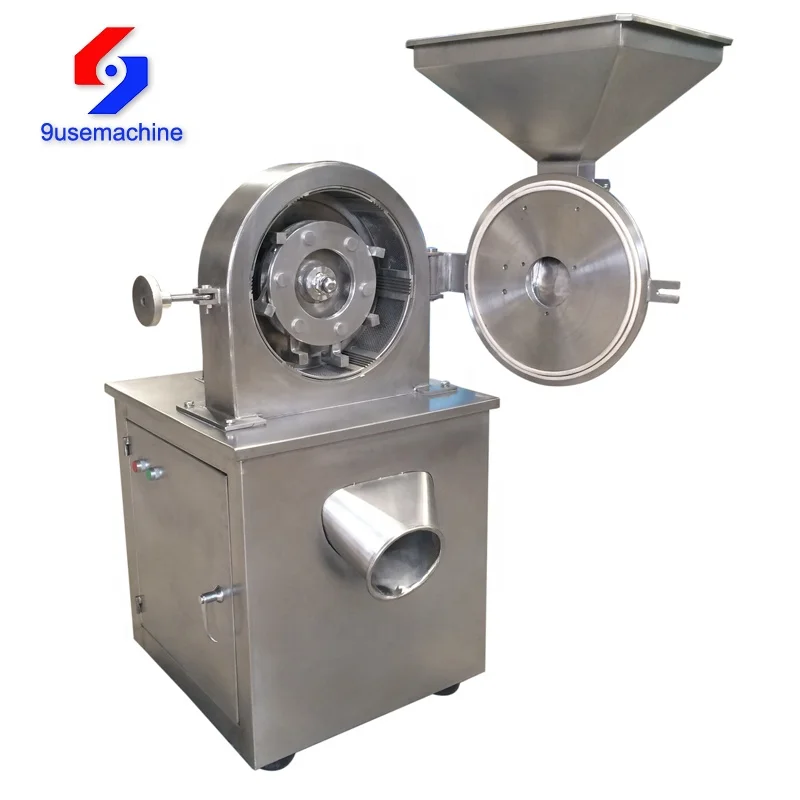

The crushing chamber is equipped with wind wheel type high~speed rotating cutters, so that the airflow in the chamber is strong enough to eliminate any heat in the chamber. It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.
3 Working Method:

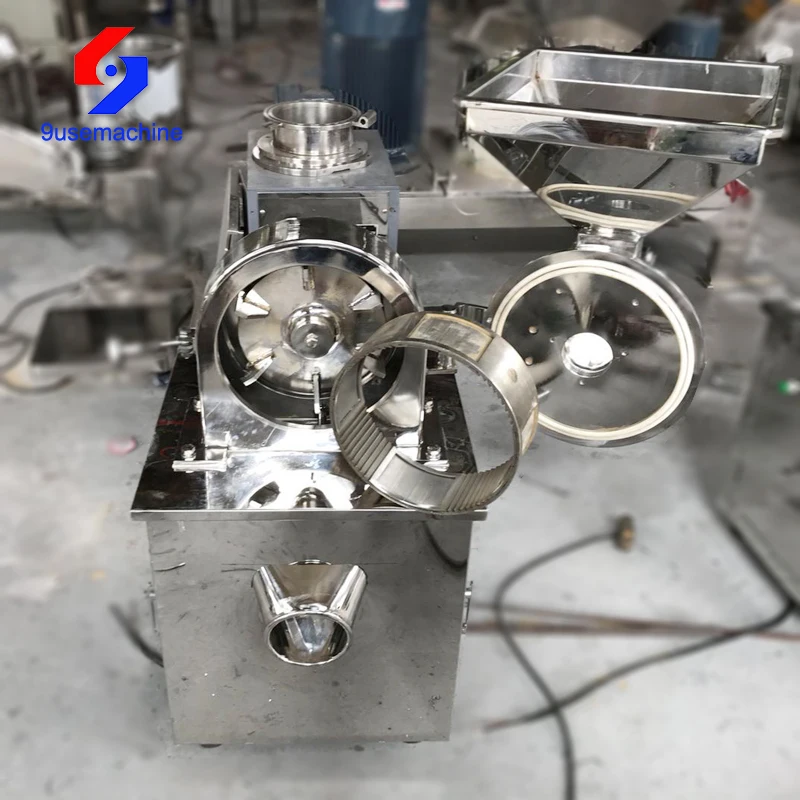

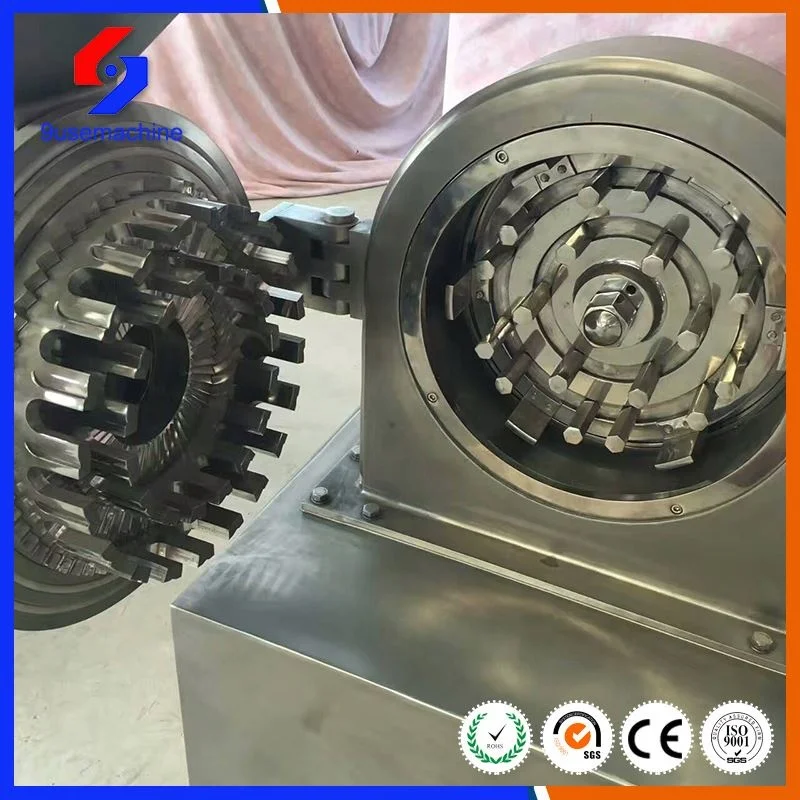

The machine uses the wind wheel type high~speed rotating cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen. The size of granules can be achieved by changing of the screen.
4.Technical Parameter:
Model | 15B | 20B | 30B | 40B | 60B | 80B | 100B |
Capacity(kg/h) | 10-50 | 60-150 | 100-400 | 160-1000 | 500-1200 | 1000-5000 | 2000-8000 |
Speed of principal axis(r/min) | 6000 | 4500 | 3800 | 3400 | 2800 | 2000 | 1500 |
Size of input granules(mm) | <6 | <6 | <6 | <10 | <15 | <18 | <20 |
Mesh size | 20,40,60,80, 100,120 | 20,40,60,80, 100,120 | 20,40,60,80, 100,120 | 20,40,60,80, 100,120 | 20,40,60,80, 100,120 | 20,40,60,80, 100,120 | 20,40,60,80, 100,120 |
Power(kw) | 4 | 7.5 | 11 | 18.5 | 37 | 55 | |
Voltage | 380V/50hz | 380V/50hz | 380V/50hz | 380V/50hz | 380V/50hz | 380V/50hz | 380V/50hz |
Weight(kg) | 100 | 280 | 350 | 550 | 680 | 1500 | 2500 |
Overall size (L×W×H)(mm) | 550*400*850 | 600*700*1450 | 800*900*1800 | 1100*950*1960 | 1350*1000*2100 |
