3k twill plain Carbon Fiber reinforced plastic FRP sheet plate
- Category: >>>
- Supplier: Guangzhou JXY Composite Materials Technology Co. Ltd.
Share on (62234839507):
Product Overview
Description
Product Description
Features:
1. Very light and very strong.
2. High strength and high modulus.
3. Excellent fatigue resistance.
4. Corrosion resistance.
5. Electrical conductivity.
6. Excellent Structural Properties.
7. UV Resistant Inhibited.
8. Non-Conductive Thermally.
9. Excellent planeness.
10. Very flexible.
11. Nice appearance.
Application:
1. UAV, RC Toy model , Aeromodelling, Helicopter Model.
2. Electrical products.
3. Shipbuilding.
4. Space aviation defense.
5. Sports equipments.
6. Automobile parts.
7. Wind power blades.
8. Spinning Reels Brake Rotor friction plate, Rocker.
9.Medical device(X-ray, DR).
10. Etc.
Purchase Available:
*Special demand can be ordered.

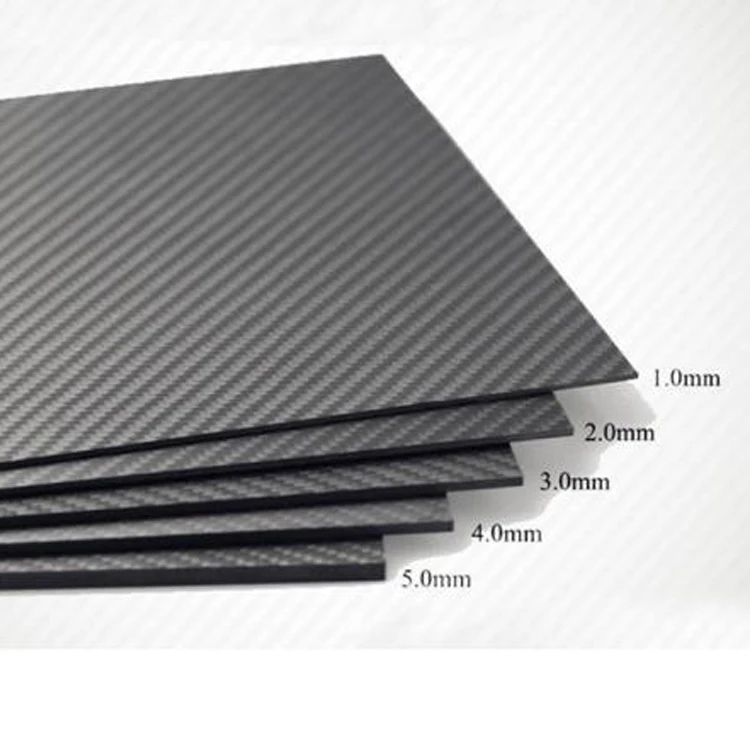

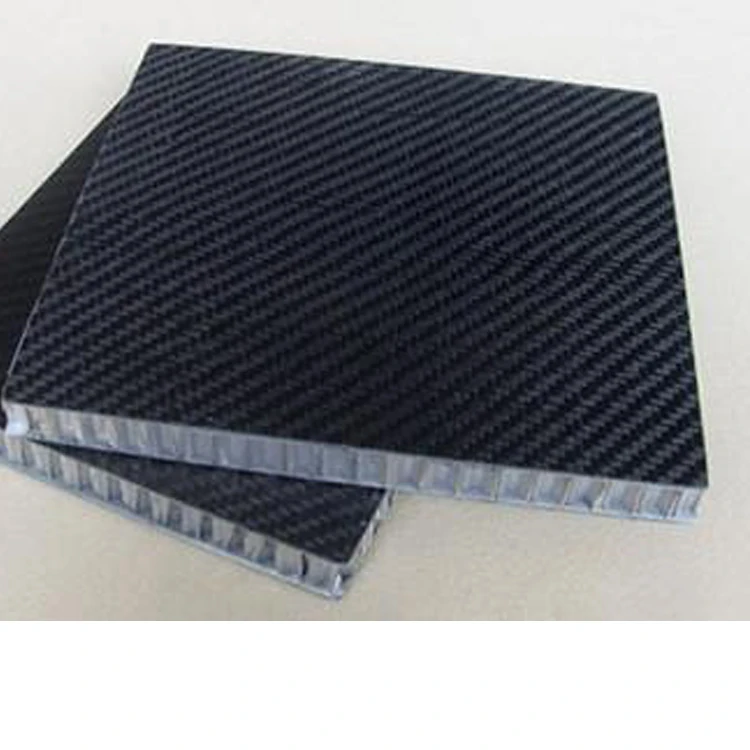

It can be made into pure carbon fiber or glass fiber core with carbon fiber surfaces, thickness range from 0.2mm to 60mm, sheet sizes available in 400*500mm, 500*500mm, 500*600mm, 500*1000mm, 500*1200mm, 600*1000mm, 1000*1200mm. Custom thicknesses and sizes are negotiable.
CFRP DATA SHEET (FOR REFERENCE) | ||
PROPERTIES | UNIT | RESULT |
Tensile modulus | Mpa | 131000 |
Tensile Strength | Mpa | 3500 |
Flexural Modulus | Mpa | 21800 |
Young's Modulus in long Dir | Mpa | 82000 |
Young's Trans. Dir. | Mpa | 8200 |
Poisson's Ratio |
| 0.25 |
Long. Tensile Strength | Mpa | 834 |
Trans. Tensile Strength | Mpa | 83.4 |
Density | g/cm³ | 1.5 |
company profile 1
Production Flow 2
Trade Shows 3
back home 5
FAQ
Q: Are you a manufacturer?
A--Yes, we are a manufacturer, welcome to visit our factory!
Q: Do you accept customized orders?
A--Yes, customized brand and logo are available, we have a professional design team.(About customized your brand logo case, pls offer your brand letter of authorization) also according to your samples or technical drawings.
Q: Can you provide customers with samples?
A-- Yes, but sample and transportation fee should be paid by customers themselves.welcome sample order to test and check quality.
Q: What's your MOQ for carbon fiber phone case?
A1-- Most our carbon fiber products we have some in stock, if we have it in stock, we can ignore MOQ.pls contact us to check it.
Q:What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we send you an PI for confirmation. You will be requested to make full payment or deposit before we go into production. After getting deposit, we start to proceed the order. Usually need 7-15 days if don't have the items in stock. Before production finished, we will contact you for shipment details and the balance payment. After payment settled, the goods will be shipped out.
