12 volt dc agricultural irrigation water pump motor made in china
- Category: >>>
- Supplier: Shenzhen Anern Optoelectronics Co. Ltd.
Share on (62234849534):
Product Overview
Description

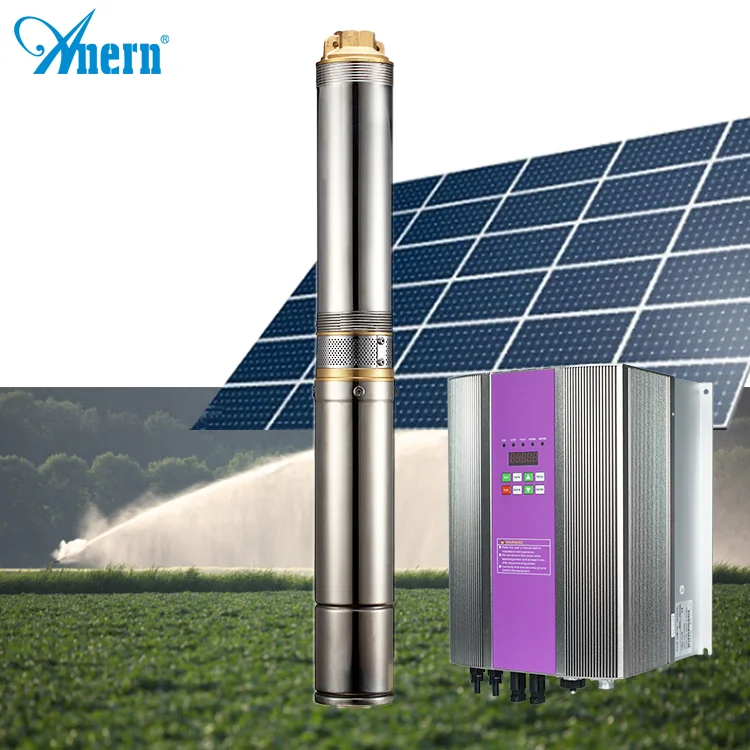

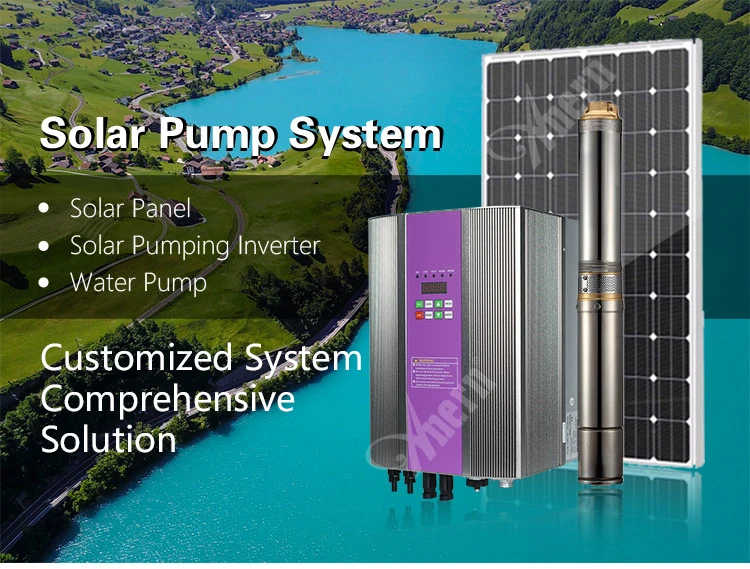

Solar Pump System
Solar Water Pump System
As a professional manufacturer of complete solar power system and solar water pump system ,Anern offer practical, professional and affrodable AC and DC solar powered water pumping system to residential and commercial application.

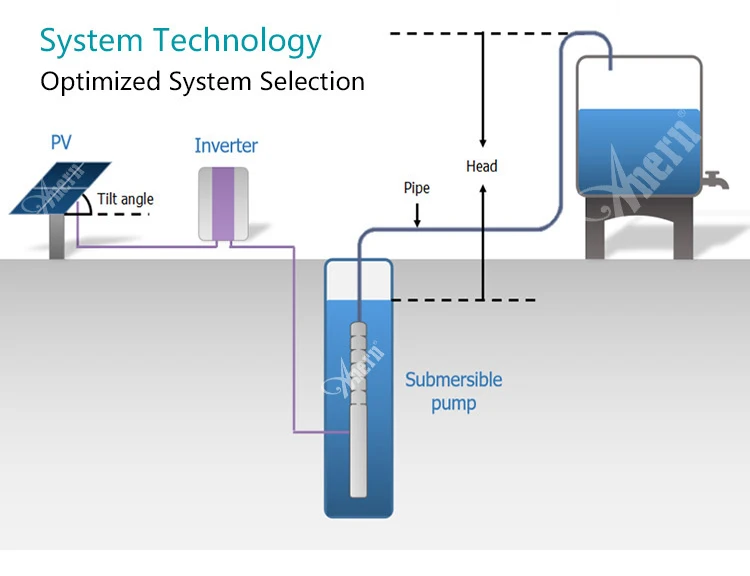

Anern solar pumping system mainly consists of solar panels, the specialized pump inverter and water pump.
The Product Specification | ||||
Ref No. | AN400HS | AN600HS | AN600C | AN41200C033 |
Solar Panel | 330W/36V | 270W/30V | 270W/30V | 330W/36V |
Power | 330W | 810W | 810W | 1320W |
Water Head | 40-1m | 80-18m | 18-4m | 43-22m |
Daily Water Supply | 6-22m³ | 2-18m³ | 18-25m³ | 18-33m³ |
Outlet Dia. | 1" | 1" | 1"1/4 | 1"1/2 |
Recommended MPP Voltage | >=20VDC | 60-120VDC | 60-120VDC | 120-160VDC |
Ref No. | AN41800C076 | AN42K2040 | AN43K0020 | AN45K5070 |
Solar Panel | 270W/30V | 330W/36V | 200W/35V | 330W/36V |
Power | 2160W | 4950W | 6300W | 9900W |
Water Head | 34-16m | 123-82m | 235-149m | 175-117m |
Daily Water Supply | 34-76m³ | 23-40m³ | 13-23m³ | 40-70m³ |
Outlet Dia. | 2" | 1"1 / 2 | 1"1/4 | 2" |
Recommended MPP Voltage | 120-160VDC | 500-600VDC | 500-700VDC | 500-700VDC |
Ref No. | AN65K5160 | AN47K5070 | AN69K2260 | AN615K260 |
Solar Panel | 330W/36V | 330W/36V | 330W/36V | 330W/36V |
Power | 9900W | 15840W | 19800W | 29700W |
Water Head | 79-43m | 217-143m | 84-53m | 134-85m |
Daily Water Supply | 80-160m³ | 40-70m³ | 160-260m³ | 160-260m³ |
Outlet Dia. | 2"1/2 | 2" | 3" | 3" |
Recommended MPP Voltage | 500-600VDC | 500-600VDC | 500-600VDC | 500-600VDC |
Ref No. | AN626K180 | AN837K700 | ||
Solar Panel | 330W/36V | 330W/36V | ||
Power | 49500W | 69300W | ||
Water Head | 362-204m | 139-89m | ||
Daily Water Supply | 100-180m³ | 450-700m³ | ||
Outlet Dia. | 3" | 5" | ||
Recommended MPP Voltage | 500-600VDC | 500-600VDC | ||

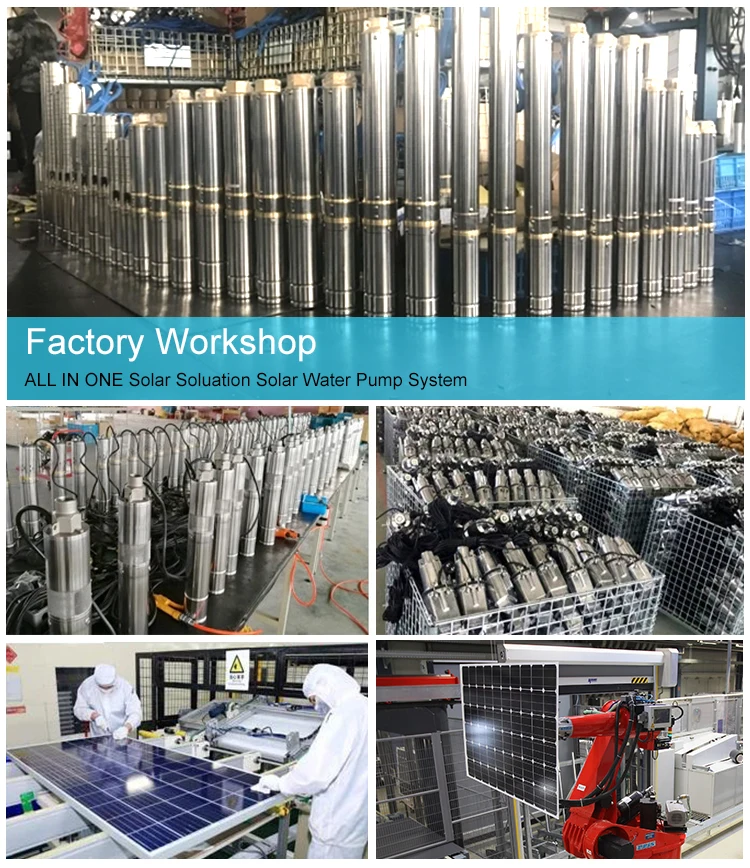

Anern Factory
Anern owns professional factory, introducing advanced production equipment, specialized production line, talented R&D team and adopting worldwide leading technology, through international standard management and strict quality control to ensure the stable-performance and high-quality products. Anern can offer OEM services as per your specific requirements, customize the solar system and Solar lighting solutions in the practical application.

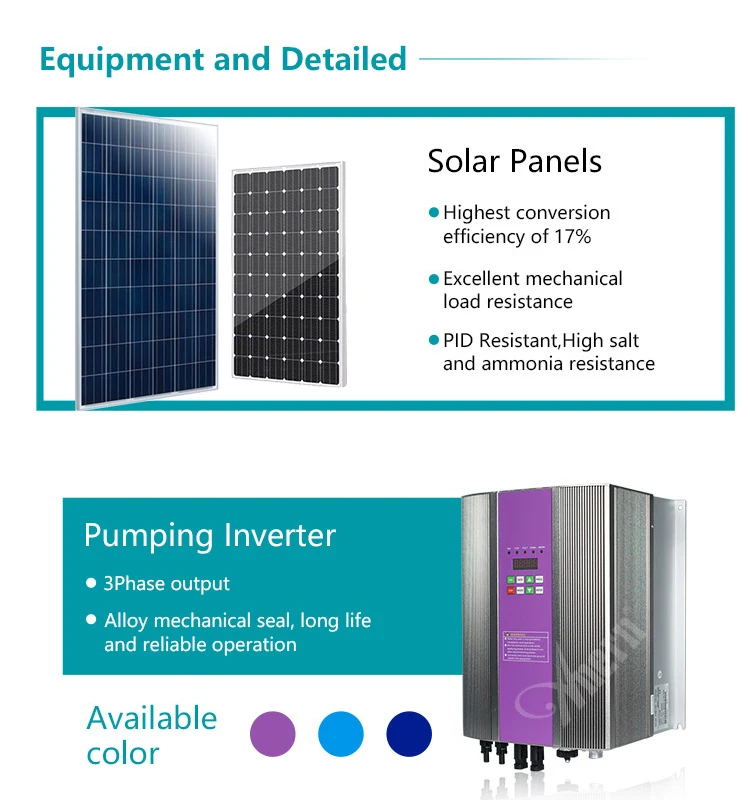

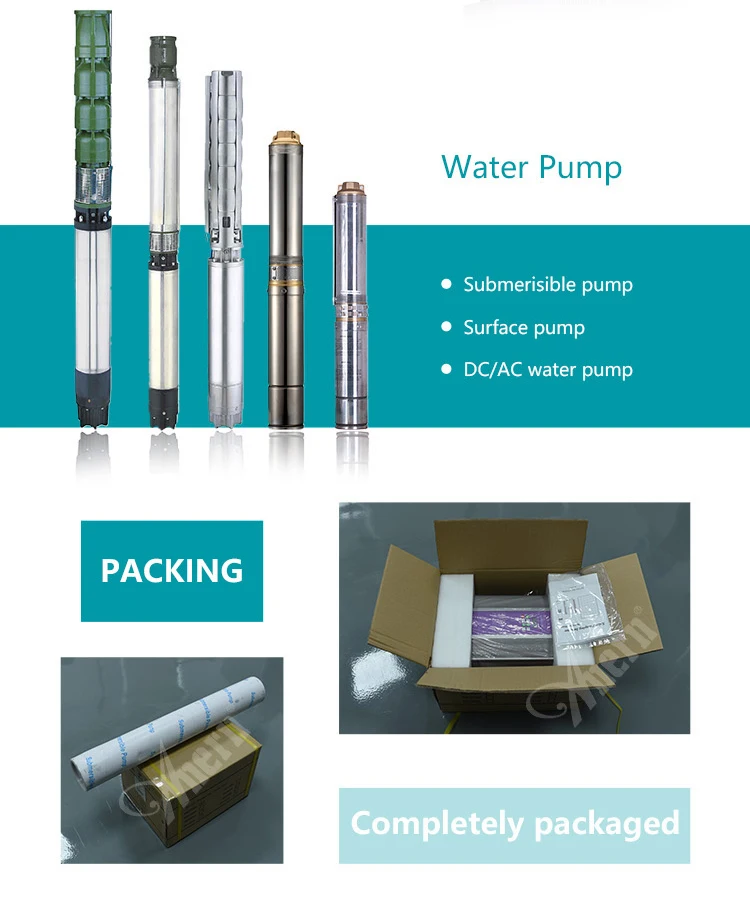

Products Details
Advantages
Advantage of Solar Water Pump
1. MPPT solar pump inverter, the highest solar utilization rate
2. Alloy mechanical seal, long life and reliable operation
3. Waterproof and sealed: double sealing effect
4. Digital display of power, voltage, current, speed and other working conditions
5. High/low voltage protection, overcurrent/overload protection

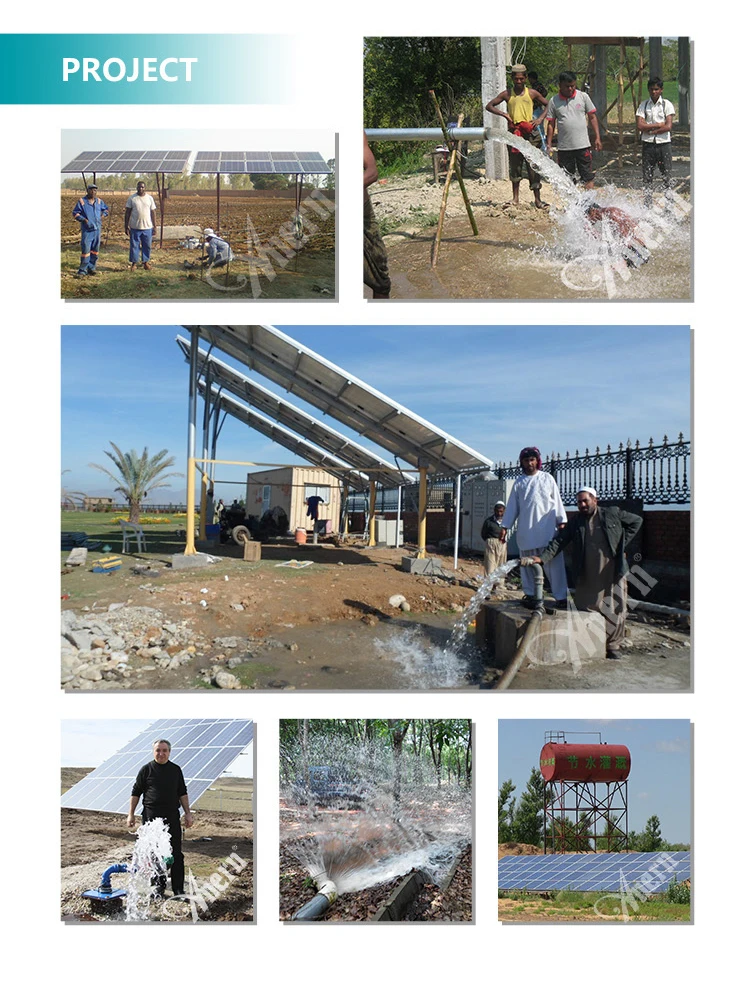

Projects
Solar water conservancy can not only provide a comprehensive solution for agriculture, forestry and animal husbandry production, ecological environment improvement and desert governance, but also have of great significance in promoting the healthy
development of photovoltaic industry.
Through the organic integration of solar pumping technology, hydraulic engineering and water-saving irrigation technology, based on the industrial technology and market demand of matching and requirements, to solve the ecological restoration, food production, animal husbandry,grassland restoration problem.
