GAF Lightning PD Isolated 10watt PoE Splitter Power & Data for iPads
- Category: >>>
- Supplier: Shenzhen Zhangqing Electronic Ltd.
Share on (62234851340):
Product Overview
Description
Product Description
This device provides a low cost solution for delivering power to a LightningÒ device over 328ft of network cable. This
splitter allows power to be carried on 10/100/1000 network cables with either 802.3af or passive injectors or switches
with any CAT5e, CAT6 or CAT7 Ethernet network cable.
splitter allows power to be carried on 10/100/1000 network cables with either 802.3af or passive injectors or switches
with any CAT5e, CAT6 or CAT7 Ethernet network cable.
Intended for use with any 802.3af or 802.3at PoE switch – this active PoE solution negotiates with the switch to activate power and provide it to the client device. It is a compact and cost effective power solution. The PoE switch supplies 48 or 56 volts DC at the source location. The higher DC voltage means the current is reduced by a factor of 9 compared to 5 volts, and then carried with 90% less loss over the Ethernet cable from the source, the 5v converter at the remote end allows you to extend the charge distance for this application up to 328ft or 100 meters.
Simple usage:
Step a) use an Ethernet cable to connect the RJ45 female to your PoE switch up to 100 meter distance.
Step b) connect the LightningÒ male adapter to your Apple device
Step b) connect the LightningÒ male adapter to your Apple device
The Ethernet cable can be 568A or 568B style, and only 2 pairs (orange and green) are required.
SPECIFICATION
Power source \tRJ 45 female connector \t
DC output \tApple Lightning \t
Data \tNot used – use WiFi for data see GAF-Lightning-PD for data+power \t
Data+Power input Pins \t1&2 and 3&6 – either polarity \t
( 802.3af mode A or mode B ) \t4&5 plus and7&8 minus \t
Input Voltage Max \tUp to 57 volts \t
Input Current at 48v \t265 ma input delivers 2 amps out \t
Output Voltage Max load (5v10w) \t5v +-2% at 2 amps 10 watts \t
Output Voltage no load \t5.2v \t
Operating Temperature \t0°C ~ 50°C \t
Size \t24 x 30 x 80 mm with 20 cm cord \t
Weight \t2.5 ounces \t
Isolation \t3,000 volt isolation between PoE and power out \t
DC output \tApple Lightning \t
Data \tNot used – use WiFi for data see GAF-Lightning-PD for data+power \t
Data+Power input Pins \t1&2 and 3&6 – either polarity \t
( 802.3af mode A or mode B ) \t4&5 plus and7&8 minus \t
Input Voltage Max \tUp to 57 volts \t
Input Current at 48v \t265 ma input delivers 2 amps out \t
Output Voltage Max load (5v10w) \t5v +-2% at 2 amps 10 watts \t
Output Voltage no load \t5.2v \t
Operating Temperature \t0°C ~ 50°C \t
Size \t24 x 30 x 80 mm with 20 cm cord \t
Weight \t2.5 ounces \t
Isolation \t3,000 volt isolation between PoE and power out \t

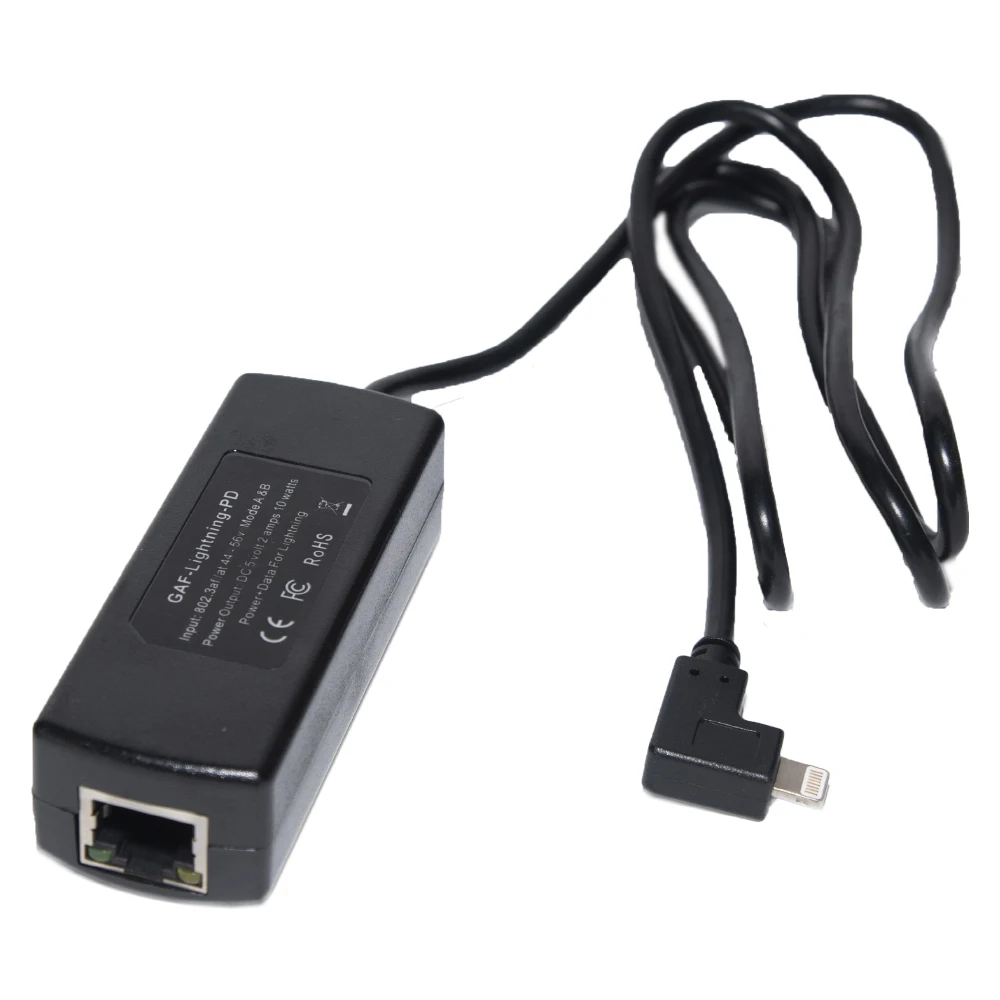

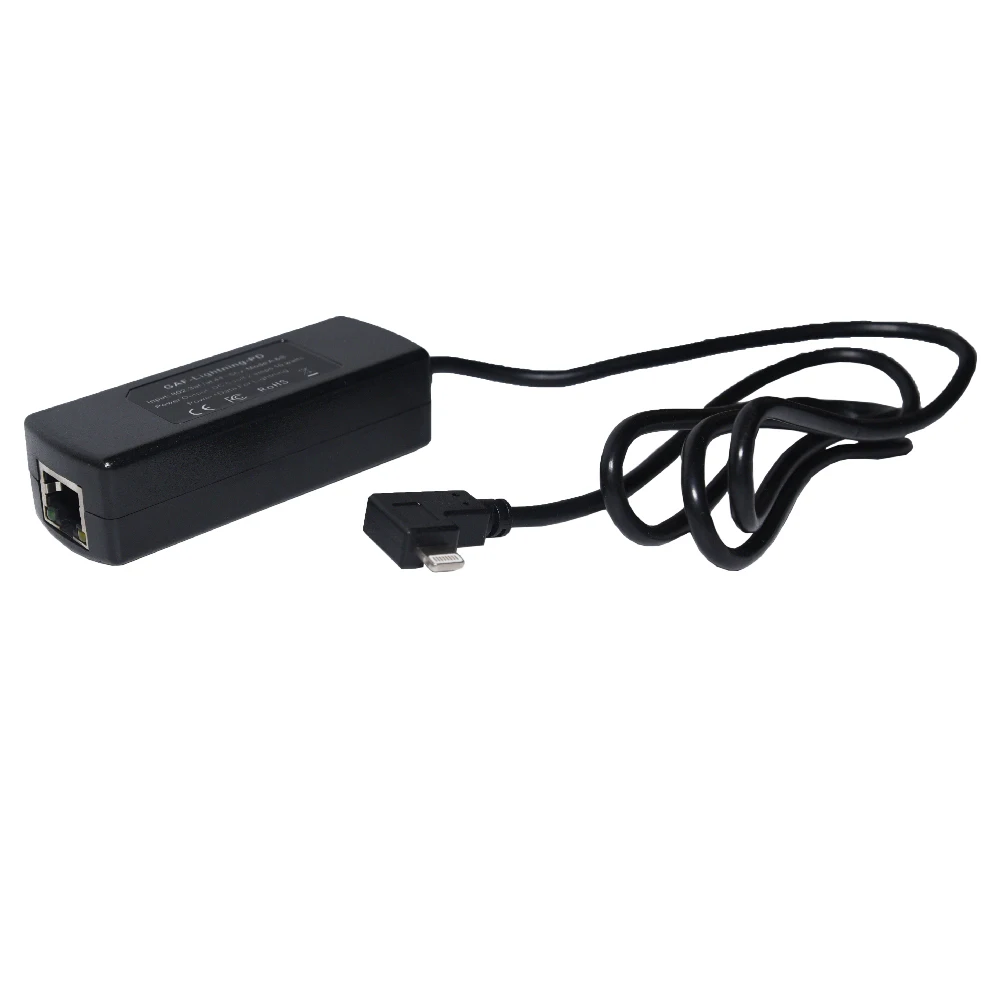

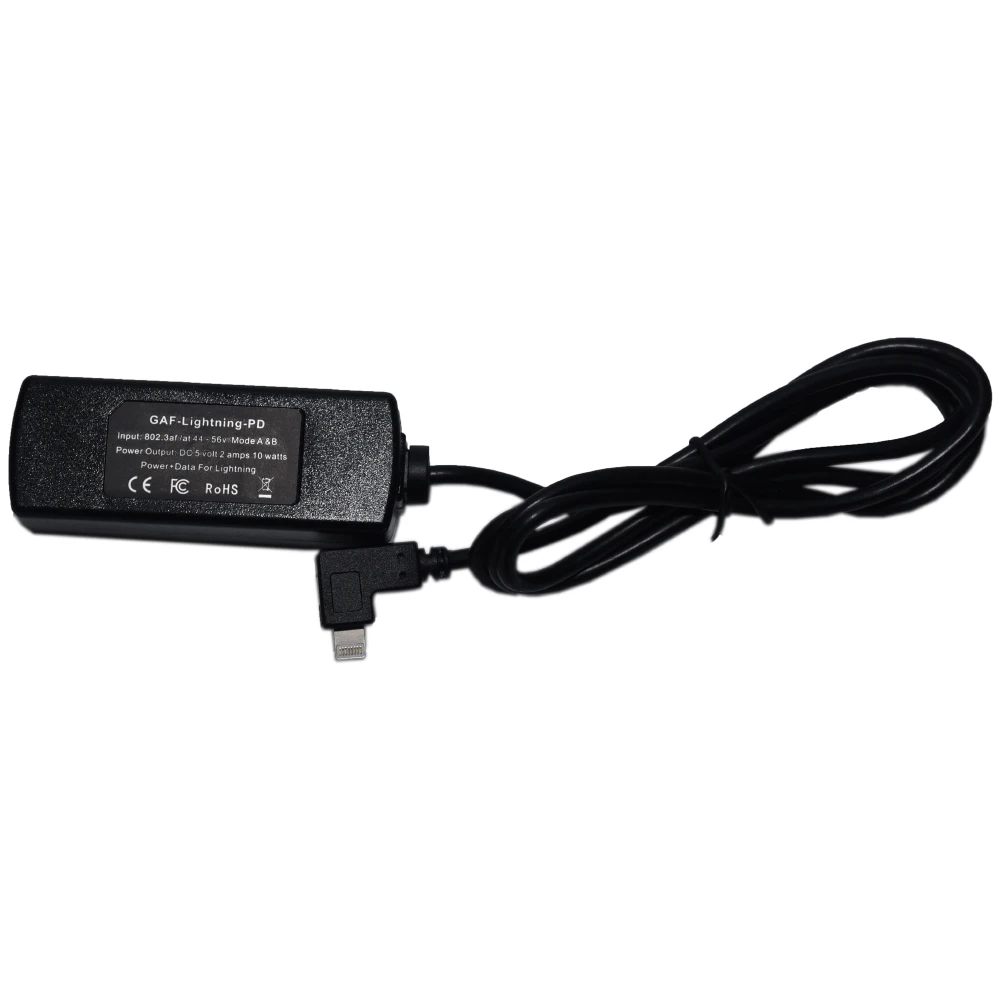

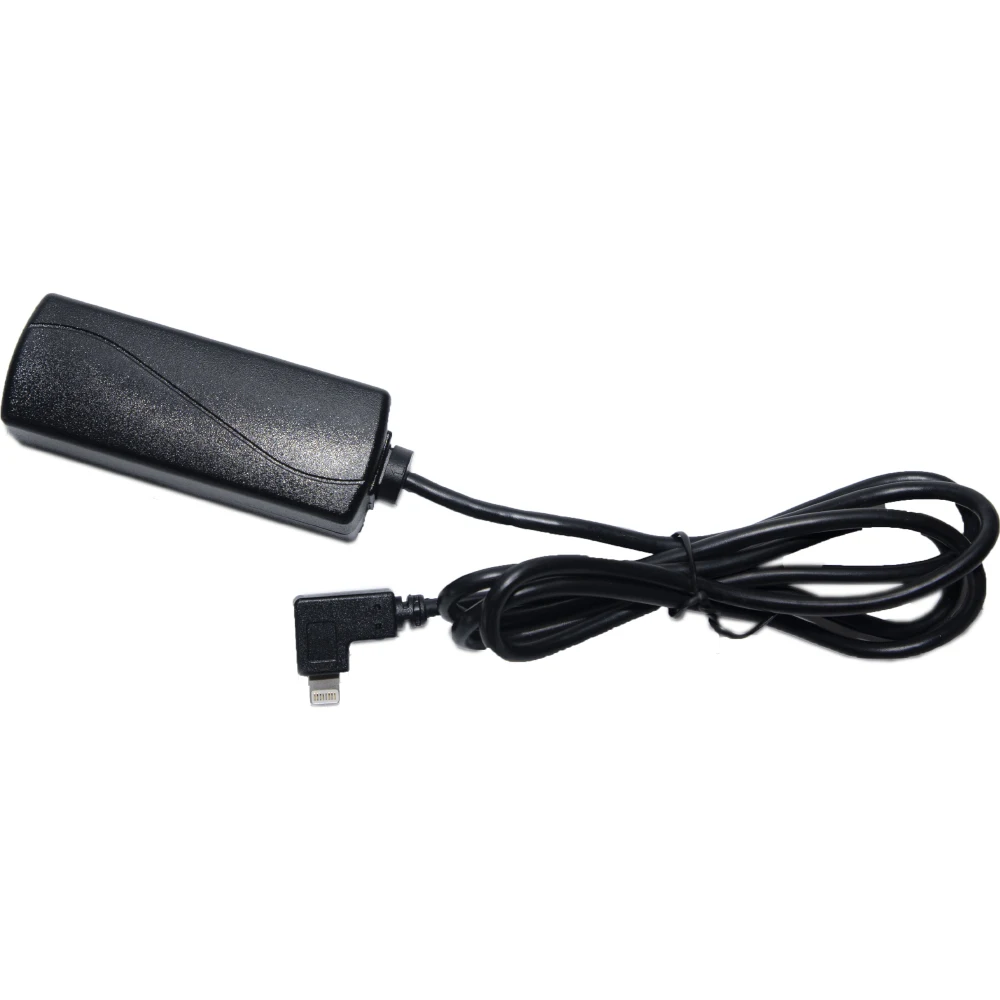

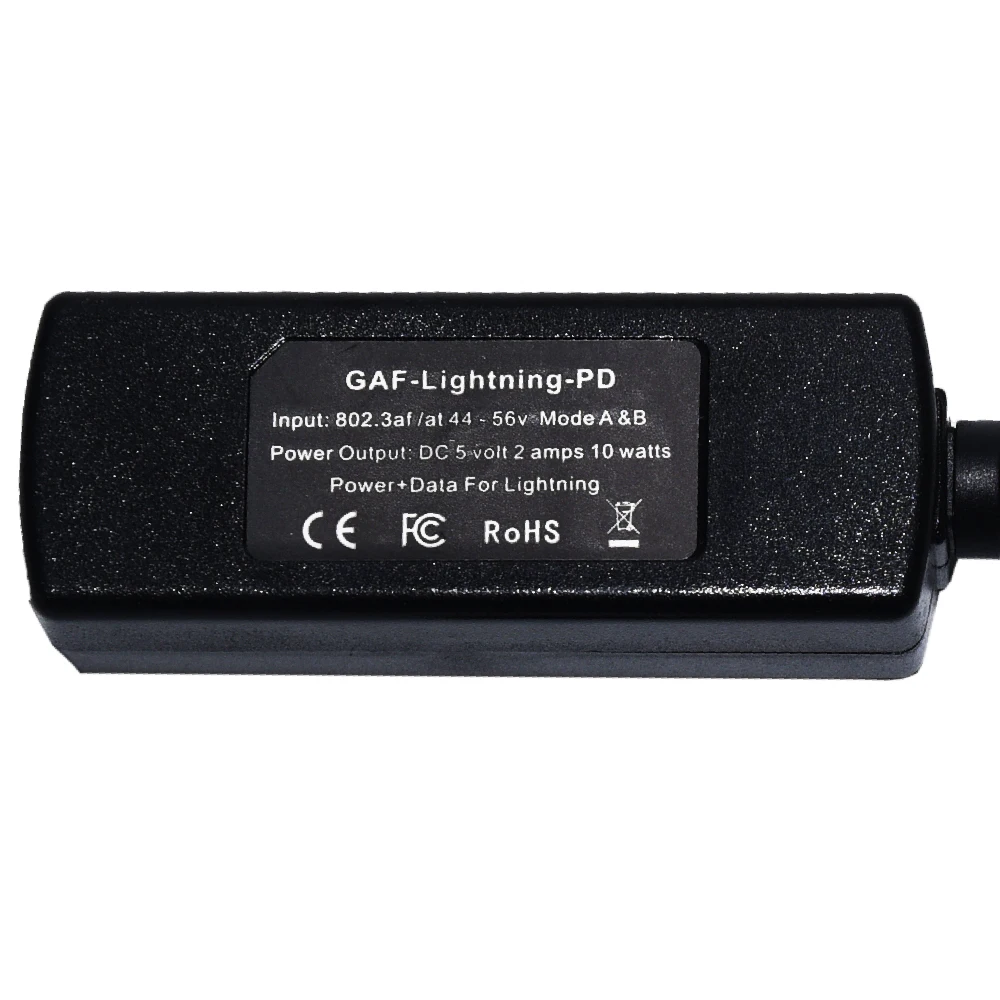

Detailed Images
ATTENTION
More details, welcome to contact us.
Skype: denglang888
Packing & Delivery
BOX + CARTON
100pcs in a carton
Carton size: 39*30*45CM
12kgs each carton
