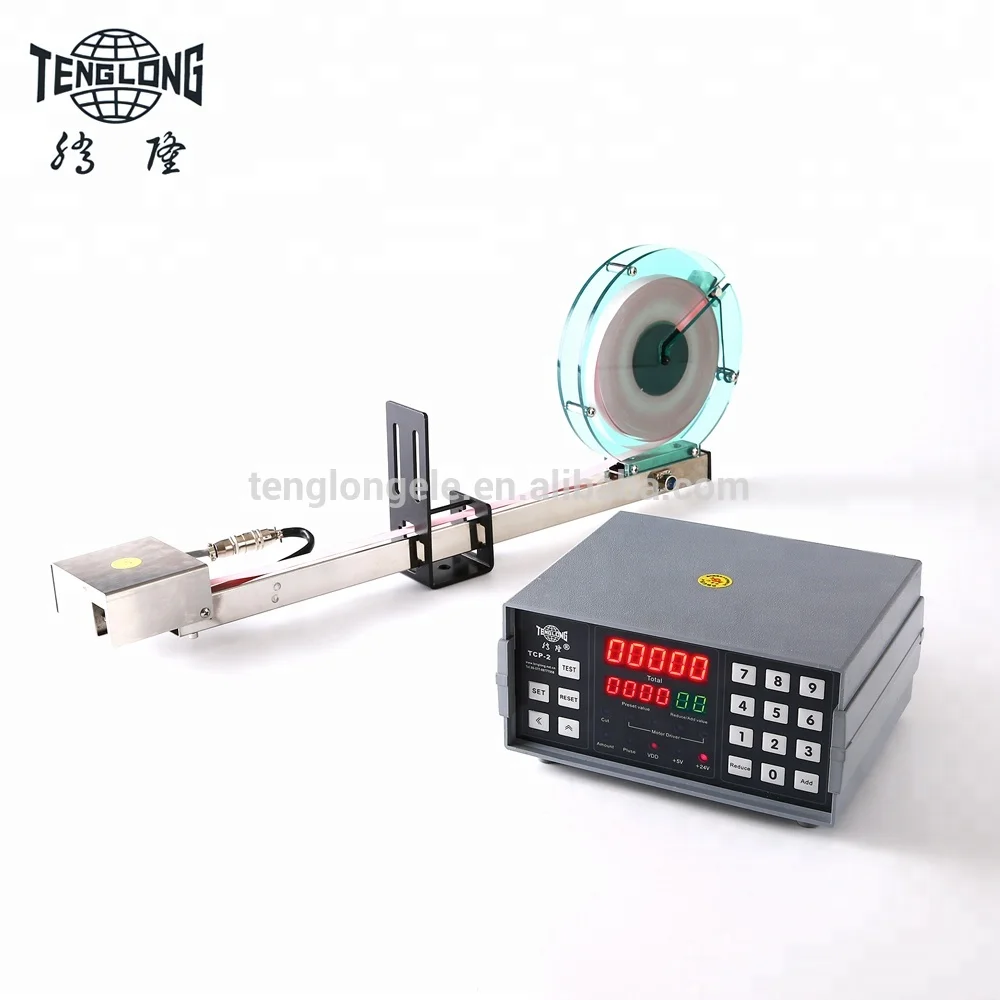

Auto Paper tab inserter machine with counting for Die cutting machine and offset printing machine
- Category: >>>
- Supplier: Wenzhou Tenglong Electronics Meter Co. Ltd.
Share on (62234998299):
Product Overview
Description
Function
| CODE | TCP-1 | TCP-2 |
| Functions and characteristics | ||
| Set batch | √ | √ |
| Set sum | √ | √ |
| Set cutting time delay | √ | √ |
| Batch reset | √ | √ |
| Total reset | √ | √ |
| Set tab lenght | √ | √ |
| Manual text | √ | √ |
| Pause count | √ | |
| Text deduction | √ | |
| Added value | √ | |
| Data operation | Manual | Panel |
| Paper move motor | DC motor | DC motor |
| The action after reached preset data | Light indicator | Light indicator and alarm |
| Signal input | PLC or Sensor | PLC or Sensor |
| The rated power | AC220V /110V/DC24V | AC220V /110V/DC24V |
| Applicable models | Apply to printing machine, Die-cutting machine, Transverse cutting machine, Papermaking machines | Apply to different printing machine(such as KBA,MANROLAN,KOMORI,MITSUBISHI) and the other machine which need insert tab |
| √=Included | ||
Parameter

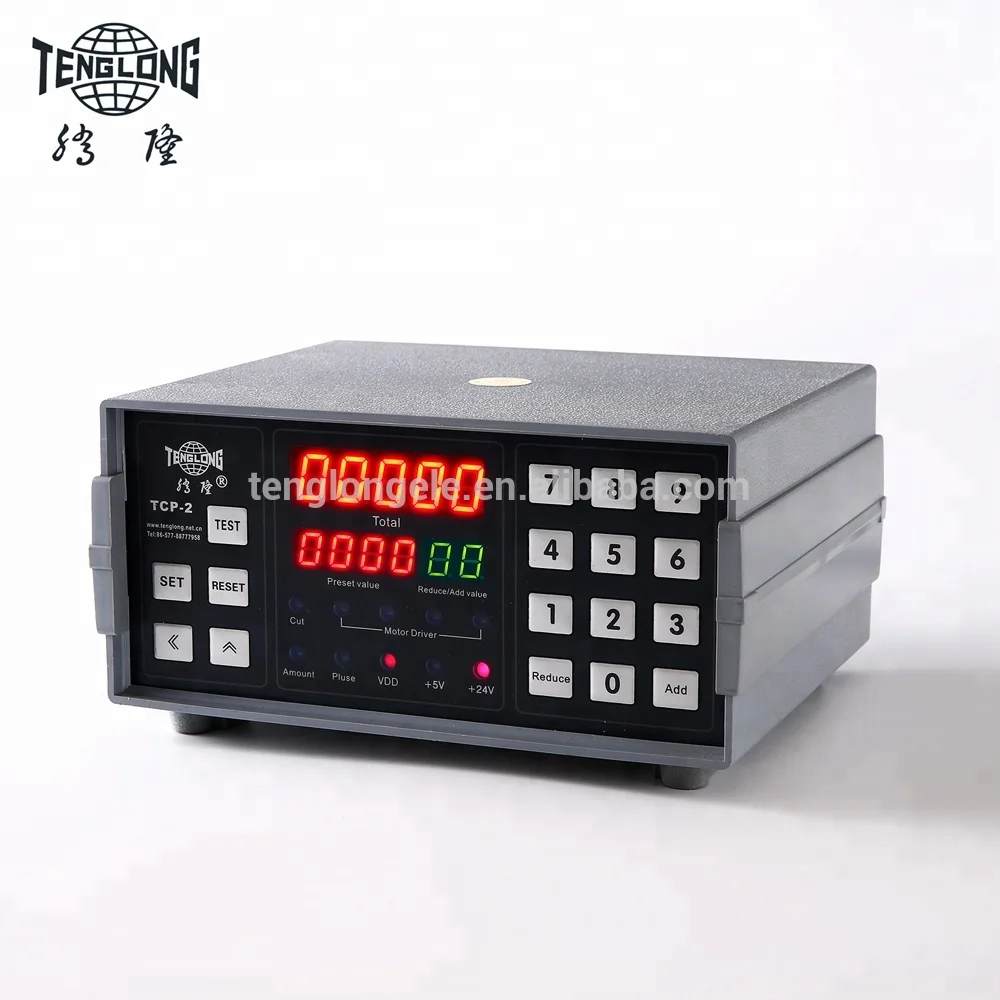

| Model | TCP-2 |
| Rated voltage | AC 110~240V,AC24V,50/60HZ,DC24V,85-110% rated voltage |
| Certification | ISO9001/14001, CE, ROHS |
| working range of pressure | 85~110% of rated voltage |
| MAX counting frequency | 5 papers/second |
| power consumption | AC 240V 50HZ ≤10W |

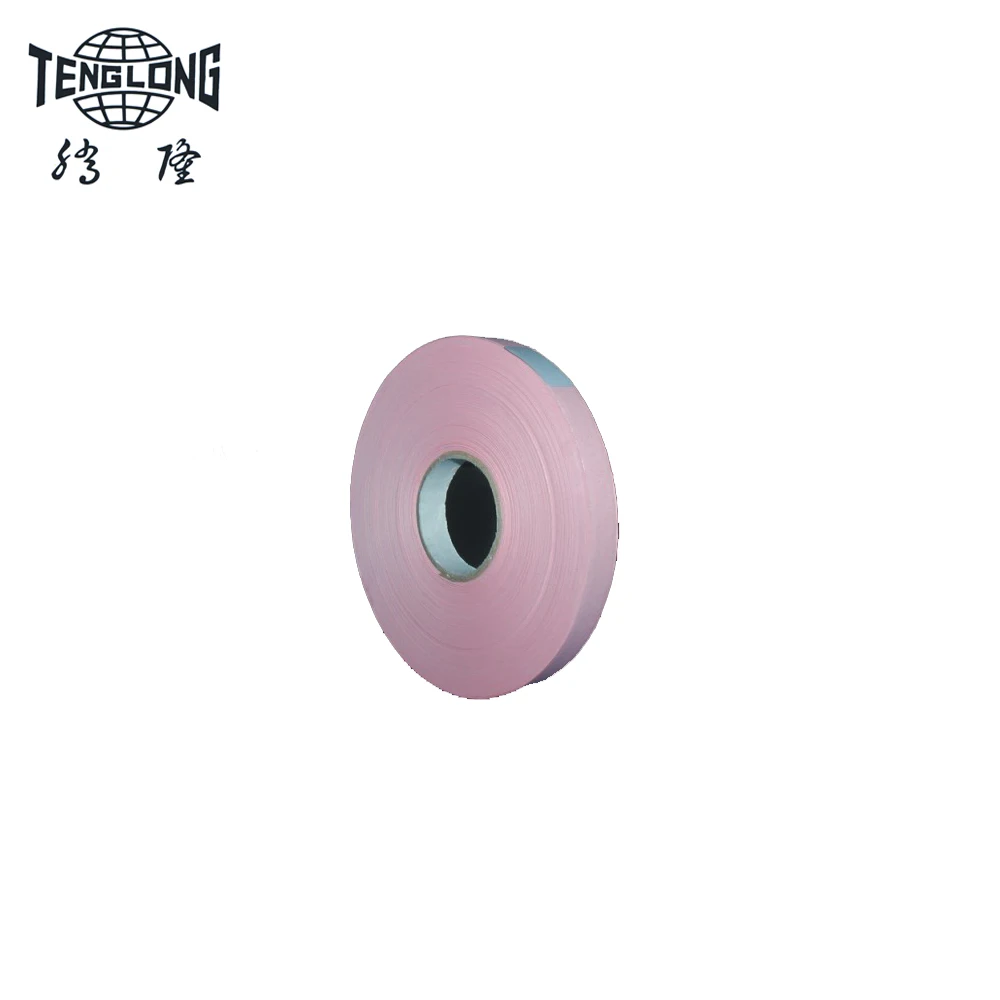

| Width of paper | 12 mm |
| Apply to | Printing press, Die cutting machine , total auto-paste and transverse cutting machine |
