BSY Cnc Wood Veneer Peeling Machine / Spindle Plywood Veneer Rotary Peeling Lathe Price
- Category: >>>
- Supplier: Shandong BSY Group Co. Ltd.
Share on (62235007743):
Product Overview
Description

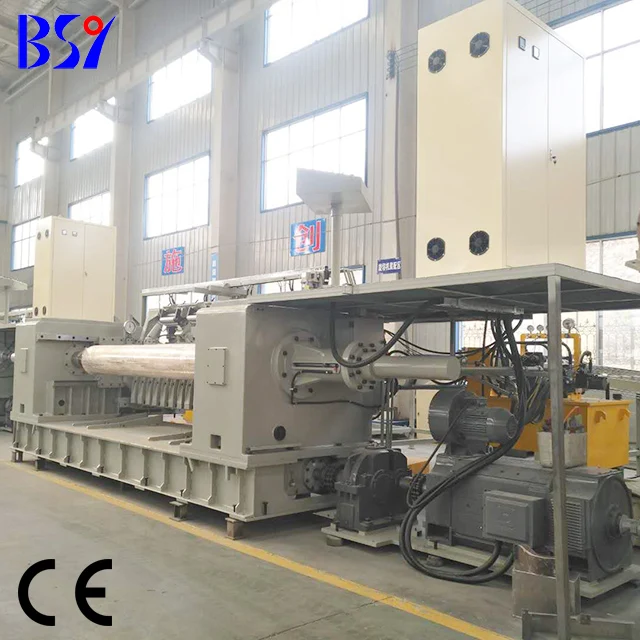

Automatic Hydraulic Single Spindle wood veneer peeling/veneer peeler machine for plywood
Product Description
Advantages
1.Long Working Life,Greater Stability and Strengh with Heavy Duty.
The machine weights around 15tons, using thick steel plate for machine building, which makes machine have greater stability,strength,impact resistance and long working life.
2. High Precision

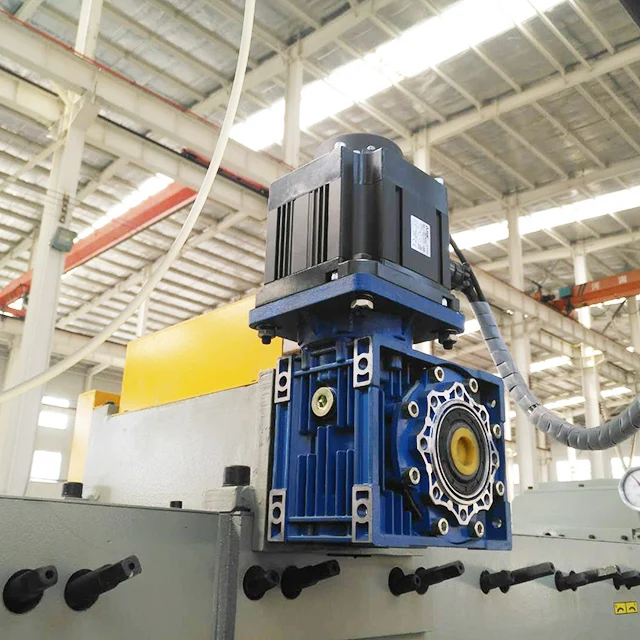

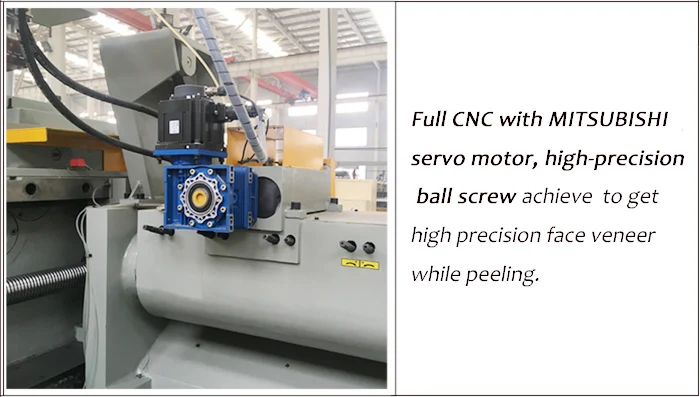

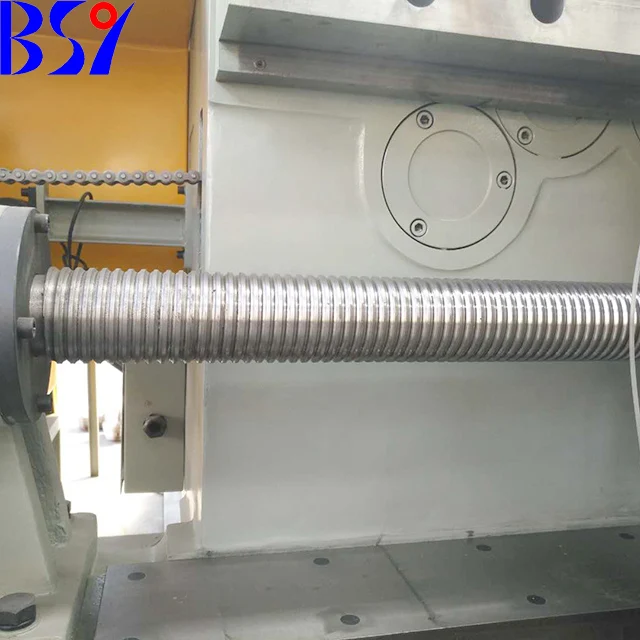

Full CNC with MITSUBISHI System, high-precision ball screw achieve to get high precision face veneer while peeling.
3,Easy Operation and High Efficiency.

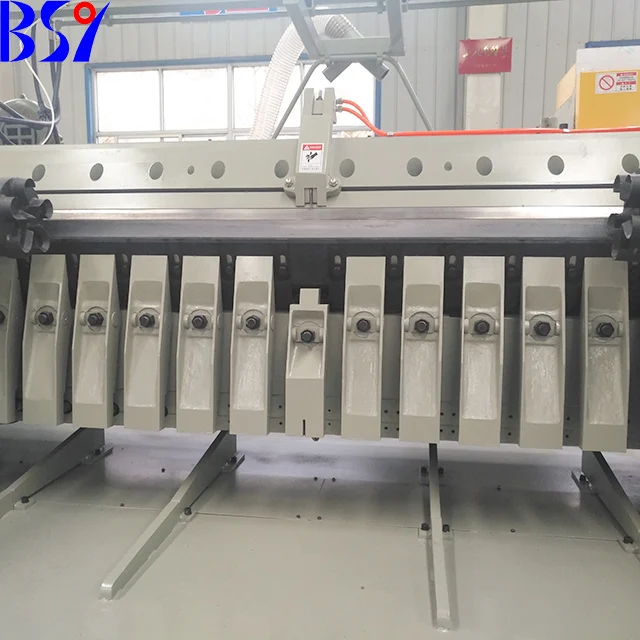

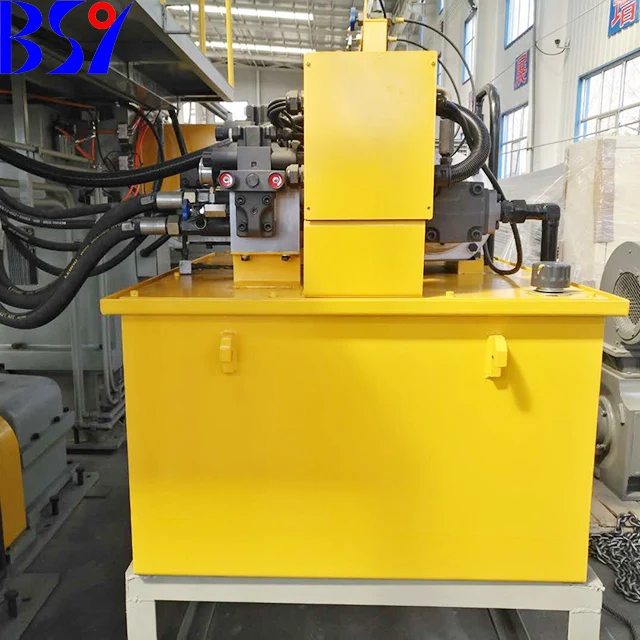

With hydraulic system,the blade can be quickly and conveniently loaded and unloaded to improve production efficiency and to reduce labor intensity.
Hydraulically clamp wood, the pressure of the hydraulic cylinder of the chuck spindle can be adjusted according to the softness and hardness of the wood, and the operation is convenient

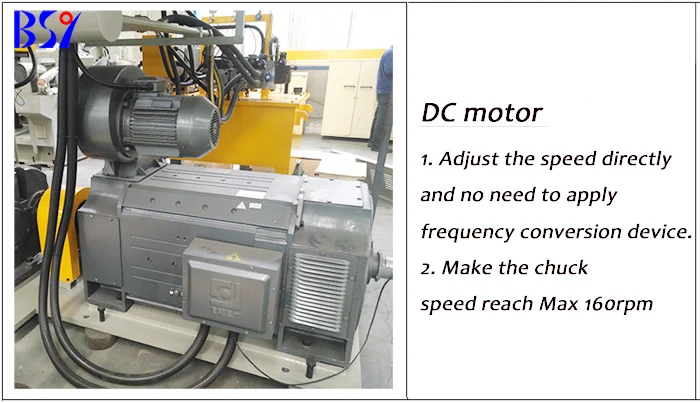

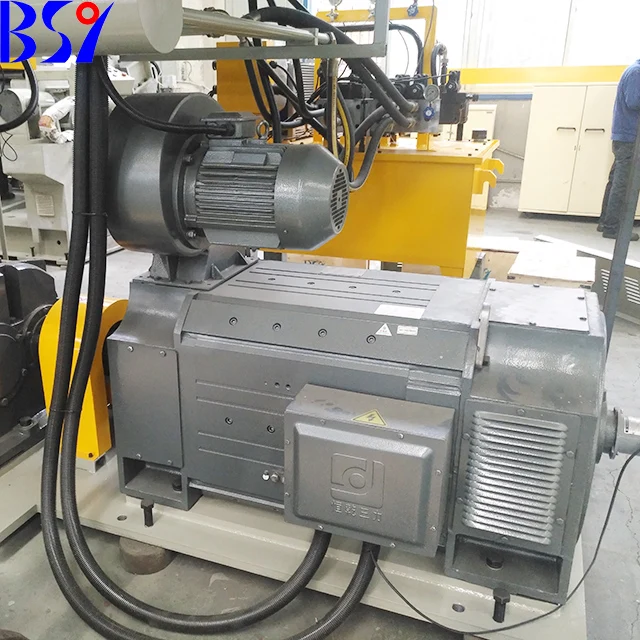

DC motor can make the chuck speed reach Max 160rpm
Technical Parameters
| MODLE | BQ1226/8F1 | BQ1226/8E1 | BQ1215/8A1 | ||||||||
| Peeling diameter | 170-800mm | 170-800mm | 170-800mm | ||||||||
| Peeling length | 2150-2700mm | 2150-2700mm | 900-1450mm | ||||||||
| Peeling veneer thickness | 0.35-3.9mm | 0.35-3.9mm | 0.35-3.9mm | ||||||||
| Diameter of chuck-axle | 130mm | 100mm | 85(100)mm | ||||||||
| Chuck-axle rotation speed | 0-160rpm | 0-160rpm | 0-200rpm | ||||||||
| Blade holder fast forward speed | 1.8m/min | 1.8m/min | 1.8m/min | ||||||||
| Main motor power | 75KW | 75KW | 45KW | ||||||||
| Rapid feed motor power | 4KW | 4KW | 4KW | ||||||||
| Electric rear angle motor power | 0.75KW | 0.75KW | 0.75KW | ||||||||
| Hydraulic motor power | 7.5KW | 7.5KW | 7.5KW | ||||||||
| Grinding angle of appropriate tool | 18°-22° | 18°-22° | 18°-22° | ||||||||
| Total motor power | 90.25KW | 90.25KW | 58.35KW | ||||||||
| Overrall dimensions | 8340*1750*2400mm | 8340*1750*2400mm | 6800*1750*2400mm | ||||||||
| Net weight | 15000Kg | 15000Kg | 13000Kg |

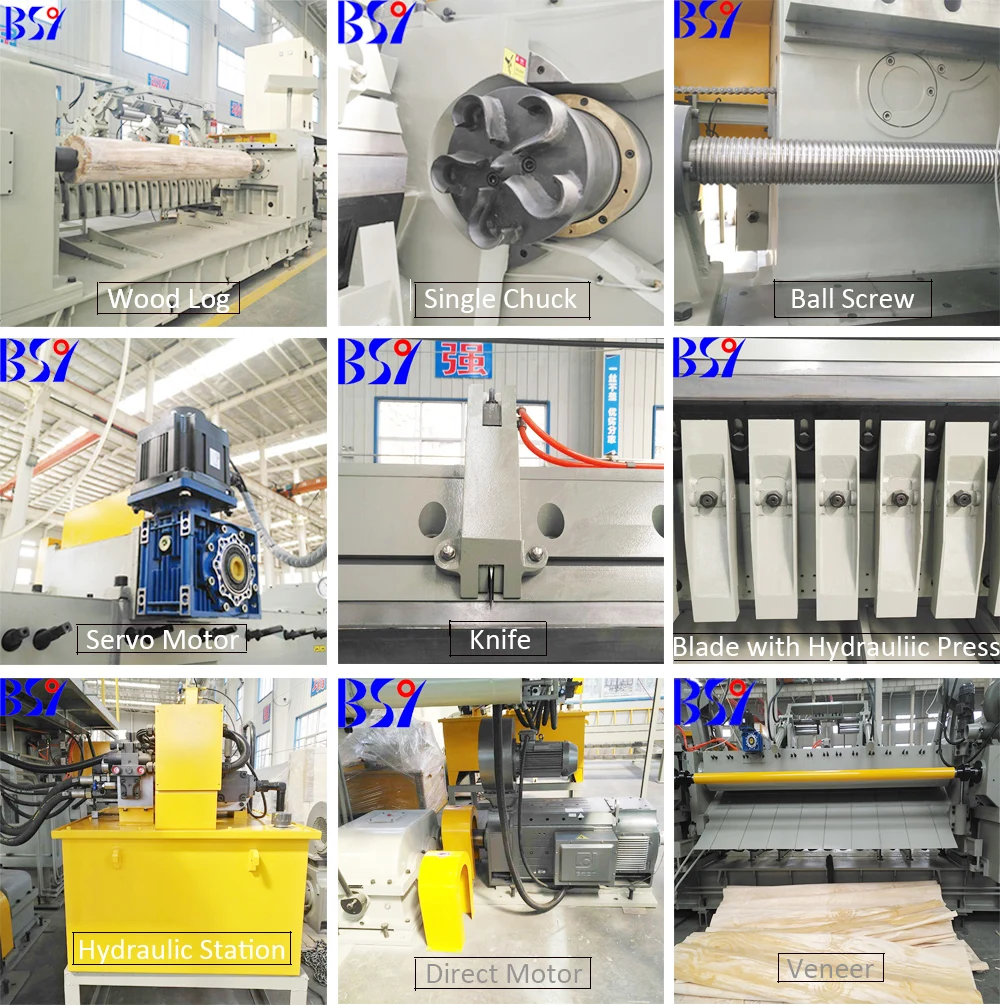

Detailed Images

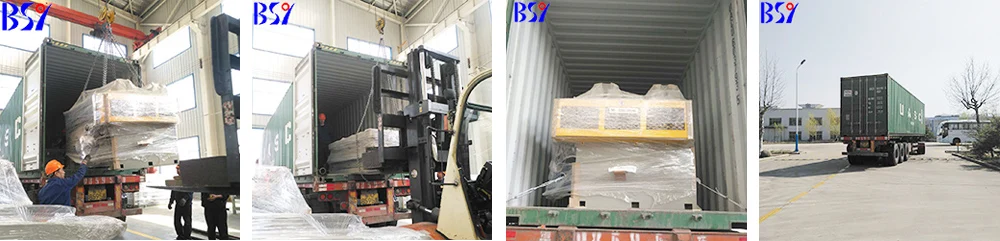

Packaging & Shipping
Packaging Details standard export package
Port Qingdao
Lead Time : about 50 days after order confirmed
Company Information
1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years. 2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients. 3.Specializing in plywood production line and finger joint board production line. The main productions include: log debarker, log charger, veneer peeling lathe, veneer clipper, press machine, veneer dryer, glue spreader, size trimming saw, sanding machine etc. If you show us the details you want, our engineer will design the suitable production as your requirement 4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning. Website://www.baishengyuan.cc/ |
If you're interested in our products,please feel free to contact us.
