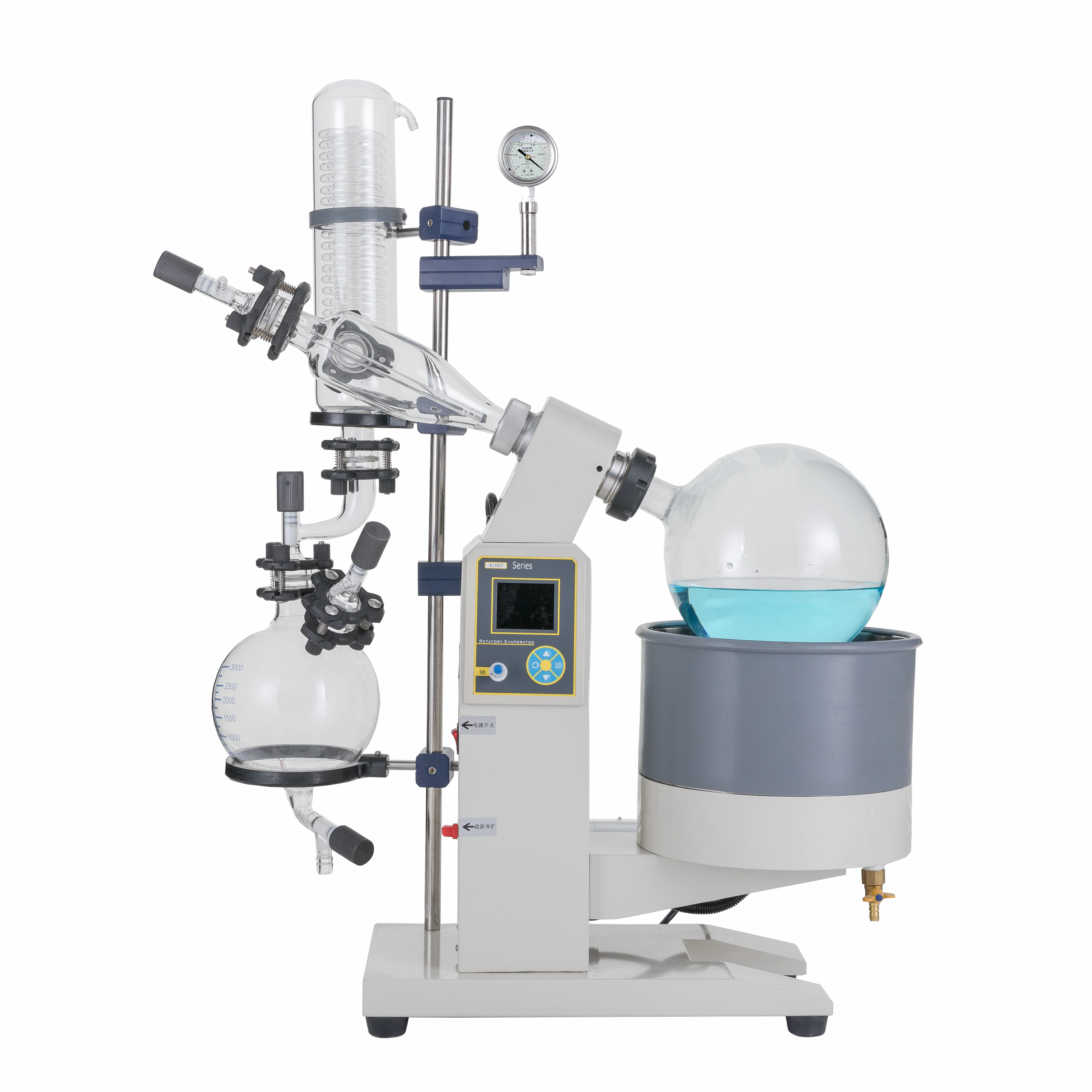

CE Vacuum Alcohol/Ethanol/Water Distiller 5Liter Digital Chemical Rotary Evaporator Rotovap Rotavapor With Chiller and Pump

Product Overview

Description

CE Vacuum Alcohol/Ethanol/Water Distiller 5Liter Digital Chemical Rotary Evaporator Rotovap Rotavapor With Chiller and Pump





Working Principle

An ( Explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) is used for purification and distillation test. They rotate and shape a thin film in negative pressure condition by heating, evaporate efficiently, and then condense and recollect solvent to purify and separate.



Application



1.An ( explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It is widely applied in such experiments such as concentration, evaporation, distillation, separation of chemical, using the rotating bottle to dry the powder and crystallization and so on.



2. An ( explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) can be used with recirculating water vacuum pump and low temperature cooling liquid circulating pump/ recirculating chiller to form the total system.



Features

1. Teflon (PTFE) and fluorine rubber dual rotating seal to ensure high vacuum.



2. the introduction of foreign advanced frequency control system, temperature control system, accurate and reliable.



3. A vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected.



4. Water bath electric lift and manual lift support, easy to use.



5. PTFE draining valve, corrosion resistance, pollution-free.

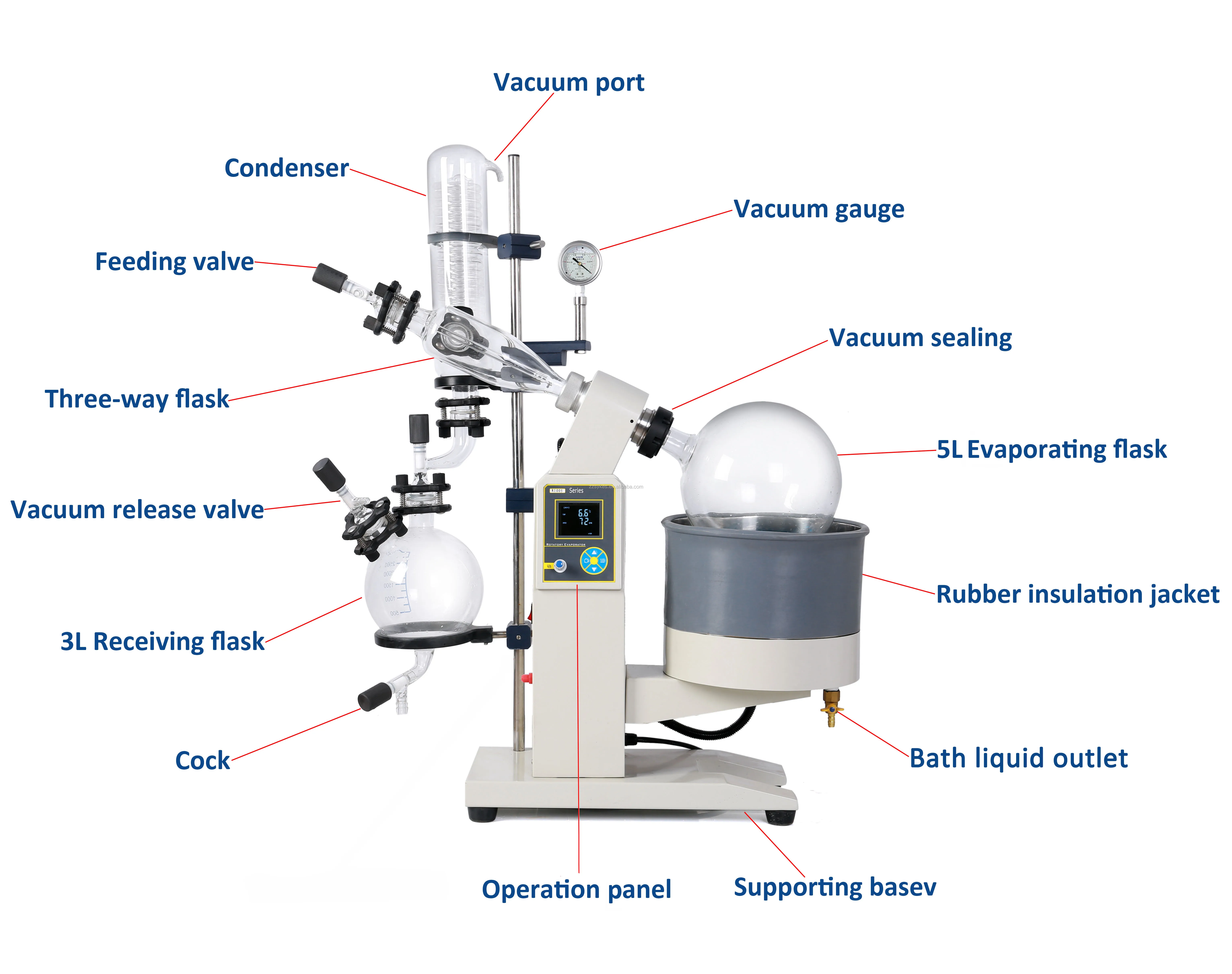

Structure



Technical Data





Model	R1005	R1010	R1020	R1050
Ambient temperature(℃)	5~35
Power Supply(V/Hz)	Single-phase 220/50		Three-phase220/380/50

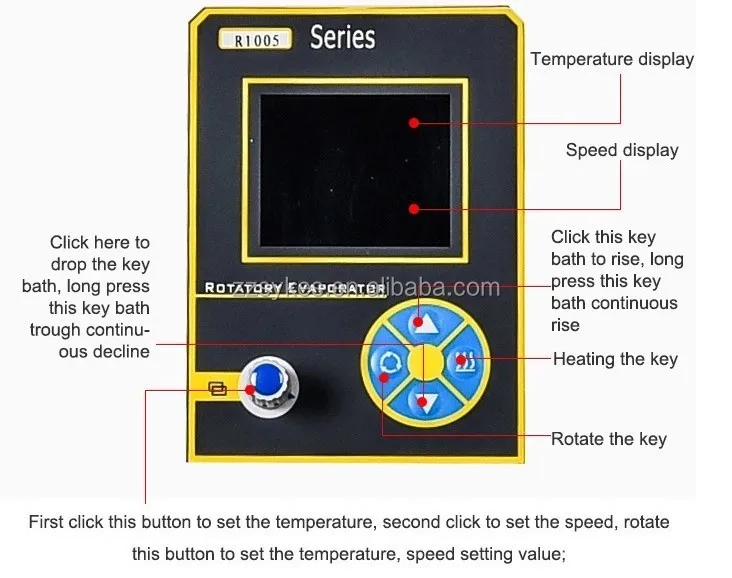

Speed-regulation of main machine	Digital display, variable frequency stepless speed-regulation	Digital display, DC stepless speed-regulation
Rotation speed(rpm)	10~140	20~130		20~110
Power of rotation motor(W)	40	Brushless motor,250
Temperature range(℃)	Digital display, Room Temperature -99
Max. vacuum degree(Pa)	399.9(Below 3mmHg)
Evaporating flask(L)	5/6 Flange opening Ø50	10 Flange opening Ø125	20 Flange opening Ø125	50 Flange opening Ø125
Receiving flask(L)	3	5	10	20
Condenser	Vertical type double coil pipe	Vertical type, Main + auxiliary triple-circulating cold traps
Condensation area	0.27	Main condenser 0.42, Auxiliary condenser 0.22	Main condenser 0.8, Auxiliary condenser 0.39	Main condenser 0.91, Auxiliary condenser 0.52
Evaporating Speed(L/h)	Water≥2 Alcohol≥4	Water≥3.2 Alcohol≥6.5	Water≥5 Alcohol≥11	Water≥9 Alcohol≥19
Bath material	Stainless Steel
Bath Size(mm)	Φ300×170	Φ350×220	Φ450×260	Φ550×320
Lifting function	Motorized lift			Motorized + Manual lift
Elevating stroke(mm)	0~150	0~160	0~190	0~180
Overall Power(kW)	2.0	3.0	4.0	4.0(220V)
Dimension(mm)	860×500×1000	920×550×1700	1250×600×2100	1320×770×2340



Details





Recommended Total System





1). -30 To Room Temperature Recirculating Chiller DL-10/30





CE Certificate









Package & Shipment

Why choose us ?



1. Zhengzhou Sykes Biotechnology Co., Ltd. is a sub-company of Zhengzhou Sykes Glass Instruments Co., Ltd. Which is a professional manufacturer of laboratory instruments for over 30 years in China.



2. Professional R & D Team can supply customers with perfect solution according to specific requirements.



3. Long-term and stable raw material suppliers, and we offer factory price based on high quality products directly, it is more profitable for business.



4. Professional QA/ QC team focus on quality control during raw material purchasing, production line and final inspection.



5. ODM and OEM are available.



6. Flexible payment terms.



7. One year warranty and free lifetime maintenance service.



8. We not only guarantee the safe transportation but also save the freight cost for you.



RFQ



1. Are you a trading company or a manufacturer ?

Reply: We are a professional manufacturer of laboratory instrument and we have our own factory.



2. Do you provide sample ?

Reply: Absolutely, we provide customers with the sample. Sample is not free because of the material cost of our products, but we shall give you our best price.



3. What is the payment term ?

Reply: 100% payment before shipment. In order to protect customers’ payment security, Trade Assurance Order is highly recommended.



4. Do you offer ODM or OEM service ?

Reply: ODM or OEM is available.



5. What is MOQ ?

Reply: 1 Set.



6. How to place an order ?

Reply: There are two ways to place an order from us. 1^st, you can contact us to place an order directly, then we shall offer you PI with our bank info, then we shall arrange the products as soon we get your payment. 2^nd, you can place an order on Alibaba directly, and make the payment online, we shall arrange the products as soon as we confirm your payment.



7. What about shipment way ?

Reply: We shall ship the products to customers by sea, by air, by express ( DHL, TNT, FedEx, etc. ).
