EMAX Manufacturer Yinyan ES3001 37g Simulated Steering Engine Model Fixed Wing Aircraft Standard Steering Engine Bearing

EMAX Manufacturer Yinyan ES3001 37g Simulated Steering Engine Model Fixed Wing Aircraft Standard Steering Engine Bearing

Brand:Emax

Item: ES3001 Analog Servo
Weight: 37g
Usage:For RC Airplane,RC Aircraft,RC Glider, RC Car

Working Environment
No.	Item	Temperature
1	Storage temperature Range	-20℃~70℃
2	Operating temperature Range	-10℃~60℃

Electrical Specification (Function of the Performance)
No.	Item	4.8V	6V
1	(±10%)Operating speed (at no load)	0.17 sec/60°	0.14 sec/60°
2	Running current (at no load)	400mA Max	500mA Max
3	Stall torque	3.2kg.cm Max	4.2kg.cm Max
4	Maximum current/Stall current (at locked)	1.5A Max	1.8A Max
5	Idle Current	5.6mA	5.6mA

Mechanical Specification
NO.	Item	Specification

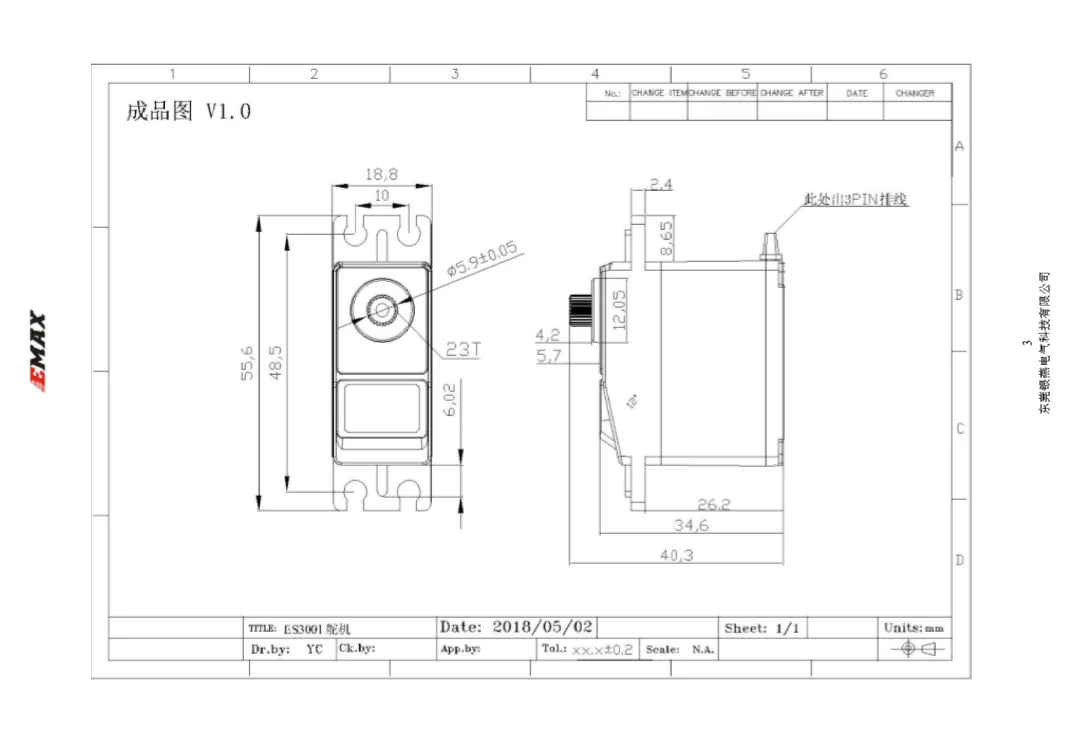

1	Overall Dimensions	See chart below
2	Weight	34.5±1 g
3	Connector wire gauge	JR
4	3P Connector wire length	240±8(terminal excluded)
5	Flower Head	23T
6	Bearing	1BB
7	Gear Type	plastic gear
8	Extreme angle	220°

Control Specification
NO.	Item	Specification
1	Control system	PWM
2	Operating travel	90° ±10°( when 1000-2000 μ sec )
3	Neutral position	1500 μ sec
4	Rotating direction	Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
5	Pulse width range	800-2200 μ sec
6	Maximum travel	125° ±10°( 800-2200μ sec )

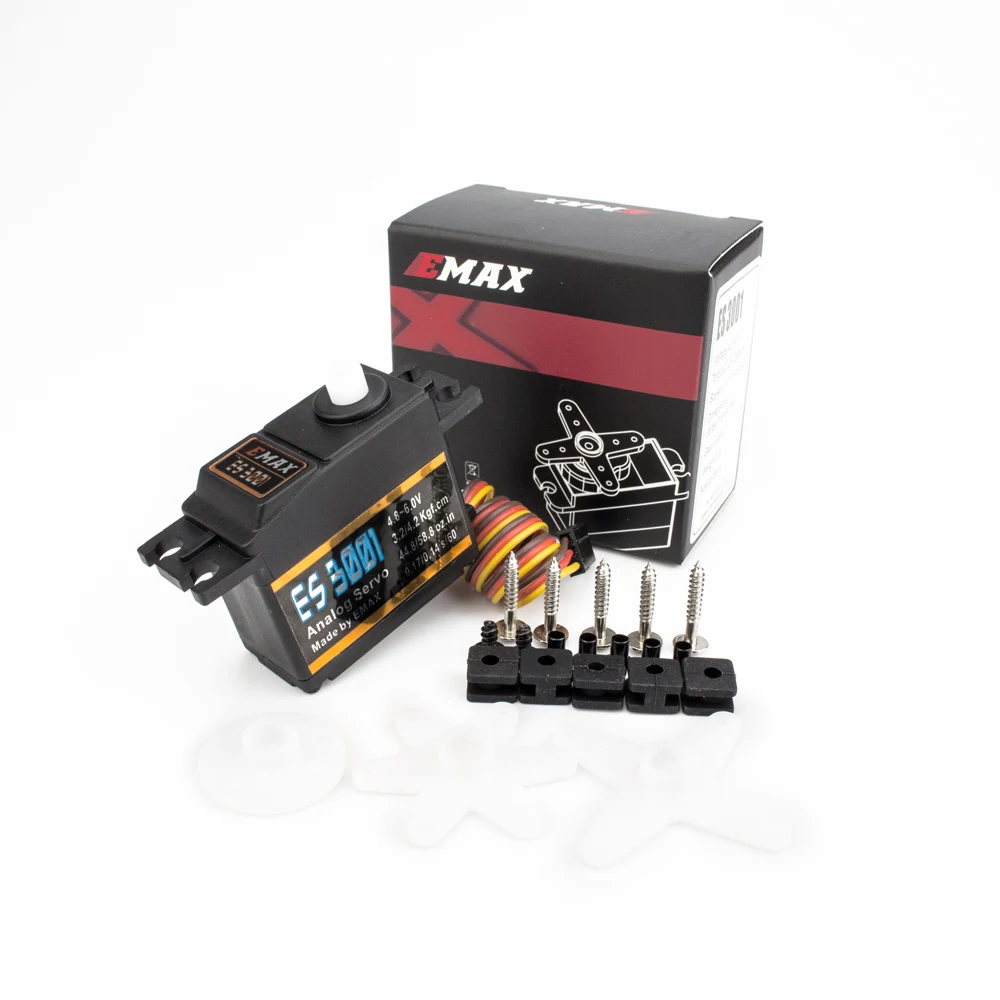

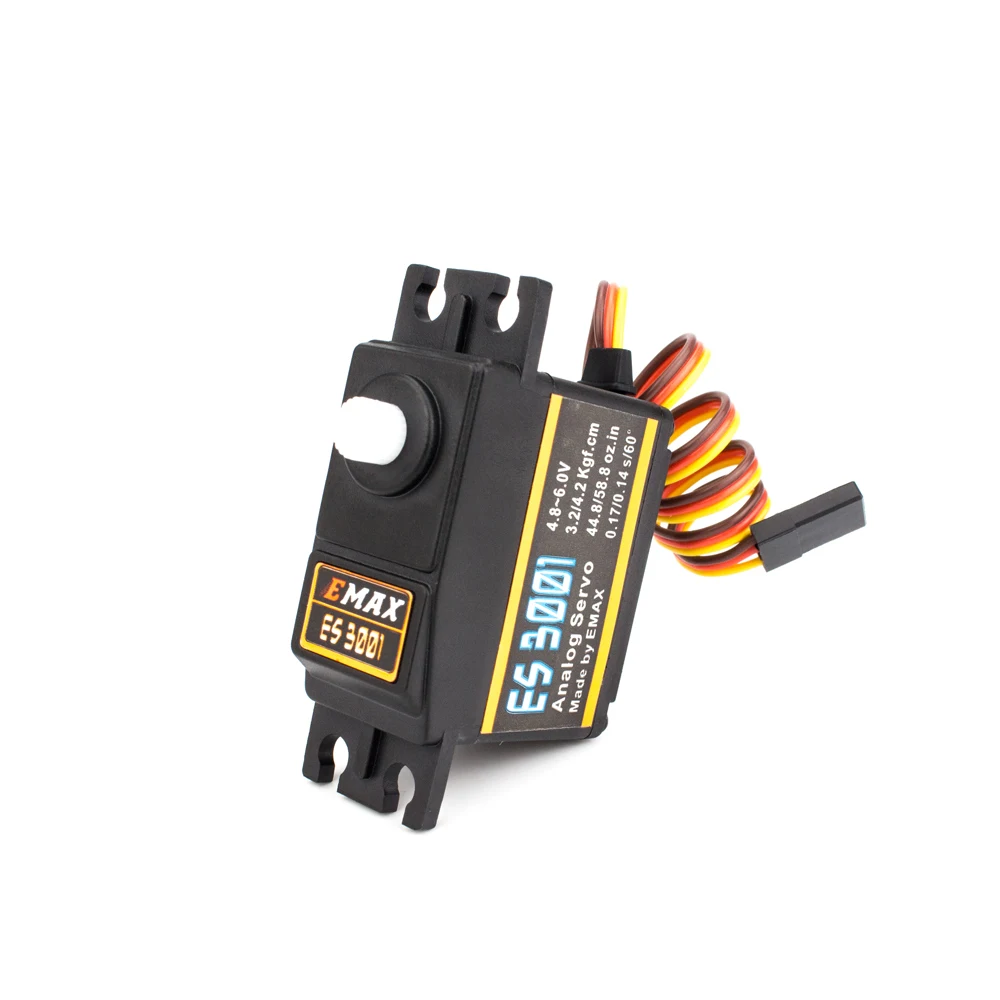

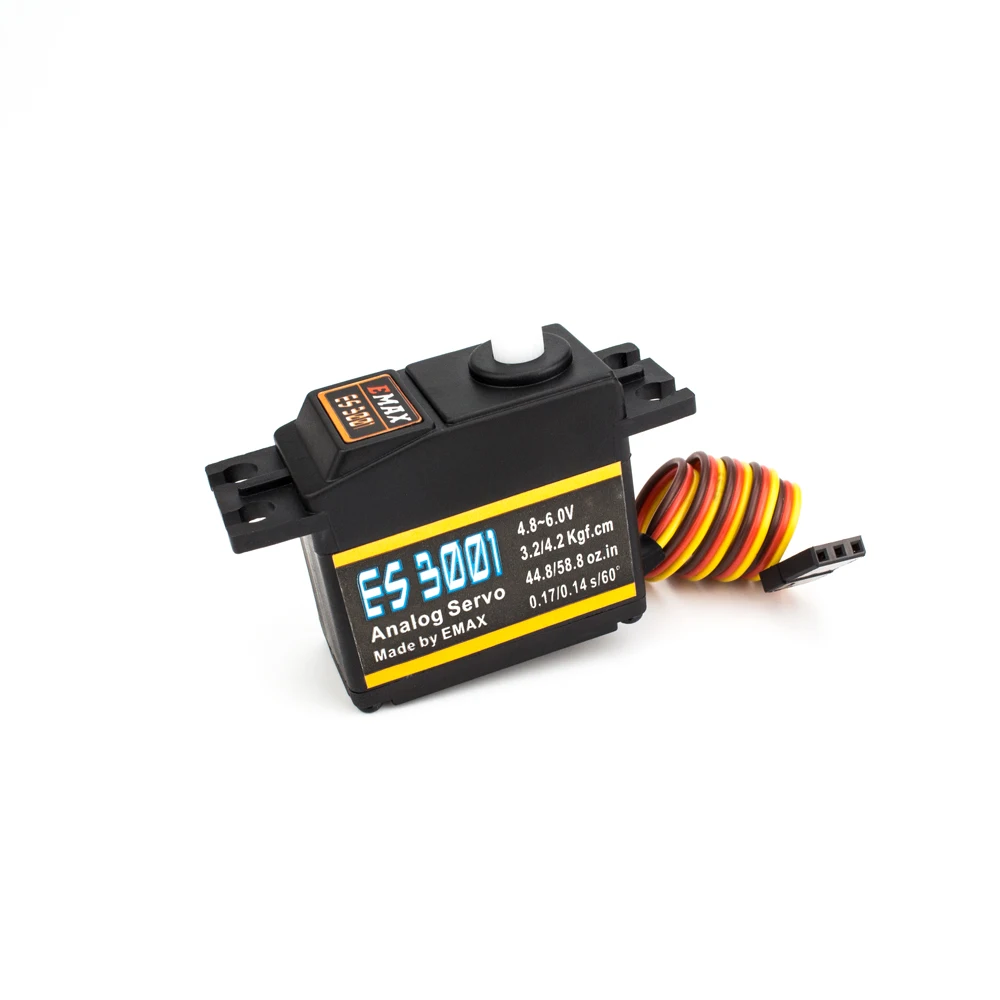

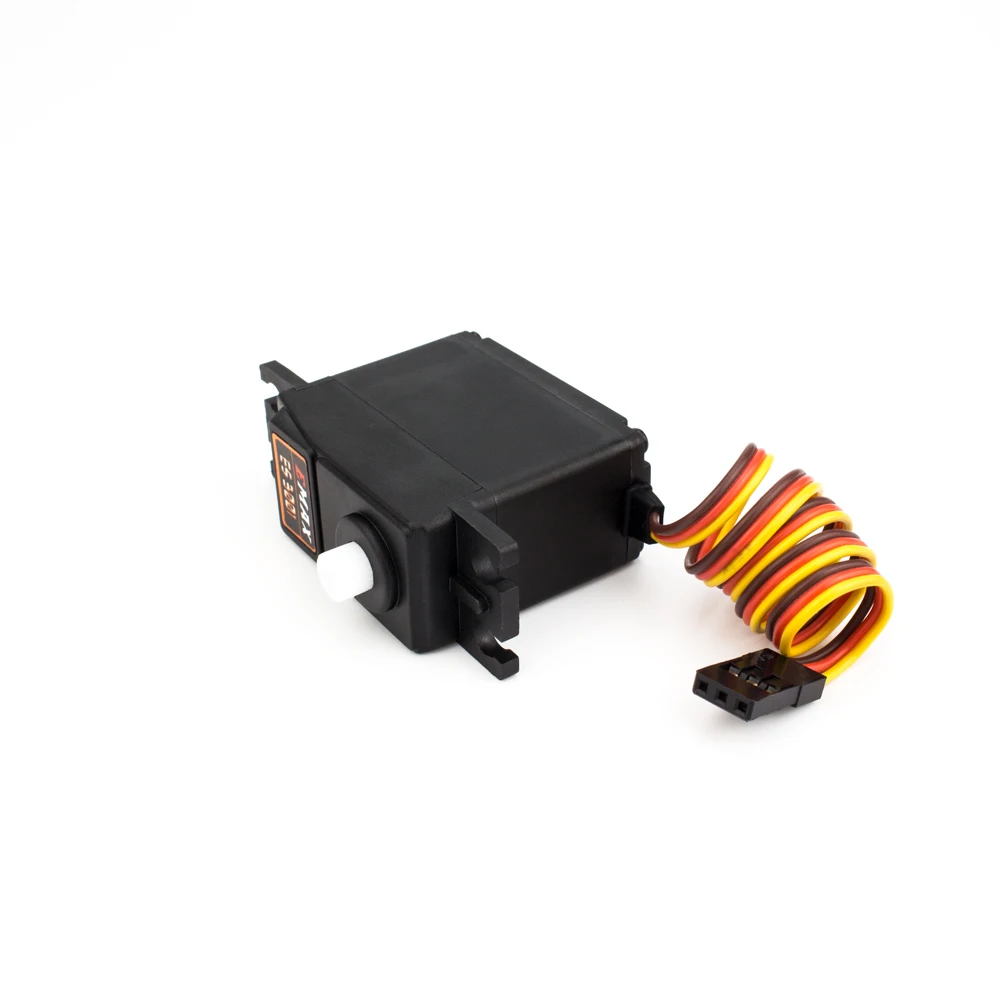

Products Show

Our Company

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample. But need to charge the product price and the cost of freight.

Q: What is your terms of payment ?

A: T/T , Paypal , Alipay , Wechat Pay
