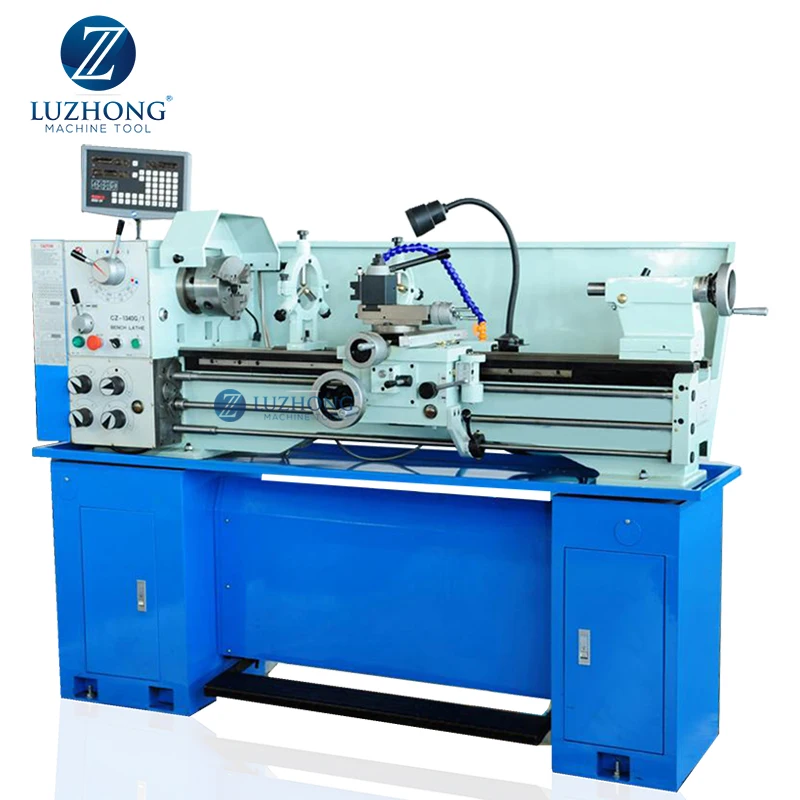

Emco Mini Metal CZ1340G 1 Universal Lathe Machine
- Category: >>>
- Supplier: Shandong Luzhong Machine Tool Co. Ltd.
Share on (62235278494):
Product Overview
Description
Products Description
The main performance characteristics：

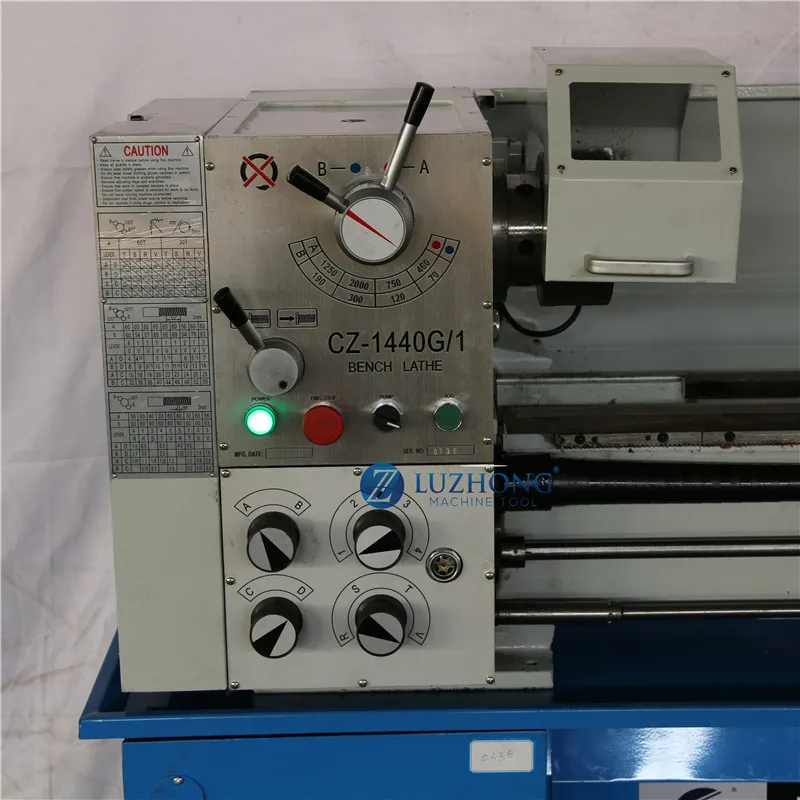

Theclutch inside headstock realize the spindle to change FWD/REV direction.
It avoids electric motor to be changed frequently
Supersonic frequency hardened bed ways
Precision roller bearing for spindle

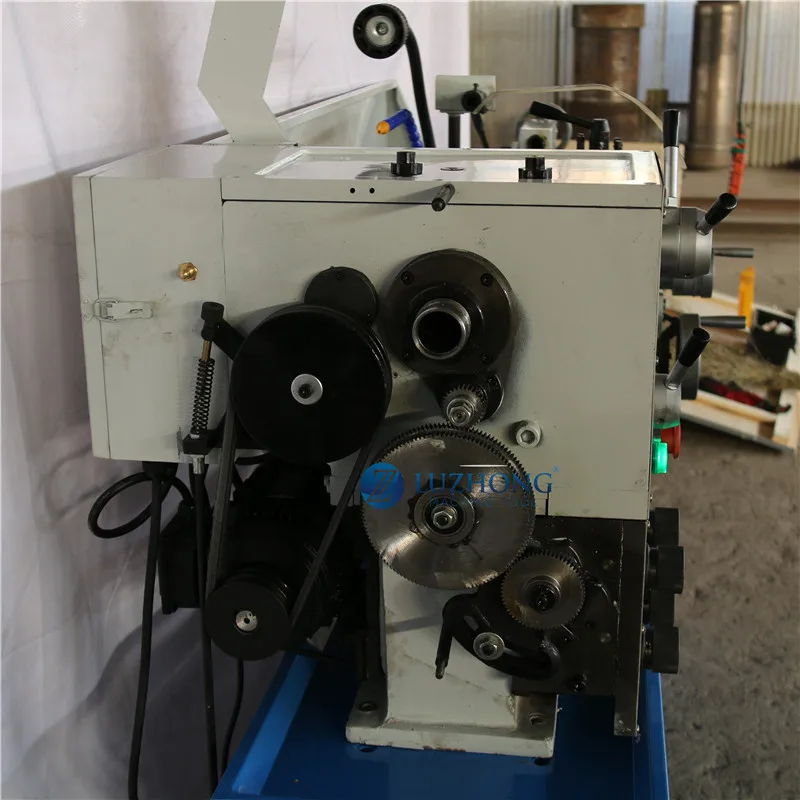

High quality steel, ground and hardened gear inside headstock
Easy and fast operating gear box
Enough strong power motor

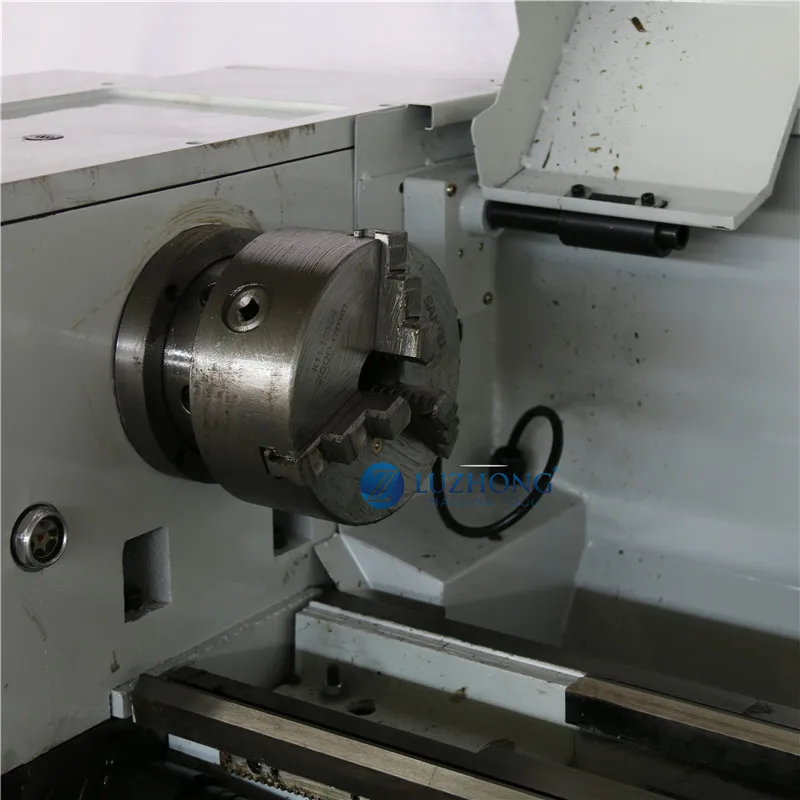

ASA D4 camlock spindle nose
Various thread cutting available
It avoids electric motor to be changed frequently
Supersonic frequency hardened bed ways
Precision roller bearing for spindle
High quality steel, ground and hardened gear inside headstock
Easy and fast operating gear box
Enough strong power motor
ASA D4 camlock spindle nose
Various thread cutting available
SPECIFICATIONS | Units | CZ1340G/1 | CZ1440G/1 |
Max Swing diameter over bed | mm | 330 | 350 |
Max Swing diameter over cross slide | mm | 195 | 220 |
Max Swing diameter over gap | mm | 476 | 500 |
Distance between centers | mm | 1000 | 1000 |
Spindle bore diameter | mm | 38（ Opt.51） | 38（Opt.51） |
Spindle bore taper | - | MT5 | MT5 |
Spindle speed steps | rpm | 70-2000（Opt.84-1850） | 70-2000（Opt.84-1850） |
Spindle speed range | - | 8 | 8 |
Cross slide travel | mm | 170 | 170 |

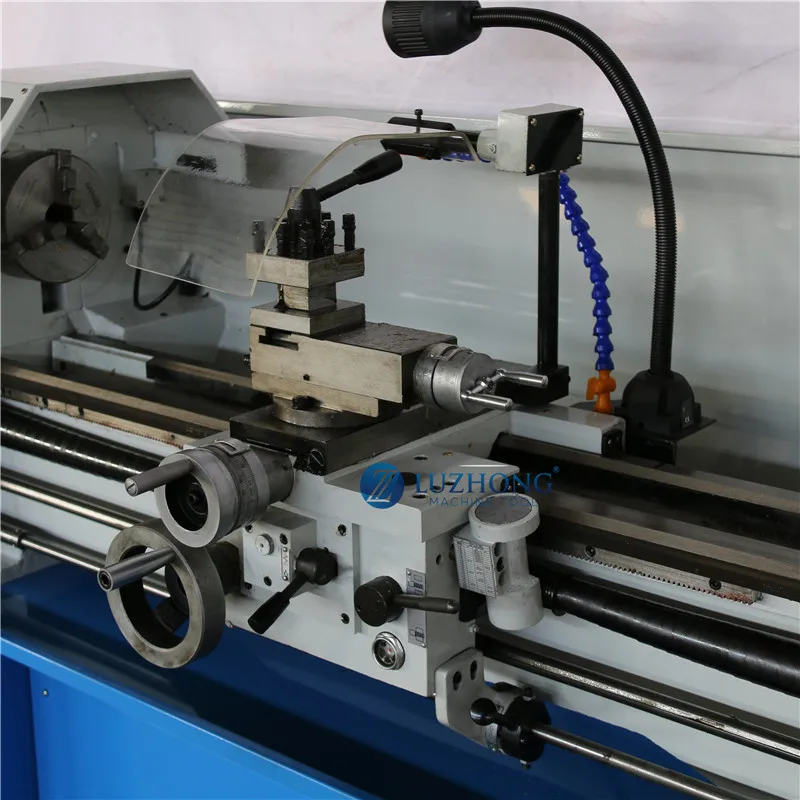

Top tool post travel | mm | 74 | 74 |
Longitudinal feeds range | mm/r | 0.052-1.392 | 0.052-1.392 |
Cross feeds range | mm/r | 0.014-0.38 | 0.014-0.38 |
Kinds of metric threads | kinds | 26 | 26 |
Range of metric threads | mm | 0.4-7 | 0.4-7 |
Kinds of inch threads | kinds | 34 | 34 |
Range of inch threads | T.P.I. | 4-56 | 4-56 |
Kinds of threads module | kinds | 16 | 16 |
Range of threads module | M.P. | 0.35-5 | 0.35-5 |
Kinds of pitch thread | kinds | 36 | 36 |
Range of pitch thread | D.P. | 6-104 | 6-104 |

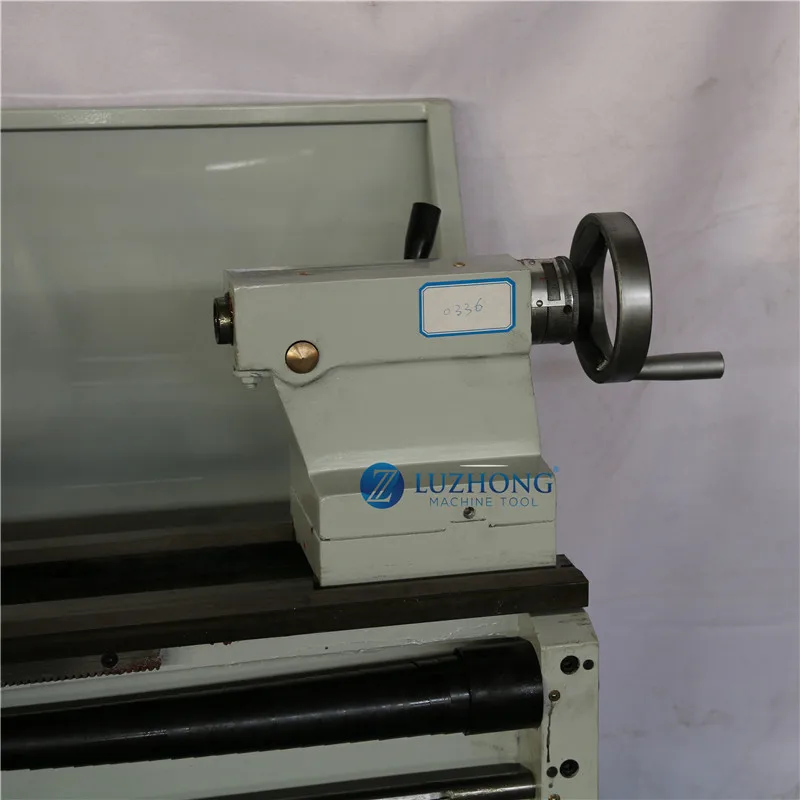

Tailstock quill diameter | mm | 32 | 32 |
Tailstock quill taper | - | MT3 | MT3 |
Tailstock quill travel | mm | 95 | 95 |
Main motor power | kw | 1.5 | 1.5 |
Coolant motor power | kw | 0.04 | 0.04 |
Machine weight | kg | 635 | 645 |
Overall dimension | mm | 1920*760*1460 | 1920*760*1460 |
Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
