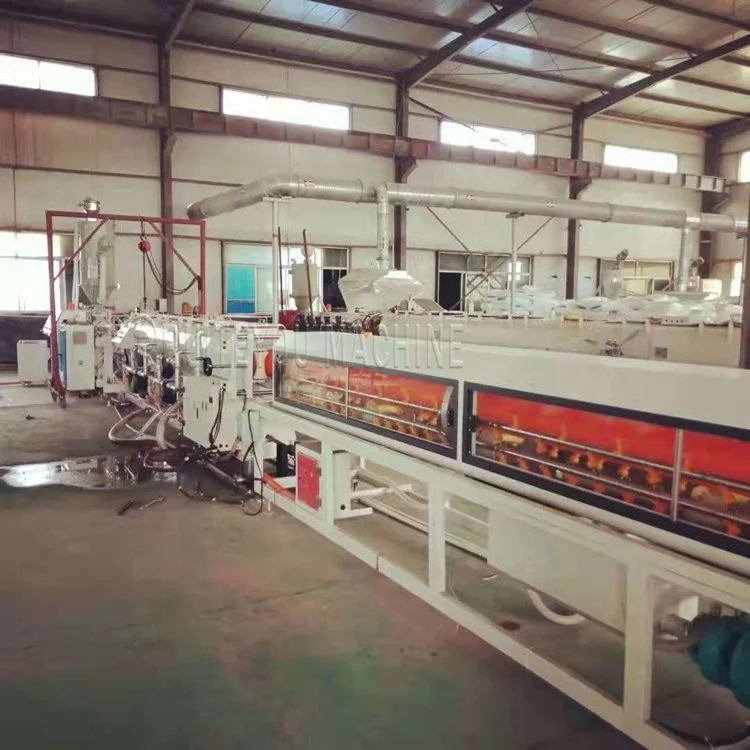

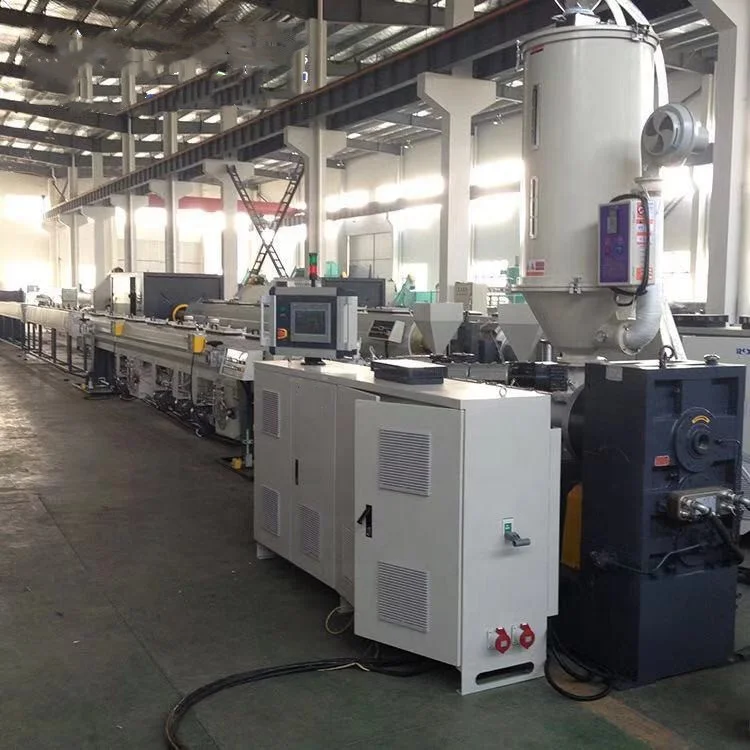

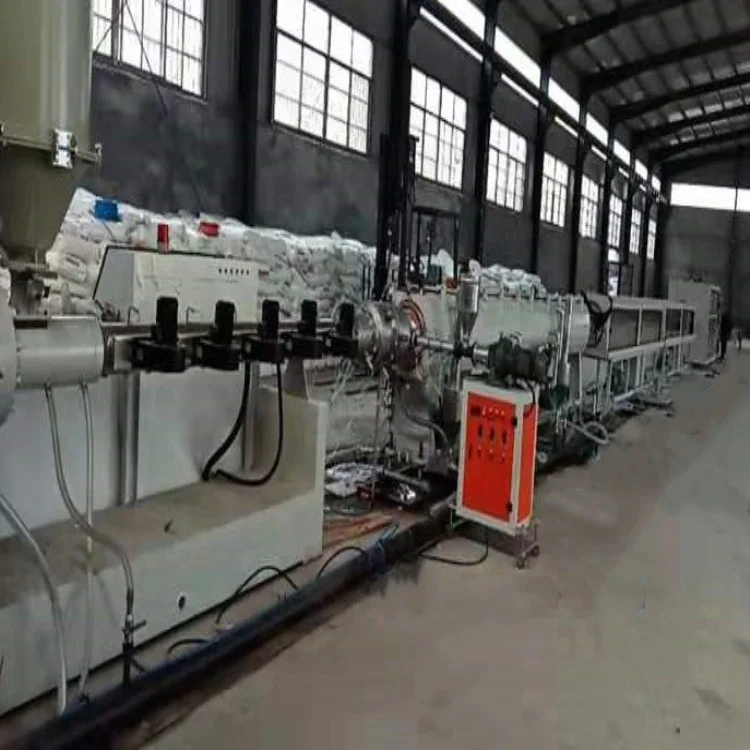

MPP 50 150 Manufacturer of power tube extrusion line
- Category: >>>
- Supplier: Zhangjiagang Ruiteyou Plastic Machinery Co. Ltd.
Share on (62235285698):
Product Overview
Description
Uses and Features：

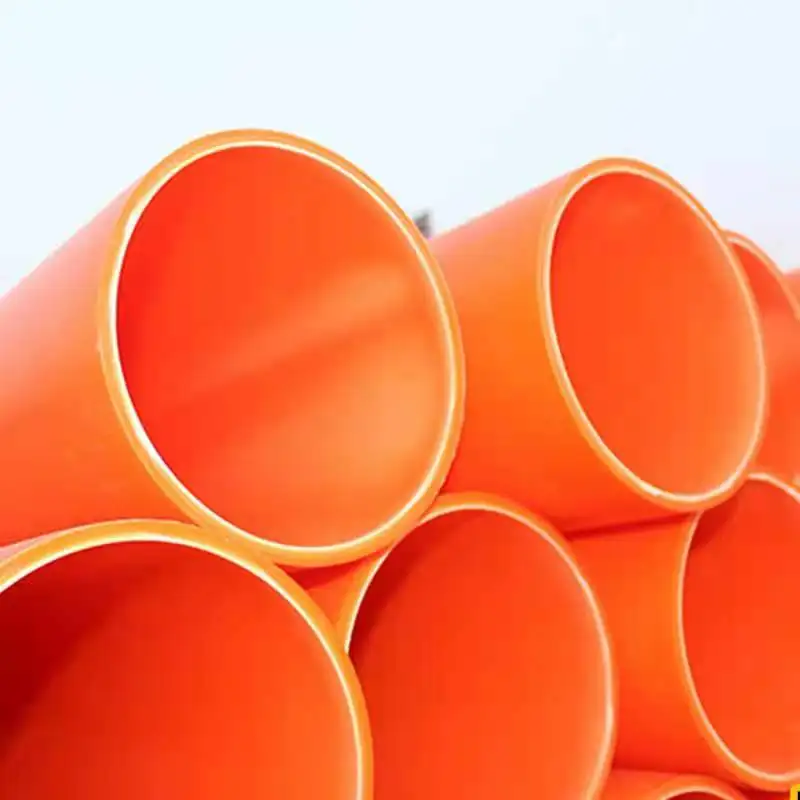

PE pp ppr Mpp pipe is a special polyethylene as the raw material through the plastic extruder extrusion molding, applied to the urban water
supply network, irrigation diversion works and agricultural irrigation works, especially suitable for acid and alkali resistance,
corrosion resistance of the environment of plastic pipe.PE pipe adopts hot-melt and electric hot-melt connection to realize the
integration of interface and pipe material, and can effectively resist the annular stress and axial impact stress generated by
pressure, and PE pipe does not add heavy metal salt stabilizer, the material is non-toxic, does not scale, does not breed
bacteria, and avoids the secondary pollution of drinking water.
1. High speed extrusion, large output, low energy consumption per unit product.
PE pp ppr Mpp pipe is a special polyethylene as the raw material through the plastic extruder extrusion molding, applied to the urban water
supply network, irrigation diversion works and agricultural irrigation works, especially suitable for acid and alkali resistance,
corrosion resistance of the environment of plastic pipe.PE pipe adopts hot-melt and electric hot-melt connection to realize the
integration of interface and pipe material, and can effectively resist the annular stress and axial impact stress generated by
pressure, and PE pipe does not add heavy metal salt stabilizer, the material is non-toxic, does not scale, does not breed
bacteria, and avoids the secondary pollution of drinking water.
1. High speed extrusion, large output, low energy consumption per unit product.
2. Realize the technology of 1-5 layers co-extrusion and one die overshooting
3. Design of spiral structure mold, special internal cooling system of pipe, high speed shaping cooling
4. Professional barrier screw and new concept mixing section design, plasticizing mixing effect is good, ensure efficient and stable extrusion PEPPpipe extrusion line
3. Design of spiral structure mold, special internal cooling system of pipe, high speed shaping cooling
4. Professional barrier screw and new concept mixing section design, plasticizing mixing effect is good, ensure efficient and stable extrusion PEPPpipe extrusion line
Machine Type | Pipe Diameter | Main motor power |
SJ65/33 | 16mm-63mm | 55kw |
SJ75/33 | 16mm-63mm | 110kw |
SJ90/33 | 160mm-315mm | 160kw |
SJ120/33 | 315mm-630mm | 185-200kw |

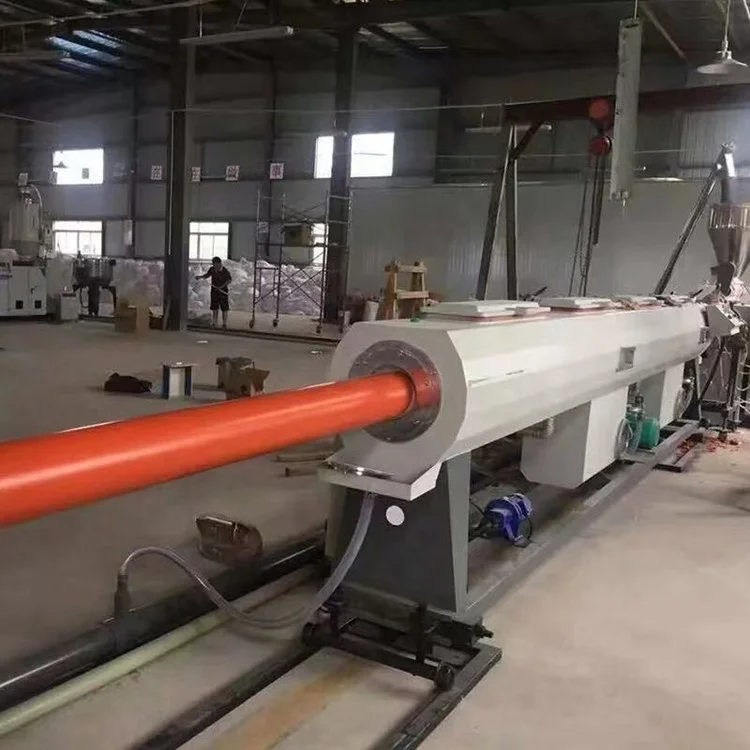

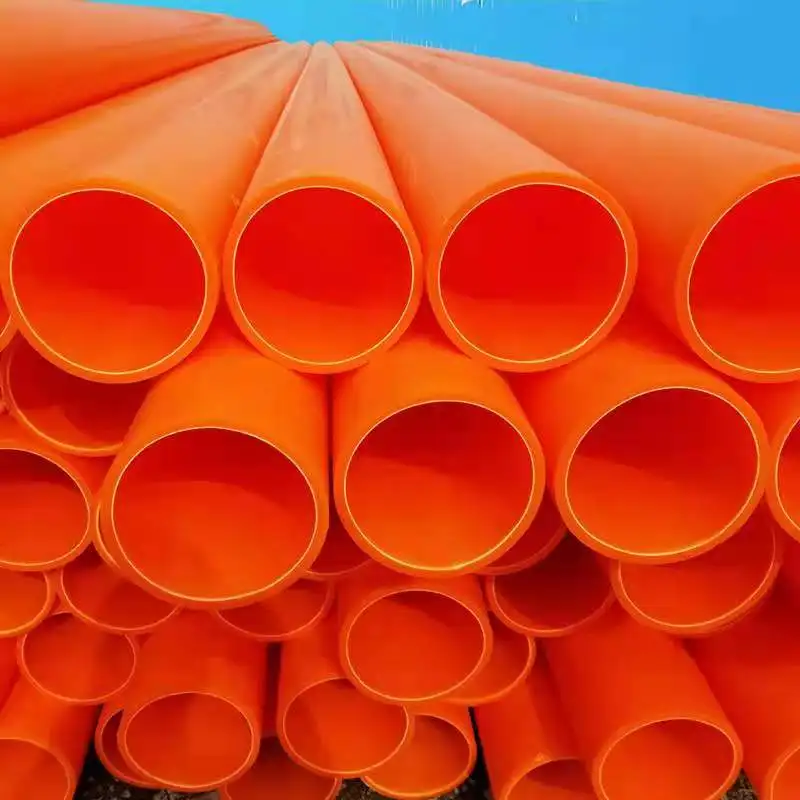

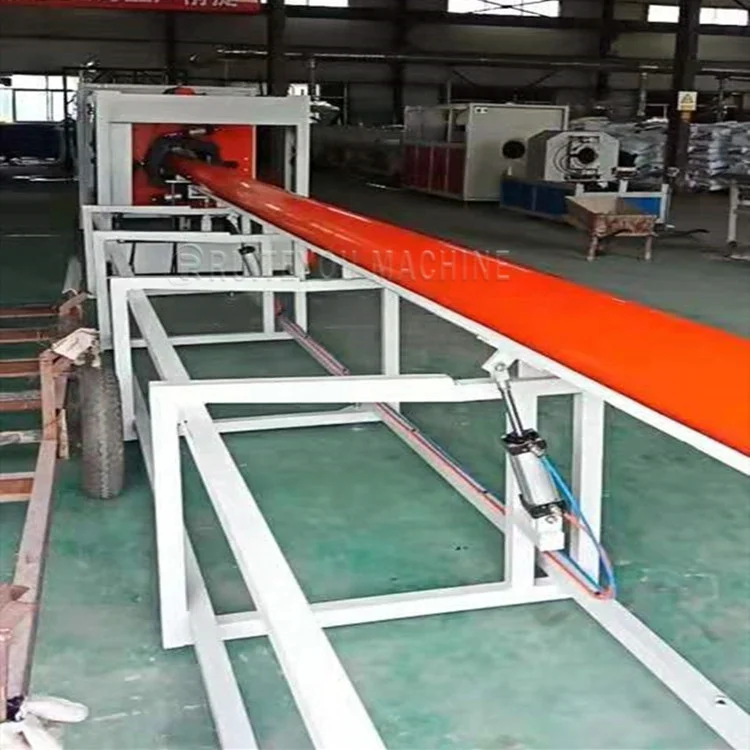

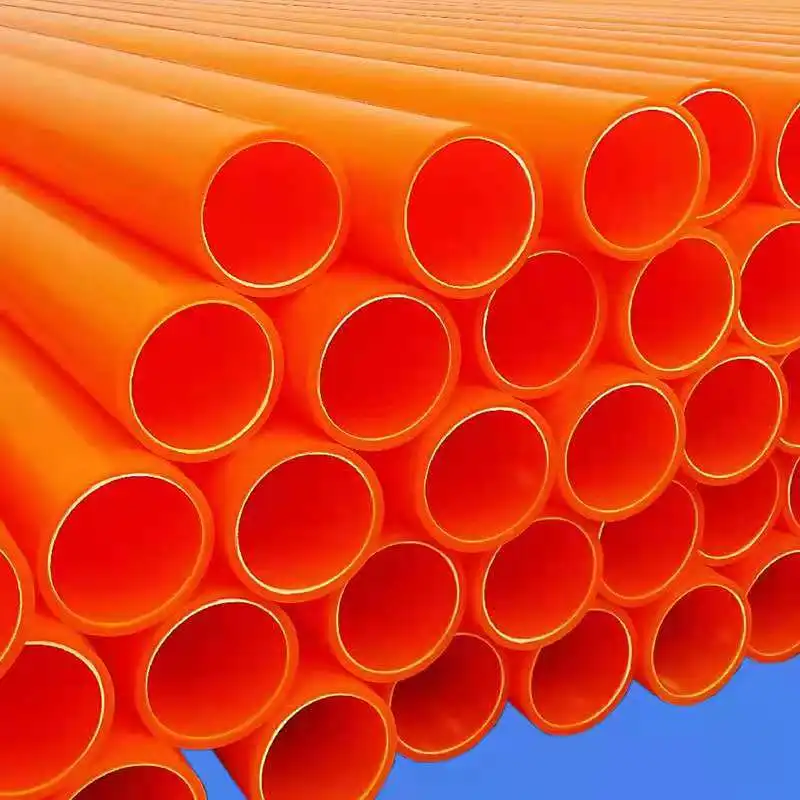

Test sample on customer site：
Detailed parameters of PE pipe extrusion line：

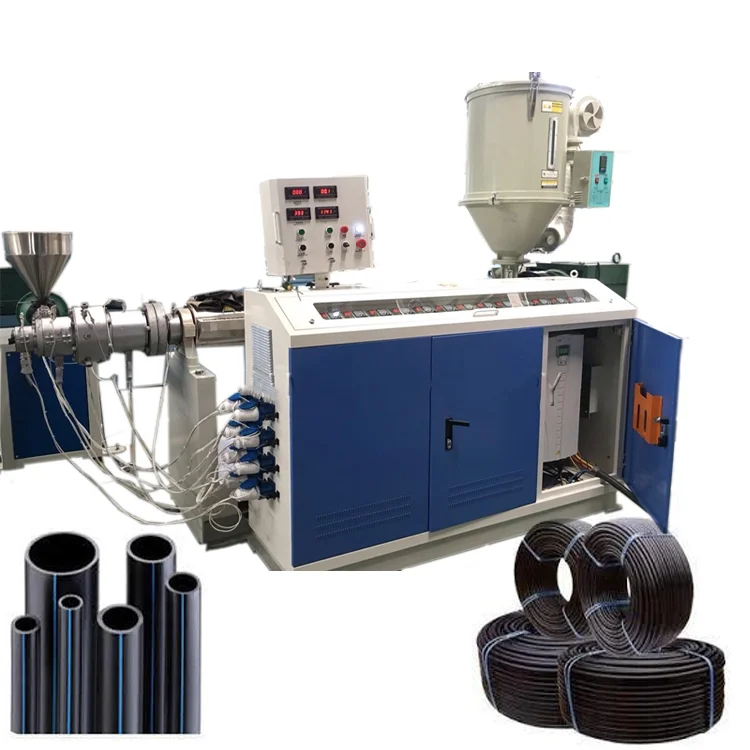

Sj75 single screw extruder
Name: SJ75/33 Single Screw Extruder(with vacuum loader)
Brand: CML
Original: CHINA
1)Screw and barrel are all from Zhoushan,with good quality.
2)Motor:Siemens
3)Heating method:Electric aluminum cast heating
4)Electric contactor:Siemens
5)Frequency inverter:ABB
Brand: CML
Original: CHINA
1)Screw and barrel are all from Zhoushan,with good quality.
2)Motor:Siemens
3)Heating method:Electric aluminum cast heating
4)Electric contactor:Siemens
5)Frequency inverter:ABB
PE pipe mold:
Brand: ruiteyou
Original: China
1)Pipe diameter:50mm-250mm
2)Sizing unit:,50mm,63mm,
75mm,90mm,110mm,125mm,160mm，185mm,200mm,225mm,250mm
3)Sizing unit material:Copper alloy steel
Original: China
1)Pipe diameter:50mm-250mm
2)Sizing unit:,50mm,63mm,
75mm,90mm,110mm,125mm,160mm，185mm,200mm,225mm,250mm
3)Sizing unit material:Copper alloy steel

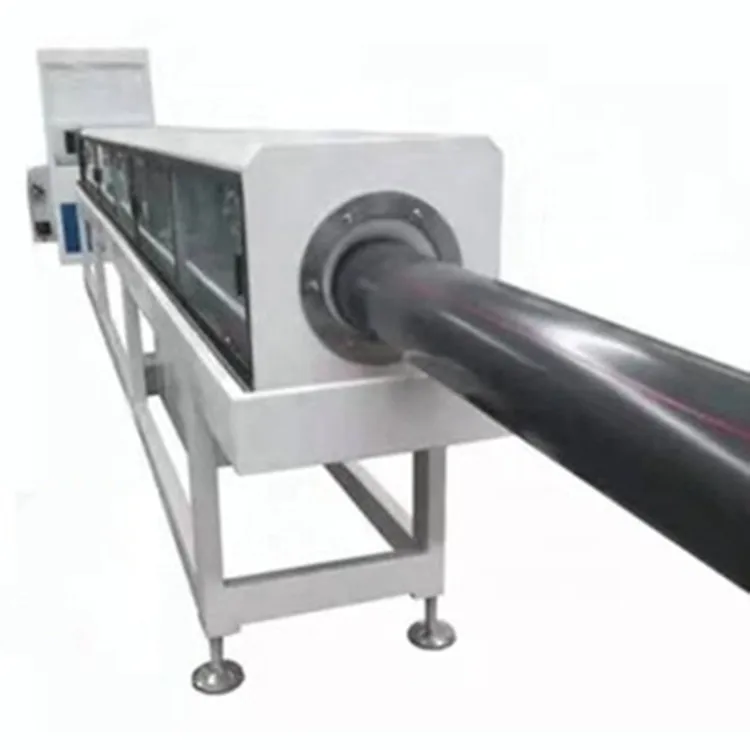

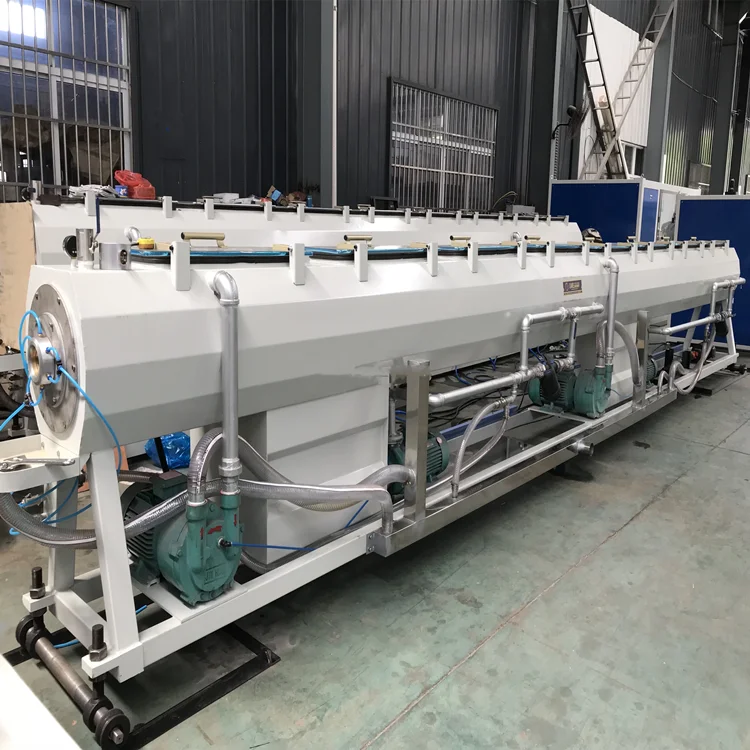

Name: Vacuum Calibration and Cooling Tank
Brand: MC
Original: CHINA
1)Tank effective length:6 meters
2)Tank Raw material:#304 stainless steel
3)with Vacuum pump and Water Pump
Original: CHINA
1)Tank effective length:6 meters
2)Tank Raw material:#304 stainless steel
3)with Vacuum pump and Water Pump
Name: Water Cooling Tank:
Brand:ruiteyou
Original: China
1)Tank effective length:6 meters
2)Tank Raw material:#304 stainless steel
3)With water pump
Original: China
1)Tank effective length:6 meters
2)Tank Raw material:#304 stainless steel
3)With water pump
Name: Hual off Machine:
Brand: ruiteyou
Original: China
1)Effective traction length:1.8meter
2)Motor power:4KW
3)Traction speed:1-4m/min
4)Speed control:by ABB inverter
Original: China
1)Effective traction length:1.8meter
2)Motor power:4KW
3)Traction speed:1-4m/min
4)Speed control:by ABB inverter

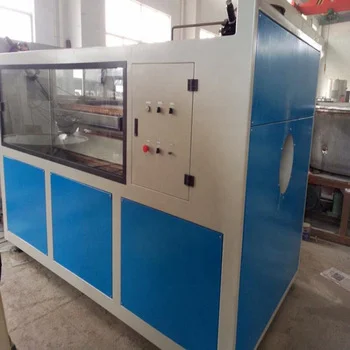

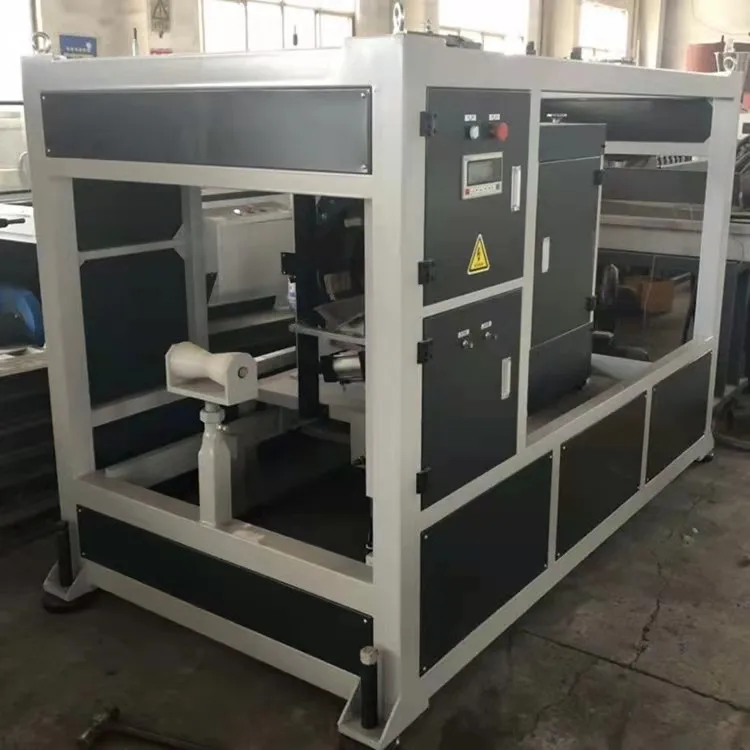

Name: Cutting Machine:
Brand:ruiteyou
Original: China
1)Cutting method:Non-dust cutting
2)Cutting knife raw material:alloy steel
3)Cutting range:50mm-250mm
Original: China
1)Cutting method:Non-dust cutting
2)Cutting knife raw material:alloy steel
3)Cutting range:50mm-250mm
The above equipment picture parameters are for reference only, and the actual shall prevail The color of the equipment is optional
Zhangjiagangshiruiteyousuliaojixieyouxiangongsi:

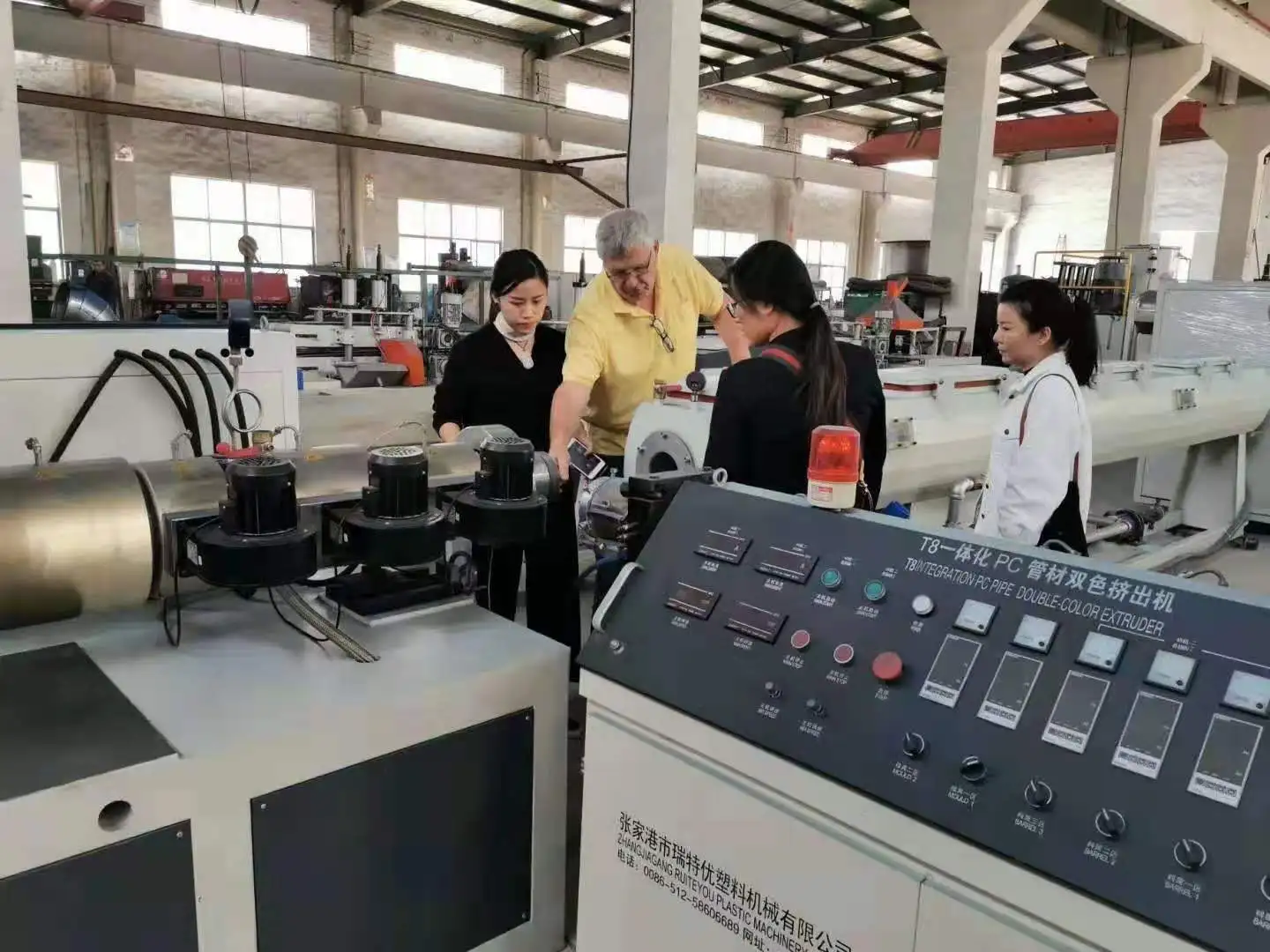

Customers communicate equipment technical details on site

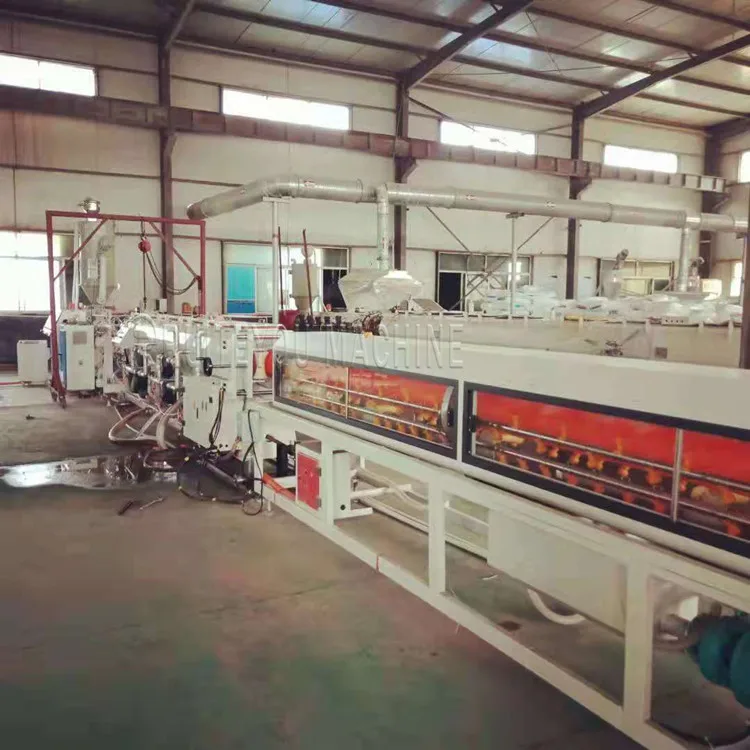

Work shop:
We live by the principle that quality is the life of our company. The company manufactures all the machinery and equipment by itself, and strictly guarantees the quality through our quality supervision。
In order to realize this concept, our company has established its own quality inspection system andCNC workshop.
Even if some parts are supplied from our certified suppliers, our quality inspectors must check that these parts are qualified before entering our warehouse.
We warmly welcome our team and sincerely hope that we can have a long-term cooperation in the future.
The office entity of a company picture：
Equipment packaging：
Contact us：
Click here will send us inquiry
Clik here will back our company home
Company Certificate of Honor：
FAQ：
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or Alibaba trade assurance.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for
you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free.
Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems
from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers
will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
·A6 380V 50hz 3 phase or any other voltage according to client's requirement.
Q7:If you support Alibaba trade assurance pay?
A7:Yes.100% support.
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or Alibaba trade assurance.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for
you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free.
Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems
from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers
will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
·A6 380V 50hz 3 phase or any other voltage according to client's requirement.
Q7:If you support Alibaba trade assurance pay?
A7:Yes.100% support.
