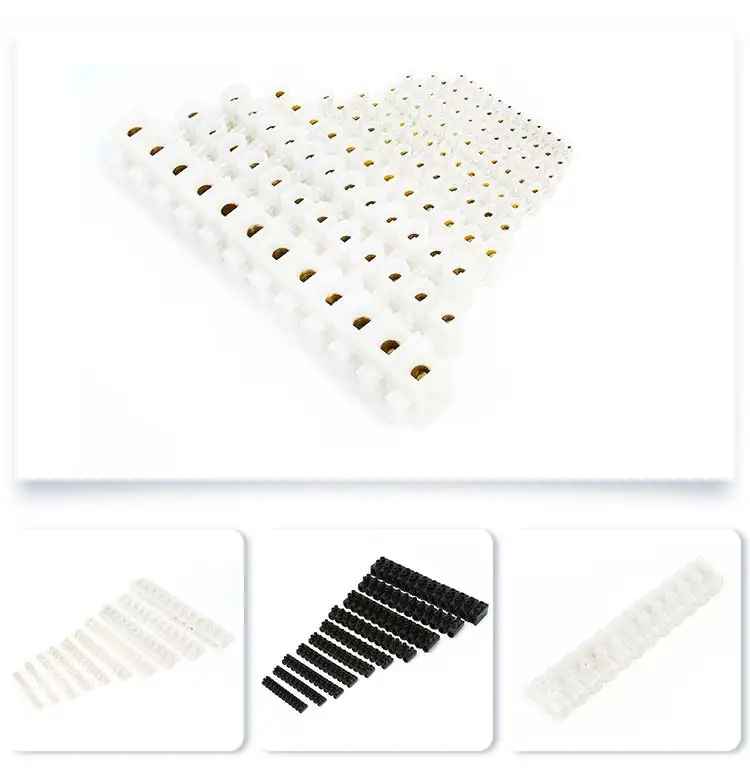

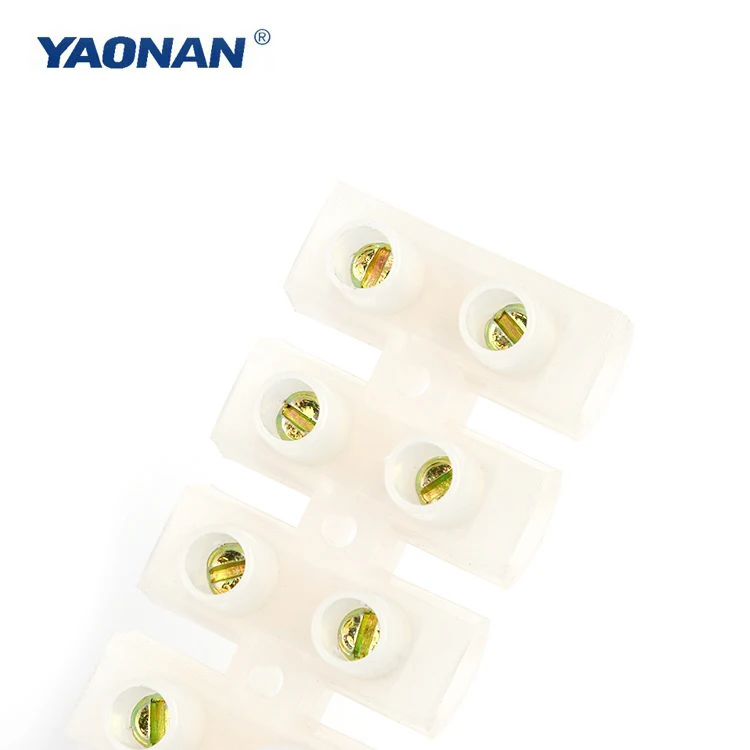

Terminal blocks connector terminal blocks plastic terminal blocks

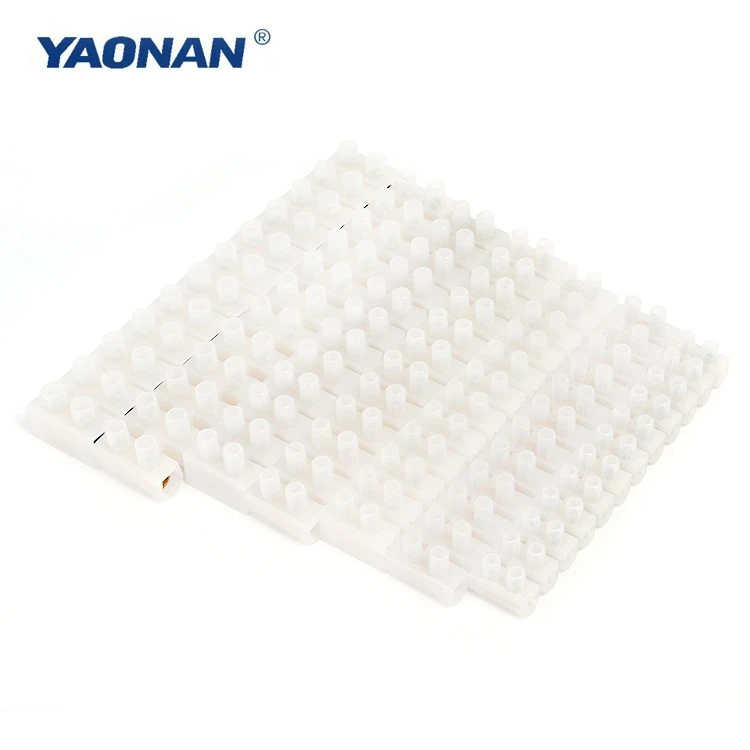

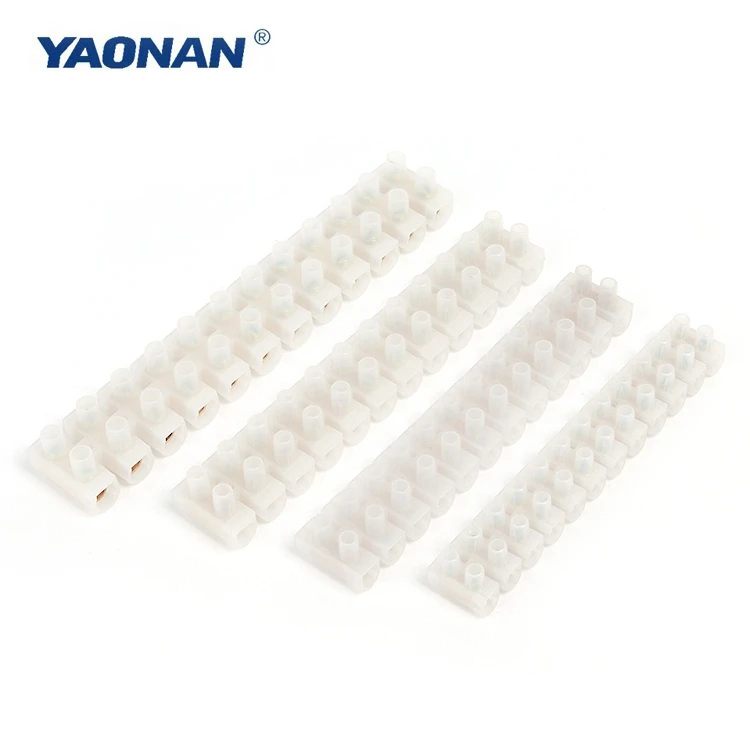

H Type Terminal Blocks:
Material:
♦ PA,Polyamidc66,94V-2gradc. Inflaming retarding, good resist
♦ Temperature: -20°C-90°C
♦ PP,Polypropylene,inflaming retarding low transparency,low
♦ Temperature:-20°C-90°C
♦ PE,Polyethylene,good pliability,transparency,extensibility resist dissolve,radiation.Working
♦ Temperature: -40°C-65°C
♦ Brass,screw is iron plated zinc;
♦ Voltage:250-450V
♦ Color:Natural color as standard.

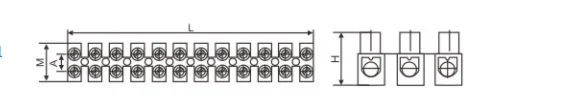

| ITEM NO | L | W | H | A | B | mm² | VOLT | AMP | Packing |
| 3A | 91 | 15.5 | 12.5 | 5.5 | 8 | 4 | 400V | 3 | 10pcs |
| 5A | 109 | 17.5 | 14.9 | 6.5 | 9.5 | 6 | 400V | 6 | |
| 10A | 129.5 | 21 | 15.8 | 6 | 11 | 10 | 400V | 10 | |
| 15A | 137 | 22.7 | 18.2 | 7.5 | 12 | 12 | 400V | 16 | |
| 20A | 137 | 22.7 | 19 | 9.5 | 12 | 14 | 400V | 20 | |
| 30A | 162 | 24.8 | 20.5 | 10.5 | 14 | 16 | 400V | 30 | |
| 60A | 190 | 30 | 25.5 | 14 | 16.5 | 25 | 400V | 60 | |
| 80A | 204 | 36.7 | 29 | 15.5 | 17.5 | 35 | 400V | 80 | |
| 100A | 230 | 39 | 33 | 16.5 | 19.5 | 40 | 400V | 140 | |
| 150A | 253 | 44 | 36.5 | 21.5 | 21.5 | 45 | 400V | 150 |





Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
