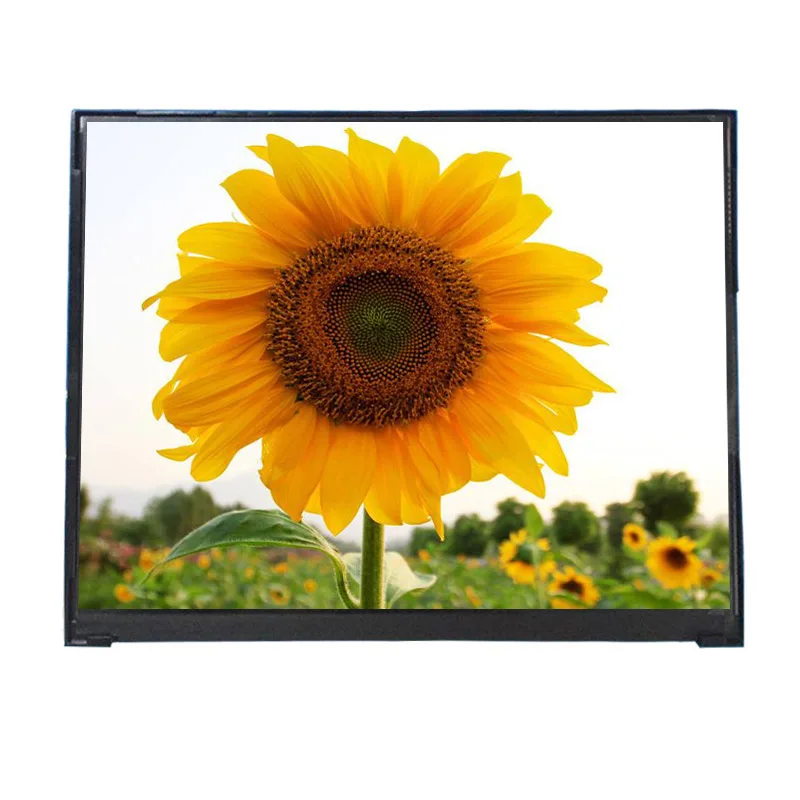

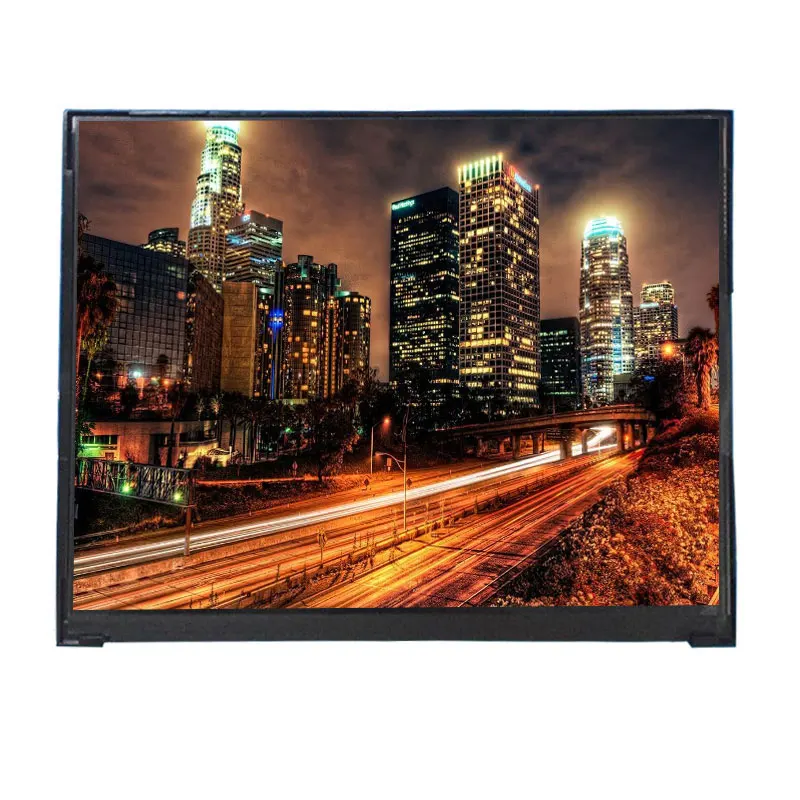

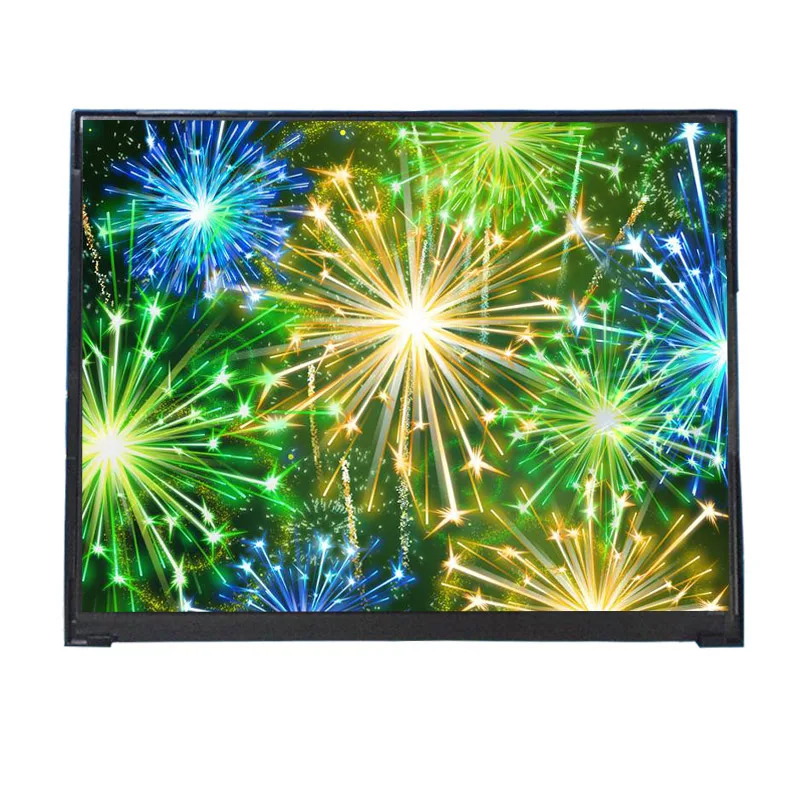

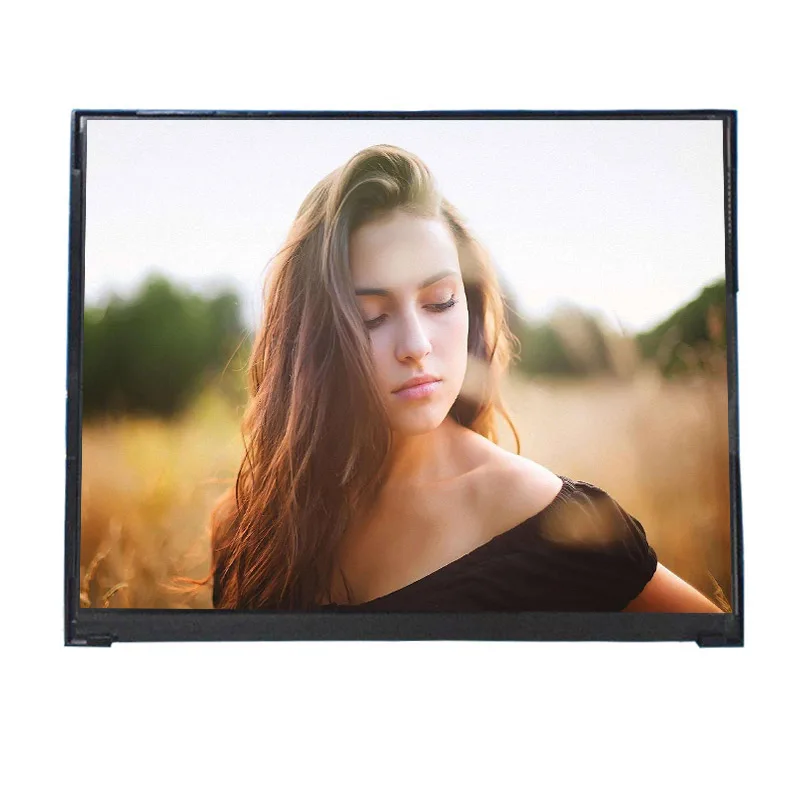

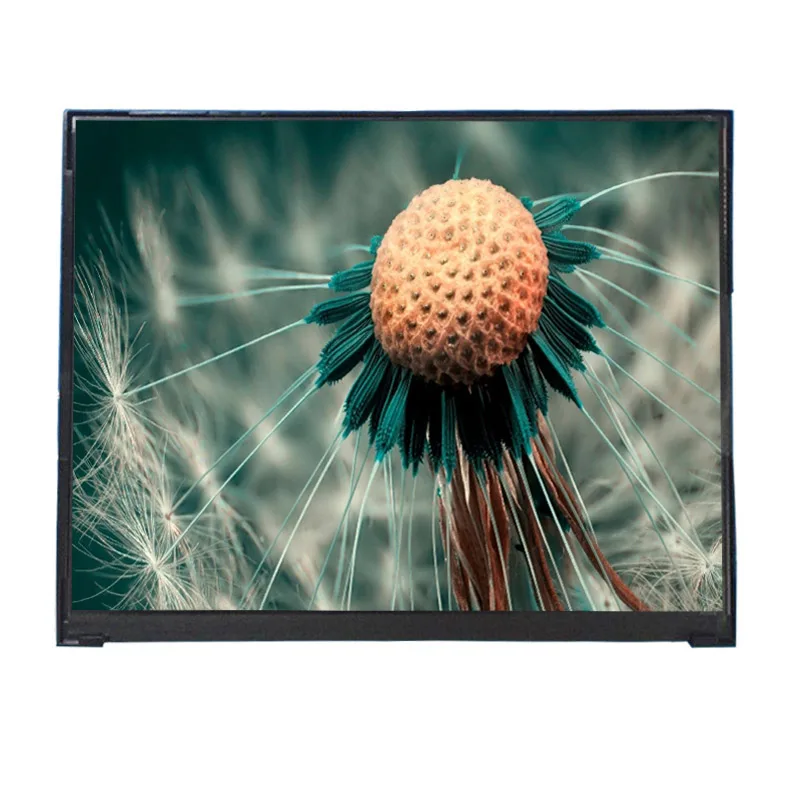

8.4 inch lcd screenLVDS interface module consumer electronicTFT LCD display panel

Product Overview

Description

8.4 inch lcd screenLVDS interface module consumer electronicTFT LCD display panel

High-quality Tray/Anti-Static Bag/Carton
High-quality Foam Slot/Carton
Customized Package

High Quality 8.4 inch touch screen





Item	Contents	Unit
LCD Type	TFT TRANSMISSIVE	/
Viewing direction	6:00	O' Clock
Module outline (W x HxD)	189.75(W) x 149.4(H) x 9.55(D)	mm
Active area (WxH)	170.4 (W) x 127.8 (H) mm	mm
Number of Dots	800 RGB x 600	/
Driver element	a-Si TFT active matrix
Backlight power consumption	5.80 (Typ.)	/
Interface Type	LVDS	/

      0.96 inch  80x160                                              1.54 inch  240x240                                2.8 inch  240x320

     TFT LCD Display                                                TFT LCD Display                                   TFT LCD Display



     7.0 inch 800*480                                                8.0 inch  800*480                                 10.1inch 1024*600

     TFT LCD Display                                                TFT LCD Display                                   TFT LCD Display





FAQ

Q1. Can I have a sample order?
A: Yes, sample order is always welcome for new projects or as replacement of running projects.

Q2. What is the lead time for Sample order and Mass Production order?
A:
For LX standard products, the lead time for samples are usually 1-7 days.
For Customized products, it depends on the change requirements for FPC, Backlight…
For Mass production, we usually make delivery among 2-8weeks, special size may need some longer time. In summary, based on our years of big output, we have been keeping good relationship with Taiwan LCD panel and IC suppliers, we had a steady supply even when there was heavy shortage of materials.

Q3. Do you have any MOQ?
A: Yes, it depends on different sizes of products. Please refer to our sales. Thanks.

Q4.How long is the warranty?
A: Usually 12 Months. If there is any defect upon using within the warranty period, we require our clients to return the goods to us, with shipping cost paid by us.

Q5. How do I work with you on Customized products?
A: At the beginning please provide us any drawing , Specification, any special requirements Our engineers will work on the compatible solution and also moulds cost if any. We provide samples for approval.  We make modification if necessary.  We do small quantity of trial order.  We do mass production.

Q6. Can I have my own silk screen Logo, Part Number or small label?
A: Yes, Definitely. While it requires MOQ, please refer to our sales, thanks.
