Diesel Automatic Generator Parts Controller 5110 Control Model

Product Overview

Description

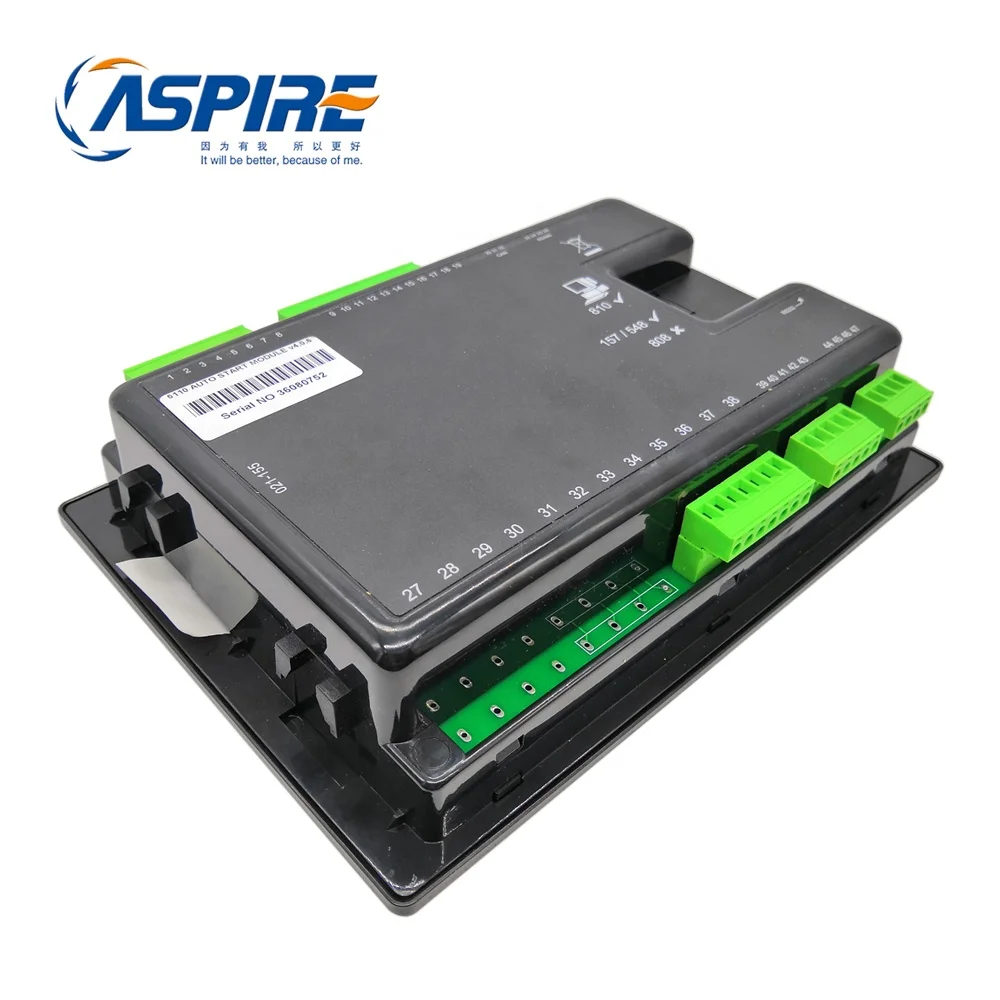

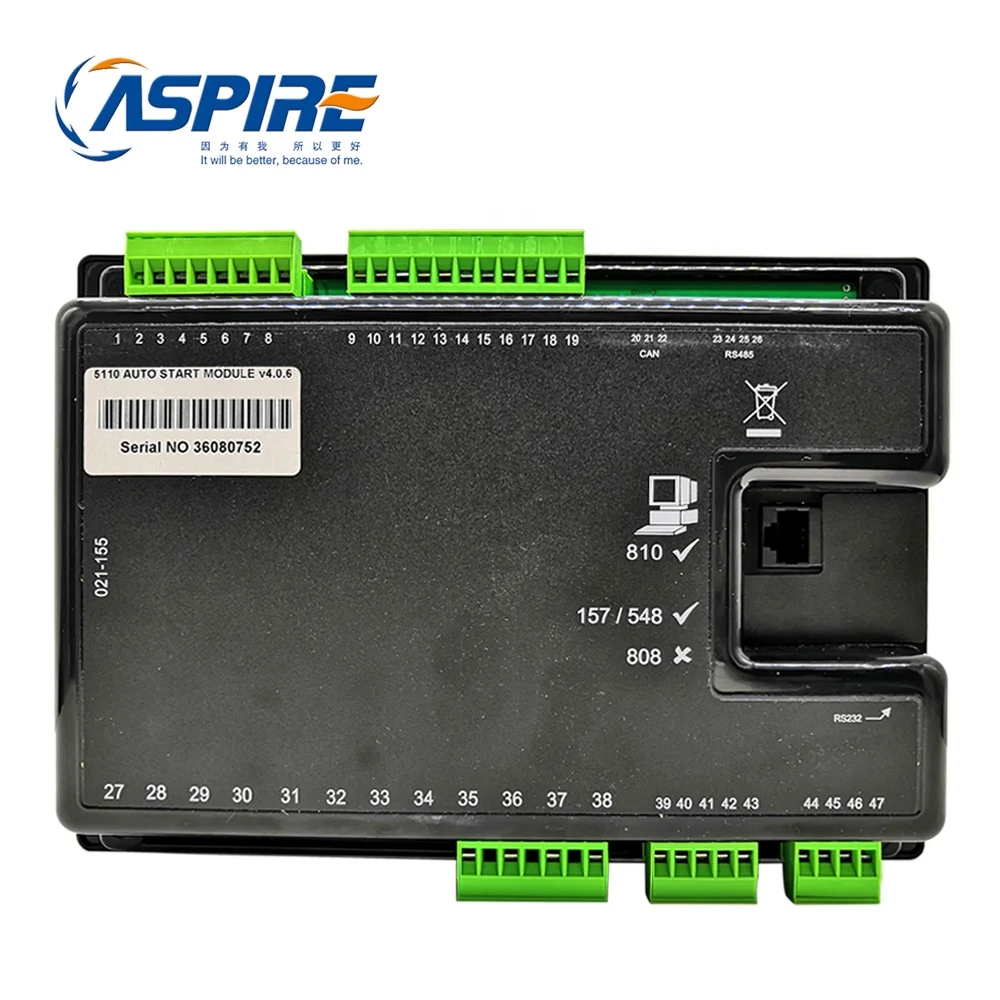

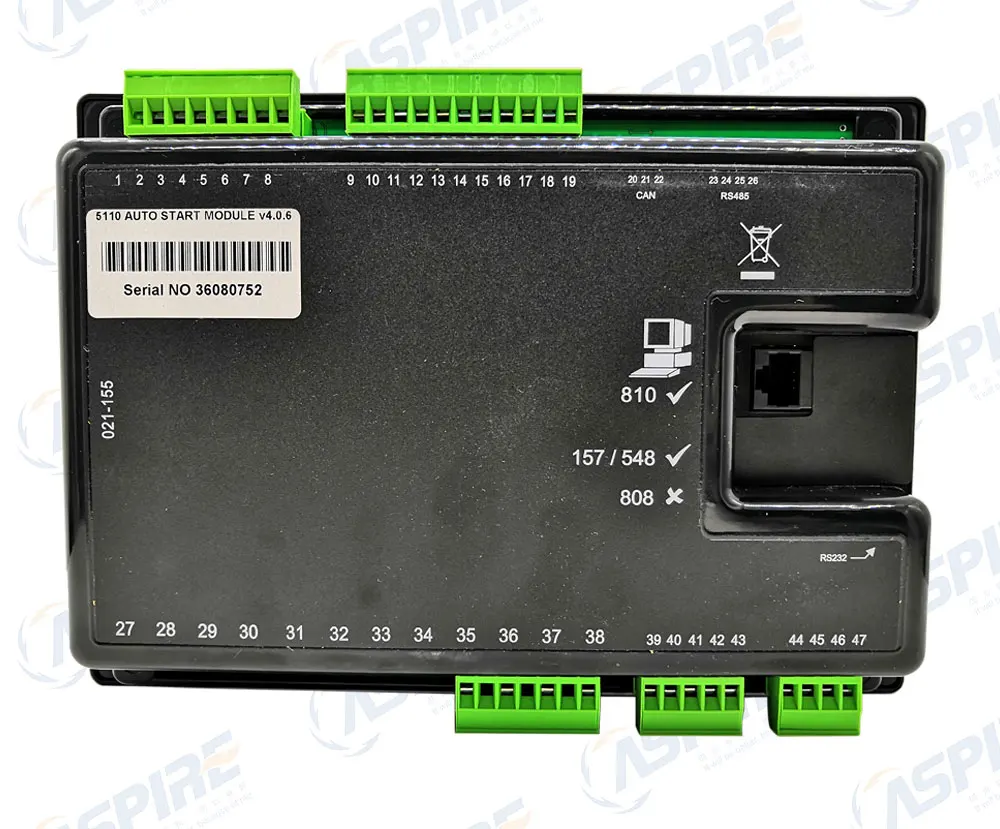

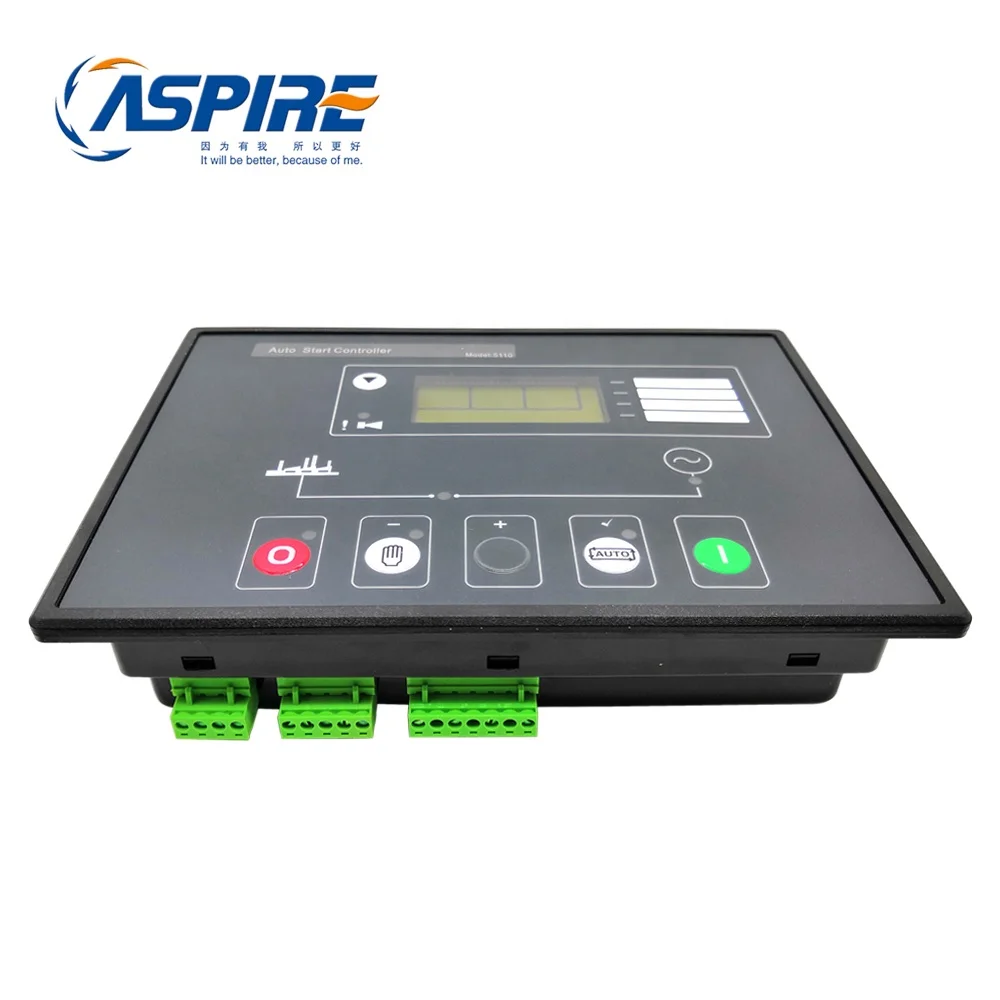

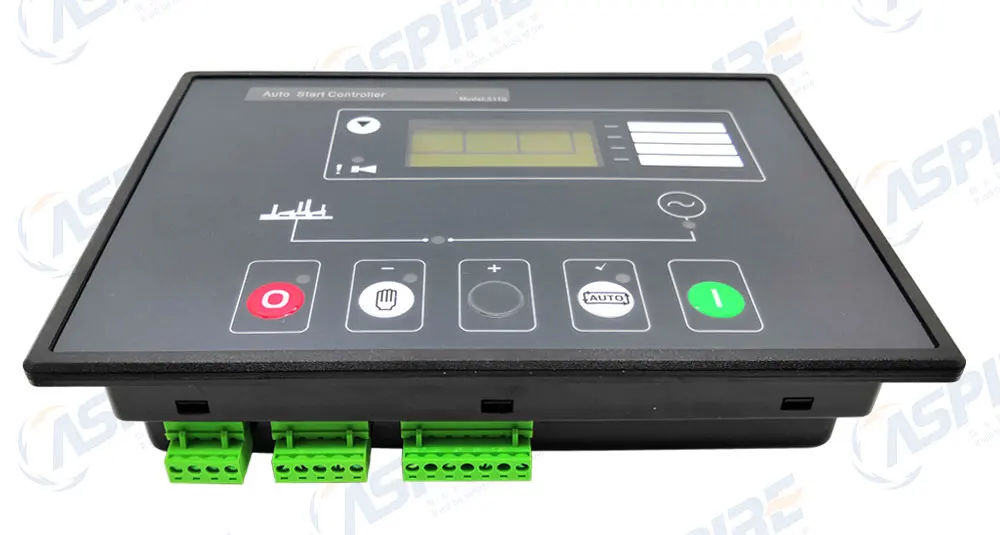

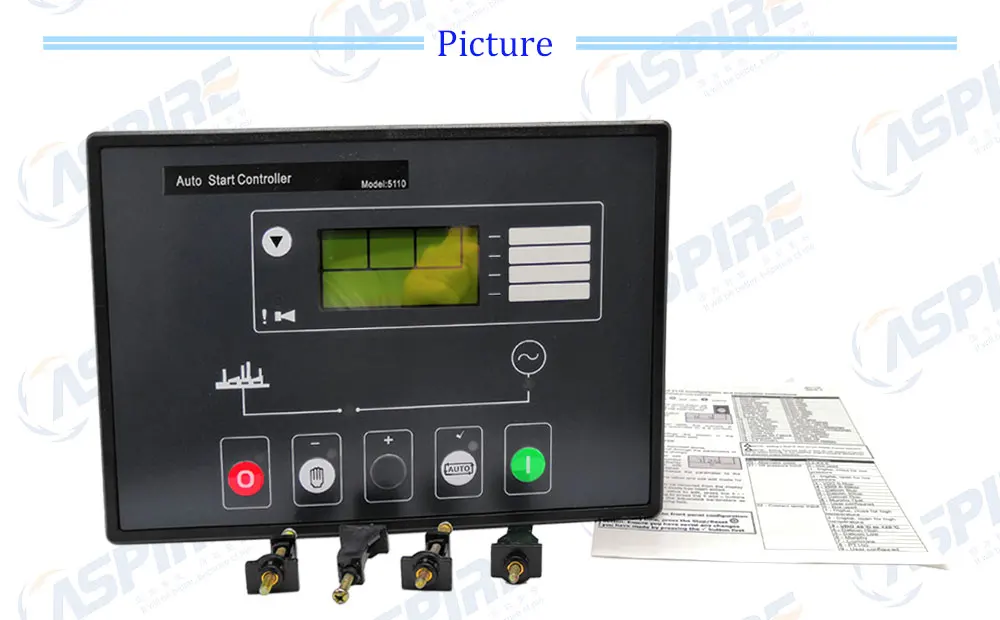

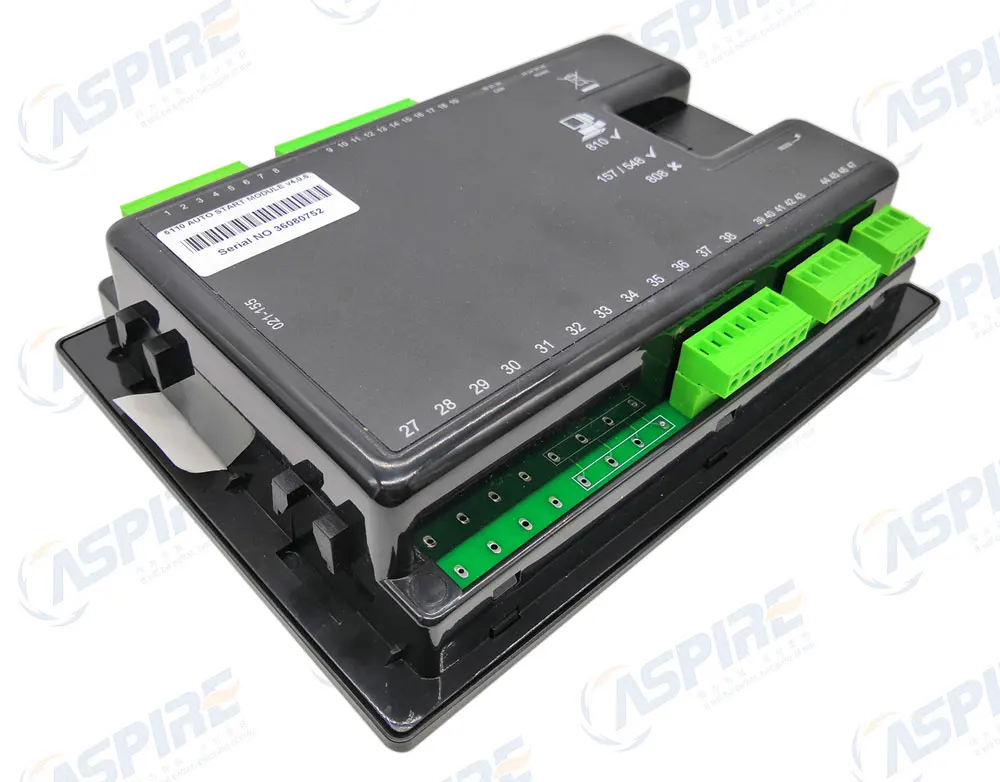

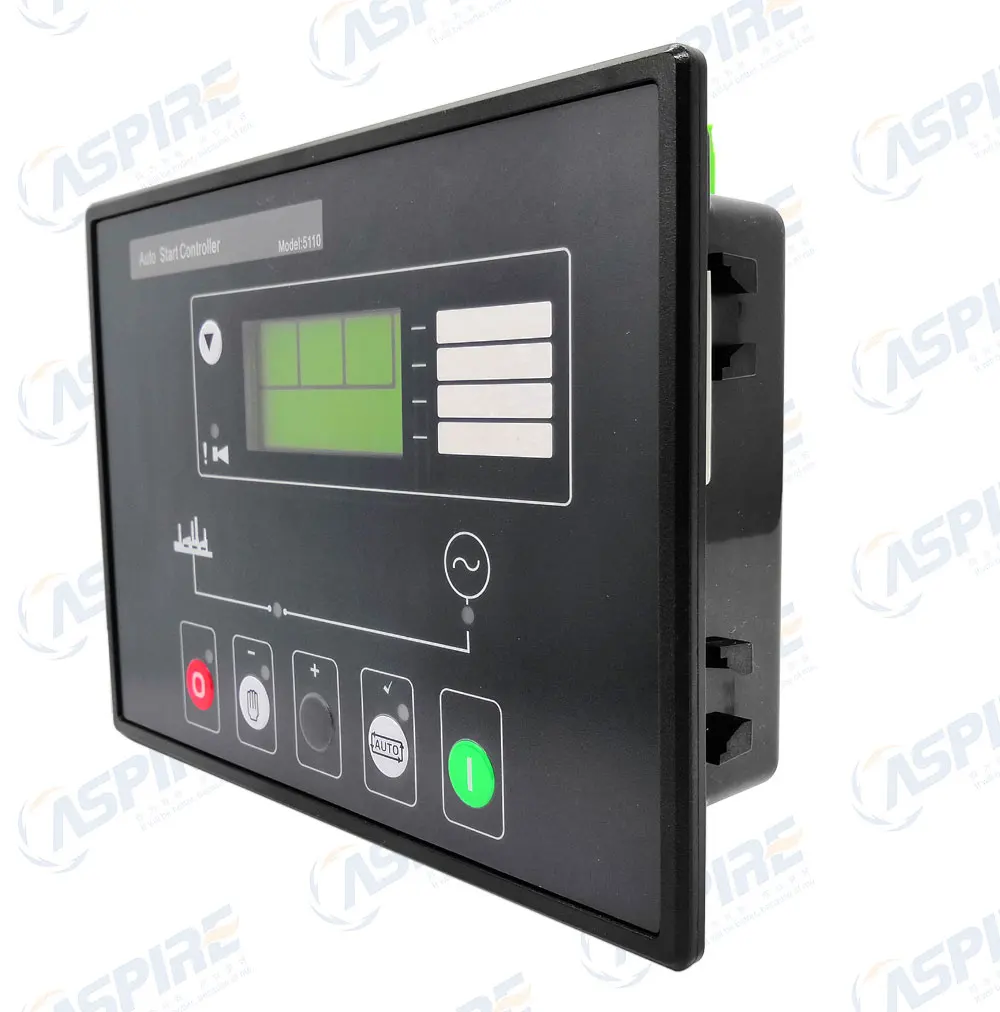

Diesel Automatic Generator Parts Controller 5110 Control Model

Description

The 5110 is an Automatic Start Control Module designed to automatically start and stop diesel and gas generating sets that include non electronic engines. The module also provides excellent engine monitoring and protection features. The module has the ability to monitor under speed, over speed, charge failure, emergency stop, low oil pressure, high engine temperature, fail to start, fail to stop and loss of the speed sensing signal. The module displays fault conditions on the LCD display and via the LED indicators on the front.

Feature



MODEL	5110
DC SUPPLY	8V to 35V continuous
CRANKING DROPOUTS	Able to survive 0V for 50mS, providing the supply was at least 10V before dropout and supply recovers to 5V
START RELAY OUTPUT	16A DC supply at supply voltage
FUEL RELAY OUTPUT	16A DC at supply voltage
AUXILIARY RELAY OUTPUTS	5A DC at supply voltage
MAXIMUM STANDBY CURRENT	175mA at 12V, 95mA at 24V
ALTERNATOR INPUT FREQUENCY	50-60 Hz at rated engine speed (Minimum: 15V AC L-N)
MAGNETIC INPUT FREQUENCY	10,000 Hz (max) at rated engine speed



Q1: Are you trading company or manufacturer ?

A: We are factory more than 12 years since 2006.We have a professional team to develop and manufacture the generator spare parts and supply technical support, with factory price and timely delivery.

Q2: How long is your delivery time?

A: Most parts are in stock.Generally it is 2-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it based on the quantity.

Q3:  What is your guarantee ?

A: Our warranty is one year for neutral products and two years for Aspire logo products .We can replace a new one in your next order if the product is broken during this period.However, even your products are beyond the warranty,we are still glad to supply technical support for you.

Q4:Can your products be used in severe condition place?

A: Don't  worry. We test our products both in high  temperatuer and low temperature testing equipment, from -40°C to 80°C.
