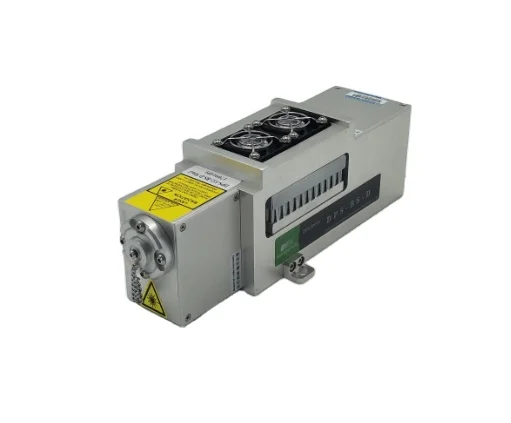

High energy diode pumed all solid state Q-swiched laser at 532nm has the features of high single pulse energy Energy ,short pulse duration,and high peak power,which is widely used in LIF,LIBS,LCP-MS scientific research,laser processing,and so on.
Specifications 1:
Model
DPS-532-A
DPS-532-B
DPS-532-C
Wavelength (nm)
532±1
Operating mode
Q-switched:EOM/PM
Q-switched: EOM
Q-switched: EOM
Single pulse energy (mJ)
1-5
5-15
5@15HZ,10@15HZ,15@15HZ
Pulse duration (ns)
<10
<10
~10
Rep. rate (Hz)
1~10, EXT (adjustable)
1-10
10-40
Energy stability (rms)
<3%, <5%
Beam divergence, full angle (mrad)
<3
~1
~3
Beam diameter (mm)
~3
≤3
~2,~2.5,~3
Warm-up time (minutes)
<15
Beam height from base plate (mm)
34
35
53.5
Cooled method
Air cooled
Operating temperature (℃)
15-30
Power supply (220V AC/24V DC)
PSU-DPS-A
PSU-DPS-B
PSU-DPS-Q-I(3U)
Expected lifetime (pulses)
10^9
Warranty period
1 YEAR
Available options
Jitter (Sdev):~1ns ( Electro-optic modulation) ; Battery power supply
Other repetition rates; Jitter:~1ns(Sdev); Accessories
Certifications
Dimensions
DPS-532-A Laser Head and Power Supply
DPS-532-B Laser Head and Power Supply
DPS-532-C Laser Head and Power Supply
