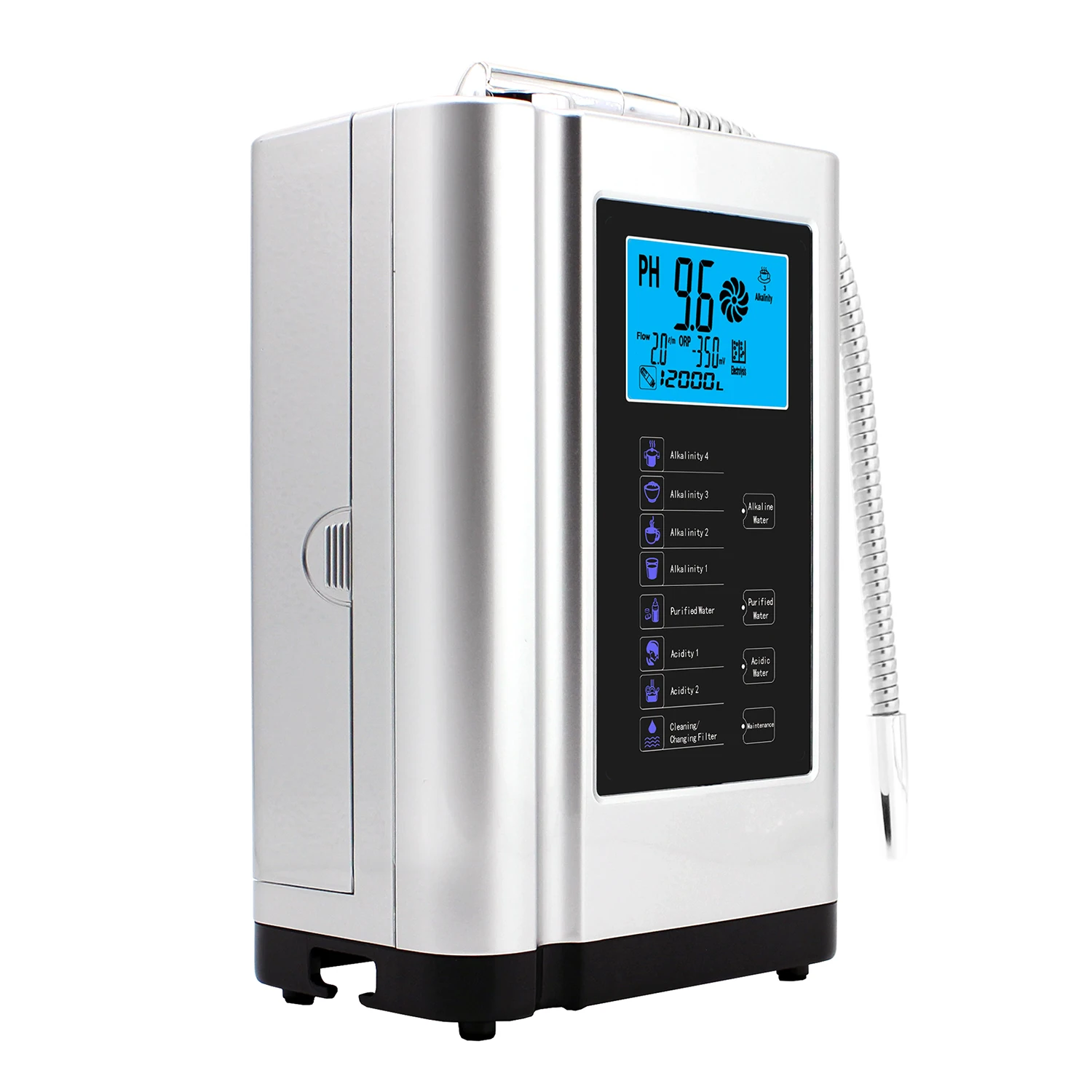

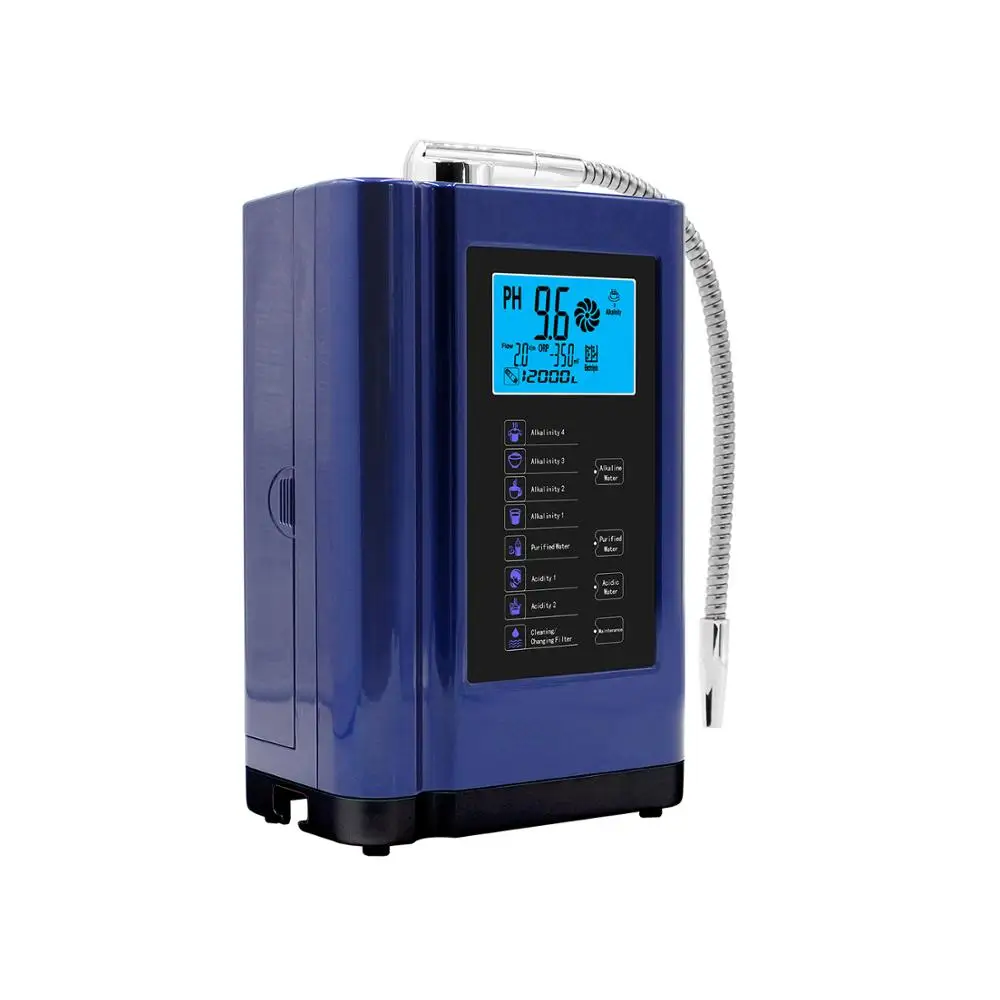

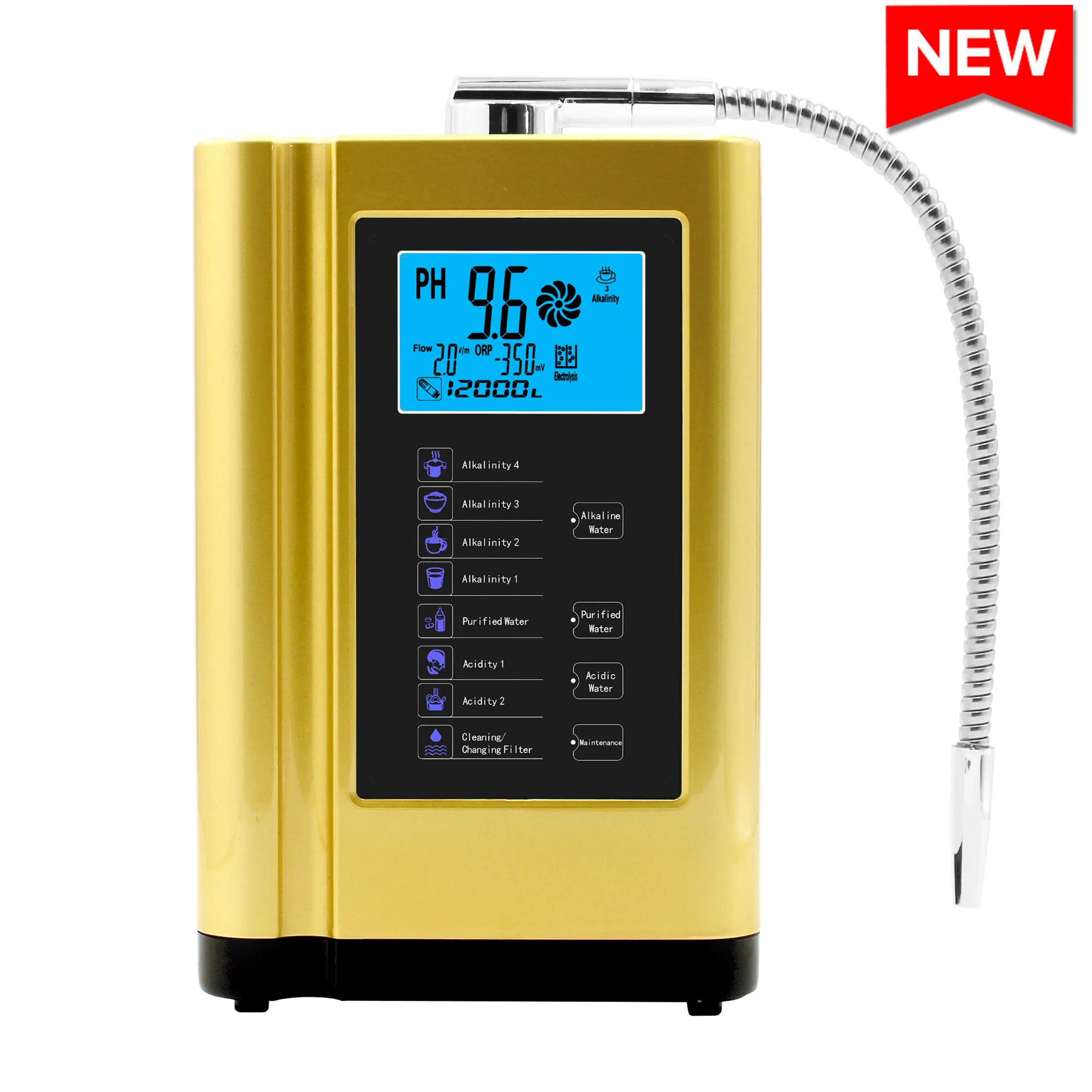

Household Filtration system alkaline ionized water machine

Product Overview

Description





How does EHM-729 make alkaline water?

The tap water in the municipal city is the water source of our machine.

1. Filtering tap water through four filters and absorbing and other processions and then decomposing by Electrolysis Chamber, due to the influence of hydrogen bond, the ordinary tap water is composed of 13 to 15 small molecular clusters, when the water enter into the electrolysis chamber, the hydrogen bond of water molecule is opened with the influence of electric field and produces the small molecular cluster water with 5 to 6 water molecules.



2. The positive ions such as Ca2+Mg2+K+H+ and so on in solution move toward the negative pole with the influence of electric field. According to the strength of electro negativitycapability, H ion has a reduction then the electro negativity becomes hydrogen. Due to the fact that the density of H ion decreases, the hydroxide root ion is thicker and then water become weak alkaline with the PH up to 7, the water produced in this pole is alkaline water.



3. In the positive pole some of negative ions such as Cl-SO42-NO3-NO2-OH- etc move to positive pole. Among plenty of negative ions, the hydroxide root ion loses electrodes easterly and then has an oxidative reaction and produce oxygen and water with the loss of electrodes.



4. The density of H ions rises because density of the hydroxide root ion decreases so the water becomes weak acid with PH down to 7 so the water produced is acid ionic water.



The chemistry formulas in two poles are as follows:

In negative pole: 2H2O+2e=2OH-+H2
In positive pole: 2H2O-4e=4H++O2

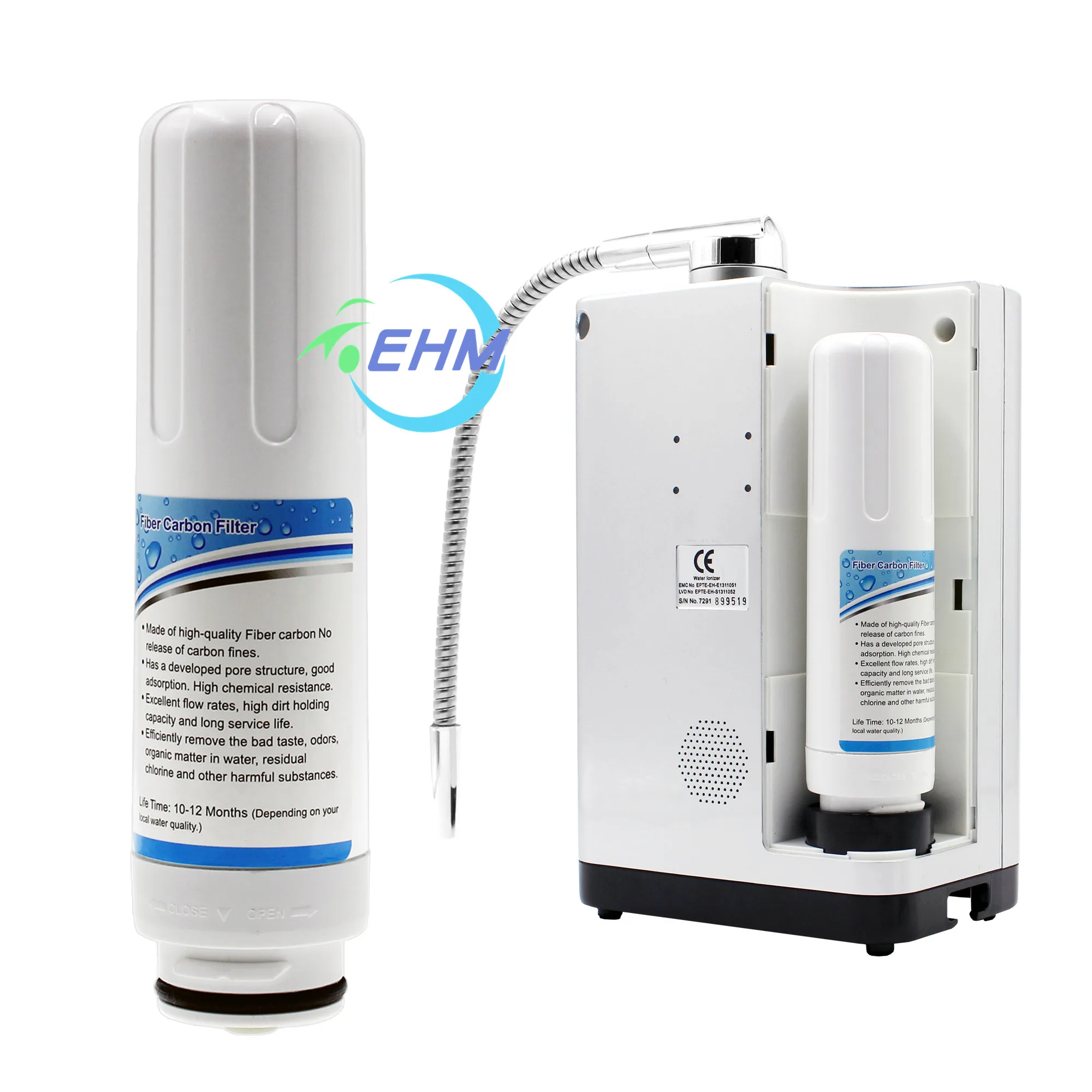

Filter material	Fiber activated carbon filter from America with NSF certificate
Electrodes material	Japanese high-tech baked titanium platinum electrolysis chamber and ceramic membrane
Display content ( LED display)	Alkaline water, acid water, purified water, cleansing and filter longevity
Electrolysis levels	Four levels of alkaline water, one purified water and two levels of acid water
PH value	(PH 4-10) Note: reference value
PH Subtle adjustment	126 levels of PH value
Filter longevity	Original 6000L setting volume, the replacing light will light up when it reaches this volume. Filter life lasts from one year to one and a half year.
ORP value	-550mv (MAX) Note: reference value
Rated voltage	AC220V/110V 50/60HZ
Consuming power	Max 230W
Input water pressure	0.9∼5.0Kg/cm2
Size and weight	About H310mm×W220mm×D125mm about 4.0Kg
Electrodes cleansing	The Ionizer does automatic cleansing for about 10 seconds after the utilization of alkaline water with 50 L extra cleansing. (The cleansing light will light up).
