Рика RK520 02 по индивидуальному заказу greenhousec четыре 316L насадку иглы влажности почвы датчик температуры для полива и орошения
- Category: Sensors >>>
- Supplier: Hunan,Rika,Electronic,Tech,Co.,Ltd.
Share on:
Product Overview
Description
RIKA RK520-02 Customized Greenhousec Four 316L Needle Probe Soil Moisture Temperature Sensor for Irrigation
Product Description

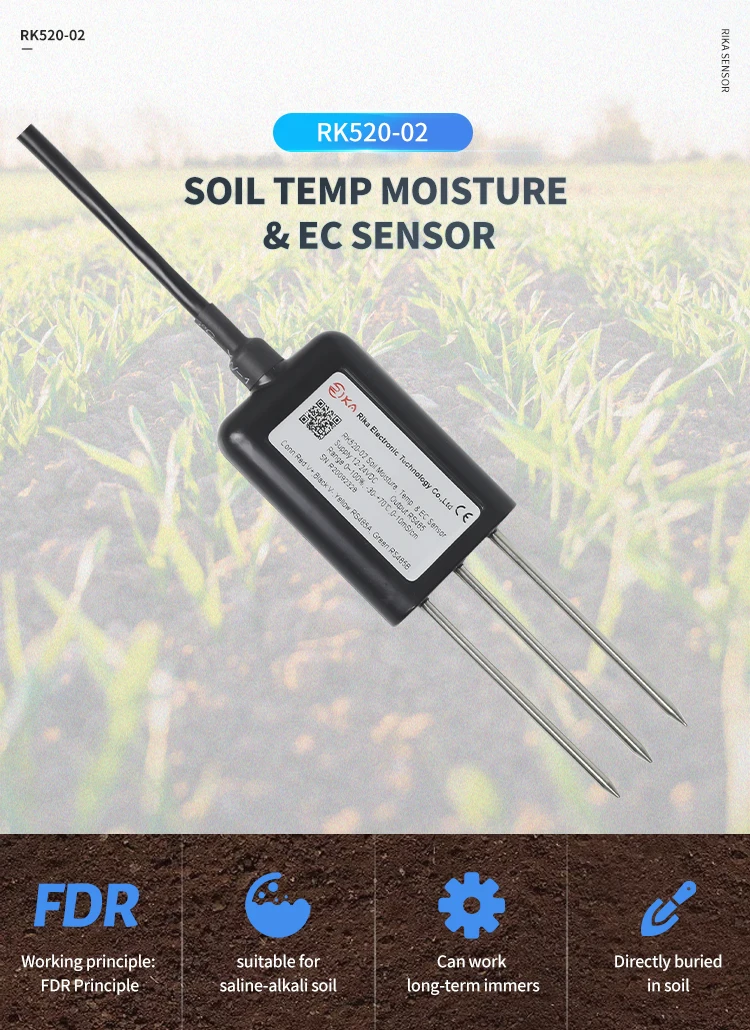

RK520-02 Soil Moisture, Temperature & EC Sensor is integrated the moisture,temperature & EC measurement.The stainless steel probe is inserted into soil surface or soil profile to test quickly. The product with temperature compensation to ensure the accuracy of measurement.The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.
Features
High precision
Fast response
Suitable for saline-alkali soil
Can work long-term immersion
Soil properties affect little
Directly buried in soil
Widely used
Applications
Agriculture irrigation
Greenhouse
Grass farm
Environment monitoring
Water conservation
Soil testin
Technical Specification
Item | Technical Specification | ||
Moisture | Temperature | EC | |
Range | 0-100%(m3/m3) | -30℃-+70℃ | 0-20mS/cm |
Accuracy | ±2%(0-50%) ±3%(51-100%) | ±0.5℃ | ±2%FS |
Output Signal | RS485,0-2V | ||
Response Time | <1s | ||
Supply | 5VDC, 12-24VDC | ||
Effective measurement area | With the center of the probe diameter is 70mm, high 70mm cylinder | ||
Housing | ABS | ||
Dimensions | 45*15*145mm( probe:3* Ø3*70mm) | ||
Operating Temperature | -40℃-+80℃ | ||
Ingress Protection | IP68 | ||
Storage | 10-60℃@20%-90%RH | ||
Probe material | 316L stainless steel | ||
Details show
Testimonial
Application
Related Products
|
|
|
Soil / Liquid Temp Sensor | Soil PH Sensor | Soil EC/Salinity Sensor |
|
|
|
Leaf Wetness Sensor | Soil Temp, Moisture & EC Sensor | DO Sensor |
Company Information
FAQ
Q: Are you the final manufacturer?
A: Yes, We are SENSOR manufacturer and exporter in china with 10+ years experience and with the factory authorized by SGS.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the minimum quantity is 10pcs for the first order .
Q: Do you offer free samples?
A: Sorry , we do not offer free samples . You should pay for the samples and freight cost.
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time?
A: It is in 6-8 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days.
Q: What is your normal shipping method?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is free exchange within one month and 12 months quality guarantee.
Q: Could we make a visit to your factory?
A: Yes, you are welcomed . But before that, we will do the visiting investigation.
