Schonstedt and Radiodetection locators are designed to provide the best performance in magnetic metal location in the industry. Our Metal Locator makes finding buried manhole covers and access points under soil or asphalt efficient, quick and simple.

Metal and Magnetic Locators
For over half a century, Schonstedt has been a worldwide leader in designing and manufacturing underground magnetic locators.

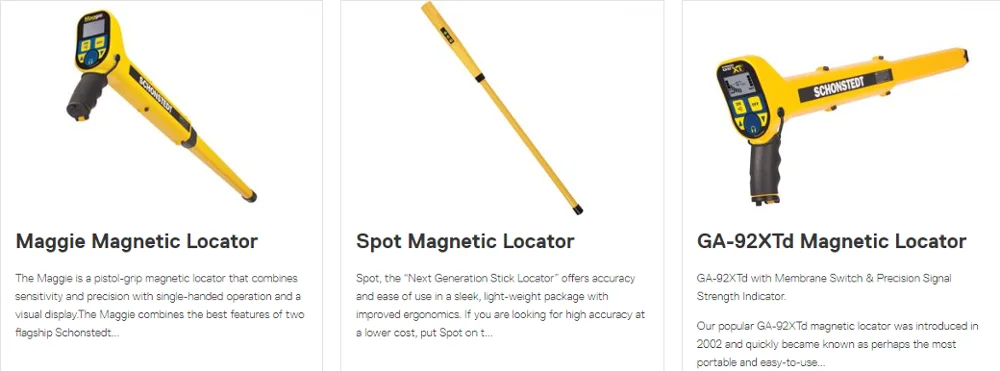

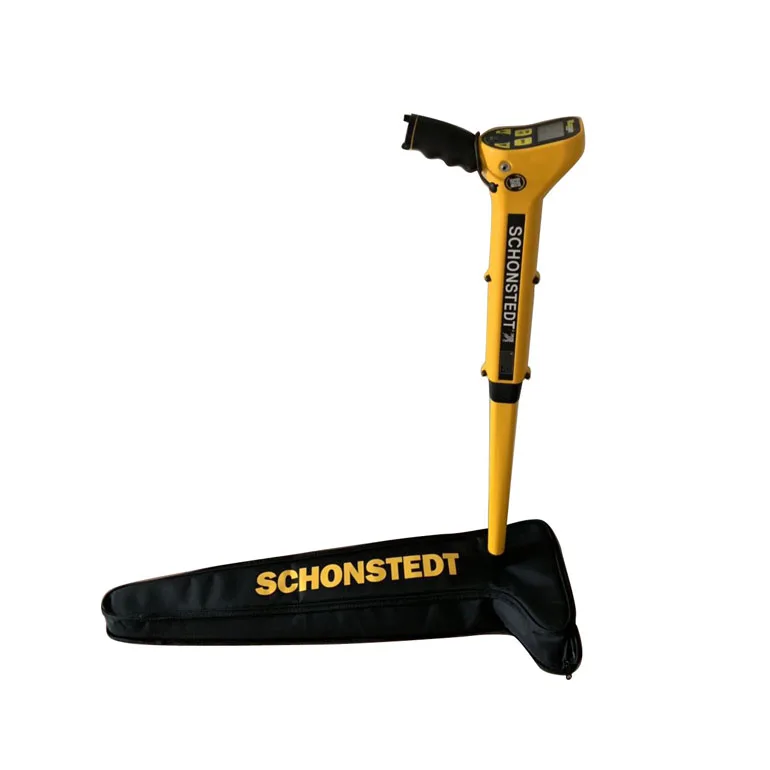

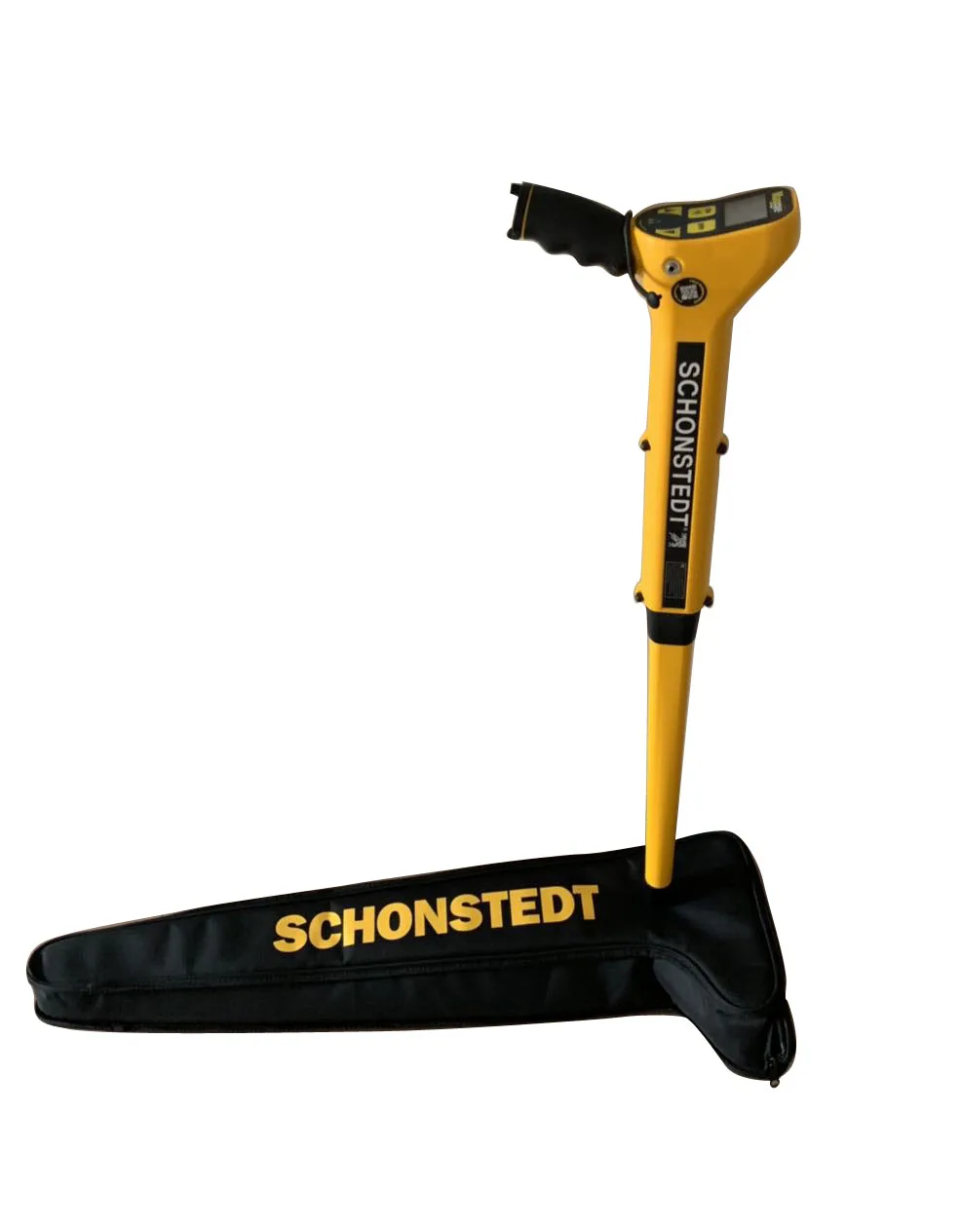

Maggie is a pistol-grip magnetic locator that combines sensitivity and precision with single-handed operation and a visual display.

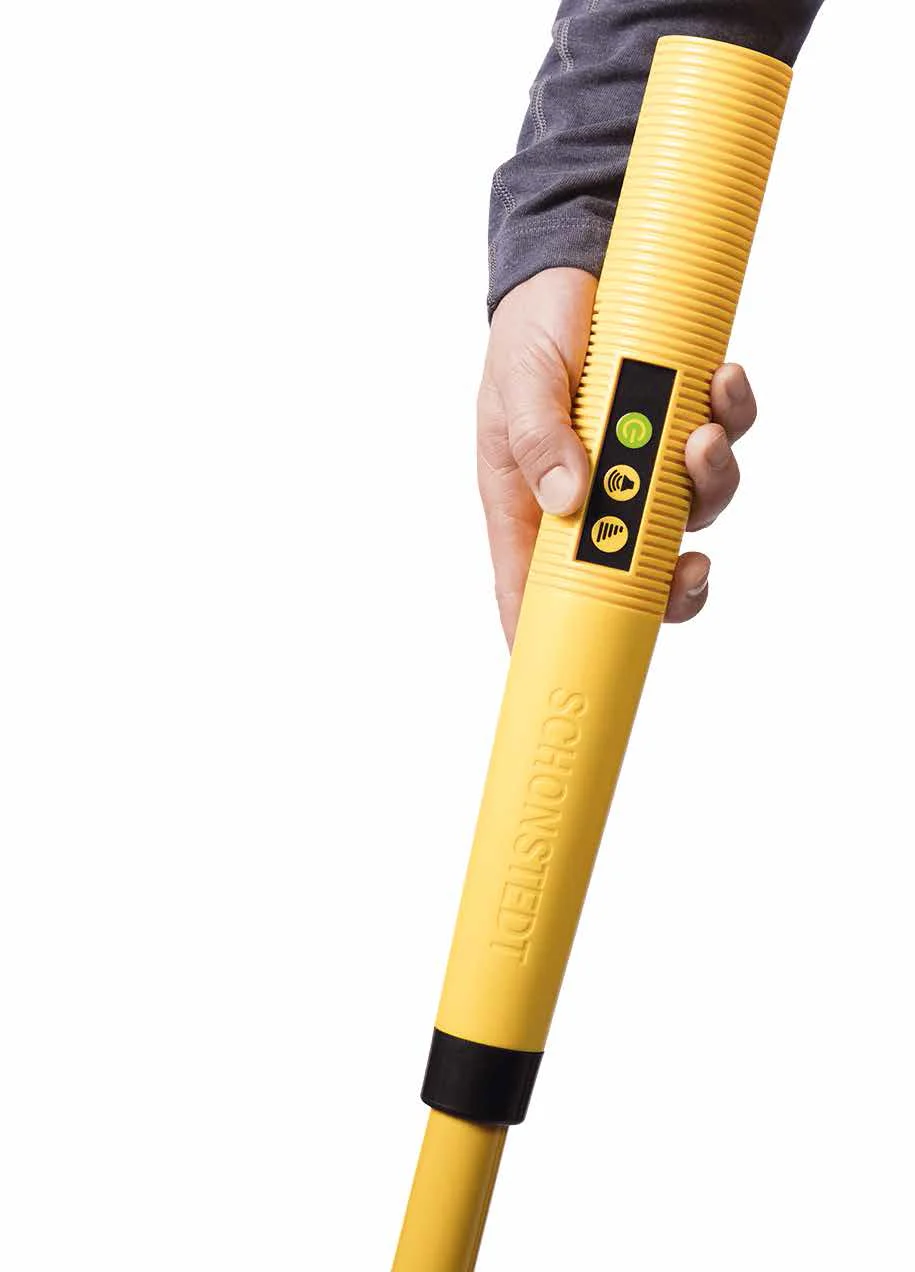

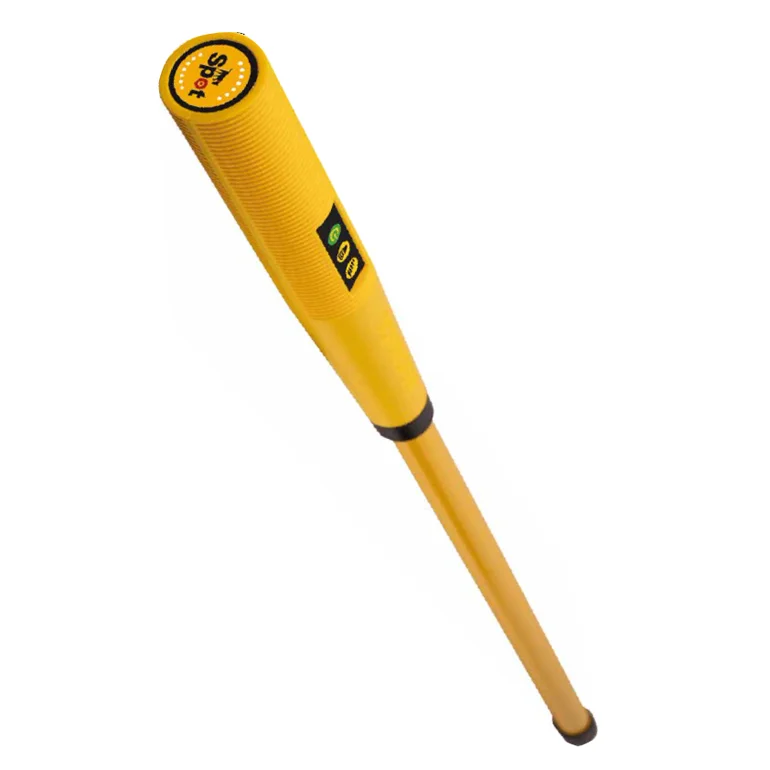

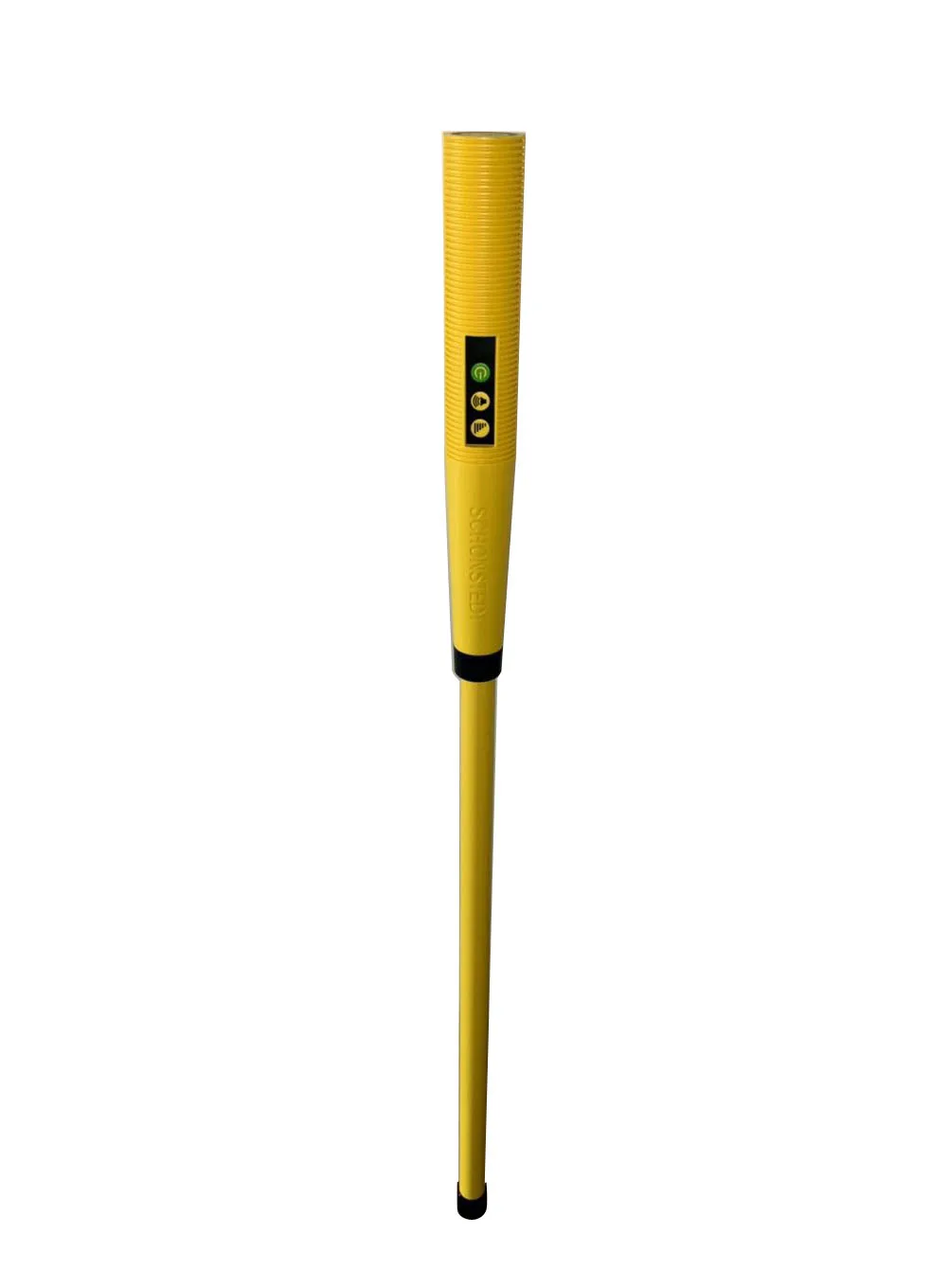

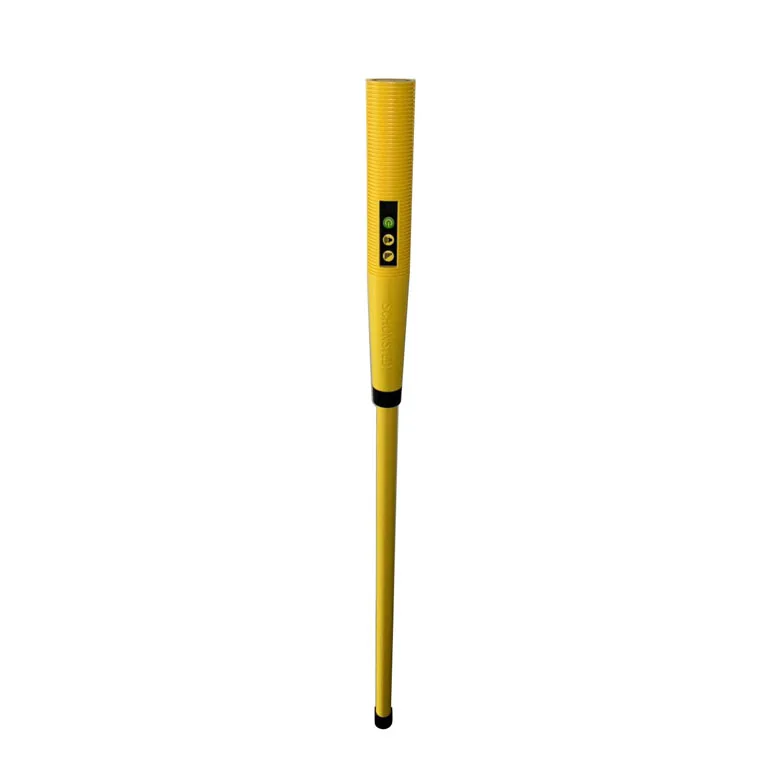

Spot, the “Next Generation Stick Locator” offers accuracy and ease of use in a sleek, light-weight package with improved ergonomics. If you are looking for high accuracy at a lower cost, put Spot on the trail of your next locate!

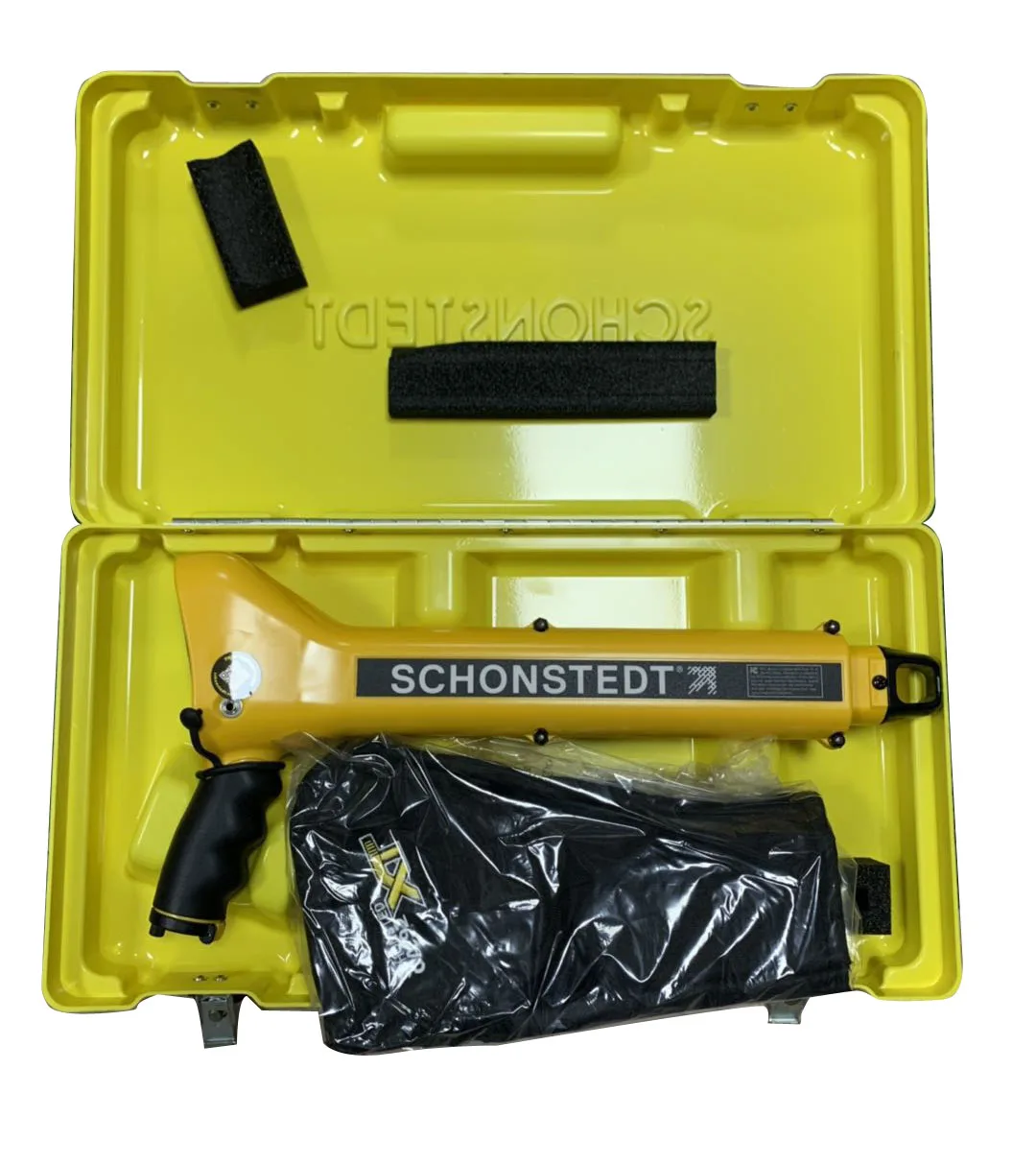

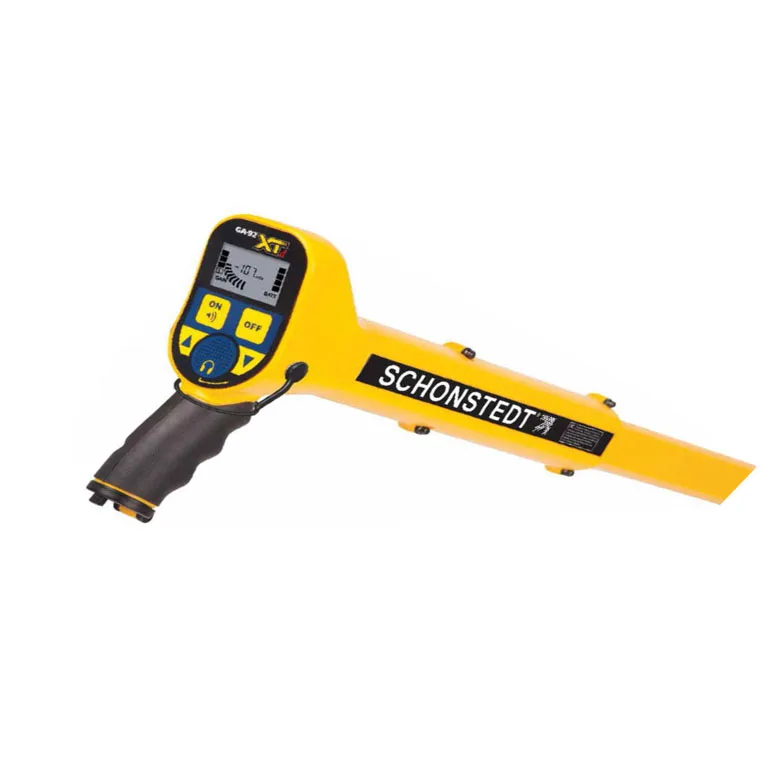

GA-92XTd, the extendable, easy-to-use and portable magnetic locator. The GA-92XTd retracts to fit in its holster (included), and extends for one-handed operation and fingertip control.

RD312 features simple 2-button operation, making it an easy-to-use metal locator when the higher performance of a magnetic locator is not needed.

Schonstedt magnetic locators

Schonstedt has been the innovator of ferrous metal locators for unrivaled precision and reliability for over 50 years.

Schonstedt magnetic locators are designed for the accurate and reliable location of
buried ferrous metal objects, such as:

• Manhole covers


• Steel pipe joints


• Kerb & valve boxes


• Reinforced septic tanks


• Steel enclosures


• Well casings


• Unexploded ordnance

Maggie The perfect choice for all locating professionals:

• Utilities


• Surveying


• Water and sewer


• Gas and oil


• Construction

Spot A sleek, ultralight weight package with improved ergonomics. Optimized for finding:

• Survey pins, markers and nails


• Water and gas valves


• Manhole covers


• Other deep iron / steel

GA-92XTd The retractable option providing compact storage and simple operation. Designed to locate:

• Manholes


• Septic tanks


• Well casings


• Valve boxes


• Cast iron pipes

Maggie Optimized for water and gas	GA-92XTd Optimized for large utilities	Spot Optimized for construction
Output: Audio and Visual	Output: Audio and Visual	Output: Audio
Gain: 4-Level LCD: Low (L),	Gain: 4-Level LCD: Low (L),	Gain: 5-levels: Extra Low (1),  Low (2),
Medium (M), High (H),  Extra High (XH)	Medium (M), High (H),  Extra High (XH)	Medium (3), High (4),  Extra High (5)
Volume:	Volume:	Volume:
3 Levels: Muted, Medium,  and Maximum	3 Levels: Muted, Medium,  Maximum	2 Levels: Medium & Maximum
Battery: One 9V Battery	Battery: One 9V Battery	Battery: One 9V Battery
Battery Life: 24 Hours  (intermittent use)	Battery Life: 24 Hours  (intermittent use)	Battery Life: 24 Hours  (intermittent use)
Overall Length:	Overall Length: Open – 26″ (66 cm),	Overall Length:
32.5″ (83 cm)	Closed – 15.5″ (39 cm)	42.3" (107.4 cm)
Nominal Sensor Spacing:  20″ (50 cm)	Nominal Sensor Spacing:  9.5″ (24 cm)	Nominal Sensor Spacing:  20" (50 cm)
Weight: 2.6 lbs (1.2 kg)	Weight: 2.4 lbs (1.1 kg)	Weight: 2.0 lbs (0.9 kg)
Water & Dust Resistance:	Water and Dust Resistance:	Water and Dust Resistance:
Rated IP54	Rated IP54	Rated IP54
Depth: Up to 20' (6.0 m)*	Depth: Up to 16' (5.0 m)*	Depth: Up to 18' (5.5 m)*

Radiodetection Radiodetection is a world leader in the design and development of test equipment, used by utility companies, to help install, protect and maintain their infrastructure networks.

Our product range includes tools for damage prevention to buried services; powerful video systems for pipeline inspection; high-performance dehydrators and cable-test products for telecoms; and our solid-state sensors business.

Damage Prevention

Damaging buried utilities can be dangerous very expensive.  Utility owners around the world rely on Radiodetection products to keep their assets safe.  Radiodetection offers two ranges of cable and pipe locating tools to reflect the range of legislation and best-practice in different countries.

Precision Locators

The RD7100 and RD8100 ranges of precision locators are designed to be used to accurately locate a wide range of buried utilities in a wide range of situations.  The professional instruments represent the culmination of Radiodetection’s experience in the design and manufacture of locators.

Cable Avoidance Tools

In many countries, excavators need an easy-to-use but powerful tool to avoid cable strikes.  Radiodetection pioneered the Cable Avoidance Tools (C.A.T®) to prevent accidental damage to underground services when excavating.

Pipeline Inspection

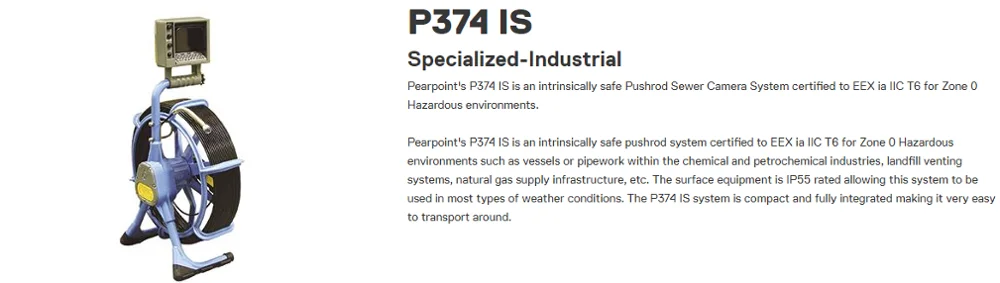

Our pipeline inspection brand, Pearpoint, offers down-hole inspection products featuring the latest digital CCTV to enable water companies to perform regular inspection and maintenance, troubleshooting and repairing sewer and other pipes in difficult environments.

Telecoms

Our Dielectric brand provides a range of dehydrator products for installation in telephone exchanges to maintain cable health.  Radiodetection's Cable Test (TDR) products quickly locate problems, such as breaks or deteriorating insulation, in coaxial, twisted pair, and power cabling.

Solid-State Sensors

Our Warren-GV products are premier airflow and temperature sensors and timing relays.
