  • Ultra low operating Temperature 24X2 Character STN Yellow Green 16 Pin 4 bit/8bit Parallel 5V LCD Display Module 2402
Ultra low operating Temperature 24X2 Character STN Yellow Green 16 Pin 4 bit/8bit Parallel 5V LCD Display Module 2402
Ultra low operating Temperature 24X2 Character STN Yellow Green 16 Pin 4 bit/8bit Parallel 5V LCD Display Module 2402
Ultra low operating Temperature 24X2 Character STN Yellow Green 16 Pin 4 bit/8bit Parallel 5V LCD Display Module 2402
Ultra low operating Temperature 24X2 Character STN Yellow Green 16 Pin 4 bit/8bit Parallel 5V LCD Display Module 2402

Ultra low operating Temperature 24X2 Character STN Yellow Green 16 Pin 4 bit/8bit Parallel 5V LCD Display Module 2402

Share on (62235583737):


Price:4,00 US$ - 5,70 US$

Quantity:


Product Overview

Description


Product Description
Resolution
24X2 Character
Model No.
HXC240201-V1

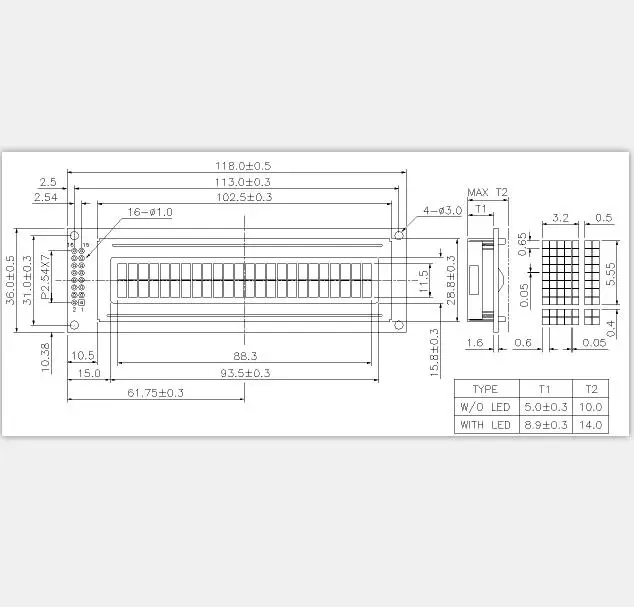

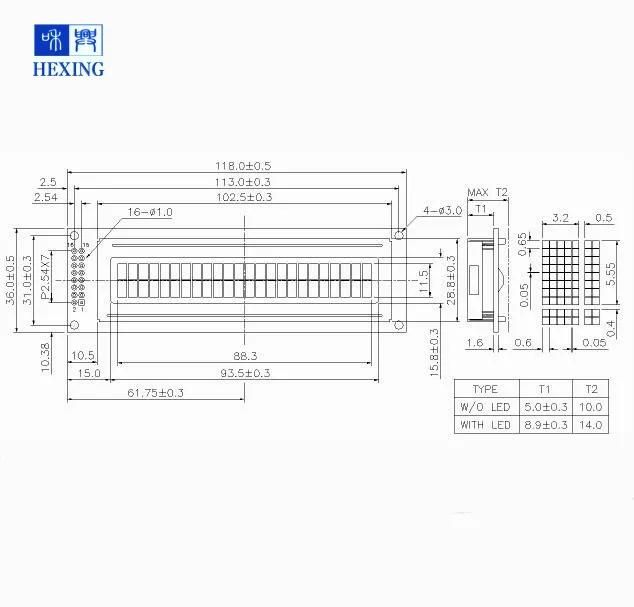

Outline Dimension
118.0X36.0X10.0/14.0mm
Viewing Area
93.5X15.8mm
Dot Size
0.60X0.65mm
Character Size
3.20X5.55mm
Display Mode
STN Yellow Green, Negative Blue, FSTN Black and White
Driver IC
ST7066U or EQV.
Interface Type
8 bit Parallel
Backlight Type
LED Yellow Green or White
Weight
42/56g
Details Images
Product packaging
Production Process
