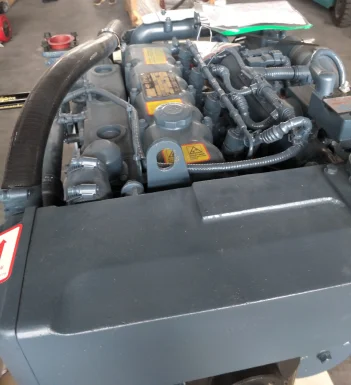

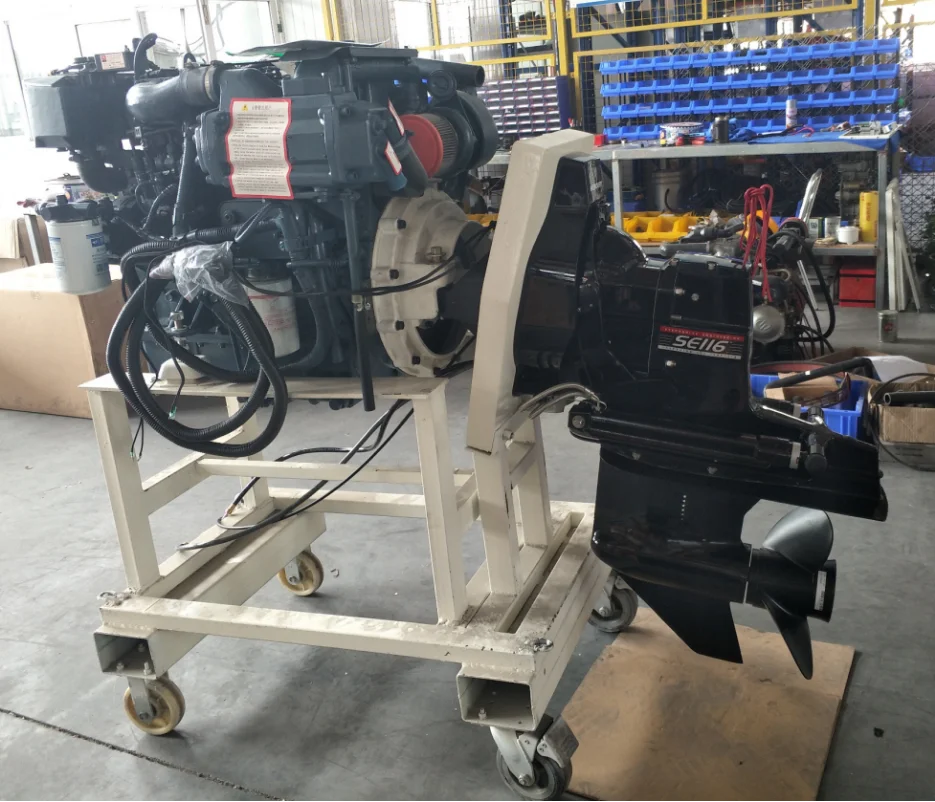

90hp Yuchai diesel engine 3100rpm trade assurance marine engine with stern drive
Features:
This engine adopted advanced design theory and design method, combing with the many years turbocharged inter-cooler technology and practice experience to develop unitedly the high speed yacht power, high reliability, lower emission.
Fast speed:
High rotation speed running could guarantee the high speed of the yacht, better acceleration.
Reliability:
High strengthened crankshaft, enhanced type gantry type cylinder block, inner cooling fuel pipe piston, the development is authorized by China government.
Each circle nearly 20 sets of sample engine, three times of design, revising and testing to greatly protect the following volume production safety, reliable running.
Fuel-saving:
Turbocharged inter-cooled technology, high press common rail technology application, it makes each milliliter fuel could release superlatively.
Lower noise and comfortable:
Small vibration, lower noisy, lower emission.
Safety:
Water cooled air exhaust pipe, lower temperature and thermal insulation technology, to lower the engine room temperature.
Compact construction and light weight:
Module design, light weight materials application, the whole unit engine weight is very light can be 380kg and the good surface looking.
Model | Yuchai 4 cylinder marine engine 150hp 3100rpm |
Type | Vertical, in-line, water-cooled, four stroke |
Intake way | Turbo charging |
No. of cylinders - Bore × Stroke (mm) | 4-96×103 |
Displacement (L) | 2.982 |
Compression ratio | 16.3:1 |
Continuous power /speed (kW (Ps)/r/min) | 110 (150)/3100 |
One-hour power/speed (kW (Ps)/r/min) | 120 (165)/3200 |
Min. specific fuel consumption (g/kW·h) | ≤195 |
Specific oil consumption (g/kW·h) | ≤0.8 |
Crankshaft rotation direction (seen from power output end) | Anticlockwise |
Starting way | Electrical |
Net weight (kg) | 380 |
Overall dimensions (LxWxH) (mm) | 828×663×724 |
Certificate | ZC,CCS |
Type | Vertical, in-line, water-cooled, four stroke | Rated speed | r/min | 3100 |
Intake way | Turbo charging& inter-cooled | Overload power | kW | 121 |
Firing room type | Direct injection Ɯ firing room | Overload speed | r/min | 3 200 |
Fuel system | Electrical control high press common rail pump | Rated working condition fuel consumption | g/(kW·h) | ≤195 |
No. of cylinders - Bore × Stroke (mm) | 4-96×103 | Mini.fuel consumption g/(kW·h) | ≤192 | |
Valve number per cylinder | 2 | Rated idle speed(max. speed) | r/min | ≤3410 |
Displacement (L) | 2.982 | Min. Adjustable idle speed | r/min | 650~750 |
Cylinder type | Wet cylinder | Min. Overload continue speed | r/min | ≤1395 |
Compression ratio | 16.3:1 | Oil consumption g/(kW·h) | ≤0.2 | |
Firing sequence | 1—3—4—2 | Smoke BSU | ≤3.0 | |
Crankshaft rotation direction | Anti-clockwise(face to free end) | Noise | Lw dB(A) | ≤117 |
Lubricating type | Press and splash | IMO | g/(kW·h) | ≤7.85 |
Oil capacity (L) | 10 | Net weight | kg | 380 |
Starting type | Electrical start | Rated power | kW/hp | 110/150 |
Back press(after turbocharged) | kPa | ≤10 | Dimension(L*W*H) | mm |
Emission | Tire 2 |
Horse power | 150hp |
Rated speed | 3800-4000 |
Cylinder number | 1--4 |
Engine dry weight | 360-400kg |
Aspiration | Turbocharged |
Fuel injection system | High press common rail |
Cooling system | Fresh water cooling |
Digital throttle and shift | Yes |
No. | Name | Drawing | Qty. | No. | Name | Drawing | Qty. |
1 | Nut M16 | Q340B16 | 2 | 16 | Post vortex transition nozzle gasket | F9200-1118509 | 1 |
2 | Gasket φ16 | Q40116 | 2 | 17 | Turbine rear take over gasket | F9200-1118501 | 1 |
3 | Gasket 16 | Q40316 | 2 | 18 | Post vortex transition nozzle | F9200-1118507 | 1 |
4 | Bolt M16×90 | Q150B1690 | 2 | 19 | Rear vortex tube is fully coated with a heat insulation sleeve | F9200-1118571 | 1 |
5 | Flange bolt M10×22 | Q1841022TF2 | 3 | 20 | Connect the cooling tube behind the vortex | FAT20-1118508 | 1 |
6 | Combination seal washer 16 | Q/YC149-16 | 4 | 21 | Flange bolt M10×16 | Q1841016TF2 | 2 |
7 | Hinged bolts M16×1.5 | Q/YC901-1C1615 | 2 | 22 | Flange bolt M10×20 | Q1841020TF2 | 2 |
8 | Prefilter unit | SC2000-1105300 | 1 | 23 | Pipe joint | FAT20-1118553 | 1 |
9 | Electronic throttle unit | L7100-3823800A | 1 | 24 | Flange | FAT20-1013202 | 1 |
10 | Controller | FG200-3823351A | 1 | 25 | Gasket | B8500-1119105B | 2 |
11 | Filter components | FG200-1105140 | 1 | 26 | Vehicle wiring harnessⅡ | FAT10-3823262C | 1 |
12 | Filter components | S2000-1105350 | 1 | 27 | Engine side meter | L7200-3800D40-006 | 1 |
13 | Oil filter | 186-1012240 | 1 | 28 | Remote instrument component | L7100-3800E00-006 | 1 |
14 | V belt | YC80-15N-1150A | 1 | 29 | With engine tool assembly | F9200-3901200 | 1 |
15 | XB-A type wrench for rotary filter | 150-3901016A | 1 |
1, We have the professional research and develop team for products, some of them from famous university.
2, We could as per customers requirements to control the delivery time, if urgent, can be 15-20 days to dispatch.
3, We gain market by competitive price and good quality, to be our customer one time, will be partners all the time.
4, Can be less deposit for confirming order, then the rest before shipment as agreement.
5, Special after sale service office is available, all the questions will be replied within three hours, 24*7h hot line, a specific mobile number will be supplied.
6, Every half a year, a market testing report will be sent to customers for the selling situation and market feedback, to improve our products performance and service etc.
7, With us your money in safe, your business in safe, full-refund is available.
We sinooutput Group is the Sinotruk engine Shanghai selling center, we give you:
* three years quality warranty;
* competitive price for whole selling;
* short delivery time, the faster can be 7-10 days;
* free tech. guidance and training;
* 24x7h hot line service;
* special shipping line service, to help you save more.
there are more than 20000 square meters for manufacturing and testing.
Sinotruk steyr series engines most equipments are imported from Japan.
Sinotruk Man series engines most equipments are imported from Germany
