Cob Large 40x4 Character 18 Pin 8 Bit Parallel 5.0v Yellow Green Display Display Module 4004 16x2 Panel Lcd Screen
Cob Large 40x4 Character 18 Pin 8 Bit Parallel 5.0v Yellow Green Display Display Module 4004 16x2 Panel Lcd Screen
Cob Large 40x4 Character 18 Pin 8 Bit Parallel 5.0v Yellow Green Display Display Module 4004 16x2 Panel Lcd Screen
Cob Large 40x4 Character 18 Pin 8 Bit Parallel 5.0v Yellow Green Display Display Module 4004 16x2 Panel Lcd Screen

Cob Large 40x4 Character 18 Pin 8 Bit Parallel 5.0v Yellow Green Display Display Module 4004 16x2 Panel Lcd Screen

Share on (62235795151):


Price:$11.30 - $14.90

Quantity:


Product Overview

Description

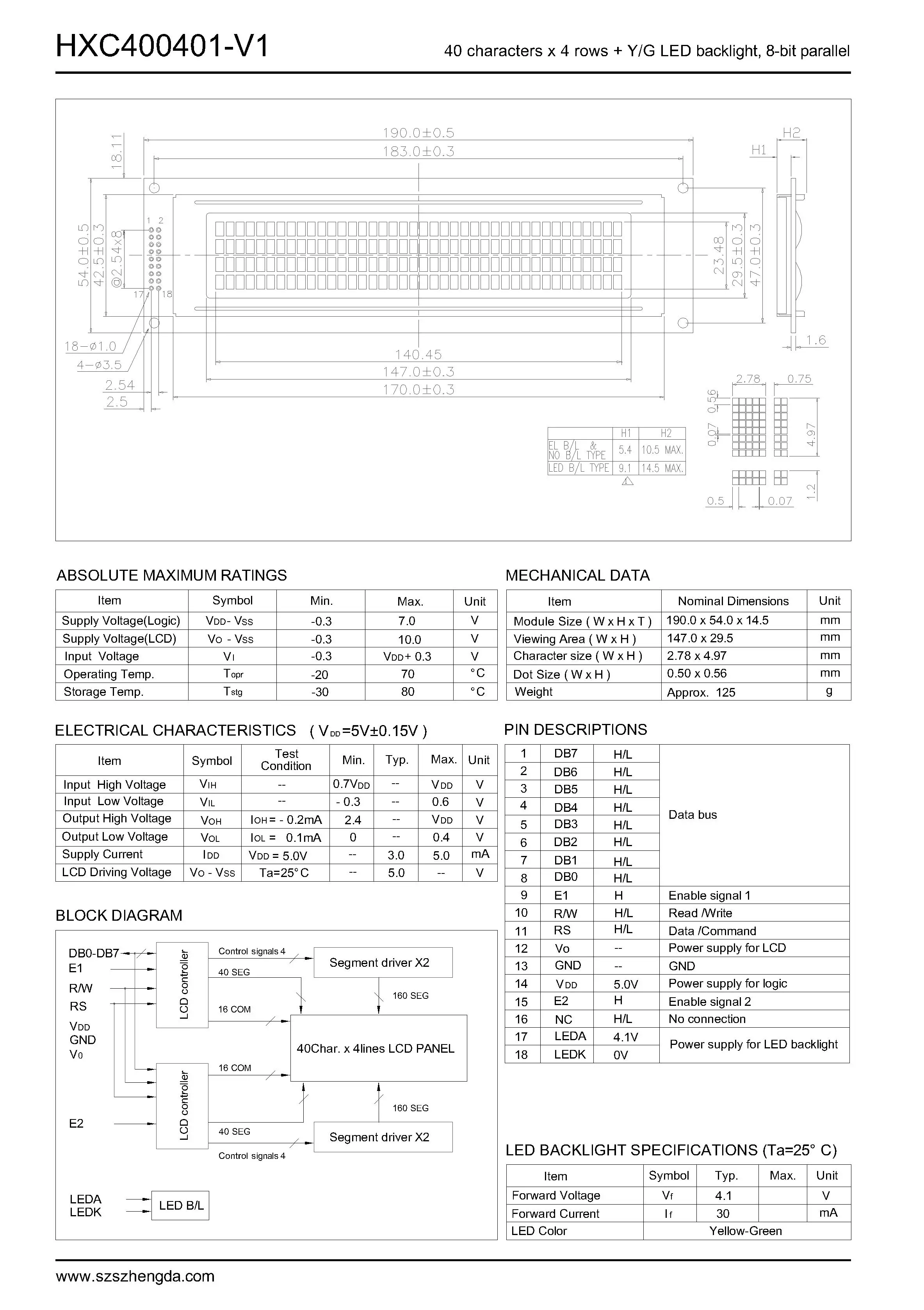

Product Description




Resolution
40X4 Character
Model No.
HXC400401-V1

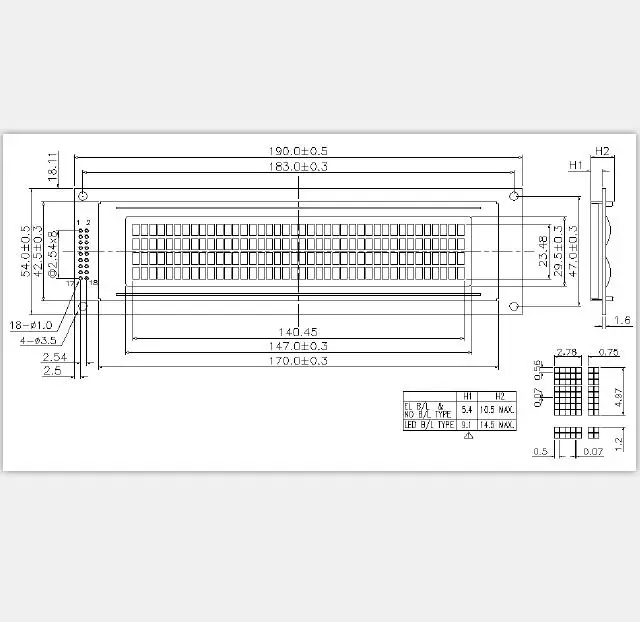

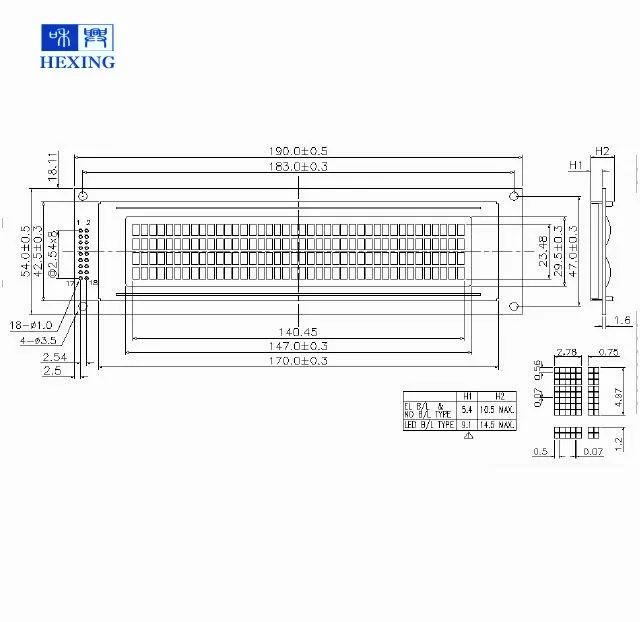

Outline Dimension
190.0X54.0X14.5mm
Viewing Area
147.0X29.5mm
Dot Size
0.50X0.56mm
Character Size
2.78X4.97mm
Display Mode
STN Yellow Green, Negative Blue
Driver IC
ST7066U or EQV.
Interface
8 bit Parallel
Backlight
LED Yellow Green or White
Weight
125g


Details Images








Product packaging




Related Products

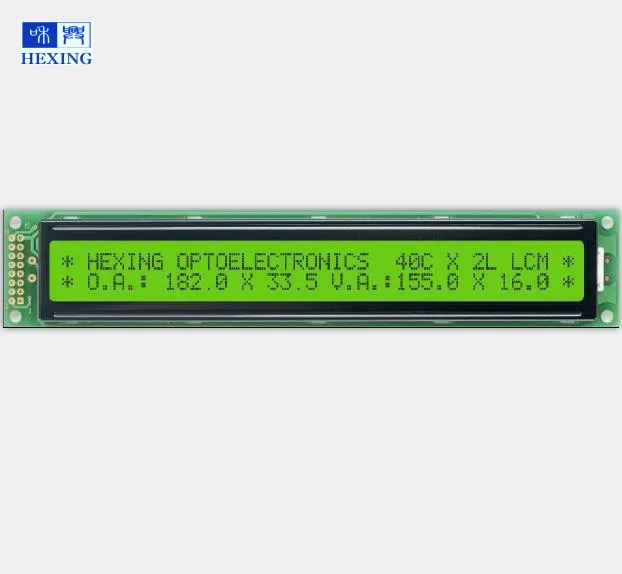

HXC400201-V1
40X2 Character LCD Module


Production Process


LCD Panel Process Line


LCD Module process Line


QC experiments


QC experiments
