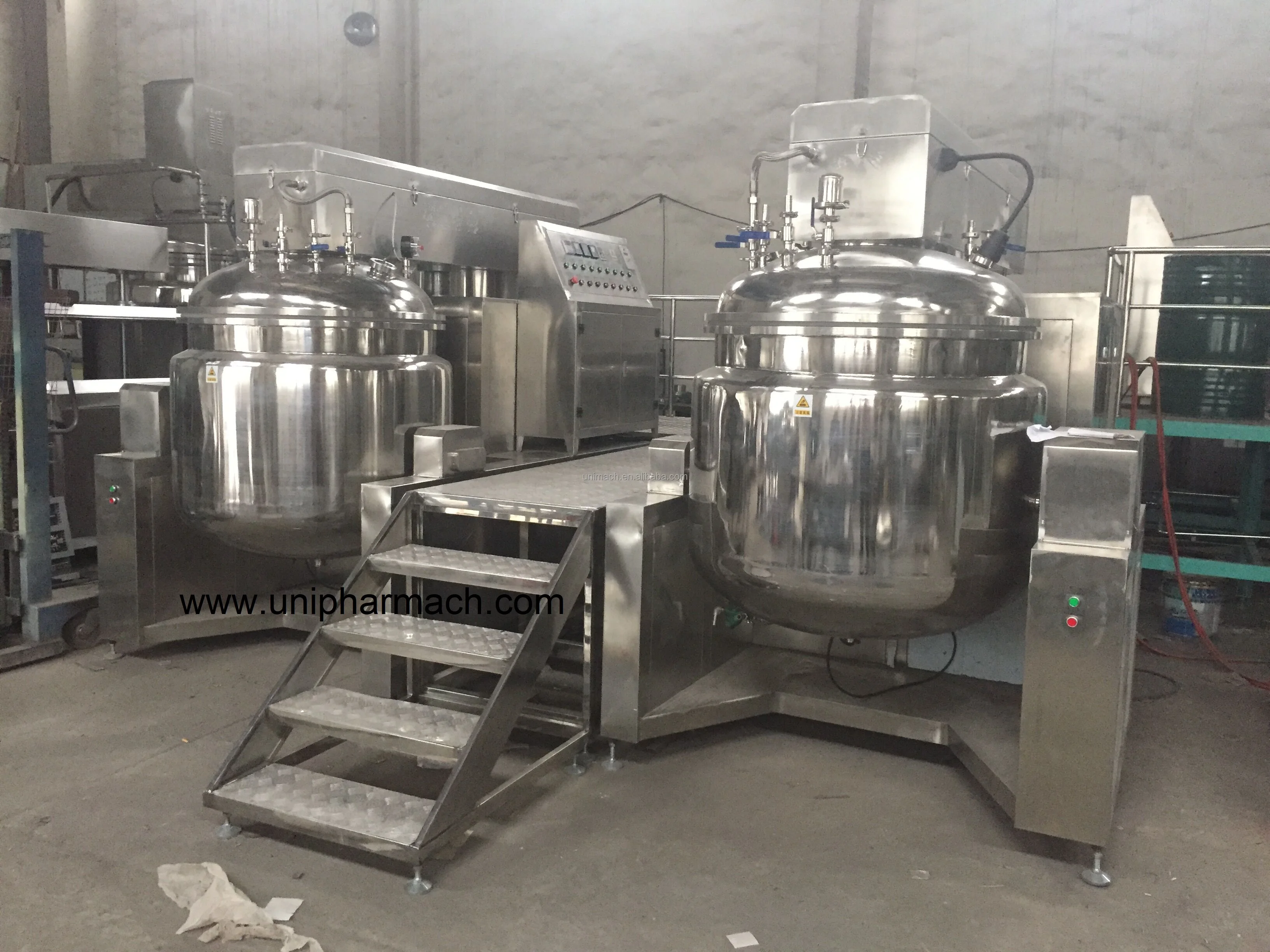

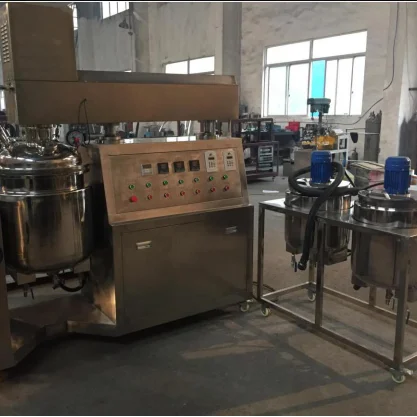

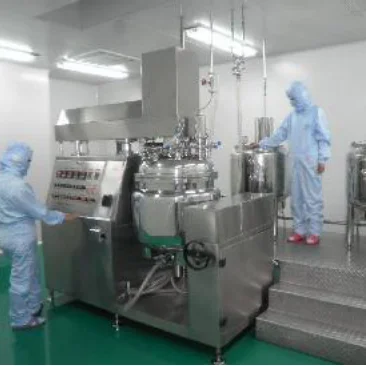

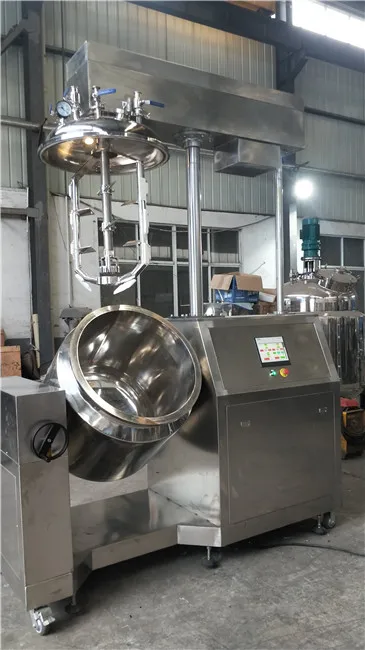

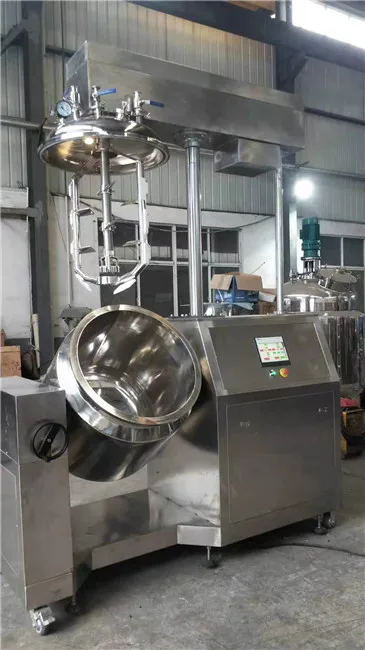

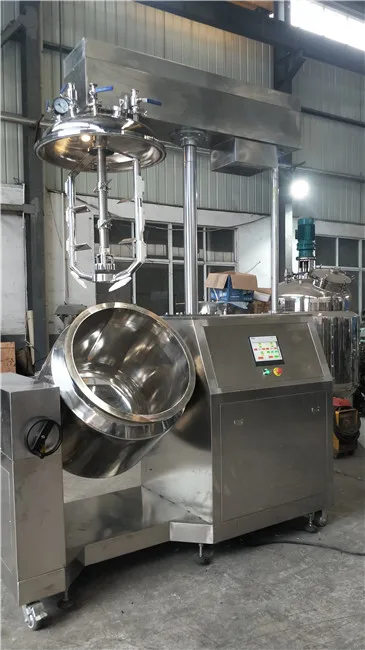

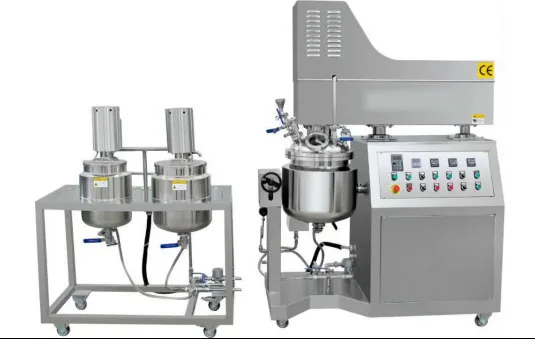

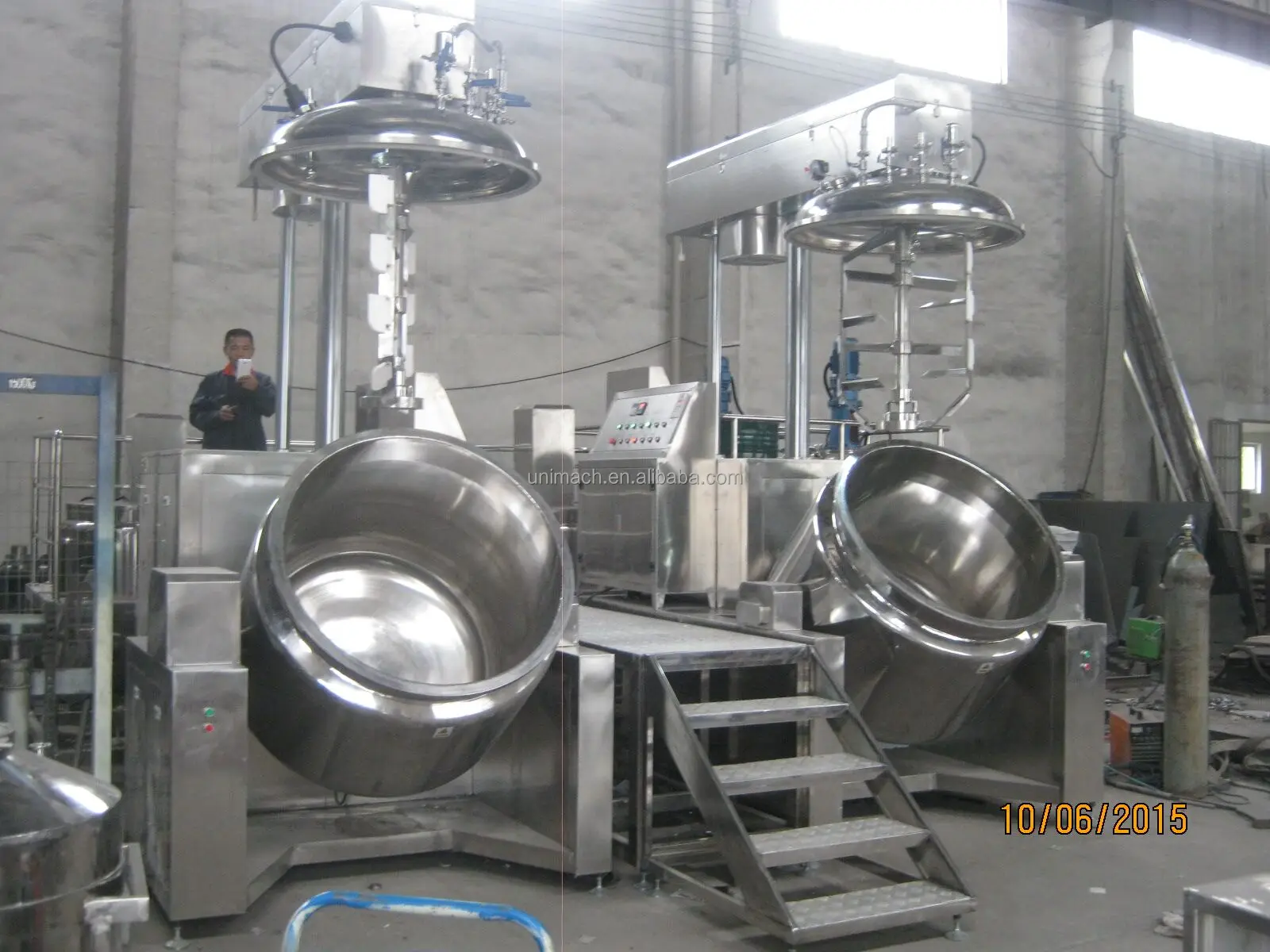

Automatic vacuum homogenizing emulsifier gel emulsifier making machine for chemical machinery equipment

Device Name

650L Emulsifying pot

Production

Design capacity:650L

Working capacity:500L

Minimum working capacity:150L

Material

Contact Part:316L  Thickness:6mm

Shell:304 Thickness:6mm

Shell:304 Thickness:4mm

Machine weight

2500kg

Appearance size

3700 mm×3400mm× 2500 (3600)Mm

Service life

Over 10 years

Mixing method

Frame-scraped wall stir and fixed paddle

Homogenization mode

Upper homogeneity

Homogeneous motor power

7.5 KW

Homogeneous motor speed

3500

Particle size

0.2-0.6 um

Cover opening method

Hydraulic lift

Heating mode

Electric heating

Feeding method

Inclined discharge and low valve discharge

Process parameters

Working pressure in pot::-0.09

Vulnerable parts

1 Spare Parts for.Spare parts

Warranty Period

1 Year

Device Name

650L Aqueous phase pot

Design capacity

Design capacity: 300L Working capacity:220L

Mixing method

Pulsating agitation

Mixing power:

1.1 KW

Rotational speed:

 960

Cover opening method

Removable open lid

Temperature display

Digital Temperature

Feeding method

Bottom feeding
