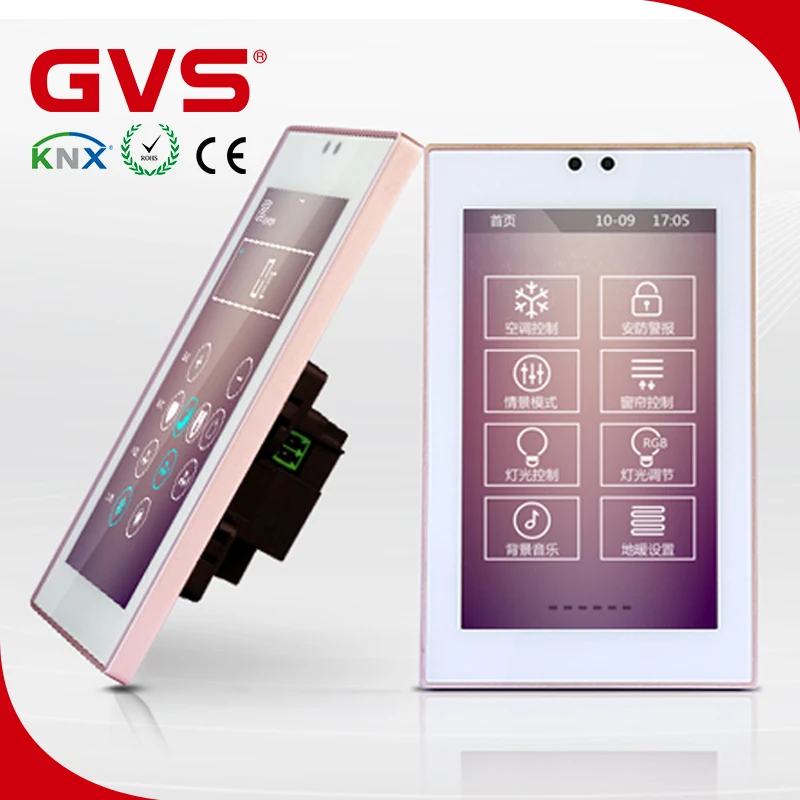

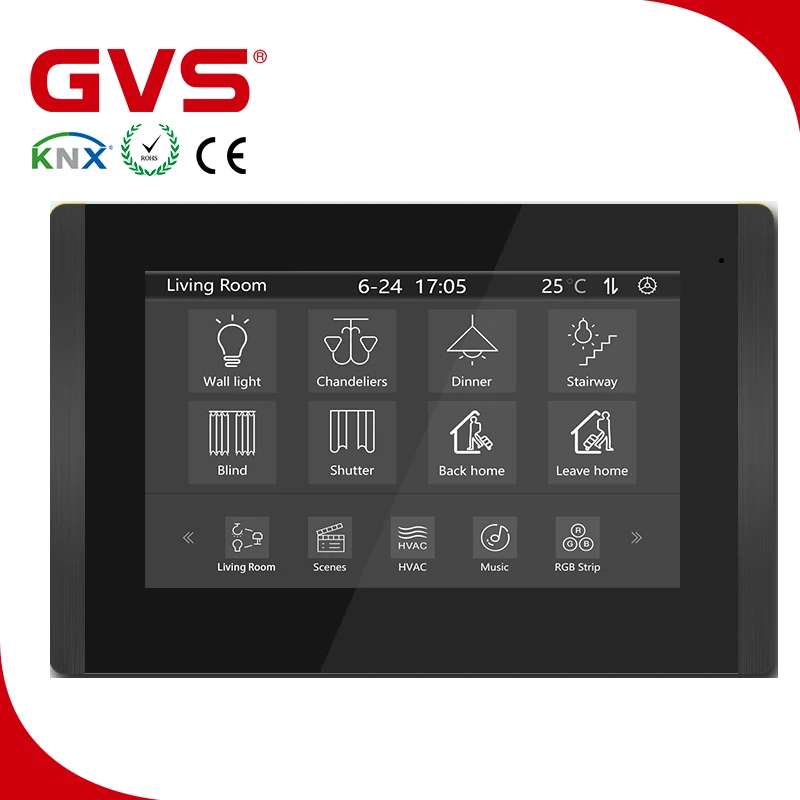

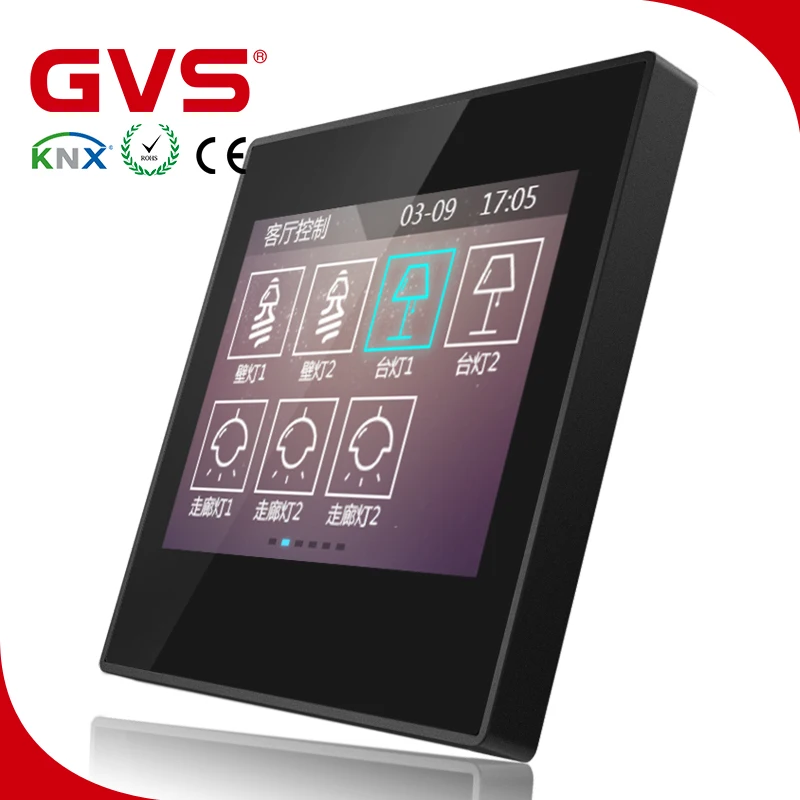

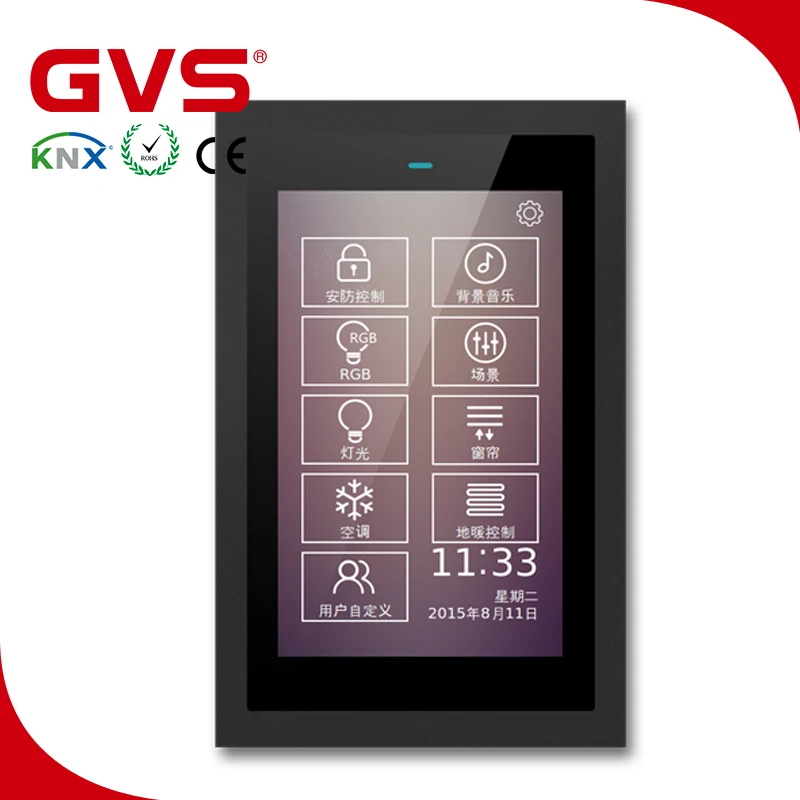

Professional KNX Manufacturer KNX/EIB GVS K bus Touch Panel Home Building Automation Slim Type KNX Touch Screen 3.5' 5' 10.1'

KNX Touch Panel Functions

• Color TFT and 320x240 resolution for 3.5 inch, Color IPS and 480x854 resolution for 5 inch, capacitive touch screen design
• With switch, dimming, curtains, value send function
• Display air quality test value
• HVAC control
• Air conditioning control, IR Split Unit and Gateway Integrate type air conditioning control
• Background music module control
• RGB control
• Fresh air, floor heating control
• 8 timing functions
• 4 event group functions
• 8 logic functions, support AND, OR, XOR, logic gate forwarding, threshold comparator, conversion of different data types
  Home Navigation Features
• Time and date display
• With password function and screen saver, screen saver with optional Clock, Albums or no use
• Proximity sensing

Lighting control

It is mainly used to switch lighting equipment or dimming lighting equipment. The dimming method uses absolute dimming.

Curtains and shutter control

Switch shutters/curtains and adjust louver angles.

Value sending function

Values can be sent for different data types, including scene calls and storage.

Display air quality test value

AQI, temperature, humidity, PM2.5, PM10, VOC, and CO2 displays can be set and these values are detected by an external sensor. Up to 4 items can be set in one interface.

HVAC control

HVAC is mainly used to control the room temperature and automatically and optimally control the heating and cooling according to the use of the room or the needs of the occupants.

Supports manual switching of heating/cooling control, three-speed wind speed plus automatic wind speed can be adjusted, four kinds of room work modes: comfortable, standby, night and protection mode.

Temperature settings support absolute and relative settings, as well as adjustable temperature range settings. Supports two points and PI control.

Background music control

Used to control background music playback, such as power on/off, play/pause, previous/next, volume up/down, mute, play mode, and audio source.

Air conditioning control

There are two types of air-conditioning control: split infrared control and air-conditioning gateway.

The split infrared function control is similar to the function on the air conditioner remote control. This function of the panel is to control the air conditioner through the infrared transmitting module on the bus, for example, the panel sends a control message to the infrared transmitting module, the infrared transmitting module and the message The given function code is transmitted to the air conditioner to control the air conditioning switch, mode, air volume and so on.

The air-conditioning gateway control is suitable for controlling, for example, a VRV air-conditioning system, and needs to be controlled with the KNX to VRV air-conditioning gateway.

RGB dimming

Mainly for dimming RGB LED lights, using absolute dimming.

Floor heating control

Two-point control method is used to automatically switch the floor heating according to the temperature difference. In addition, the warm scene and timing functions can be set, and the temperature range can be adjusted.

Fresh air control

Supports three wind speed adjustments, on/off heat exchange, filter life count, filter timeout alarm, filter reset.

Automatic control according to PM2.5 or CO2 concentration, in addition to setting the scene function.

Timing function

Timing values can send different types of data, provides up to eight timing control.

Event group function

By calling the scene number, eight output messages can be triggered. Each output has three different data types to choose from. There are 4 sets of event functions available for setting.

Logical function

Supports 8 logic inputs with sum, phase, and XOR; supports logic gate forwarding, and can forward one input to one output or multiple outputs;

Supports threshold comparators and conversions between different data types. There are 8 logic functions to set.
