DR AIRE Save 20% Cost Air Filter Production Line With ESP Smoke Filter

Product Overview

Description

Air pollution is cutting global life expectancy by an average of 1.8 years per person, making it the world’s top killer. While we cannot control outdoor air quality, we can choose to protect us and create a clean indoor environment. DR.AIRE Air Pollution Control System's mission is to create healthy indoor workplaces and homes for people.



 Industrial Air Scrubber  Industrial Air Scrubber Industrial Air Scrubber

Model No. DGRH-KD-15000

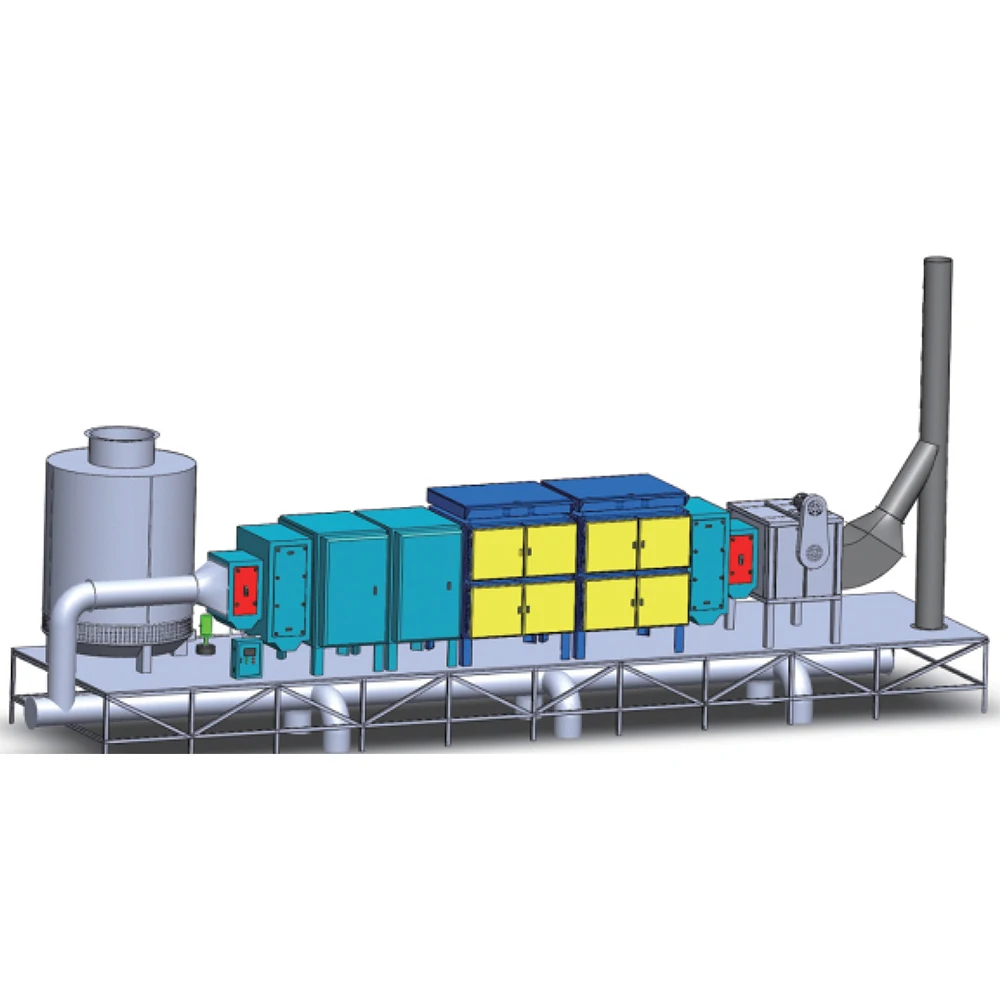

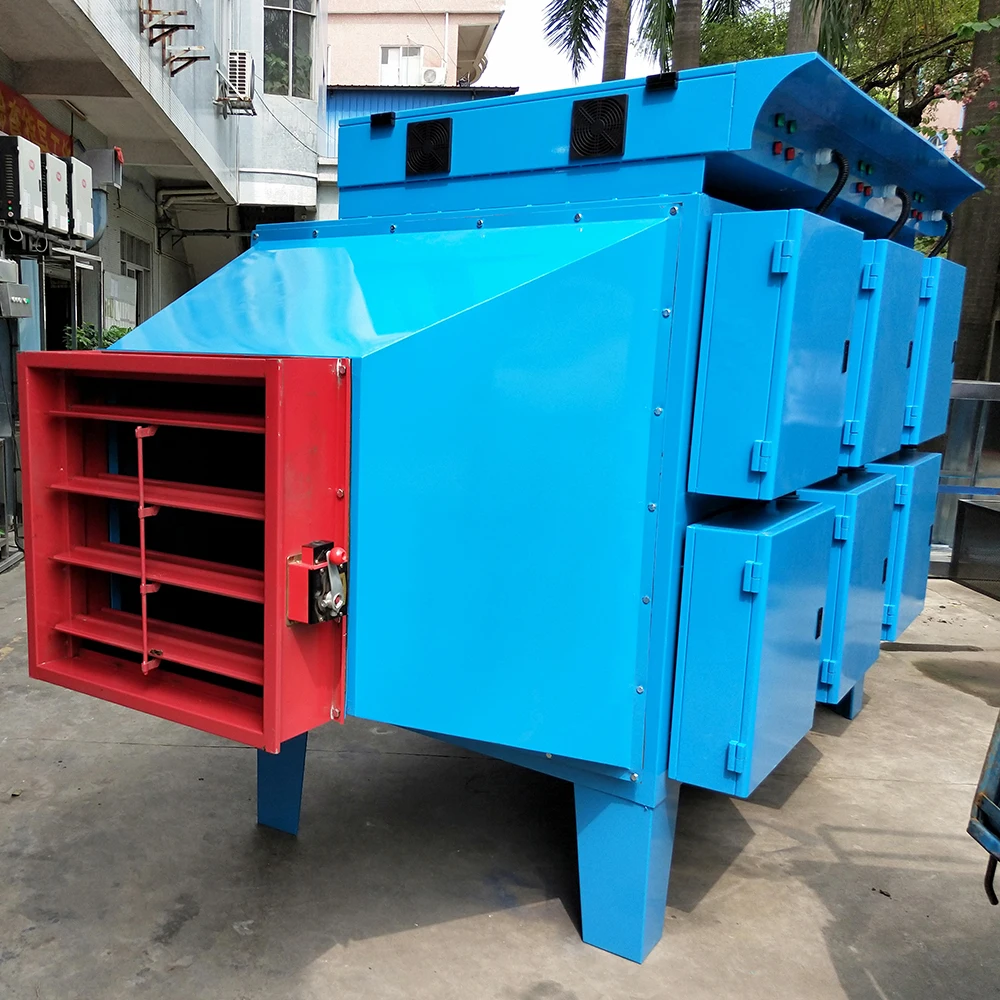

Industrial Electrostatic Precipitator is an efficient solutions to remove exhaust pollution from PVC Production Line, plasticizer (DOP, DBP, DINP), printing and dyeing, oil mist purification and recovery, industrial cooking, electronic solder smoke purification asphalt smoke industrial.

Features
1.High-efficiency: Over 98% oil mist particulates removal rate.
2. Flexible: Modular in design. Plate type collector cells are very easy to clean and maintenance.
3. Eco-friendly: Long life span, energy-saving.
4. Stable: Solid state high-frequency high-voltage transformer ensures adequate power to ESP.
5. Convenient: Remote control with movable power control cabinet, etc.
6. Safety: Automatic fire-suppression system. When internal fire is detected by system, power supply will be shut down to avoid accident.

5. Certification: ISO9001:2015, CE, ROHS





Working Principle





1. The dirty air first passes through a pre-filter. Large particles of oil are filtered.
2. The air then passes into the high voltage ioniser section where the particulates are charged to a positive potential.
    And then the air passes into low voltage collector cell section where the particulates are charged to a negative potential.
    So the particulates are attracted to the collector plates effectively.
3. The particulates remain on the plates or drain down in to the sump.
4. The cleaned air exits through the cabinet.

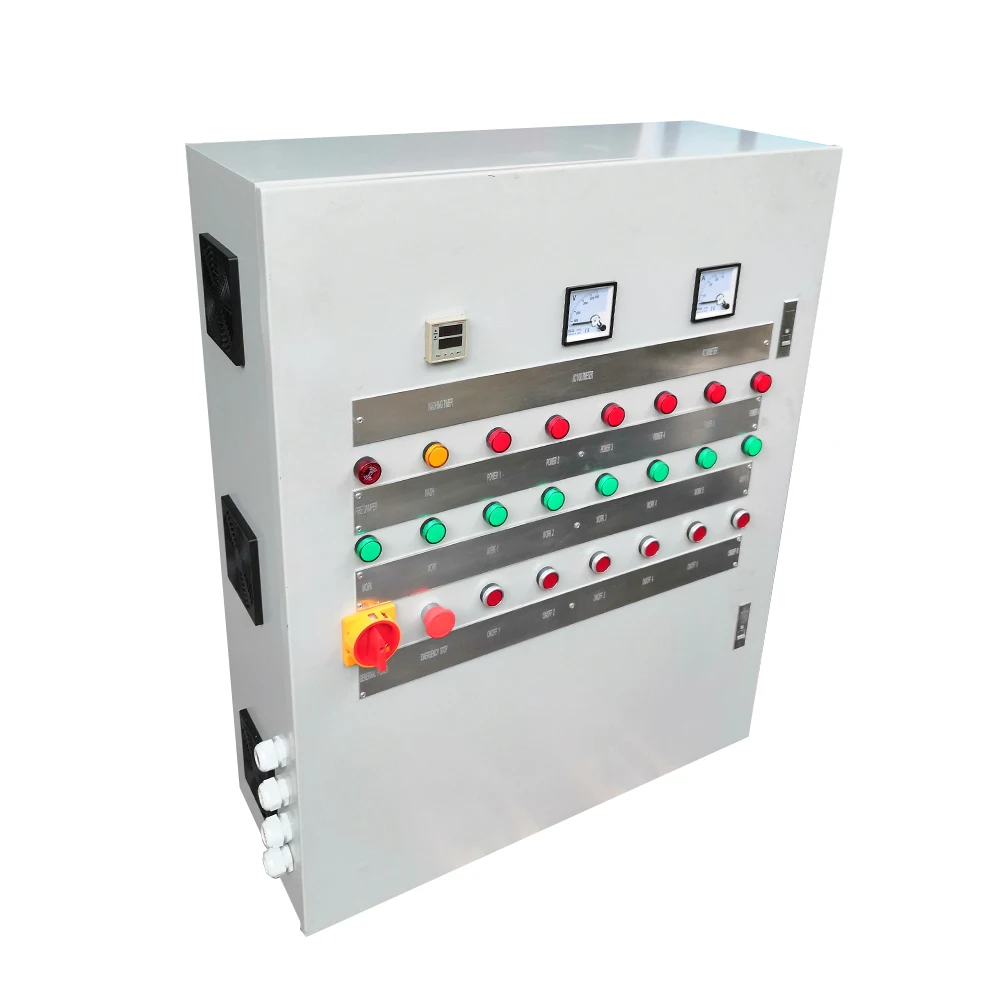

Intellegent electrostatic power control system
Electric intensity auto-control function ensures the Industrial Stainless Steel ESP maintains a high purification rate after a long time service.



Installation









Would you like protect the blue sky with DR AIRE ?





 Do everything for you, would you like support my job ? tks.

The First time choice for DR AIRE ESP, Forever Trust !
Welcome order. Please Send US Enquiry and get 2% discount now.  Click Here   tks



Dongguan Rui zhaohe Environmental Protection Equipment Co., Ltd is one of leading manufacturers in China,specialized in manfacturing commercial, industial air pollution control machines.



DR AIRE is our brand,main products: commercial kitchen electrostatic precipitator (ESP), mobile cooking station ,BBQ cart with Smoke filter, industrial Esp, ductless range hood, ,coffee Roasters smoke filter ,actived carbon filter, CNC oil mist collectorand etc





DGRH-K  Single Pass ESP parameter

NO.	Model	Air Flow  (CMH)	Cabinet Size  L*W*H  (mm)	Flange Size  W*H(mm)	Removal  efficiency  Rate	Power (Watt)
1	DGRH-K-3500(U)	3000-3500	640*765*690	485*530	93-98%	110
2	DGRH-K-7000(U)	6000-7000	640*1300*690	1020*530	93-98%	176
3	DGRH-K-10500(U)	9000-10500	640*1835*690	1560*530	93-98%	242
4	DGRH-K-14000(U)	12000-14000	640*1300*1380	485*1210	93-98%	330
5	DGRH-K-21000(U)	18000-21000	640*1835*1380	1020*1210	93-98%	484
6	DGRH-K-31500(U)	27000-31500	640*1835*2070	1560*1890	93-98%	726











Why should you trust us?

1. Our products have been testing and standing in the market over 12 years.

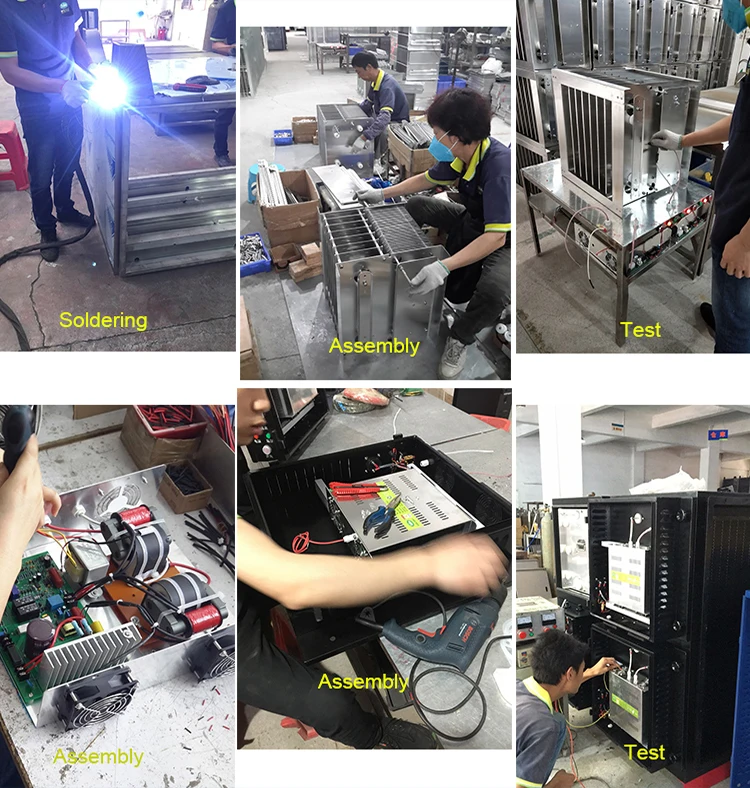

2. Quality controlled: All components and whole unit will be tested strictly before delivery.
3. Exquisite workmanship: Every product is processed by CNC cutting, bending, stamping technology. It ensures high removal efficiency of Industrial Smoke Filter
4. Considerable service: All of messages will be replied within 24 hours.



Our service

1. Provide professional air cleaning solutions
2. Reliable quality Equipment
3. Superior and fast after-sales service
4. Exclusive agent policy
