CNC Glass Cutting Machine /Semi automatic Glass Cutter/Glass Cutting Line

Product Overview

Description

CNC  Glass Cutting Machine /Semi-automatic Glass Cutter/Glass Cutting Line:

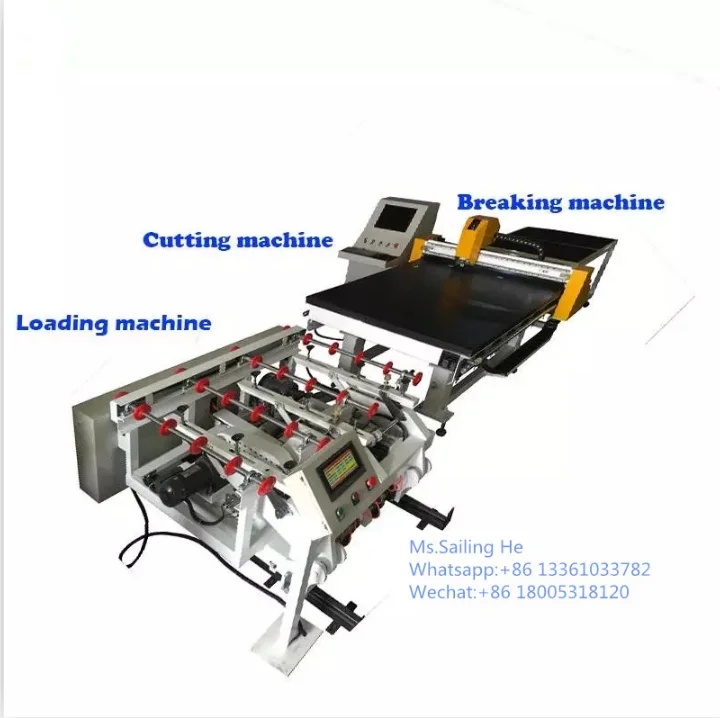

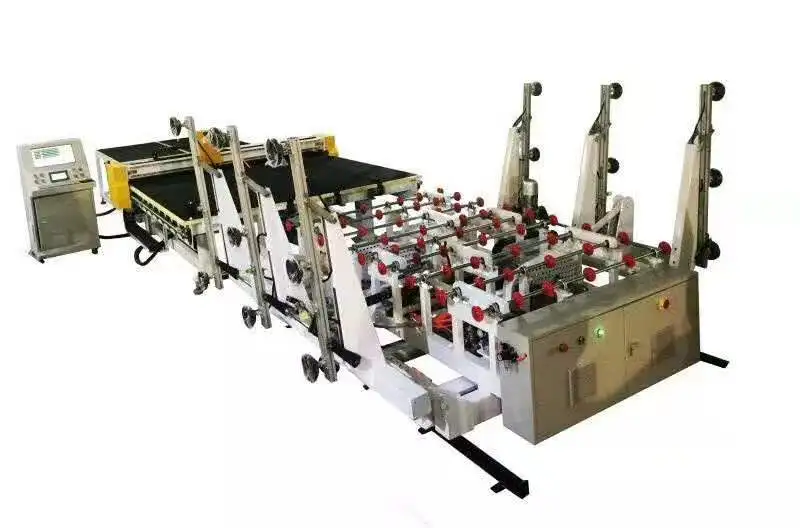

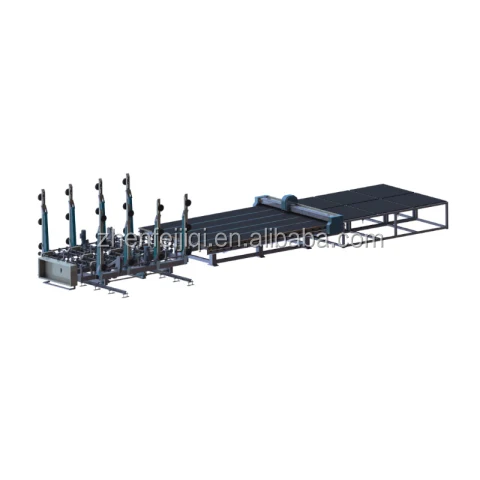

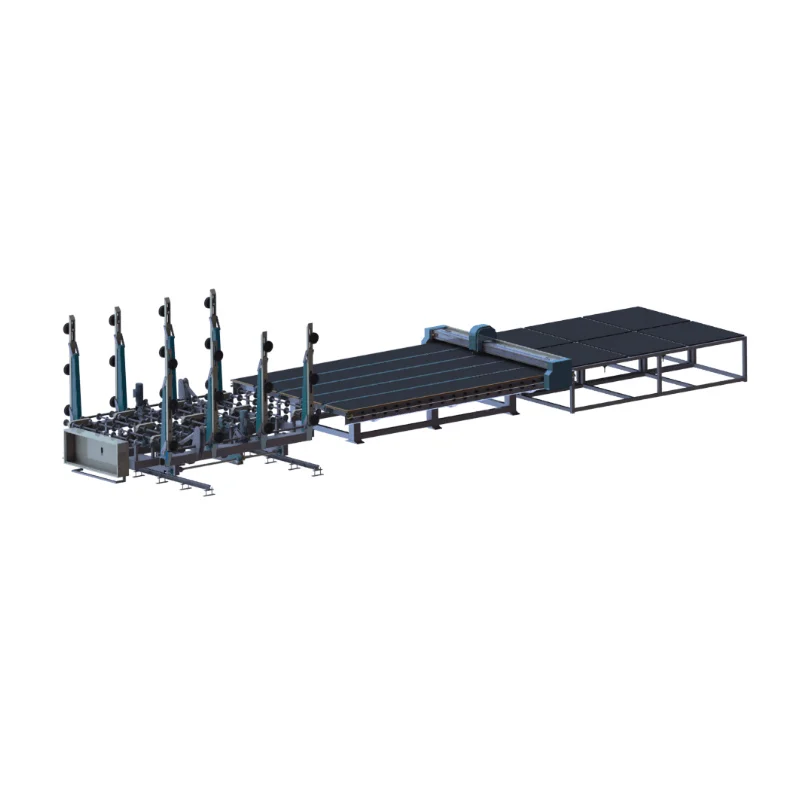

CNC Glass Cutting Line includes Glass loading machine, glass cutting machine,

glass breaking machine.

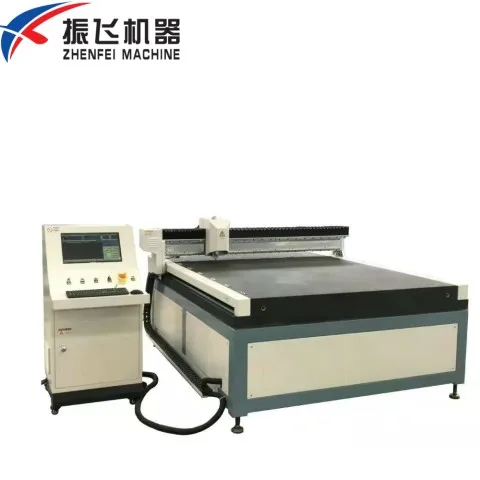

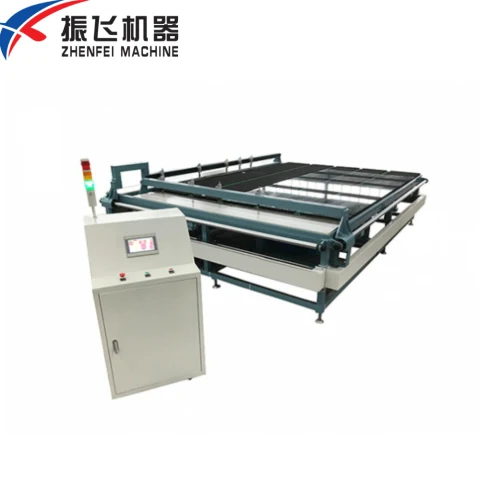

Semi-automatic Glass Cutting Machine /Glass Cutter :



This machine can cut glass with high accuracy and high efficiency and can be easily operated.

1. Stepping motor, CNC control

2. LCD

3. The cutting table is made of plastic that can be proof humidity.

4. High quality axes insure the stability and accuracy.

5. The ventilation system can move and fix the glass on the cutting table.





Working range:

Appliance glass, Furniture glass, Construction glass, Insulated glass etc.



PLC is Chinese brand

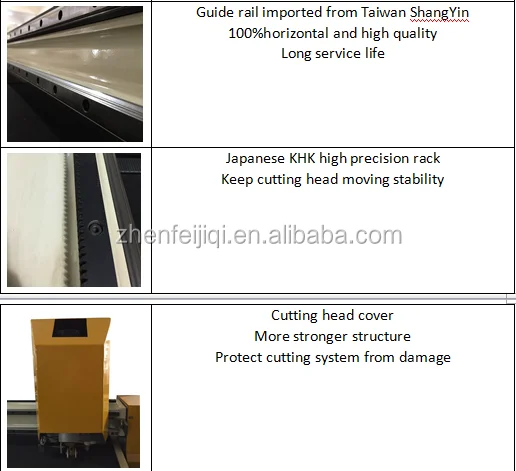

Straight track is Taiwan brand

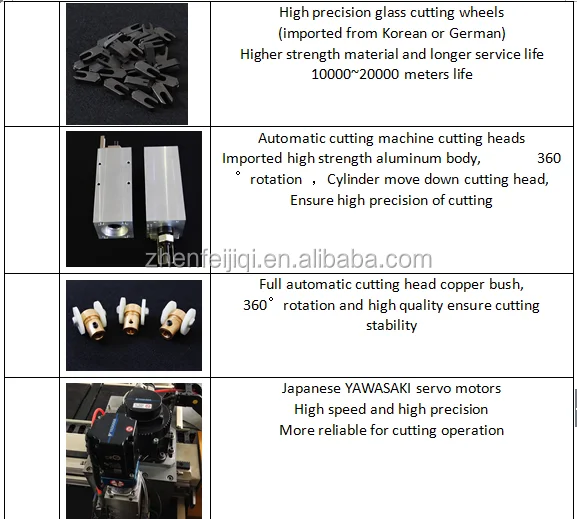

Knife box and knife flywheel is Japanese brand

Electric part is France brand

Electric machine is Chinese brand.







Technical date:

Power supply: 380V/50HZ 3 Phases or customized

Max. glass size: 3660x2440mm

Accuracy: ≤±0.20mm

Glass thickness: 2-19mm

Cutting speed: 2-3pcs/min

Worker: 1-2

Machine size: 4300x3600x800mm

Weight (about): 1000KGS





Contact Person: Ms. Sailing He

Whatsapp/Wechat: +86 13361033782





Guarantee & Aftersales service:

1)Guarantee the complete machine for 12 months, except the consumable parts.

2) 24-hours technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
