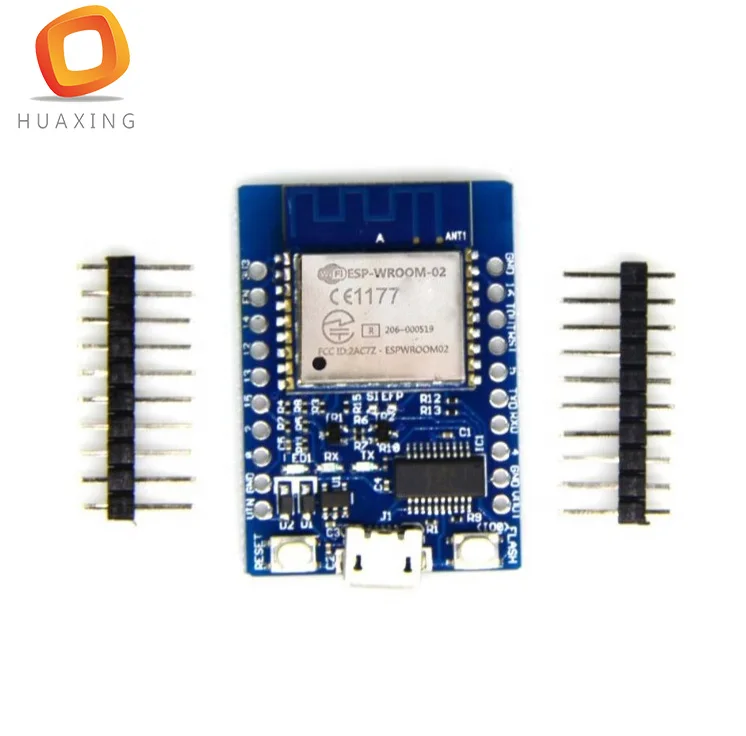

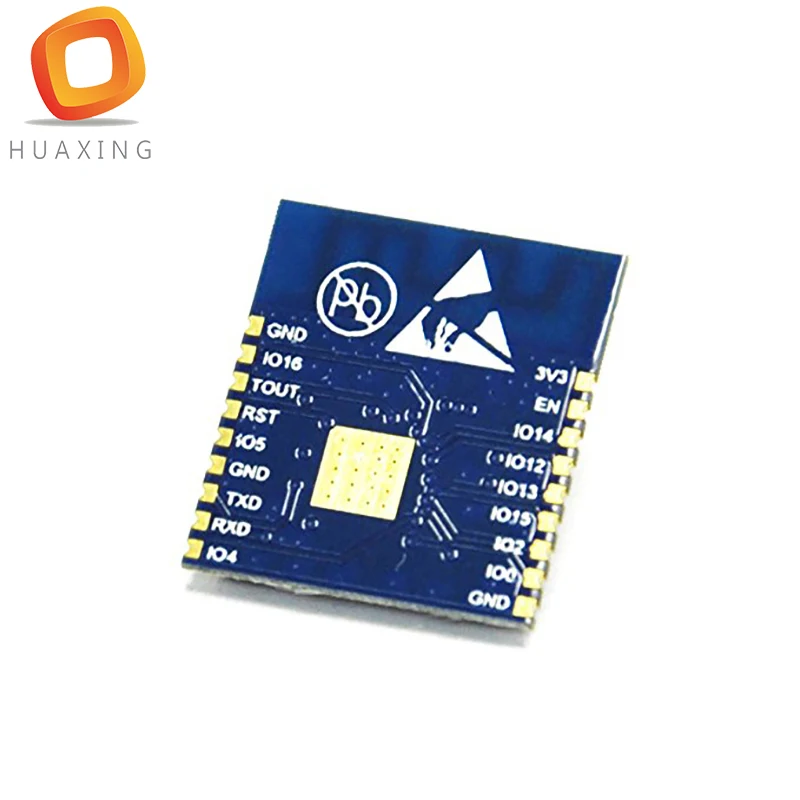

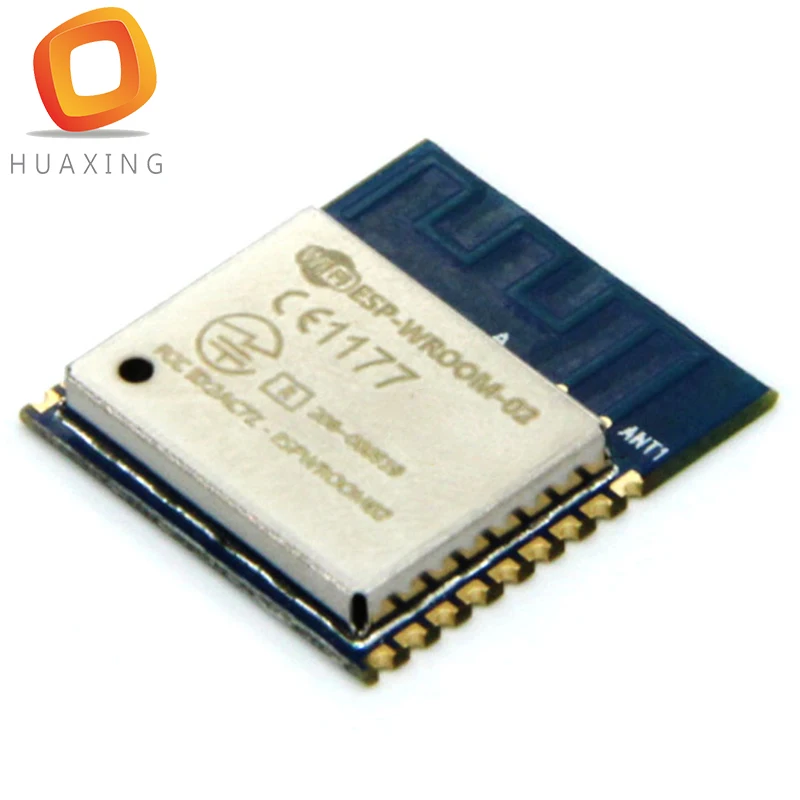

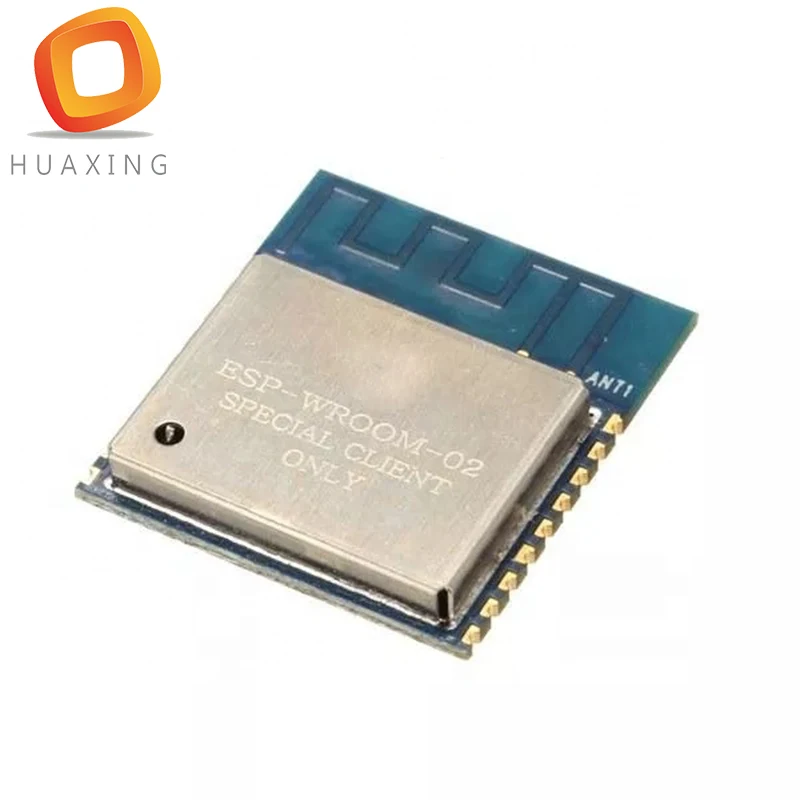

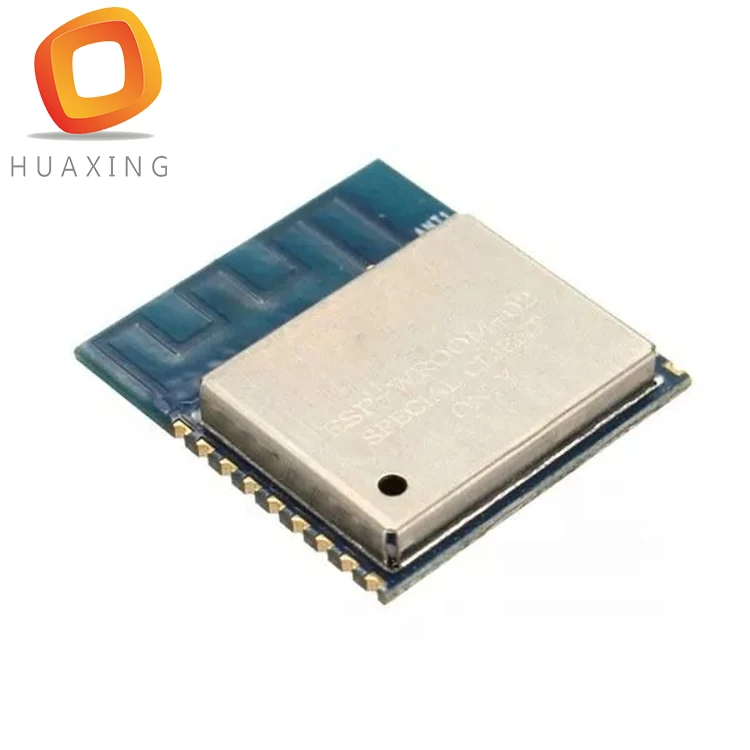

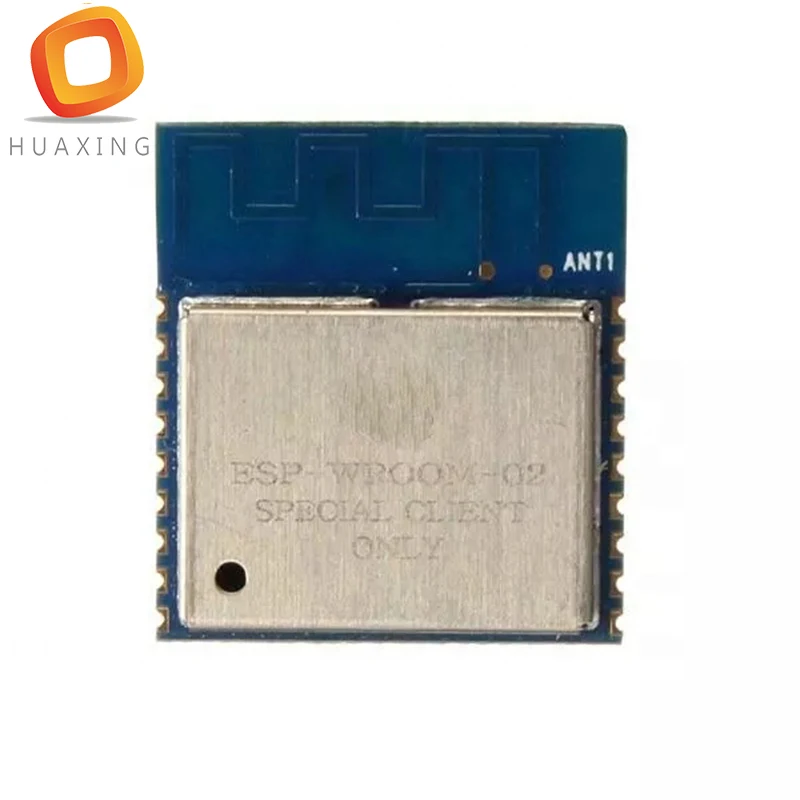

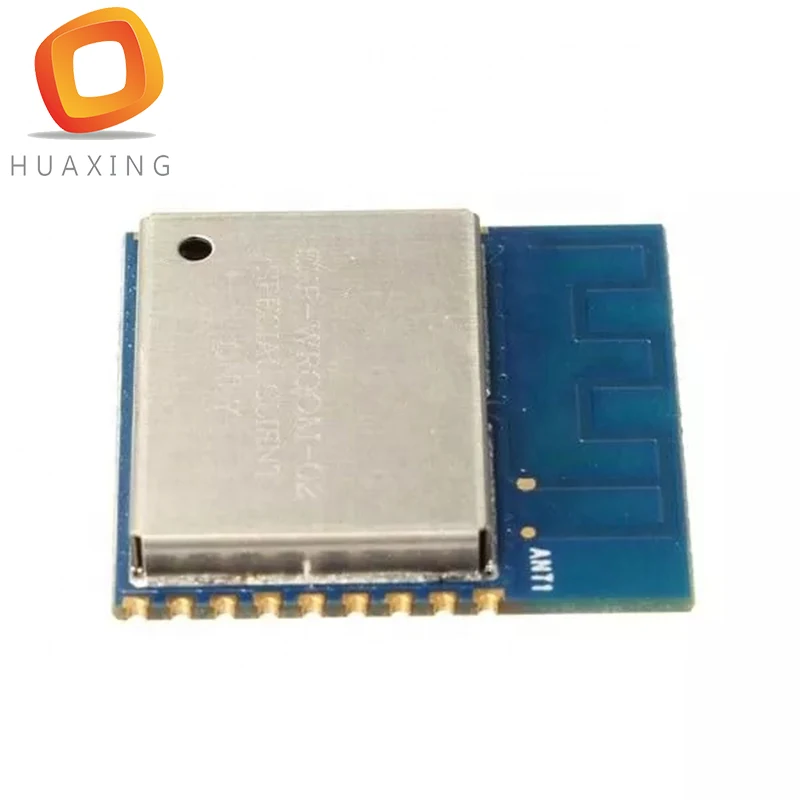

Comfortable New Design gps wifi module wifi dimmer module with fast delivery
- Category: >>>
- Supplier: Shenzhen Huaxing PCBA Limited
Share on (62236207602):
Product Overview
Description
Product Description
Categories | Items | Specifications |
Certification | RF certification | SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC) |
Wi-Fi certification | Wi-Fi Alliance | |
Green certification | RoHS/REACH | |
Test | Reliablity | HTOL/HTSL/uHAST/TCT/ESD |
Wi-Fi | Protocols | 802.11 b/g/n |
Frequency range | 2.4 GHz ~ 2.5 GHz | |
Hardware | Peripheral interface | UART/HSPI/I2C/I2S/IR Remote Control GPIO/PWM |
Operating voltage/ | 2.7 ~ 3.6V | |
Operating curren | Average: 80 mA | |
Minimum current delivered by | 500 mA | |
Recommended operating tem- | –40°C ~ +85°C | |

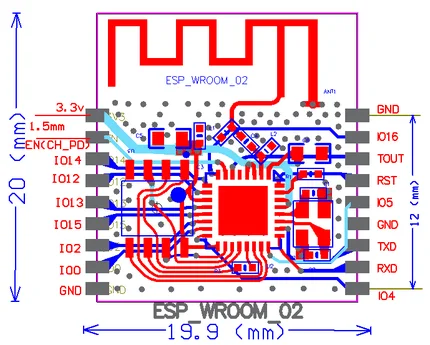

Package size | (18.00±0.10) mm x (20.00±0.10) mm x (2.80±0.10) mm |
· Flash is 32Mbit
·
· 802.11 b/g/n
·
· The built-in low-power 32 bit CPU: as an application processor
·
· The built-in 10 bit high precision ADC
·
· The built-in TCP/IP protocol stack
·
· The built-in TR switch, balun, LNA, power amplifier and matching network
·
· The built-in PLL, regulator and power management components
·
· Support antenna diversity
·
· STBC, MIMO 1x1, MIMO 2x1
·
· The protection of A-MPDU, interval polymerization and A-MSDU 0.4 s.
·
· WiFi @ 2.4 GHz, support WPA/WPA2 safe mode
·
· Support STA/AP/STA+AP working mode
·
· Support Smart Config function (including Android and iOS equipment)
·
· HSPI, UART, I2C, I2S IR, Remote Control, PWM, GPIO
·
· The current depth of sleep remains 10 uA, turn off current is less than 5 uA
·
· Within 2 ms wake up, connect and transfer data packets
·
· The output power of 802.11b mode + 20 dBm.
·
· Standby power consumption is less than 1 mW (DTIM3)
·
· The chip operating temperature range: -40 ~ C - 125 degrees
·
· By CE, FCC module, TELEC certification
