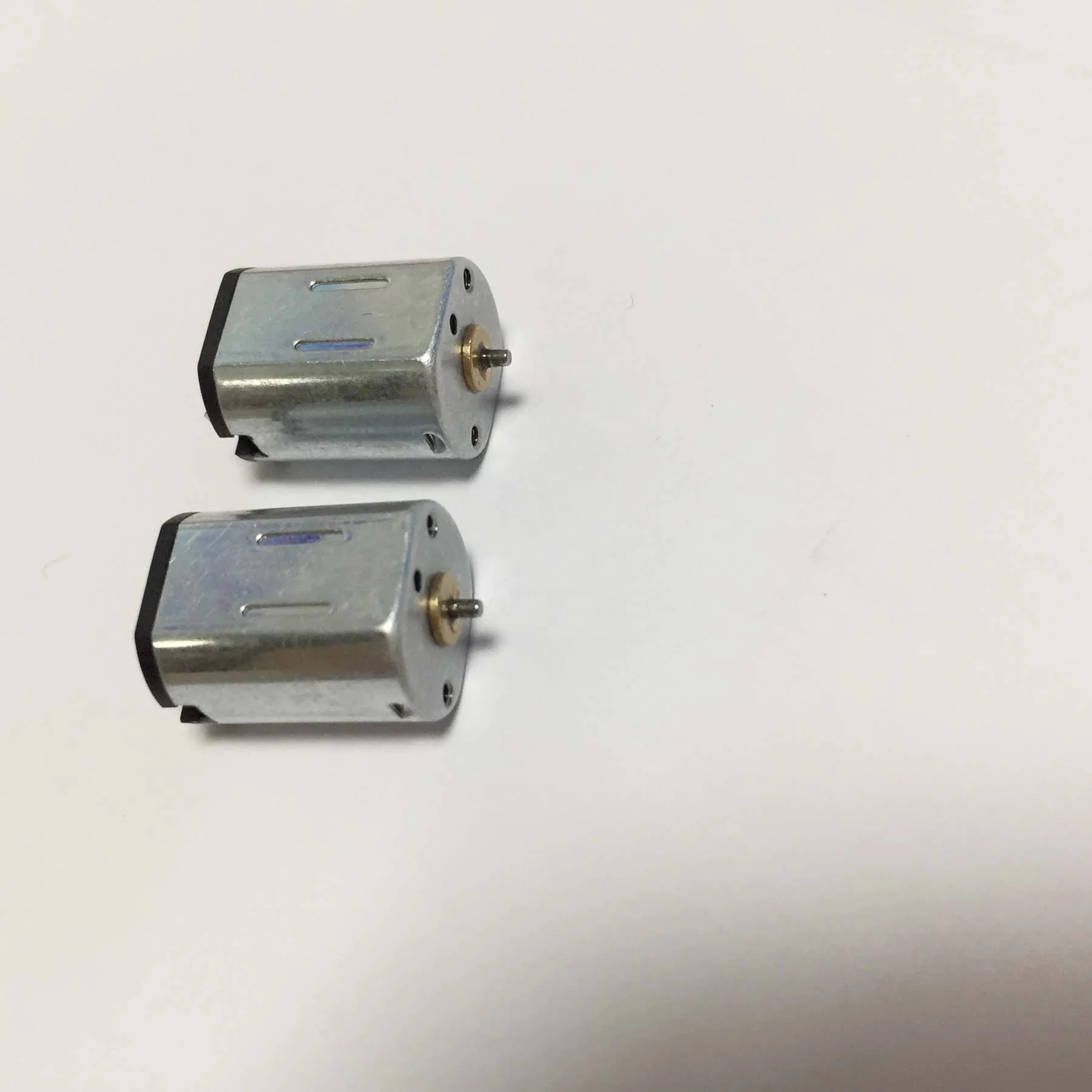

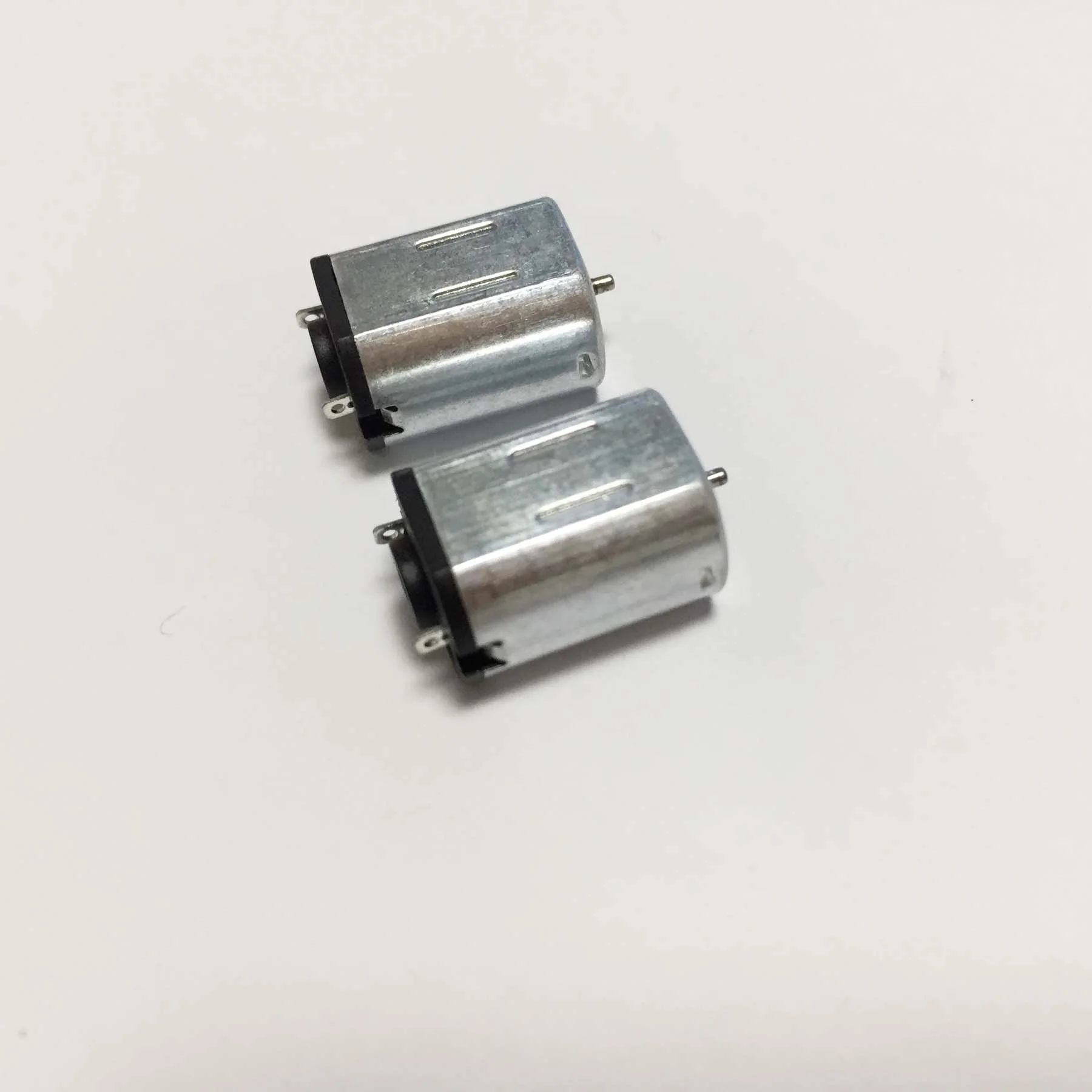

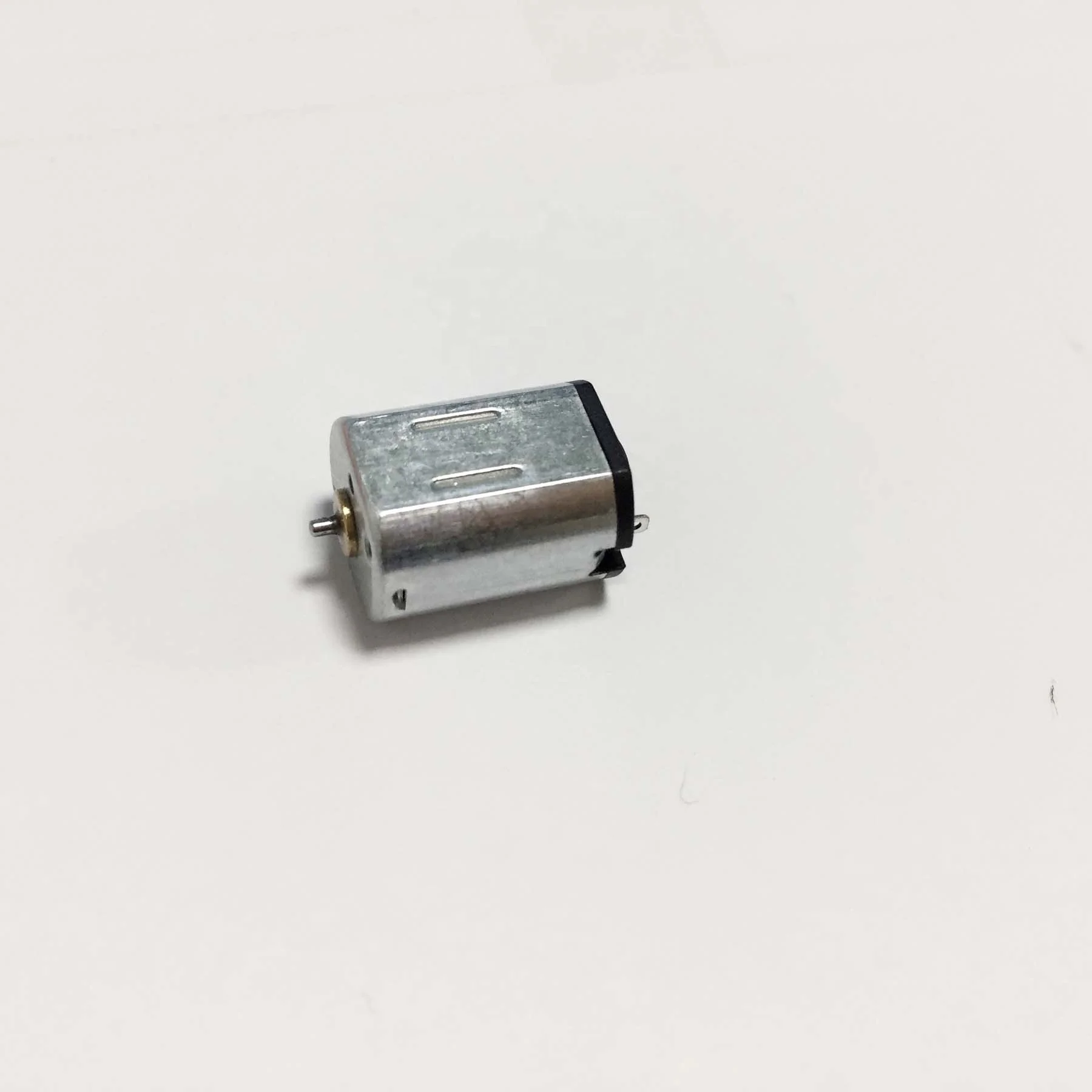

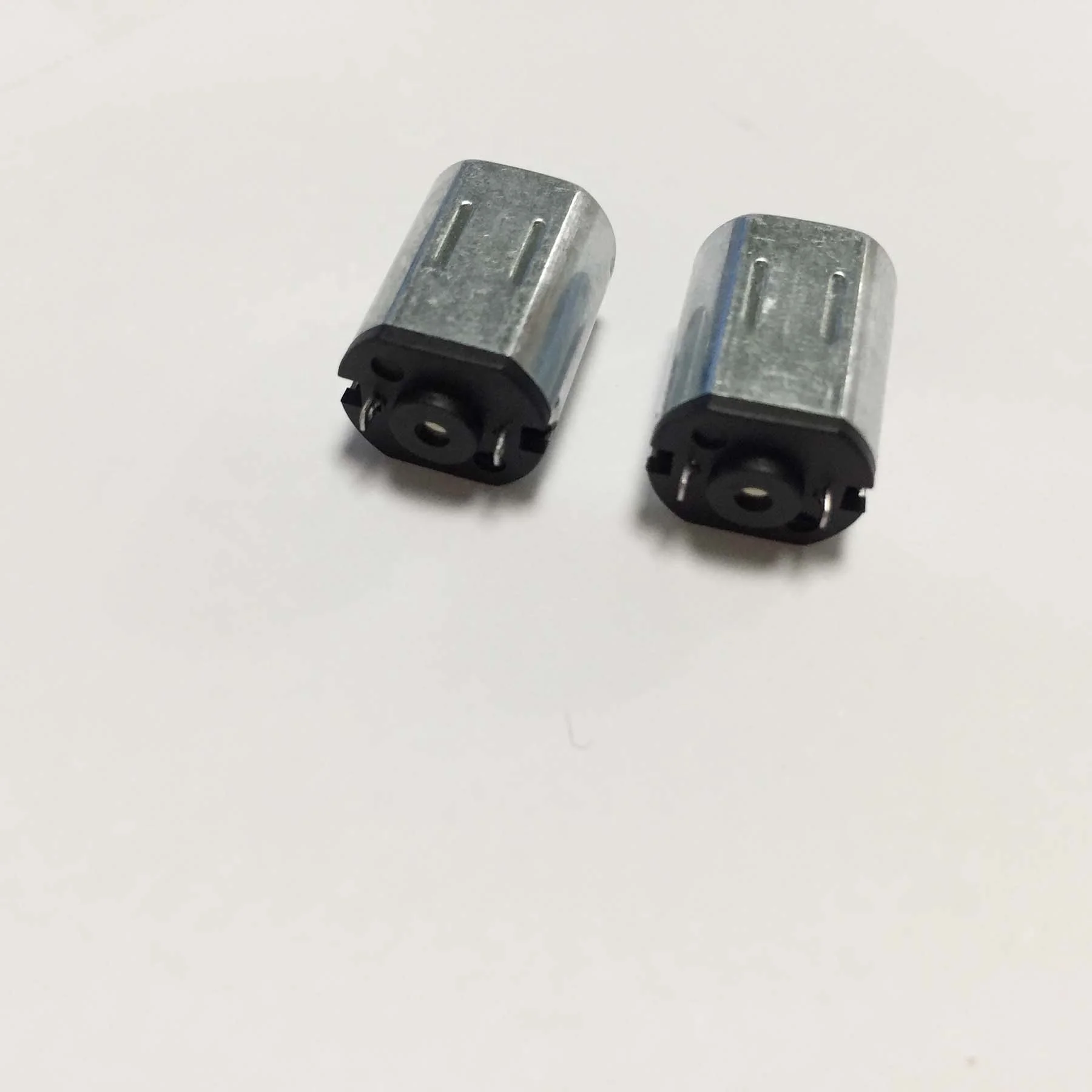

Finished product long life pmdc motor N20VA 3.7v extend shaft 2.4mm
- Category: >>>
- Supplier: Shenzhen Shengfulai Motor Technology Co. Ltd.
Share on (62236305706):
Product Overview
Description
Product Description
Motor characteristic example:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | Rated | STARTING | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |||
| N20VA-06350 | 4.5-7.5 | 6 | 1.5 | 7200 | 0.8 | 7200 | 0.065 | 0.02 | 2.0 | 0.15 | 0.07 | 7 | 0.2 |
Remarks:Other parameters: according to customer demand for design

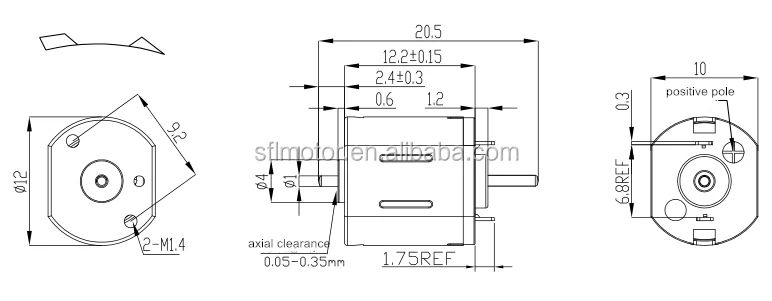

Appearance Size/ Unit: mm

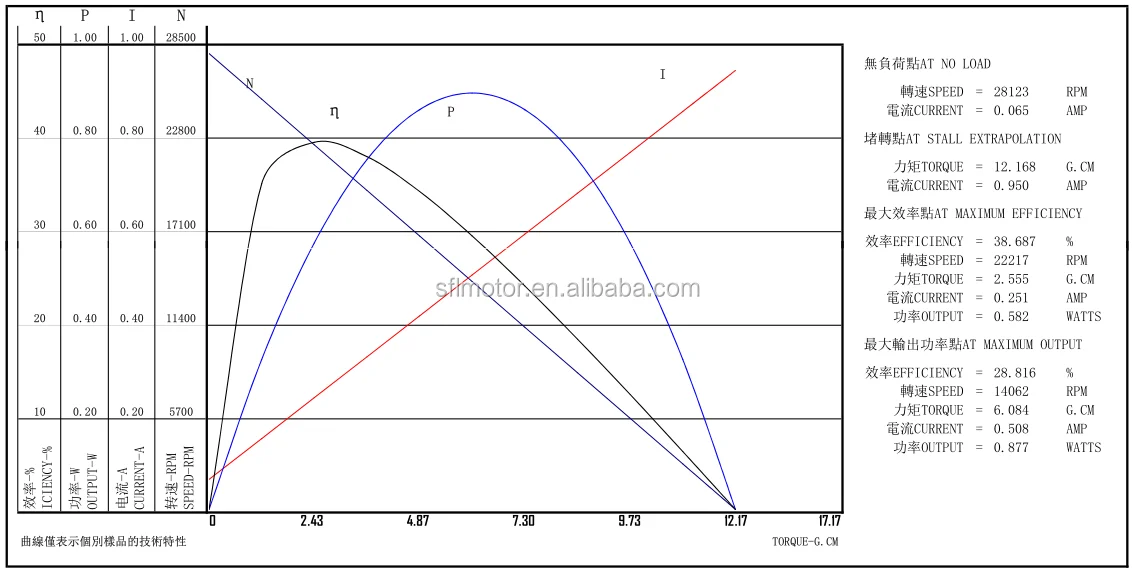

Motor Performance Curve and Characteristics:
Company Information
Our Services
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
