256X128 graphic lcd JHD256128-G03BSWD-G
US $5.72-$6.43
6 часов монохромный FSTN Тип 128*64 графические ЖК дисплеи модули
- Category: Graphic Display >>>
- Supplier: Shenzhen Enrich Electronics Co. Ltd.
Share on (62236360843):
Product Overview
Description

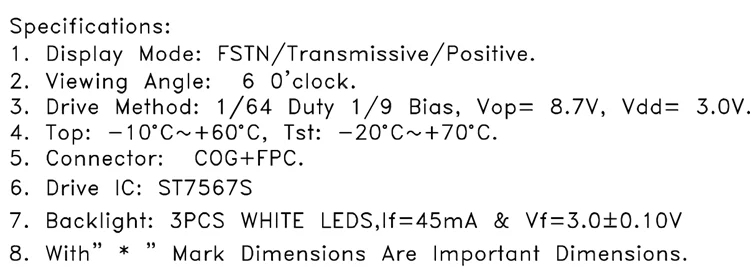

Product Description
| 1.Display mode: | FSTN/Transmissive/Positive |
| 2.Number of dots: | 128*64 |
| 3.Viewing angle: | 6 O'clock |
| 4.Drive Method: | 1/64 Duty 1/9 Bias |
| 5.Backlight: | White LED |
| 6.Connect: | COG+FPC |

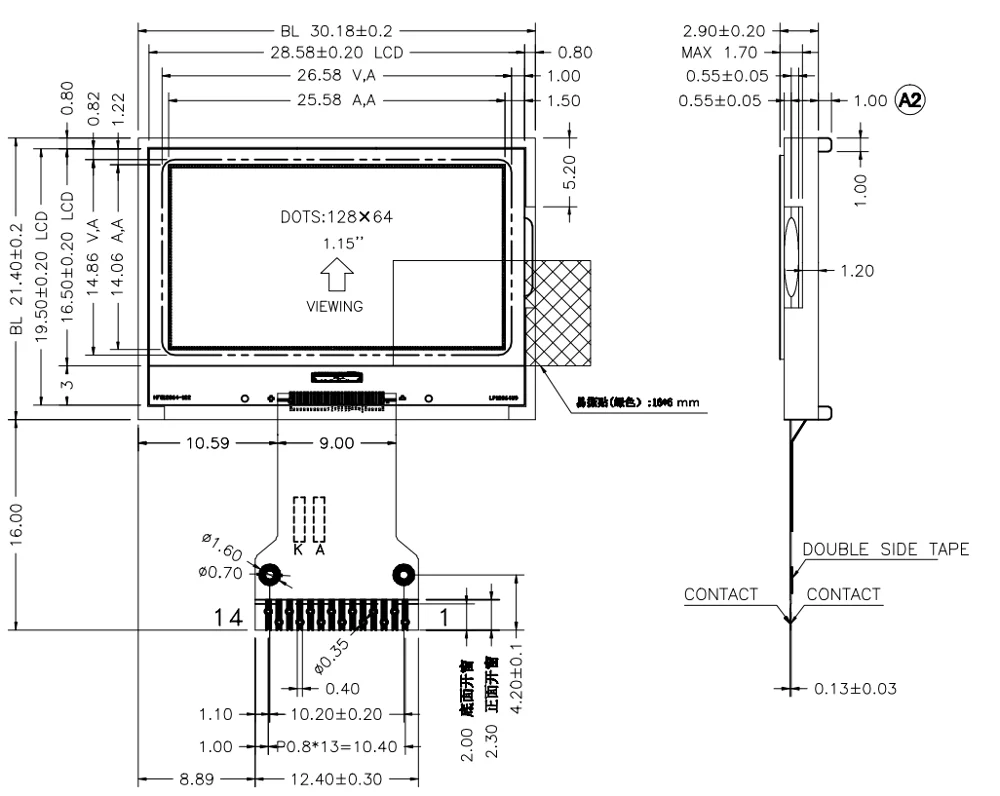

| 7.View area: | 26.58*14.86mm |
| 8.Active area: | 25.58*14.06mm |
| 9.Drive IC: | ST7567S |
CUSTOM PROCESS:
(PRICE OF CUSTOM LCDS WILL BE DEPENDS ON THE REQUIREMENT)
1.Firstly,discuss and confirm all of the details.
2.Payment for tooling process.
3.Formal drawing will be sent within 5 days and confirmed by your side.
4.15-20 days for tooling process.
5.Samples(5-20 pcs)will be sent to you to test and confirmed.
6.Place order for mass production after samples are confirmed.
